Fabco-Air pneumatic linear actuators
For over 60 years, Fabco-Air has provided best-in-class pneumatic products, solutions and support for a variety of industries, from automotive to semiconductor manufacturing. In addition to the Original Pancake cylinder, we design and deliver linear slides, air preparation units, valves and more with short lead times on both custom and off-the-shelf units.

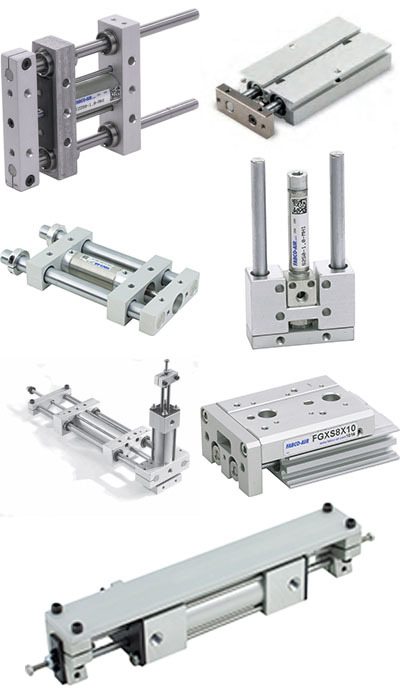

Pneumatic linear actuators, also called guided cylinders, pneumatic linear slides, convert compressed air into linear motion. The main difference with standard pneumatic cylinders is that linear actuators have at least 1 guiding rod, shaft or rail, enabling much higher linear movement precision and resistance to radial loads.
Fabco-Air offers a wide range of pneumatic linear actuators with standardized dimensions:- Inch bore sizes 5/16", 1/2", 9/16", 3/4", 1-1/16", 1-1/2", 1-1/8", 2", 2-1/2", 3", 3-1/4" and 4"
- Metric bore sizes 6mm, 8mm, 10mm, 12mm, 15mm, 16mm, 20mm, 25mm, 32mm and 40mm
- A variety of metric and inch strokes.
- Standard single or dual pistons for higher thrust force in a compact overall size
- Single or twin rods for added rigidity, allowing tighter mechanical tolerance, and mechanical durability.
- Cushions and bumpers to absorb end-of-stroke shock energy, reducing mechanical fatigue on the complete system.
You will find below our e-catalogue, with individual product information and datasheets for each available product. You can also contact us by email if the specific configuration you are looking is not available below.
