Features

Single-phase 100-120 V 50/60 Hz - 0.18 to 0.75 kW (ATV12....F1)
Single-phase 200-240 V 50/60 Hz - 0.18 to 2.2 kW (ATV12....M2)
3-phase 200-240 V 50/60 Hz - 0.18 to 4 kW (ATV12....M3)

Designed for integration

Advanced functions for increased productivity (integrated PID, multi-speed, etc.)
Easy communication with machine components via integrated universal Modbus serial link
Smaller footprint, as the baseplate mounted version dissipates heat into the machine frame

Highest quality

The factory settings, which provide a high quality drive from the very first time the power is turned on
The integration of Standard (U/f), Performance (sensorless flux vector control, or SVC) and Pump/Fan (quadratic profile Kn²) control profiles
High dynamic performance on acceleration and braking
Excellent speed regulation on machine load surges
Reduced noise and maintenance

Designed for easy fitting and wiring:

Easy access angles
Numerous, easy to identify markings
Fast detection and protection against motor current peaks (common in motor switching and catch on the fly applications)
Perfect integration of single-phase 240 V model into the electrical network thanks to its built-in EMC filter

Save time on wiring

Easy access to all the wiring and settings on the front panel
Easy access angles
Only one screwdriver needed for all connections

Save time on programming

A navigation button for easy menu access: configure your application parameters in just a few clicks
A three-level menu structure
Reference Mode: In local operation (On/Off buttons) and for speed adjustment and display
Monitoring Mode: For displaying parameters (create your own menu)
Configuration Mode: For configuring your applications and settings

Save time on commissioning

The drive can be configured before it is received (by the distributor), during storage (by the storekeeper) or during fitting before the electrical enclosure is powered up for the first time
No adjustment is required and there is a quick start guide for immediate setup
Ease of programming: Work in the language of your choice
SoMove software for configuring on PC and transferring the configuration via Bluetooth or using a cable
Simple configuration transfer via Simple or Multi-Loader

Benefits

Can be configured in its packaging
Quick start option requiring no adjustment
Intuitive navigation
Even more compact
Category 1 EMC filter
Local control on the front panel
Modbus serial link
Resistant to harsh operating environments

Applications

Commercial equipment

Handling (access barriers, rotating advertising billboards)
Health (medical beds, treadmills)
Food and beverage (commercial ovens, mills, kneading machines, mixers, etc.)

Small machines for industry

Material handling (small conveyors, etc.)
Packaging (small labelling machines, small bagging machines)
Pumping applications (suction pumps, centrifugal pumps, circulating pumps, etc.)
Machines fitted with fans (air or smoke extraction, plastic film making machines, ovens, boilers, etc.)

Other applications

Mobile machines and small devices equipped with a power socket
Applications which traditionally use other solutions (2-speed DC motors, mechanical drives, etc.)

Index

1. Variable speed drives

2. Accessories

3. Configuration tools

4. Remote display terminals and cordsets

5. Additional EMC input filters

6. Motor reactors/chokes

7. Ferrite suppressors

8. Dialog and configuration tools

9. Replacement fans

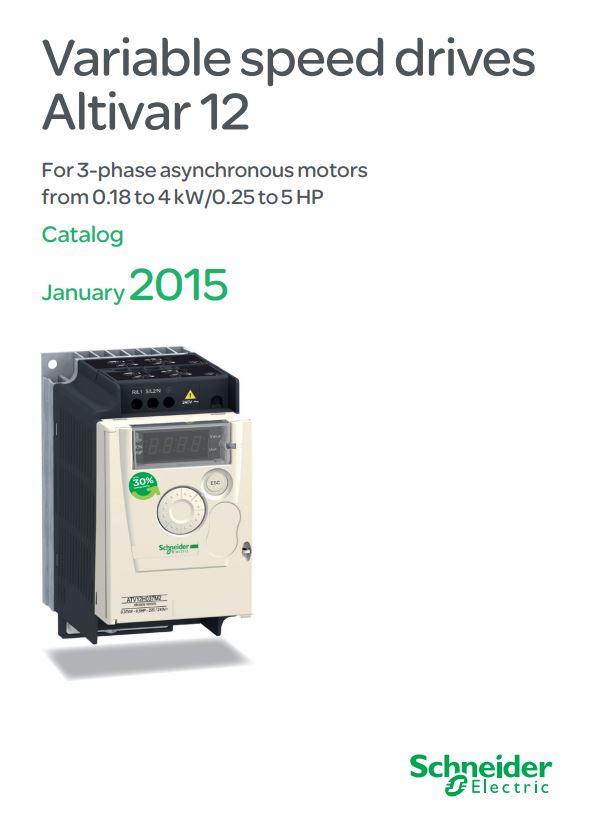

10. Additional documentation

1. Variable speed drives

(back to index)

Altivar 12 VSD
Power rating	0.18kW 0.25HP	0.37kW 0.5HP	0.55kW 0.75HP	0.75kW 1HP	1.5kW 2HP	2.2kW 3HP	3kW 4HP	4kW 5HP
Single-phase supply; 100-120Vac 50-60Hz; without integrated EMC filter	ATV12H018F1	ATV12H037F1	-	ATV12H075F1	-	-	-	-
Single-phase supply; 200-240Vac 50-60Hz; with integrated EMC filter	ATV12H018M2	ATV12H037M2	ATV12H055M2	ATV12H075M2	ATV12HU15M2	ATV12HU22M2	-	-
3-phase supply; 200-240Vac 50-60Hz; without integrated EMC filter	ATV12H018M3	ATV12H037M3	-	ATV12H075M3	ATV12HU15M3	ATV12HU22M3	ATV12HU30M3	ATV12HU40M3

2. Accessories

(back to index)

Accessories
Description	Fixing plates for fixing on 35 mm wide 5 rail		EMC conformity kits			+15 V/+24V voltage converter
Compatible with	ATV12....F1 0.18kW to 0.37kW, ATV12....M2 0.18kW to 0.75kW, ATV12....M3 0.18kW to 0.75kW	ATV12....F1 0.75kW, ATV12....M2 1.5kW to 2.2kW, ATV12....M3 1.5kW to 2.2kW	ATV12....F1 0.18kW to 0.37kW, ATV12....M2 0.18kW to 0.75kW, ATV12....M3 0.18kW to 0.75kW	ATV12....F1 0.75kW, ATV12....M2 1.5kW to 2.2kW, ATV12....M3 1.5kW to 2.2kW	ATV12....M3 3kW to 4kW	ATV12......
Products	VW3A9804	VW3A9805	VW3A9523	VW3A9524	VW3A9525	VW3A9317

3. Configuration tools

(back to index)

Configuration tools
Description	USB/RJ45 cable	Modbus/Uni-Telway-Bluetooth adaptor	USB - Bluetooth adaptor for PC	Simple Loader tool	Multi-Loader tool	Cordset for Multi-Loader tool
Characteristics	Length - 2.5m	-	-	-	-	-
Products	TCSMCNAM3M002P	TCSWAAC13FB	VW3A8115	VW3A8120	VW3A8121	VW3A8126

4. Remote display terminals and cordsets

(back to index)

Remote display terminals & cordsets
Description	Remote display terminals		Remote-fixing cordsets
Characteristics	IP54	IP65	Length - 1m	Length - 3m
Products	VW3A1006	VW3A1007	VW3A1104R10	VW3A1104R30

5. Additional EMC input filters

(back to index)

Additional EMC input filters
Compatible with	ATV12....F1 0.18kW to 0.37kW, ATV12....M2 0.18kW to 0.75kW	ATV12....F1 0.75kW, ATV12....M2 1.5kW to 2.2kW	ATV12....M3 0.18kW to 0.75kW	ATV12....M3 1.5kW to 2.2kW
Products	VW3A4416	VW3A4417	VW3A4418	VW3A4419

6. Motor reactors/chokes

(back to index)

Motor reactors/chokes
Compatible with	ATV12....F1 0.18kW to 0.37kW, ATV12....M2 0.18kW to 0.55kW, ATV12....M3 0.18kW to 0.37kW	ATV12....F1 0.75kW, ATV12....M2 0.75kW to 1.5kW, ATV12....M3 0.75kW to 1.5kW	ATV12....M2 2.2kW, ATV12....M3 2.2 to 3kW	ATV12....M3 4kW
Products	VW3A4551	VW3A4552	VW3A4553	VW3A4554

7. Ferrite suppressors for downstream contactor opening

(back to index)

Ferrite suppressors
Compatible with	ATV12....M2 0.18kW	ATV12....M2 0.37kW, ATV12....M3 0.18kW to 0.37kW	ATV12....M2 0.55kW to 2.2kW, ATV12....M3 0.75kW to 2.2kW
Products	VW3A31451	VW3A31452	VW3A31453

8. Dialog and configuration tools

(back to index)

Dialog and configuration tools
Description	Modbus splitter box	Cordsets for Modbus serial link			Modbus T-junction boxes		Modbus line terminator
Characteristics	-	Length - 0.3m	Length - 1m	Length - 3m	Length - 0.3m	Length - 1m	Resistance - 120ohm	Resistance - 150ohm
Characteristics	-	-	-	-	-	-	Capacitance - 1nf	-
Products	LU9GC3	VW3A8306R03	VW3A8306R10	VW3A8306R30	VW3A8306TF03	VW3A8306TF10	VW3A8306RC	VW3A8306R
