Mitsubishi Electric - Magnetic Contactors

MS-N Series contactors - 9-800A (AC-3)

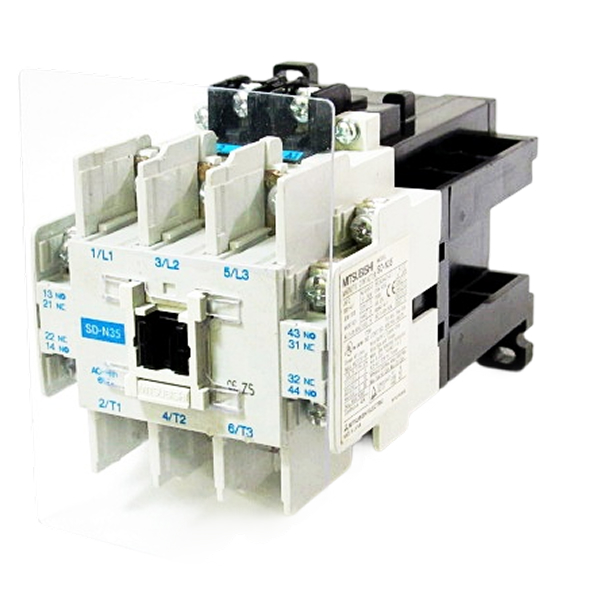

MS-N contactors

Substantial safety and functionality realized with a full lineup

Incorporation of CAN terminal for simple wiring
By adopting a CAN terminal, there is no need to remove the screws, and losing of the terminal screw is prevented by the integrated screw holder and terminal screw. The terminal screw is set in a plastic screw holder. When each pole is moved and the screw loosened, the screw is naturally set in the screw holder. This is Mitsubishi's original CAN terminal (Patented)

Unified design for N-Series
The design has been unified for the MS-N series. The front face of the product is a bright white color, making the inside of the panel brighter and providing a clean image

Arc space reduced to approximately one-third
By adopting the new extinguishing mechanism, the arc space has been reduced to approximately 1/3 (Mitsubishi comparison)

Compatible with International standards
Applicable standards : JIS, JEM, IEC, EN, VDE, BS
Approved standards : UL, CSA, LR, BV, NK, KR, TUV, GB

Index

1.1. MS-N contactors
AC coils
1.2. MS-N contactors
DC coils
2.1. Replacement coils
2.2. Replacement contact kits
2.3 Auxiliary contact blocks
2.4. Mechanical Interlocks
2.5 Surge Absorbers
2.6. Terminal cover for contactors
2.7 Pneumatic time delay modules
2.8 DC Interface modules
3. Additional documentation

1.Non-Reversing Contactors - Direct On Line (DOL)

1.1. AC coil control voltage

(back to index)

AC coil
Rating 4kW (400Vac)
5HP (480Vac)
9A (AC-3)		 5.5kW (400Vac)
7-1/2HP (480Vac)
12A (AC-3)		 7.5kW (400Vac)
10HP (480Vac)
16A (AC-3)		 11kW (400Vac)
10HP (480Vac)
22A (AC-3)		 15kW (400Vac)
20HP (480Vac)
30A (AC-3)		 7.5kW (400Vac)
10HP (480Vac)
17A (AC-3)		 18.5kW (400Vac)
25HP (480Vac)
40A (AC-3)		 15kW (400Vac)
15HP (480Vac)
32A (AC-3)		 18.5kW (400Vac)
20HP (480Vac)
40A (AC-3)		 22kW (400Vac)
30HP (480Vac)
50A (AC-3)		 30kW (400Vac)
40HP (480Vac)
65A (AC-3)		 45kW (400Vac)
50HP (480Vac)
85A		 55kW (400Vac)
75HP (480Vac)
105A		 60kW (400Vac)
75HP (480Vac)
120A		 75kW (400Vac)
100HP (480Vac)
150A		 90kW (400Vac)
100HP (480Vac)
180A		 132kW (400Vac)
150HP (480Vac)
250A		 160kW (400Vac)
200HP (480Vac)
300A		 220kW (400Vac)
300HP (480Vac)
400A		 330kW (400Vac)
400HP (480Vac)
630A		 440kW (400Vac)
600HP (480Vac)
800A
Aux. contacts
 1NO 1NC 1NO 1NC 1NO+1NC 2NO 1NO+1NC 2NO 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC
12Vac (50/Hz) S-N10 AC12V S-N10 AC12V(1b) S-N11 AC12V S-N11 AC12V(1b) S-N12 AC12V S-N12 AC12V(2a) S-N18 AC12V S-N20 AC12V S-N20 AC12V(2a) S-N21 AC12V S-N25 AC12V S-N28 AC12V S-N35 AC12V S-N38 AC12V S-N48 AC12V - - - - - - - - - - - -
24Vac (50/Hz) S-N10 AC24V S-N10 AC24V(1b) S-N11 AC24V S-N11 AC24V(1b) S-N12 AC24V S-N12 AC24V(2a) S-N18 AC24V S-N20 AC24V S-N20 AC24V(2a) S-N21 AC24V S-N25 AC24V S-N28 AC24V S-N35 AC24V S-N38 AC24V S-N48 AC24V S-N50 AC24V S-N65 AC24V S-N80 AC24V S-N95 AC24V S-N125 AC24V S-N150 AC24V - - - - - S-N800 AC24V
48Vac (50/Hz) S-N10 AC48V S-N10 AC48V(1b) S-N11 AC48V S-N11 AC48V(1b) S-N12 AC48V S-N12 AC48V(2a) S-N18 AC48V S-N20 AC48V S-N20 AC48V(2a) S-N21 AC48V S-N25 AC48V S-N28 AC48V S-N35 AC48V S-N38 AC48V S-N48 AC48V S-N50 AC48V S-N65 AC48V S-N80 AC48V S-N95 AC48V S-N125 AC48V S-N150 AC48V - - - - - S-N800 AC48V
120Vac (60Hz) S-N10 120Vac S-N10 120Vac(1b) S-N11 120Vac S-N11 120Vac(1b) S-N12 120Vac S-N12 120Vac(2a) S-N18 120Vac S-N20 120Vac S-N20 120Vac(2a) S-N21 120Vac S-N25 120Vac S-N28 120Vac S-N35 120Vac S-N38 120Vac S-N48 120Vac S-N50 120Vac S-N65 120Vac S-N80 120Vac S-N95 120Vac S-N125 120Vac S-N150 120Vac S-N180 120Vac S-N220 120Vac S-N300 120Vac S-N400 120Vac S-N600 120Vac S-N800 120Vac
200-240Vac
(50Hz/60Hz)		 S-N10 AC200V S-N10 AC200V(1b) S-N11 AC200V S-N11 AC200V(1b) S-N12 AC200V S-N12 AC200V(2a) S-N18 AC200V S-N20 AC200V S-N20 AC200V(2a) S-N21 AC200V S-N25 AC200V S-N28 AC200V S-N35 AC200V S-N38 AC200V S-N48 AC200V S-N50 AC200V S-N65 AC200V S-N80 AC200V S-N95 AC200V S-N125 AC200V S-N150 AC200V S-N180 AC200V S-N220 AC200V S-N300 AC200V S-N400 AC200V S-N600 AC200V S-N800 AC200V
380-440Vac
(50/60Hz)		 S-N10 AC400V S-N10 AC400V(1b) S-N11 AC400V S-N11 AC400V(1b) S-N12 AC400V S-N12 AC400V(2a) S-N18 AC400V S-N20 AC400V S-N20 AC400V(2a) S-N21 AC400V S-N25 AC400V S-N28 AC400V S-N35 AC400V S-N38 AC400V S-N48 AC400V S-N50 AC400V S-N65 AC400V S-N80 AC400V S-N95 AC400V S-N125 AC400V S-N150 AC400V S-N180 AC400V S-N220 AC400V S-N300 AC400V S-N400 AC400V S-N600 AC400V S-N800 AC400V
415Vac (50Hz)
480Vac (60Hz)		 S-N10 480Vac S-N10 480Vac(1b) S-N11 480Vac S-N11 480Vac(1b) S-N12 480Vac S-N12 480Vac(2a) S-N18 480Vac S-N20 480Vac S-N20 480Vac(2a) S-N21 480Vac S-N25 480Vac S-N28 480Vac S-N35 480Vac S-N38 480Vac S-N48 480Vac S-N50 480Vac S-N65 480Vac S-N80 480Vac S-N95 480Vac S-N125 480Vac S-N150 480Vac S-N180 480Vac S-N220 480Vac S-N300 480Vac S-N400 480Vac S-N600 480Vac S-N800 480Vac

1.2. DC coil control voltage

(back to index)

DC coil
Rating 5.5kW
7.5HP
12A		 11kW
15HP
22A		 18.5kW
25HP
40A		 22kW
30HP
50A		 30kW
40HP
65A		 45kW
60HP
85A		 55kW
60HP
105A		 60kW
80HP
120A		 75kW
100HP
150A		 132kW
180HP
250A		 160kW
210HP
300A		 220kW
300HP
400A		 330kW
450HP
630A		 440kW
600HP
800A
Aux. contacts 1NO 1NC 1NO+1NC 2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC
12Vdc SD-N11 DC12V SD-N11 DC12V(1b) SD-N12 DC12V SD-N12 DC12V(2a) SD-N21 DC12V SD-N35 DC12V SD-N50 DC12V SD-N65 DC12V SD-N80 DC12V SD-N95 DC12V SD-N125 DC12V SD-N150 DC12V SD-N220 DC12V SD-N300 DC12V SD-N400 DC12V SD-N600 DC12V SD-N800 DC12V
24Vdc SD-N11 DC24V SD-N11 DC24V(1b) SD-N12 DC24V SD-N12 DC24V(2a) SD-N21 DC24V SD-N35 DC24 SD-N50 DC24V SD-N65 DC24V SD-N80 DC24V SD-N95 DC24V SD-N125 DC24V SD-N150 DC24V SD-N220 DC24V SD-N300 DC24V SD-N400 DC24V SD-N600 DC24V SD-N800 DC24V
48Vdc SD-N11 DC48V SD-N11 DC48V(1b) SD-N12 DC48V SD-N12 DC48V(2a) SD-N21 DC48V SD-N35 DC48V SD-N50 DC48V SD-N65 DC48V SD-N80 DC48V SD-N95 DC48V SD-N125 DC48V SD-N150 DC48V SD-N220 DC48V SD-N300 DC48V SD-N400 DC48V SD-N600 DC48V SD-N800 DC48V
110Vdc SD-N11 DC110V SD-N11 DC110V(1b) SD-N12 DC110V SD-N12 DC110V(2a) SD-N21 DC110V SD-N35 DC110V SD-N50 DC110V SD-N65 DC110V SD-N80 DC110V SD-N95 DC110V SD-N125 DC110V SD-N150 DC110V SD-N220 DC110V SD-N300 DC110V SD-N400 DC110V SD-N600 DC110V SD-N800 DC110V
220Vdc SD-N11 DC220V SD-N11 DC220V(1b) SD-N12 DC220V SD-N12 DC220V(2a) SD-N21 DC220V SD-N35 DC220V SD-N50 DC220V SD-N65 DC220V SD-N80 DC220V SD-N95 DC220V SD-N125 DC220V SD-N150 DC220V SD-N220 DC220V SD-N300 DC220V SD-N400 DC220V SD-N600 DC220V SD-N800 DC220V

Contactors options

The above AC and DC contactors are available with a combination of:
  • finger protection cover ("CX" suffix). These covers are also availble to purchase as separate components (see here)
  • pre-assembled surge absorber ("SA" suffix). These surge absorber are also available as separate components (see here)






2.2 Replacement contact kits


(back to index)

Replacement main/power contacts for contactors

Kit consists of 3 moving contacts and 6 stationary contacts (include springs and spring supports also)
Applicable for AC
operated coil		 S-N10(CX)
S-N11(CX)
S-N12(CX)		 S-N18(CX) S-N20(CX)
S-N21(CX)		 S-N25(CX) S-N35(CX) S-N50(CX) S-N65(CX) S-N80 S-N95 S-N125 S-N150 S-N180 S-N220 S-N300 S-N400 S-N600 S-N800
BH719N300 BH729N300 BH739N300 BH749N300 BH749N303 BH759N300 BH759N301 BH769N300 BH769N301 BH779N300 BH789N300 BH799N300 BH799N301 BH609N300 BH609N301 BH619N300 BH619N301
Applicable for DC
operated coil		 SD-N11(CX)
SD-N12(CX)		 SD-N21(CX) SD-N35(CX) SD-N50 SD-N65 SD-N80 SD-N95 SD-N125 SD-N150 SD-N220 SD-N300 SD-N400 SD-N600 SD-N800
BH719N300 BH739N300 BH749N301 BH759N302 BH759N303 BH769N302 BH769N303 BH779N301 BH789N300 BH799N301 BH609N300 BH609N301 BH619N300 BH619N301


Replacement auxiliary contacts for contactors

Kits consists of 1 bifurcated
moving contact and
2 stationary contacts		 Kits consists of 2 bifurcated
moving contact and
4 stationary contacts		 Kits consists of 4 bifurcated
moving contact and
8 stationary contacts
For AC operated
contactors		 S-N10(CX)
S-N11(CX)		 S-N12(CX) S-N20(CX) S-N21(CX)
S-N35(CX)		 S-N50(CX)
S-N65(CX)
S-N80
S-N95		 S-N125
For DC operated
contactors		 SD-N11(CX) SD-N12(CX) - SD-N21(CX)
SD-N35(CX)		 SD-N50(CX)
SD-N65(CX)
SD-N80
SD-N95		 SD-N125
Contact
arrangement		 1NO 1NC 1NO+1NC 1NO+1NC 2NO+2NC 2NO+2NC 2NO+2NC
BH719N310 BH719N311 BH729N310 BH739N310 BH739N311 BH539N315 BH579N312

2.3. Auxiliary contact blocks


(back to index)

Front clip-on mounting auxiliary contact blocks

- maximum 1 pc of auxiliary contact block can be mounted
For AC-operated
contactors		 S-N10(CX)
S-N11(CX)
S-N12(CX)		 S-N20(CX)
S-N21(CX)
S-N25(CX)		 S-N35(CX)
S-N18(CX)
S-N28(CX)		 S-N38(CX)
S-N48(CX)
S-N50(CX)		 S-N65(CX)
For DC-operated
contactors		 SD-N11(CX)
SD-N12(CX)
SD-N21(CX)
SD-N35(CX)
SD-N50
SD-N65
Contact
arrangement		 2NO 1NO+1NC 2NC 4NO 3NO+1NC 2NO+2NC
UN-AX2(CX)2A UN-AX2(CX)1A1B UN-AX2(CX)2B UN-AX4(CX)4A UN-AX4(CX)3A1B UN-AX4(CX)2A2B


Side clip-on mounting auxiliary contact blocks

- maximum 2 pcs of auxiliary contact block can be mounted
For AC-operated
contactors		 S-N10(CX)
S-N11(CX)
S-N20(CX)
S-N21(CX)
S-N25(CX)
S-N35(CX)
S-N50(CX)
S-N65(CX)		 S-N80
S-N95
S-N125		 S-N150
S-N220
S-N300
S-N400
S-N180		 S-N600
S-N800
For DC-operated
contactors		 SD-N11(CX)
SD-N21(CX)
SD-N35(CX)
SD-N50
SD-N60		 SD-N80
SD-N95
SD-N125		 SD-N150
SD-N220
SD-N300
SD-N400
SD-N180		 SD-N600
SD-N800
Contact
arrangement		 1NO+1NC 1NO+1NC 1NO+1NC 2NO+2NC
UN-AX11(CX) UN-AX80 UN-AX150 UN-AX600

2.4 Mechanical interlocks

(back to index)

For
AC-operated
contactors		 S-N10(CX)
S-N11(CX)		 S-N20(CX)
S-N21(CX)
S-N25(CX)
S-N35(CX)
S-N50(CX)
S-N65(CX)		 S-N80
S-N95
S-N125		 S-N150 S-N180
S-N220
S-N300
S-N400
For
DC-operated
contactors		 SD-N11(CX) SD-N21(CX)
SD-N35(CX)
SD-N50
SD-N65		 SD-N80
SD-N95
SD-N125		 SD-N150 SD-N220
SD-N300
SD-N400
UN-ML11(CX) UN-ML21 UN-ML80 UN-ML150 UN-ML220

2.5 Surge Absorbers


(back to index)

Varistor type Varistor type with operating indicator (LED) Varistor and CR type CR type
For AC-operated
contactors		 S-N10 to S-N48 S-N10 to S-N48 S-N10 to S-N48 S-N10 to S-N48
For DC-operated
contactors		 SD-N11
SD-N12
SD-N21
SD-N35		 SD-N11
SD-N12
SD-N21
SD-N35		 SD-N11
SD-N12
SD-N21
SD-N35		 SD-N11
SD-N12
SD-N21
SD-N35
Control voltage AC24-240V
DC24-250V		 AC200-480V AC50-240V
DC60-250V		 AC24-50V
DC24-60V		 AC100-240V
DC100-250V		 AC24-240V DC24-250V
UN-SA21 AC200V UN-SA21 AC400V UN-SA22 AC200V UN-SA25 AC48V UN-SA25 AC200V UN-SA23 AC200V UN-SA13 DC200V


2.6 Terminal cover for contactors


(back to index)

For AC-operated
contactors		 S-N50
S-N65		 S-N80
S-N95		 S-N125 S-N150 S-N180
S-N220		 S-N300
S-N400
For DC-operated
contactors		 SD-N50, SD-N65 SD-N80, SD-N95 SD-N125 SD-N150 SD-N220 SD-N300, SD-N400
UN-CZ500 UN-CZ800 UN-CZ1250 UN-CZ1500 UN-CZ2200 UN-CZ3000

2.7 Pneumatic time delay modules


(back to index)

For AC-operated
contactors		 S-N10(CX)
S-N11(CX)
S-N12(CX)
S-N18(CX)
For DC-operated
contactors		 SD-N11(CX)
SD-N12(CX)
UN-TR4AN(CX)

2.8. DC Interfaces modules


(back to index)

Direct mounting contactor
 Separate mounting
Applicable for AC operated coils S-N10(CX) to S-N48(CX) S-N50, S-N65 S-N80 to S-N400
Solid state output UN-SY21(CX) UN-SY31 UN-SY11
Relay output UN-SY22(CX) UN-SY32 UN-SY12

3. Documentation

(back to index)

Click to download MS-N catalogue
