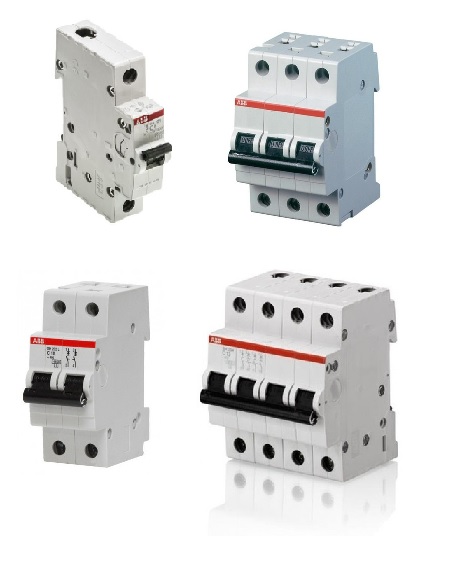

Miniature circuit breakers - MCBs Compact Home SH200 range


MCBs - SH200
Features
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms,
the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for
short circuit protection. They are available in different characteristics (B,C) configurations (1P, 2P, 3P,4P, 1P+N, and 3P+N)
breaking capacities (up to 6kA at 230/400Vac) and rated currents (up to 40A).

Standard
Benefits
Applications: buildings, residential, and commercial


Index


1. B curve
characteristic
2. C curve
characteristic


1. B curve characteristic


(back to index)▲

Icn=6kA 6A 10A 13A 16A 20A 25A 32A 40A
1-pole 2CDS211001R0065 2CDS211001R0105 2CDS211001R0135 2CDS211001R0165 2CDS211001R0205 2CDS211001R0255 2CDS211001R0325 2CDS211001R0405
2-pole 2CDS212001R0065 2CDS212001R0105 2CDS212001R0135 2CDS212001R0165 2CDS212001R0205 2CDS212001R0255 2CDS212001R0325 2CDS212001R0405
3-pole 2CDS213001R0065 2CDS213001R0105 2CDS213001R0135 2CDS213001R0165 2CDS213001R0205 2CDS213001R0255 2CDS213001R0325 2CDS213001R0405
4-pole 2CDS214001R0065 2CDS214001R0105 2CDS214001R0135 2CDS214001R0165 2CDS214001R0205 2CDS214001R0255 2CDS214001R0325 2CDS214001R0405

Icn=6kA 6A 10A 13A 16A 20A 25A 32A 40A
1P+N 2CDS211103R0065 2CDS211103R0105 2CDS211103R0135 2CDS211103R0165 2CDS211103R0205 2CDS211103R0255 2CDS211103R0325 2CDS211103R0405
3P+N 2CDS213103R0065 2CDS213103R0105 2CDS213103R0135 2CDS213103R0165 2CDS213103R0205 2CDS213103R0255 2CDS213103R0325 2CDS213103R0405


2. C curve characteristic


(back to index)▲

Icn=6kA 6A 8A 10A 13A 16A 20A 25A 32A 40A
1-pole 2CDS211001R0064 2CDS211001R0084 2CDS211001R0104 2CDS211001R0134 2CDS211001R0164 2CDS211001R0204 2CDS211001R0254 2CDS211001R0324 2CDS211001R0404
2-pole 2CDS212001R0064 2CDS212001R0084 2CDS212001R0104 2CDS212001R0134 2CDS212001R0164 2CDS212001R0204 2CDS212001R0254 2CDS212001R0324 2CDS212001R0404
3-pole 2CDS213001R0064 2CDS213001R0084 2CDS213001R0104 2CDS213001R0134 2CDS213001R0164 2CDS213001R0204 2CDS213001R0254 2CDS213001R0324 2CDS213001R0404
4-pole 2CDS214001R0064 2CDS214001R0084 2CDS214001R0104 2CDS214001R0134 2CDS214001R0164 2CDS214001R0204 2CDS214001R0254 2CDS214001R0324 2CDS214001R0404

Icn=6kA 6A 8A 10A 13A 16A 20A 25A 32A 40A
1P+N 2CDS211103R0064 2CDS211103R0084 2CDS211103R0104 2CDS211103R0134 2CDS211103R0164 2CDS211103R0204 2CDS211103R0254 2CDS211103R0324 2CDS211103R0404
3P+N 2CDS213103R0064 2CDS213103R0084 2CDS213103R0104 2CDS213103R0134 2CDS213103R0164 2CDS213103R0204 2CDS213103R0254 2CDS213103R0324 2CDS213103R0404
