Masterpact NW Air Circuit Breakers

The market leading Air Circuit Breaker, for high performance applications:

Rated performance: 800-6300A, Icu=ics=42-150kA at 220/415Vac
Voltage rating: up to 1000 V
Only 2 frame sizes and 2 pole pitches (800-4000A and 4000-6300 A), to simplify mechanical assembly in switchboard
3- and 4-pole versions
5 types of Micrologic control units with added measurement, energy-management and network-analysis functions
Earth leakage protection built into the control unit
Wide range of common auxiliaries and accessories interchangeable on site
Compliance with international standards IEC 60947-1 and 2, IEC 68230 for type 2 tropicalization, UL489 and ANSI/UL1066, as well as CCC and GOST certifications
Compliance with specifications of marine classification bodies: Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.

Benefits

The worldwide benchmark for high-current circuit-breakers, known everywhere
The Masterpact NW circuit-breaker range features optimised dimensions: not only is it more compact, but even better two sizes are sufficient to cover requirements from 4000 to 6300 A.
At a time when installations are becoming increasingly complex, Masterpact NW enables standardisation of electrical switchboards by providing unrivalled simplicity in terms of both choice and installation.

Applications

Protection, measurement and communication of LV electrical networks
Generator protection
Motor protection
DC networks
Protection of installations in highly corrosive industrial environments
Mines (special 1000V version of NW)
Navy
Earthing switch
High short-circuit current limiting (ultra-rapid Masterpact UR)

Index

1. Select your Micrologic electronic trip unit

5. Additional documentation

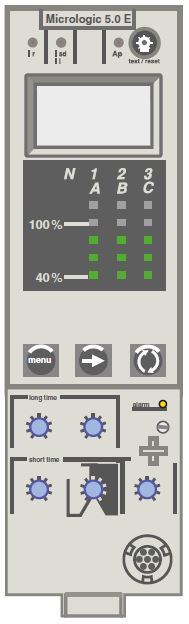

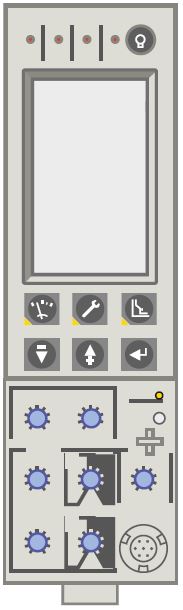

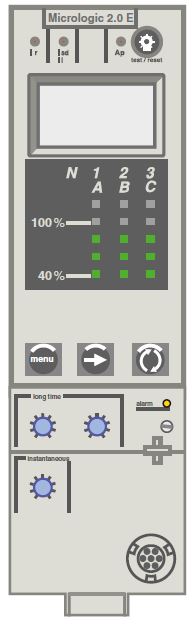

1. Selection the Micrologic trip unit for your ACB

(back to index)

	Type of trip unit
		ANSI code	Micrologic 2.0E (replacing 2.0A)	Micrologic 5.0E (replacing 5.0A)	Micrologic 6.0E	Micrologic 7.0P
		ANSI code
Protection functions	L (Long time)	49	⬤	⬤	⬤	⬤
	S (Short time)	51		⬤	⬤	⬤
	I (Instantaneous)	50	⬤	⬤	⬤	⬤
	G (Ground fault)	51G			⬤	⬤
	E (Earth leakage)	51N				⬤
	Advanced protections	46 (Current/Voltage unbalance) 47 (Phase sequence) 27 (Undervoltage) 59 (Overvoltage) 32P (Reverse Power) 81L/81H (Under-/Over-frequency)				⬤
Metering functions	Current		⬤	⬤	⬤	⬤
	Ground fault current				⬤
	Residual current (IΔn)					⬤
	Voltage (U, V)		⬤	⬤	⬤	⬤
	Power (kW, kVA, kVAr)		⬤	⬤	⬤	⬤
	Frequency (Hz)					⬤
	Power factor (cos φ)					⬤
	THDi, THDu					⬤

2. 3-pole (3P) Masterpact ACBs

2.1. Fixed type ACBs - Ics=Icu=65kA - 3 poles (3P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H1(65kA) 3P Fixed M2.0E	NW10 H1(65kA) 3P Fixed M2.0E	NW12 H1(65kA) 3P Fixed M2.0E	NW16 H1(65kA) 3P Fixed M2.0E	NW20 H1(65kA) 3P Fixed M2.0E	NW25 H1(65kA) 3P Fixed M2.0E	NW32 H1(65kA) 3P Fixed M2.0E	NW40 H1(65kA) 3P Fixed M2.0E	-	-	-
5.0E	NW08 H1(65kA) 3P Fixed M5.0E	NW10 H1(65kA) 3P Fixed M5.0E	NW12 H1(65kA) 3P Fixed M5.0E	NW16 H1(65kA) 3P Fixed M5.0E	NW20 H1(65kA) 3P Fixed M5.0E	NW25 H1(65kA) 3P Fixed M5.0E	NW32 H1(65kA) 3P Fixed M5.0E	NW40 H1(65kA) 3P Fixed M5.0E	-	-	-
6.0E	NW08 H1(65kA) 3P Fixed M6.0E	NW10 H1(65kA) 3P Fixed M6.0E	NW12 H1(65kA) 3P Fixed M6.0E	NW16 H1(65kA) 3P Fixed M6.0E	NW20 H1(65kA) 3P Fixed M6.0E	NW25 H1(65kA) 3P Fixed M6.0E	NW32 H1(65kA) 3P Fixed M6.0E	NW40 H1(65kA) 3P Fixed M6.0E	-	-	-
7.0P	NW08 H1(65kA) 3P Fixed M7.0P	NW10 H1(65kA) 3P Fixed M7.0P	NW12 H1(65kA) 3P Fixed M7.0P	NW16 H1(65kA) 3P Fixed M7.0P	NW20 H1(65kA) 3P Fixed M7.0P	NW25 H1(65kA) 3P Fixed M7.0P	NW32 H1(65kA) 3P Fixed M7.0P	NW40 H1(65kA) 3P Fixed M7.0P	-	-	-

2.2. Fixed type ACBs - Ics=Icu=100kA - 3 poles (3P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H2(100kA) 3P Fixed M2.0E	NW10 H2(100kA) 3P Fixed M2.0E	NW12 H2(100kA) 3P Fixed M2.0E	NW16 H2(100kA) 3P Fixed M2.0E	NW20 H2(100kA) 3P Fixed M2.0E	NW25 H2(100kA) 3P Fixed M2.0E	NW32 H2(100kA) 3P Fixed M2.0E	NW40 H2(100kA) 3P Fixed M2.0E	NW4b H2(100kA) 3P Fixed M2.0E	NW50 H2(100kA) 3P Fixed M2.0E	NW63 H2(100kA) 3P Fixed M2.0E
5.0E	NW08 H2(100kA) 3P Fixed M5.0E	NW10 H2(100kA) 3P Fixed M5.0E	NW12 H2(100kA) 3P Fixed M5.0E	NW16 H2(100kA) 3P Fixed M5.0E	NW20 H2(100kA) 3P Fixed M5.0E	NW25 H2(100kA) 3P Fixed M5.0E	NW32 H2(100kA) 3P Fixed M5.0E	NW40 H2(100kA) 3P Fixed M5.0E	NW4b H2(100kA) 3P Fixed M5.0E	NW50 H2(100kA) 3P Fixed M5.0E	NW63 H2(100kA) 3P Fixed M5.0E
6.0E	NW08 H2(100kA) 3P Fixed M6.0E	NW10 H2(100kA) 3P Fixed M6.0E	NW12 H2(100kA) 3P Fixed M6.0E	NW16 H2(100kA) 3P Fixed M6.0E	NW20 H2(100kA) 3P Fixed M6.0E	NW25 H2(100kA) 3P Fixed M6.0E	NW32 H2(100kA) 3P Fixed M6.0E	NW40 H2(100kA) 3P Fixed M6.0E	NW4b H2(100kA) 3P Fixed M6.0E	NW50 H2(100kA) 3P Fixed M6.0E	NW63 H2(100kA) 3P Fixed M6.0E
7.0P	NW08 H2(100kA) 3P Fixed M7.0P	NW10 H2(100kA) 3P Fixed M7.0P	NW12 H2(100kA) 3P Fixed M7.0P	NW16 H2(100kA) 3P Fixed M7.0P	NW20 H2(100kA) 3P Fixed M7.0P	NW25 H2(100kA) 3P Fixed M7.0P	NW32 H2(100kA) 3P Fixed M7.0P	NW40 H2(100kA) 3P Fixed M7.0P	-	-	-

2.3. Fixed type ACBs - Ics=Icu=150kA - 3 poles (3P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 L1(150kA) 3P Fixed M2.0E	NW10 L1(150kA) 3P Fixed M2.0E	NW12 L1(150kA) 3P Fixed M2.0E	NW16 L1(150kA) 3P Fixed M2.0E	NW20 L1(150kA) 3P Fixed M2.0E	NW25 L1(150kA) 3P Fixed M2.0E	NW32 L1(150kA) 3P Fixed M2.0E	NW40 L1(150kA) 3P Fixed M2.0E	NW4b H2(150kA) 3P Fixed M2.0E	NW50 H2(150kA) 3P Fixed M2.0E	NW63 H2(150kA) 3P Fixed M2.0E
5.0E	NW08 L1(150kA) 3P Fixed M5.0E	NW10 L1(150kA) 3P Fixed M5.0E	NW12 L1(150kA) 3P Fixed M5.0E	NW16 L1(150kA) 3P Fixed M5.0E	NW20 L1(150kA) 3P Fixed M5.0E	NW25 L1(150kA) 3P Fixed M5.0E	NW32 L1(150kA) 3P Fixed M5.0E	NW40 L1(150kA) 3P Fixed M5.0E	NW4b H2(150kA) 3P Fixed M5.0E	NW50 H2(150kA) 3P Fixed M5.0E	NW63 H2(150kA) 3P Fixed M5.0E
6.0E	NW08 L1(150kA) 3P Fixed M6.0E	NW10 L1(150kA) 3P Fixed M6.0E	NW12 L1(150kA) 3P Fixed M6.0E	NW16 L1(150kA) 3P Fixed M6.0E	NW20 L1(150kA) 3P Fixed M6.0E	NW25 L1(150kA) 3P Fixed M6.0E	NW32 L1(150kA) 3P Fixed M6.0E	NW40 L1(150kA) 3P Fixed M6.0E	NW4b H2(150kA) 3P Fixed M6.0E	NW50 H2(150kA) 3P Fixed M6.0E	NW63 H2(150kA) 3P Fixed M6.0E
7.0P	NW08 L1(150kA) 3P Fixed M7.0P	NW10 L1(150kA) 3P Fixed M7.0P	NW12 L1(150kA) 3P Fixed M7.0P	NW16 L1(150kA) 3P Fixed M7.0P	NW20 L1(150kA) 3P Fixed M7.0P	NW25 L1(150kA) 3P Fixed M7.0P	NW32 L1(150kA) 3P Fixed M7.0P	NW40 L1(150kA) 3P Fixed M7.0P	-	-	-

2.4. Drawout / Withdrawable type ACBs - Ics=Icu=65kA - 3 poles (3P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H1(65kA) 3P Drawout M2.0E	NW10 H1(65kA) 3P Drawout M2.0E	NW12 H1(65kA) 3P Drawout M2.0E	NW16 H1(65kA) 3P Drawout M2.0E	NW20 H1(65kA) 3P Drawout M2.0E	NW25 H1(65kA) 3P Drawout M2.0E	NW32 H1(65kA) 3P Drawout M2.0E	NW40 H1(65kA) 3P Drawout M2.0E	-	-	-
5.0E	NW08 H1(65kA) 3P Drawout M5.0E	NW10 H1(65kA) 3P Drawout M5.0E	NW12 H1(65kA) 3P Drawout M5.0E	NW16 H1(65kA) 3P Drawout M5.0E	NW20 H1(65kA) 3P Drawout M5.0E	NW25 H1(65kA) 3P Drawout M5.0E	NW32 H1(65kA) 3P Drawout M5.0E	NW40 H1(65kA) 3P Drawout M5.0E	-	-	-
6.0E	NW08 H1(65kA) 3P Drawout M6.0E	NW10 H1(65kA) 3P Drawout M6.0E	NW12 H1(65kA) 3P Drawout M6.0E	NW16 H1(65kA) 3P Drawout M6.0E	NW20 H1(65kA) 3P Drawout M6.0E	NW25 H1(65kA) 3P Drawout M6.0E	NW32 H1(65kA) 3P Drawout M6.0E	NW40 H1(65kA) 3P Drawout M6.0E	-	-	-
7.0P	NW08 H1(65kA) 3P Drawout M7.0P	NW10 H1(65kA) 3P Drawout M7.0P	NW12 H1(65kA) 3P Drawout M7.0P	NW16 H1(65kA) 3P Drawout M7.0P	NW20 H1(65kA) 3P Drawout M7.0P	NW25 H1(65kA) 3P Drawout M7.0P	NW32 H1(65kA) 3P Drawout M7.0P	NW40 H1(65kA) 3P Drawout M7.0P	-	-	-

2.5. Drawout / Withdrawable type ACBs - Ics=Icu=100kA - 3 poles (3P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H2(100kA) 3P Drawout M2.0E	NW10 H2(100kA) 3P Drawout M2.0E	NW12 H2(100kA) 3P Drawout M2.0E	NW16 H2(100kA) 3P Drawout M2.0E	NW20 H2(100kA) 3P Drawout M2.0E	NW25 H2(100kA) 3P Drawout M2.0E	NW32 H2(100kA) 3P Drawout M2.0E	NW40 H2(100kA) 3P Drawout M2.0E	NW4b H1(100kA) 3P Drawout M2.0E	NW50 H1(100kA) 3P Drawout M2.0E	NW63 H1(100kA) 3P Drawout M2.0E
5.0E	NW08 H2(100kA) 3P Drawout M5.0E	NW10 H2(100kA) 3P Drawout M5.0E	NW12 H2(100kA) 3P Drawout M5.0E	NW16 H2(100kA) 3P Drawout M5.0E	NW20 H2(100kA) 3P Drawout M5.0E	NW25 H2(100kA) 3P Drawout M5.0E	NW32 H2(100kA) 3P Drawout M5.0E	NW40 H2(100kA) 3P Drawout M5.0E	NW4b H1(100kA) 3P Drawout M5.0E	NW50 H1(100kA) 3P Drawout M5.0E	NW63 H1(100kA) 3P Drawout M5.0E
6.0E	NW08 H2(100kA) 3P Drawout M6.0E	NW10 H2(100kA) 3P Drawout M6.0E	NW12 H2(100kA) 3P Drawout M6.0E	NW16 H2(100kA) 3P Drawout M6.0E	NW20 H2(100kA) 3P Drawout M6.0E	NW25 H2(100kA) 3P Drawout M6.0E	NW32 H2(100kA) 3P Drawout M6.0E	NW40 H2(100kA) 3P Drawout M6.0E	NW4b H1(100kA) 3P Drawout M6.0E	NW50 H1(100kA) 3P Drawout M6.0E	NW63 H1(100kA) 3P Drawout M6.0E
7.0P	NW08 H2(100kA) 3P Drawout M7.0P	NW10 H2(100kA) 3P Drawout M7.0P	NW12 H2(100kA) 3P Drawout M7.0P	NW16 H2(100kA) 3P Drawout M7.0P	NW20 H2(100kA) 3P Drawout M7.0P	NW25 H2(100kA) 3P Drawout M7.0P	NW32 H2(100kA) 3P Drawout M7.0P	NW40 H2(100kA) 3P Drawout M7.0P	-	-	-

2.6. Drawout / Withdrawable type ACBs - Ics=Icu=150kA - 3 poles (3P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 L1(150kA) 3P Drawout M2.0E	NW10 L1(150kA) 3P Drawout M2.0E	NW12 L1(150kA) 3P Drawout M2.0E	NW16 L1(150kA) 3P Drawout M2.0E	NW20 L1(150kA) 3P Drawout M2.0E	NW25 L1(150kA) 3P Drawout M2.0E	NW32 L1(150kA) 3P Drawout M2.0E	NW40 L1(150kA) 3P Drawout M2.0E	NW4b H2(150kA) 3P Drawout M2.0E	NW50 H2(150kA) 3P Drawout M2.0E	NW63 H2(150kA) 3P Drawout M2.0E
5.0E	NW08 L1(150kA) 3P Drawout M5.0E	NW10 L1(150kA) 3P Drawout M5.0E	NW12 L1(150kA) 3P Drawout M5.0E	NW16 L1(150kA) 3P Drawout M5.0E	NW20 L1(150kA) 3P Drawout M5.0E	NW25 L1(150kA) 3P Drawout M5.0E	NW32 L1(150kA) 3P Drawout M5.0E	NW40 L1(150kA) 3P Drawout M5.0E	NW4b H2(150kA) 3P Drawout M5.0E	NW50 H2(150kA) 3P Drawout M5.0E	NW63 H2(150kA) 3P Drawout M5.0E
6.0E	NW08 L1(150kA) 3P Drawout M6.0E	NW10 L1(150kA) 3P Drawout M6.0E	NW12 L1(150kA) 3P Drawout M6.0E	NW16 L1(150kA) 3P Drawout M6.0E	NW20 L1(150kA) 3P Drawout M6.0E	NW25 L1(150kA) 3P Drawout M6.0E	NW32 L1(150kA) 3P Drawout M6.0E	NW40 L1(150kA) 3P Drawout M6.0E	NW4b H2(150kA) 3P Drawout M6.0E	NW50 H2(150kA) 3P Drawout M6.0E	NW63 H2(150kA) 3P Drawout M6.0E
7.0P	NW08 L1(150kA) 3P Drawout M7.0P	NW10 L1(150kA) 3P Drawout M7.0P	NW12 L1(150kA) 3P Drawout M7.0P	NW16 L1(150kA) 3P Drawout M7.0P	NW20 L1(150kA) 3P Drawout M7.0P	NW25 L1(150kA) 3P Drawout M7.0P	NW32 L1(150kA) 3P Drawout M7.0P	NW40 L1(150kA) 3P Drawout M6.0E	-	-	-

3. 4-pole (4P) Masterpact ACBs

3.1. Fixed type ACBs - Ics=Icu=65kA - 4 poles (4P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H1(65kA) 4P Fixed M2.0E	NW10 H1(65kA) 4P Fixed M2.0E	NW12 H1(65kA) 4P Fixed M2.0E	NW16 H1(65kA) 4P Fixed M2.0E	NW20 H1(65kA) 4P Fixed M2.0E	NW25 H1(65kA) 4P Fixed M2.0E	NW32 H1(65kA) 4P Fixed M2.0E	NW40 H1(65kA) 4P Fixed M2.0E	-	-	-
5.0E	NW08 H1(65kA) 4P Fixed M5.0E	NW10 H1(65kA) 4P Fixed M5.0E	NW12 H1(65kA) 4P Fixed M5.0E	NW16 H1(65kA) 4P Fixed M5.0E	NW20 H1(65kA) 4P Fixed M5.0E	NW25 H1(65kA) 4P Fixed M5.0E	NW32 H1(65kA) 4P Fixed M5.0E	NW40 H1(65kA) 4P Fixed M5.0E	-	-	-
6.0E	NW08 H1(65kA) 4P Fixed M6.0E	NW10 H1(65kA) 4P Fixed M6.0E	NW12 H1(65kA) 4P Fixed M6.0E	NW16 H1(65kA) 4P Fixed M6.0E	NW20 H1(65kA) 4P Fixed M6.0E	NW25 H1(65kA) 4P Fixed M6.0E	NW32 H1(65kA) 4P Fixed M6.0E	NW40 H1(65kA) 4P Fixed M6.0E	-	-	-
7.0P	NW08 H1(65kA) 4P Fixed M7.0P	NW10 H1(65kA) 4P Fixed M7.0P	NW12 H1(65kA) 4P Fixed M7.0P	NW16 H1(65kA) 4P Fixed M7.0P	NW20 H1(65kA) 4P Fixed M7.0P	NW25 H1(65kA) 4P Fixed M7.0P	NW32 H1(65kA) 4P Fixed M7.0P	NW40 H1(65kA) 4P Fixed M7.0P	-	-	-

3.2. Fixed type ACBs - Ics=Icu=100kA - 4 poles (4P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H2(100kA) 4P Fixed M2.0E	NW10 H2(100kA) 4P Fixed M2.0E	NW12 H2(100kA) 4P Fixed M2.0E	NW16 H2(100kA) 4P Fixed M2.0E	NW20 H2(100kA) 4P Fixed M2.0E	NW25 H2(100kA) 4P Fixed M2.0E	NW32 H2(100kA) 4P Fixed M2.0E	NW40 H2(100kA) 4P Fixed M2.0E	NW4b H1(100kA) 4P Fixed M2.0E	NW50 H1(100kA) 4P Fixed M2.0E	NW63 H1(100kA) 4P Fixed M2.0E
5.0E	NW08 H2(100kA) 4P Fixed M5.0E	NW10 H2(100kA) 4P Fixed M5.0E	NW12 H2(100kA) 4P Fixed M5.0E	NW16 H2(100kA) 4P Fixed M5.0E	NW20 H2(100kA) 4P Fixed M5.0E	NW25 H2(100kA) 4P Fixed M5.0E	NW32 H2(100kA) 4P Fixed M5.0E	NW40 H2(100kA) 4P Fixed M5.0E	NW4b H1(100kA) 4P Fixed M5.0E	NW50 H1(100kA) 4P Fixed M5.0E	NW63 H1(100kA) 4P Fixed M5.0E
6.0E	NW08 H2(100kA) 4P Fixed M6.0E	NW10 H2(100kA) 4P Fixed M6.0E	NW12 H2(100kA) 4P Fixed M6.0E	NW16 H2(100kA) 4P Fixed M6.0E	NW20 H2(100kA) 4P Fixed M6.0E	NW25 H2(100kA) 4P Fixed M6.0E	NW32 H2(100kA) 4P Fixed M6.0E	NW40 H2(100kA) 4P Fixed M6.0E	NW4b H1(100kA) 4P Fixed M6.0E	NW50 H1(100kA) 4P Fixed M6.0E	NW63 H1(100kA) 4P Fixed M6.0E
7.0P	NW08 H2(100kA) 4P Fixed M7.0P	NW10 H2(100kA) 4P Fixed M7.0P	NW12 H2(100kA) 4P Fixed M7.0P	NW16 H2(100kA) 4P Fixed M7.0P	NW20 H2(100kA) 4P Fixed M7.0P	NW25 H2(100kA) 4P Fixed M7.0P	NW32 H2(100kA) 4P Fixed M7.0P	NW40 H2(100kA) 4P Fixed M7.0P	-	-	-

3.3. Fixed type ACBs - Ics=Icu=150kA - 4 poles (4P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 L1(150kA) 4P Fixed M2.0E	NW10 L1(150kA) 4P Fixed M2.0E	NW12 L1(150kA) 4P Fixed M2.0E	NW16 L1(150kA) 4P Fixed M2.0E	NW20 L1(150kA) 4P Fixed M2.0E	NW25 L1(150kA) 4P Fixed M2.0E	NW32 L1(150kA) 4P Fixed M2.0E	NW40 L1(150kA) 4P Fixed M2.0E	NW4b H2(150kA) 4P Fixed M2.0E	NW50 H2(150kA) 4P Fixed M2.0E	NW63 H2(150kA) 4P Fixed M2.0E
5.0E	NW08 L1(150kA) 4P Fixed M5.0E	NW10 L1(150kA) 4P Fixed M5.0E	NW12 L1(150kA) 4P Fixed M5.0E	NW16 L1(150kA) 4P Fixed M5.0E	NW20 L1(150kA) 4P Fixed M5.0E	NW25 L1(150kA) 4P Fixed M5.0E	NW32 L1(150kA) 4P Fixed M5.0E	NW40 L1(150kA) 4P Fixed M5.0E	NW4b H2(150kA) 4P Fixed M5.0E	NW50 H2(150kA) 4P Fixed M5.0E	NW63 H2(150kA) 4P Fixed M5.0E
6.0E	NW08 L1(150kA) 4P Fixed M6.0E	NW10 L1(150kA) 4P Fixed M6.0E	NW12 L1(150kA) 4P Fixed M6.0E	NW16 L1(150kA) 4P Fixed M6.0E	NW20 L1(150kA) 4P Fixed M6.0E	NW25 L1(150kA) 4P Fixed M6.0E	NW32 L1(150kA) 4P Fixed M6.0E	NW40 L1(150kA) 4P Fixed M6.0E	NW4b H2(150kA) 4P Fixed M6.0E	NW50 H2(150kA) 4P Fixed M6.0E	NW63 H2(150kA) 4P Fixed M6.0E
7.0P	NW08 L1(150kA) 4P Fixed M7.0P	NW10 L1(150kA) 4P Fixed M7.0P	NW12 L1(150kA) 4P Fixed M7.0P	NW16 L1(150kA) 4P Fixed M7.0P	NW20 L1(150kA) 4P Fixed M7.0P	NW25 L1(150kA) 4P Fixed M7.0P	NW32 L1(150kA) 4P Fixed M7.0P	NW40 L1(150kA) 4P Fixed M7.0P	-	-	-

3.4. Drawout / Withdrawable type ACBs - Ics=Icu=65kA - 4 poles (4P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H1(65kA) 4P Drawout M2.0E	NW10 H1(65kA) 4P Drawout M2.0E	NW12 H1(65kA) 4P Drawout M2.0E	NW16 H1(65kA) 4P Drawout M2.0E	NW20 H1(65kA) 4P Drawout M2.0E	NW25 H1(65kA) 4P Drawout M2.0E	NW32 H1(65kA) 4P Drawout M2.0E	NW40 H1(65kA) 4P Drawout M2.0E	-	-	-
5.0E	NW08 H1(65kA) 4P Drawout M5.0E	NW10 H1(65kA) 4P Drawout M5.0E	NW12 H1(65kA) 4P Drawout M5.0E	NW16 H1(65kA) 4P Drawout M5.0E	NW20 H1(65kA) 4P Drawout M5.0E	NW25 H1(65kA) 4P Drawout M5.0E	NW32 H1(65kA) 4P Drawout M5.0E	NW40 H1(65kA) 4P Drawout M5.0E	-	-	-
6.0E	NW08 H1(65kA) 4P Drawout M6.0E	NW10 H1(65kA) 4P Drawout M6.0E	NW12 H1(65kA) 4P Drawout M6.0E	NW16 H1(65kA) 4P Drawout M6.0E	NW20 H1(65kA) 4P Drawout M6.0E	NW25 H1(65kA) 4P Drawout M6.0E	NW32 H1(65kA) 4P Drawout M6.0E	NW40 H1(65kA) 4P Drawout M6.0E	-	-	-
7.0P	NW08 H1(65kA) 4P Drawout M7.0P	NW10 H1(65kA) 4P Drawout M7.0P	NW12 H1(65kA) 4P Drawout M7.0P	NW16 H1(65kA) 4P Drawout M7.0P	NW20 H1(65kA) 4P Drawout M7.0P	NW25 H1(65kA) 4P Drawout M7.0P	NW32 H1(65kA) 4P Drawout M7.0P	NW40 H1(65kA) 4P Drawout M7.0P	-	-	-

3.5. Drawout / Withdrawable type ACBs - Ics=Icu=100kA - 4 poles (4P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 H2(100kA) 4P drawout M2.0E	NW10 H2(100kA) 4P drawout M2.0E	NW12 H2(100kA) 4P drawout M2.0E	NW16 H2(100kA) 4P drawout M2.0E	NW20 H2(100kA) 4P drawout M2.0E	NW25 H2(100kA) 4P drawout M2.0E	NW32 H2(100kA) 4P drawout M2.0E	NW40 H2(100kA) 4P drawout M2.0E	NW4b H1(100kA) 4P drawout M2.0E	NW50 H1(100kA) 4P drawout M2.0E	NW63 H1(100kA) 4P drawout M2.0E
5.0E	NW08 H2(100kA) 4P drawout M5.0E	NW10 H2(100kA) 4P drawout M5.0E	NW12 H2(100kA) 4P drawout M5.0E	NW16 H2(100kA) 4P drawout M5.0E	NW20 H2(100kA) 4P drawout M5.0E	NW25 H2(100kA) 4P drawout M5.0E	NW32 H2(100kA) 4P drawout M5.0E	NW40 H2(100kA) 4P drawout M5.0E	NW4b H1(100kA) 4P drawout M5.0E	NW50 H1(100kA) 4P drawout M5.0E	NW63 H1(100kA) 4P drawout M5.0E
6.0E	NW08 H2(100kA) 4P drawout M6.0E	NW10 H2(100kA) 4P drawout M6.0E	NW12 H2(100kA) 4P drawout M6.0E	NW16 H2(100kA) 4P drawout M6.0E	NW20 H2(100kA) 4P drawout M6.0E	NW25 H2(100kA) 4P drawout M6.0E	NW32 H2(100kA) 4P drawout M6.0E	NW40 H2(100kA) 4P drawout M6.0E	NW4b H1(100kA) 4P drawout M6.0E	NW50 H1(100kA) 4P drawout M6.0E	NW63 H1(100kA) 4P drawout M6.0E
7.0P	NW08 H2(100kA) 4P drawout M7.0P	NW10 H2(100kA) 4P drawout M7.0P	NW12 H2(100kA) 4P drawout M7.0P	NW16 H2(100kA) 4P drawout M7.0P	NW20 H2(100kA) 4P drawout M7.0P	NW25 H2(100kA) 4P drawout M7.0P	NW32 H2(100kA) 4P drawout M7.0P	NW40 H2(100kA) 4P drawout M7.0P	-	-	-

3.6. Drawout / Withdrawable type ACBs - Ics=Icu=150kA - 4 poles (4P)

(back to index)

	Single pole ACBs								Double pole ACBs

Micrologic	800A	1000A	1250A	1600A	2000A	2500A	3200A	4000A	4000A	5000A	6300A
2.0E	NW08 L1(150kA) 4P Drawout M2.0E	NW10 L1(150kA) 4P Drawout M2.0E	NW12 L1(150kA) 4P Drawout M2.0E	NW16 L1(150kA) 4P Drawout M2.0E	NW20 L1(150kA) 4P Drawout M2.0E	NW25 L1(150kA) 4P Drawout M2.0E	NW32 L1(150kA) 4P Drawout M2.0E	NW40 L1(150kA) 4P Drawout M2.0E	NW4b H2(150kA) 4P Drawout M2.0E	NW50 H2(150kA) 4P Drawout M2.0E	NW63 H2(150kA) 4P Drawout M2.0E
5.0E	NW08 L1(150kA) 4P Drawout M5.0E	NW10 L1(150kA) 4P Drawout M5.0E	NW12 L1(150kA) 4P Drawout M5.0E	NW16 L1(150kA) 4P Drawout M5.0E	NW20 L1(150kA) 4P Drawout M5.0E	NW25 L1(150kA) 4P Drawout M5.0E	NW32 L1(150kA) 4P Drawout M5.0E	NW40 L1(150kA) 4P Drawout M5.0E	NW4b H2(150kA) 4P Drawout M5.0E	NW50 H2(150kA) 4P Drawout M5.0E	NW63 H2(150kA) 4P Drawout M5.0E
6.0E	NW08 L1(150kA) 4P Drawout M6.0E	NW10 L1(150kA) 4P Drawout M6.0E	NW12 L1(150kA) 4P Drawout M6.0E	NW16 L1(150kA) 4P Drawout M6.0E	NW20 L1(150kA) 4P Drawout M6.0E	NW25 L1(150kA) 4P Drawout M6.0E	NW32 L1(150kA) 4P Drawout M6.0E	NW40 L1(150kA) 4P Drawout M6.0E	NW4b H1(150kA) 4P Drawout M6.0E	NW50 H2(150kA) 4P Drawout M6.0E	NW63 H2(150kA) 4P Drawout M6.0E
7.0P	NW08 L1(150kA) 4P Drawout M7.0P	NW10 L1(150kA) 4P Drawout M7.0P	NW12 L1(150kA) 4P Drawout M7.0P	NW16 L1(150kA) 4P Drawout M7.0P	NW20 L1(150kA) 4P Drawout M7.0P	NW25 L1(150kA) 4P Drawout M7.0P	NW32 L1(150kA) 4P Drawout M7.0P	NW40 L1(150kA) 4P Drawout M6.0E	-	-	-

4. Common Masterpact ACB accessories and auxiliaries

4.1. Auxiliary indication contacts

(back to index)

	ON/OFF (OF) auxiliary indication contacts	Combined CB closed + connected auxiliary indication contacts		Fault trip (SDE) indication contacts		Programmable contacts (programmed via Micrologic)		"Ready to close" (PF) contact (5A)		Carriage switches (connected / disconnected / test position) (1 C/O / SPDT contact)
	1 additional block of 4 C/O / SPDT contacts (6A)			1 additional faultsignalling contact (SDE)		programmed via Micrologic - 5A rating		1 C/O / SPDT contact		1 connected position contact (3 max.)		1 test position contact (3 max.)		1 disconnected position contact (3 max.)		Actuator for additional carriage switches
Fixed type ACBs	48198	-		Standard (6A) 48200	Low-level 48201	M2C (2 C/O / SPDT) 47403	M6C (6 C/O / SPDT) 47404	Standard 47342	Low-level 47343	-	-	-	-	-	-	-
Drawout / witdrawable ACBs	48468	Standard (5A) 48477	Low-level 48478	Standard (6A) 48475	Low-level 48476	M2C (2 C/O / SPDT) 48382	M6C (6 C/O / SPDT) 48383	Standard (5A) 48469	Low-level 48470	Standard (8A) 33751	Low-level 33754	Standard (8A) 33752	Low-level 33755	Standard (8A) 33753	Low-level 33756	48560

4.2. Remote operation (electrical coils / releases) and charging motors

4.2.1. Remote operation (electrical coils / releases) for fixed type ACBs

(back to index)

Supply / control voltage		AC							DC
		24Vac	48Vac	100-130Vac	200-240Vac	250-277Vac	380-415Vac	440-480Vac	12Vdc	24/30Vdc	48/60Vdc	100-130Vdc	200-250Vdc
Charging motor (MCH)		-	48207	48211	48212	48213	48214	48215	-	48206	48207	48208	48209
Closing coil	Standard (XF)	47350	47351	47352	47353	47354	47355		47349	47350	47351	47352	47353
Closing coil	Communicating (XF com)	47311	47312	47313	47314	47315	47316		47310	47311	47312	47313	47314
Shunt trip coil / opening release	Standard (MX)	47360	47361	47362	47363	47364	47365		47359	47360	47361	47362	47363
	Communicating (MX com)	47321	47322	47323	47324	47325	47326		47320	47321	47322	47323	47324
	2nd shunt trip coil (MX)	47370	47371	47372	47373	47374	47375		47369	47370	47371	47372	47373
Undervoltage trip coil	(MN)	47380	47381	47382	47383	-	47385		-	47380	47381	47382	47383
Remote reset		-	-	48202	-	48203	-	-	-	-	-	-	-

4.2.2. Remote operation (electrical coils / releases) for drawout / withdrawable type ACBs

(back to index)

Supply / control voltage		AC							DC
		24Vac	48Vac	100-130Vac	200-240Vac	250-277Vac	380-415Vac	440-480Vac	12Vdc	24/30Vdc	48/60Vdc	100-130Vdc	200-250Vdc
Charging motor (MCH)		-	48522	48526	48527	48528	48529	48530	-	48521	48522	48523	48524
Closing coil	Standard (XF)	48481	48482	48483	48484	48485	48486		48480	48481	48482	48483	48484
Closing coil	Communicating (XF com)	48449	48450	48451	48452	48485	48486		48448	48449	48450	48451	48452
Shunt trip coil / opening release	Standard (MX)	48491	48492	48493	48494	48495	48496		48490	48491	48492	48493	48494
	Communicating (MX com)	48458	48459	48460	48461	48462	48463		48457	48458	48459	48460	48461
	2nd shunt trip coil (MX)	48511	48512	48513	48514	48515	48516		48510	48511	48512	48513	48514
Undervoltage trip coil	(MN)	48501	48502	48503	48504	-	48506		-	48501	48502	48503	48504
Remote reset		-	-	48472	-	48473	-	-	-	-	-	-	-

4.3. Accessories & connections

4.3.1. Accessories & connections for fixed ACBs

(back to index)

Front connection	Fixed
		800-1600A	2000A	2500-3200A	800-1600A	2000-3200A
3-poles	top	48128	48124	48129	48421	48422
3-poles	bottom	48130	48125	48131	48421	48422
4-poles	top	48153	48126	48154	48424	48425
4-poles	bottom	48155	48127	48156	48424	48425

Rear connection											Other accessories
		800-2000A 800-1600A (type L1)	2500-3200A 2000A (type H3 & L1)	4000A	4000b-5000A	800-2000A 800-1600A (type L1)	2500-3200A 2000A (type H3 & L1)	4000A	4000b-5000A	6300A
3-poles	top	48143	48144	48145	48146	48133	48134	48135	48136	48137	interphase barriers 48599	interphase barriers 47829
3-poles	bottom	48148	48149	48150	48151	48138	48139	48140	48141	48142
4-poles	top	48168	48169	48170	48171	48158	48159	48160	48161	48162
4-poles	bottom	48173	48174	48175	48176	48163	48164	48165	48166	48167

4.3.2. Accessories & connections for drawout / withdrawable ACBs

(back to index)

Front connection	Fixed
		800-1600A	2000A	2500-3200A
3-poles	top	48415	48413	48416
3-poles	bottom	48418	48414	48419
4-poles	top	48441	48417	48442
4-poles	bottom	48444	48420	48445

Rear connection											Other accessories
		800-2000A 800-1600A (type L1)	2500-3200A 2000A (type H3 & L1)	4000A	4000b-5000A	800-2000A 800-1600A (type L1)	2500-3200A 2000A (type H3 & L1)	4000A	4000b-5000A	6300A
3-poles	top	48143	48144	48145	48146	48133	48134	48135	48136	48137	Interphase barriers 48599
3-poles	bottom	48148	48149	48150	48151	48138	48139	48140	48141	48142
4-poles	top	48168	48169	48170	48171	48158	48159	48160	48161	48162
4-poles	bottom	48173	48174	48175	48176	48163	48164	48165	48166	48167

4.3.3. Drawout / withdrawable ACBs chassis accessories

(back to index)

Chassis accessories
Arc chute cover	Auxiliary terminal shield (CB)				Safety shutters (standard with every ACB				Shutter locking block (for replacement)	Front face shutter position indication and locking
Standard with every ACB	800-4000A		4000b-6300A		800-4000A		4000b-6300A		800-4000A	800-4000A	4000b-6300A
	3P 48595	4P 48596	3P 48597	4P 48598	3P 48721	4P 48722	3P 48723	4P 48724	2 parts 48591	3P/4P 48592	3P 48593	4P 48594

4.4. External sensors / current transformers (CTs)

(back to index)

Voltage measurement input (for breakers supplied via bottom terminals)		External sensor for earth-fault protection (TCE)			Source ground return (SGR) earth fault protection		Rectangular sensor for earth-leakage protection
External SGR sensor 33579	MDGF summing module 48891	400-2000A 34035	1000-4000A 34036	4000-6300A 48182	Fixed ACB 47506	withdrawable ACB 48533	470x160mm, 3200A 33574
For all Micrologic E versions		For Micrologic 6.0E/6.0P only					For Micrologic 7.0 only

4.5. Locking / interlocking

4.5.1. Locking

(back to index)

	VCPO (OFF position locking)	Push-buttons padlocking	Profalux keylocks						Ronis keylocks							Optional disconnected / test / connected position locking
			1 lock + 1 key kit	2 locks + 1 key kit	2 locks + 2 different keys kit	identical key unidentified combination	identical key identified 215470 combination	identical key identified 215471 combination	1 lock + 1 key kit	2 locks + 1 key kit	2 locks + 2 different keys kit	identical key not	identical key identified EL24135 combination	identical key identified EL24153 combination	identical key identified EL24315 combination	adaptation kit Ronis	adaptation kit Castell	adaptation kit Kirk
Fixed type ACBs	locking with padlocks: installed by default on every device	48536	48568	48569	48570	33173	33174	33175	48572	48573	48574	33189	33190	33191	33192	48564	48565	48566
Drawout / withdrawable type ACBs	48539	48536	48545	48546	48547	33173	33174	33175	48549	48550	48551	33189	33190	33191	33192	48541	48542	48543

4.5.2. Interlocking (with door / source change-over

(back to index)

	Cable-type	Door interlock (1 part)		Racking interlock	Racking interlock between OFF pushbutton	Automatic spring discharge before breaker removal	Breaker mismatch protection	Source change-over interlocks
Fixed type ACBs	48614	-	-	-	-	-	-	Interlocking by rods 48612	Set of 2 cables 33209	Cable adaptation fixture 47926	3 sources, only 1 device closed "1-out-of-3") 48610	2 sources + 1 coupling ("2-out-of-3") 48609	2 normal sources +1 replacement source 48608
Drawout / withdrawable ACBs	48614	Right-hand side of chassis 48579	Left-hand side of chassis 48580	1 part 48582	1 part 48585	1 part 48554	Breaker mismatch protection VDC 33767	Interlocking by rods 48612	Set of 2 cables 33209	Cable adaptation fixture 47926	3 sources, only 1 device closed "1-out-of-3") 48610	2 sources + 1 coupling ("2-out-of-3") 48609	2 normal sources +1 replacement source 48608

4.6. Other Masterpact accessories

(back to index)


Fixed type ACBs	Escutcheon 48601	-	Escutcheon blanking plate 48605
Drawout / withdrawable ACBs	Escutcheon 48603	Transparent cover IP54 48604	Escutcheon blanking plate 48605

5. Documentation

(back to index)

Masterpact catalogue

Masterpact NW ACBs

Air Circuit Breakers from 800A to 6300A

Masterpact NW Air Circuit Breakers

Index

1. Select your Micrologic electronic trip unit

2. 3-pole ACBs

3. 4-pole ACBs

4. Common Masterpact ACB accessories and auxiliaries

5. Additional documentation

1. Selection the Micrologic trip unit for your ACB

2. 3-pole (3P) Masterpact ACBs

2.1. Fixed type ACBs - Ics=Icu=65kA - 3 poles (3P)

2.2. Fixed type ACBs - Ics=Icu=100kA - 3 poles (3P)

2.3. Fixed type ACBs - Ics=Icu=150kA - 3 poles (3P)

2.4. Drawout / Withdrawable type ACBs - Ics=Icu=65kA - 3 poles (3P)

2.5. Drawout / Withdrawable type ACBs - Ics=Icu=100kA - 3 poles (3P)

2.6. Drawout / Withdrawable type ACBs - Ics=Icu=150kA - 3 poles (3P)

3. 4-pole (4P) Masterpact ACBs

3.1. Fixed type ACBs - Ics=Icu=65kA - 4 poles (4P)

3.2. Fixed type ACBs - Ics=Icu=100kA - 4 poles (4P)

3.3. Fixed type ACBs - Ics=Icu=150kA - 4 poles (4P)

3.4. Drawout / Withdrawable type ACBs - Ics=Icu=65kA - 4 poles (4P)

3.5. Drawout / Withdrawable type ACBs - Ics=Icu=100kA - 4 poles (4P)

3.6. Drawout / Withdrawable type ACBs - Ics=Icu=150kA - 4 poles (4P)

4. Common Masterpact ACB accessories and auxiliaries

4.1. Auxiliary indication contacts

4.2. Remote operation (electrical coils / releases) and charging motors

4.2.1. Remote operation (electrical coils / releases) for fixed type ACBs

4.2.2. Remote operation (electrical coils / releases) for drawout / withdrawable type ACBs

4.3. Accessories & connections

4.3.1. Accessories & connections for fixed ACBs

4.3.2. Accessories & connections for drawout / withdrawable ACBs

4.3.3. Drawout / withdrawable ACBs chassis accessories

4.4. External sensors / current transformers (CTs)

4.5. Locking / interlocking

4.5.1. Locking

4.5.2. Interlocking (with door / source change-over

4.6. Other Masterpact accessories

5. Documentation
