1. Bare annealed copper and PVC insulated cables

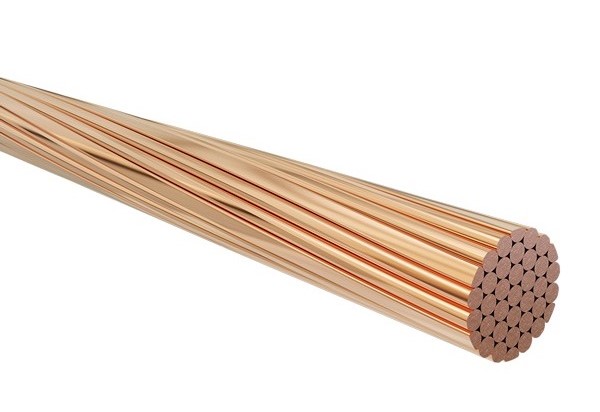

1.1. Bare annealed copper
Stranded plain annealed copper
IEC60228, BS EN 60228

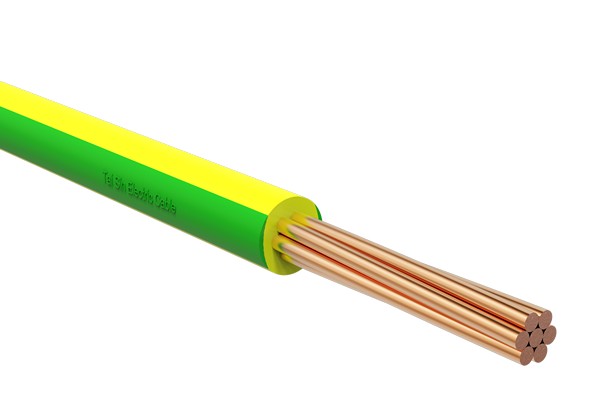

1.2. PVC CU / PVC

Single core, PVC insulated, non-sheathed, 450V/750V cable
SS358 / BS EN50525-2-31 / IEC60227

1.3. PVC CU / PVC

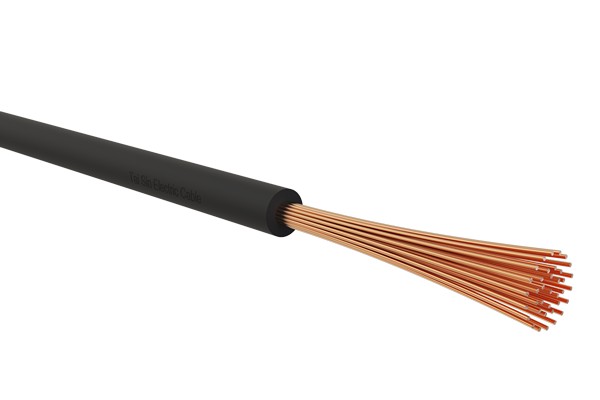

Switchboard wires
Single core, PVC insulated, non-sheathed, 0.6/1kV cable
BS6231

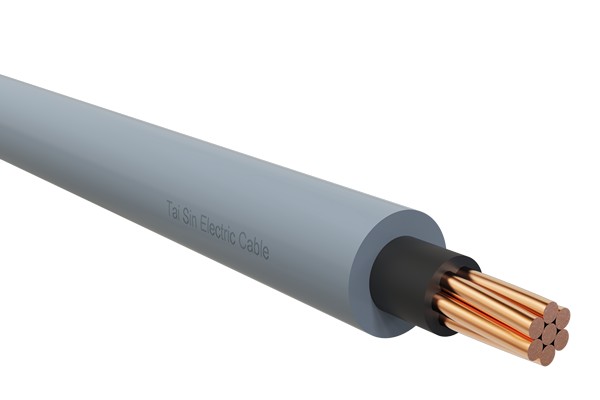

1.4. PPS CU / PVC / PVC
Single core, PVC insulated, PVC sheathed, 0.6/1kV cable
IEC60502

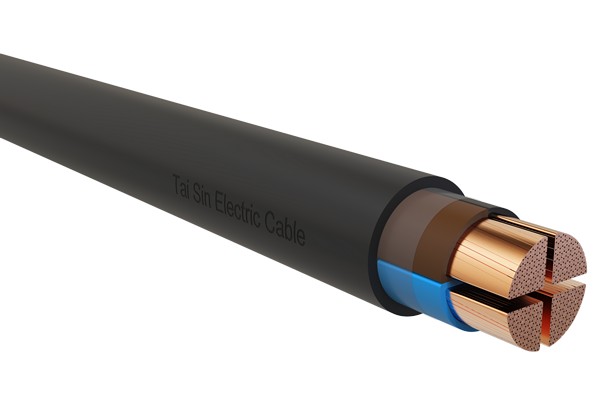

1.5. PPM CU / PVC / PVC
2-5 cores PVC insulated, PVC sheathed, 0.6/1kV cable
IEC60502

1.6. PCC CU / PVC / PVC
Multi-core, PVC insulated, PVC sheathed, 0.6/1kV cable
BS6346

1.7. PAP CU / PVC / PVC / AWA
Single core, PVC insulated, PVC bedded, Aluminium wire armoured, PVC sheathed, 0.6/1kV cable
BS6346

1.8. PSP CU / PVC / PVC / SWA / PVC
2-5 cores, PVC insulated, PVC bedded, Galvanised steel wire armoured, PVC sheathed, 0.6/1kV cable
BS6346

1.9. PSP CU / PVC / PVC / SWA / PVC
Multi-core, PVC insulated, PVC bedded, Galvanised steel wire armoured, PVC sheathed, 0.6/1kV cable
BS6346

2. XLPE insulated cables

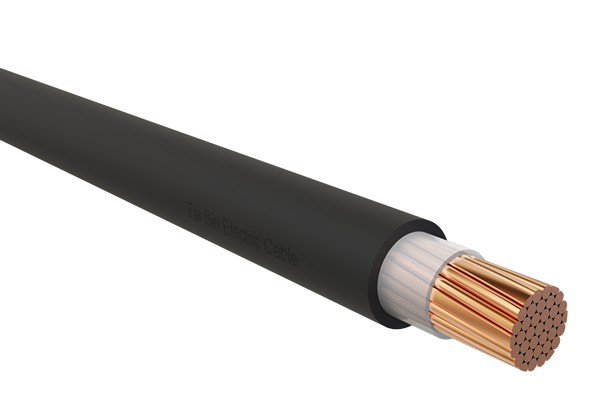

2.1.1 XP CU / XLPE / PVC
Single core, XLPE insulated, PVC sheathed, 0.6/1kV cable
IEC60502

2.1.2 XP CU / XLPE / PVC
2-5 cores, XLPE insulated, PVC sheathed, 0.6/1kV cable
IEC60502

2.1.3 XP CU / XLPE / PVC
Multi-cores, XLPE insulated, PVC sheathed, 0.6/1kV cable
IEC60502

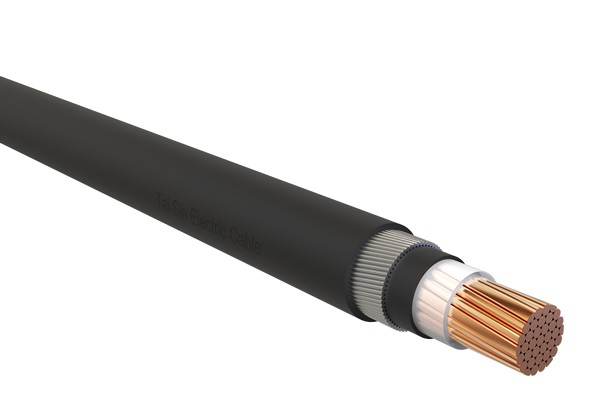

2.2. XAP CU / XLPE / PVC / AWA / PVC
Single core, XLPE insulated, PVC bedded, Aluminium wire armoured, PVC sheathed 0.6/1kV cable
IEC60502

2.3.1. XSP CU / XLPE / PVC / AWA / PVC
2-5 cores, XLPE insulated, PVC bedded, Galvanized steel wire armoured, PVC sheathed, 0.6/1kV cable
IEC60502

2.3.2. XSP CU / XLPE / PVC / AWA / PVC
Multi-cores, XLPE insulated, PVC bedded, Galvanized steel wire armoured, PVC sheathed 0.6/1kV cable
IEC60502

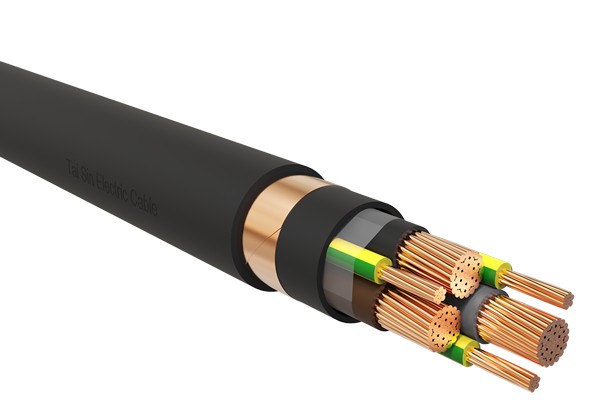

2.4.1. XCP CU / XLPE / PVC / CT / PVC
3 cores + 3 earth, XLPE insulated, PVC bedded, Copper tape screened, PVC sheathed 0.6/1kV cable
IEC60502

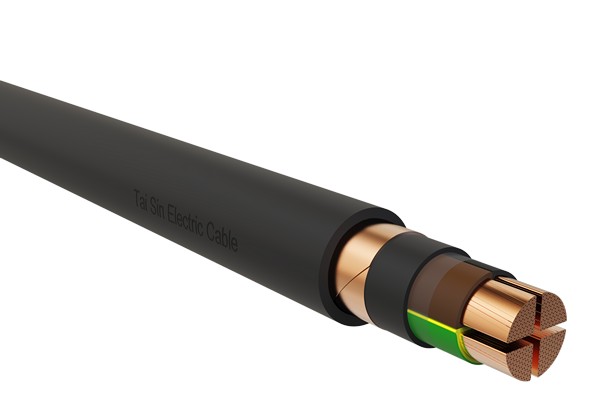

2.4.2. XCP CU / XLPE / PVC / CT / PVC
4 cores, XLPE insulated, PVC bedded, Copper tape screened, PVC sheathed 0.6/1kV cable
IEC60502

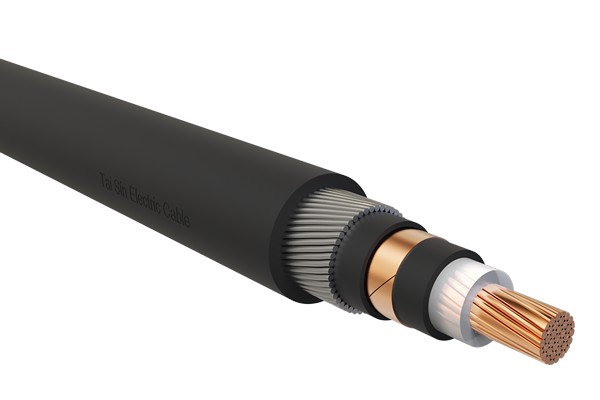

2.5. XCAP CU / XLPE / PVC / CT / AWA / PVC
Single core, XLPE insulated, PVC bedded, Copper tape screened, PVC separation sheath, Aluminium wire armoured, PVC sheathed 0.6/1kV cable
IEC60502

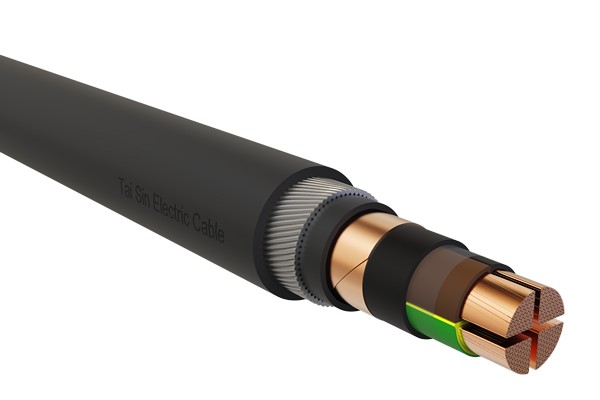

2.6. XCSP CU / XLPE / PVC / CT / SWA / PVC
4 cores, XLPE insulated, PVC bedded, Copper tape screened, PVC separation sheath, Galvanized steel wire armoured, PVC sheathed 0.6/1kV cable
IEC60502

3. Low-Smoke Zero-Halogen (LSZH) flame retardant cables

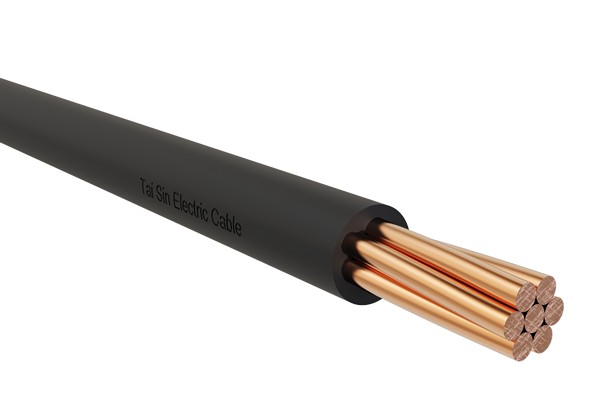

3.1. FRT-H CU / LSZH

Single core, Cross-linked LSZH insulated, Non-sheathed 450/750V cable
BS EN50525-3-41

3.2.1. FRT-XH CU / XLPE / LSZH
Single core, XLPE insulated, LSZH sheathed 0.6/1kV cable
IEC60502

3.2.2. FRT-XH CU / XLPE / LSZH
2-5 cores, XLPE insulated, LSZH sheathed 0.6/1kV cable
IEC60502

3.2.3. FRT-XH CU / XLPE / LSZH
Multi-core, XLPE insulated, LSZH sheathed 0.6/1kV cable
IEC60502

3.3. FRT-XAH

XLPE insulated, LSZH bedded, Aluminium wire armoured, LSZH sheathed 0.6/1kV cable
BS6724

3.4.1 FRT-XSH

2-5 cores, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable
BS6724

3.4.2 FRT-XSH

Multi-core, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable
BS6724

3.5.1. FRT-XCH

3 cores + 3 earth, XLPE insulated, LSZH bedded, Copper tape screened, LSZH sheathed 0.6/1kV cable
IEC60502

3.5.2. FRT-XCH

4 cores, XLPE insulated, LSZH bedded, Copper tape screened, LSZH sheathed 0.6/1kV cable
IEC60502

3.6. FRT-XCAH

Single core, XLPE insulated, LSZH bedded, Copper tape screened, LSZH separation sheath, Aluminium wire armoured, LSZH sheathed 0.6/1kV cable
IEC60502

3.7. FRT-XCSH

4 cores, XLPE insulated, LSZH bedded, Copper tape screened, LSZH separation sheath, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable
IEC60502

4. Low-Smoke Zero-Halogen (LSZH) flame retardant and fire resistant cables

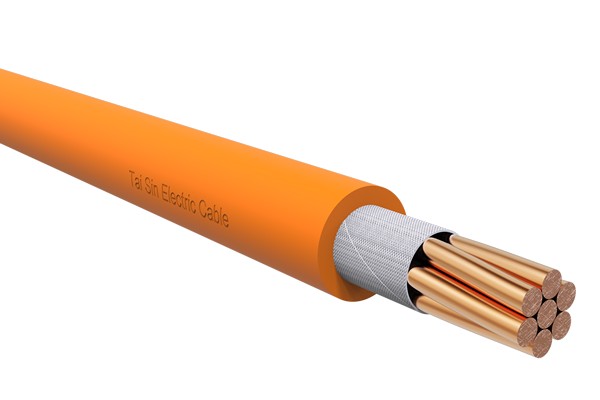

4.1. FR-H 110 CU / MGT / LSZH
Mica taped, Cross-linked Polyolefin LSZH insulated, Non-sheathed 450/750V cable
BS EN50525-3-41

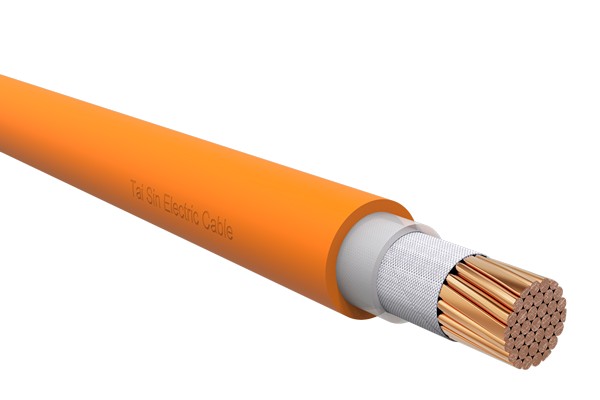

4.2.1. FR-XH CU / MGT / XLPE / LSZH
Single core, Mica taped, XLPE insulated, LSZH sheathed 0.6/1kV cable
IEC60502

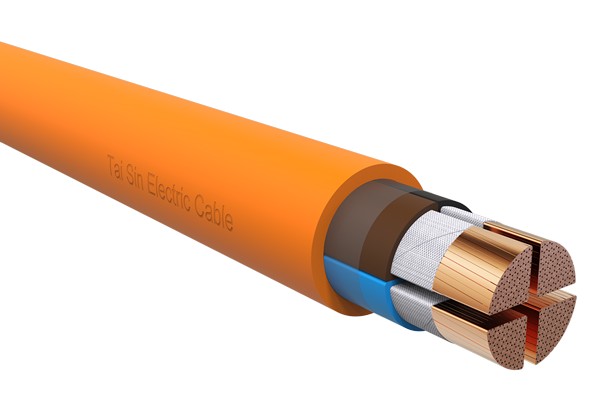

4.2.2. FR-XH CU / MGT / XLPE / LSZH
2-5 cores, Mica taped, XLPE insulated, LSZH sheathed 0.6/1kV cable
IEC60502

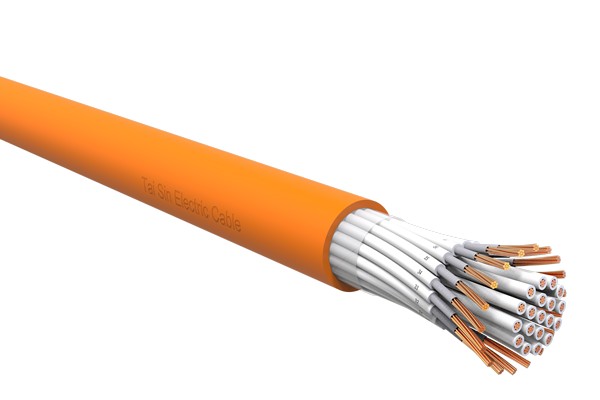

4.2.3. FR-XH CU / MGT / XLPE / LSZH
Multi-core, Mica taped, XLPE insulated, LSZH sheathed 0.6/1kV cable
IEC60502

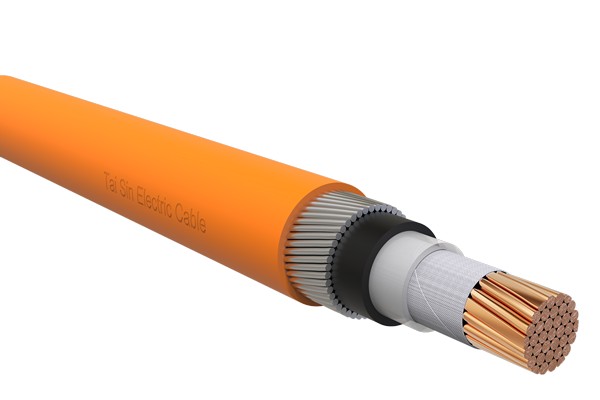

4.3. FR-XAH CU / MGT / XLPE / LSZH / AWA / LSZH
Single core, Mica taped, XLPE insulated, LSZH bedded, Aluminium wire armoured, LSZH sheathed 0.6/1kV cable
IEC60502

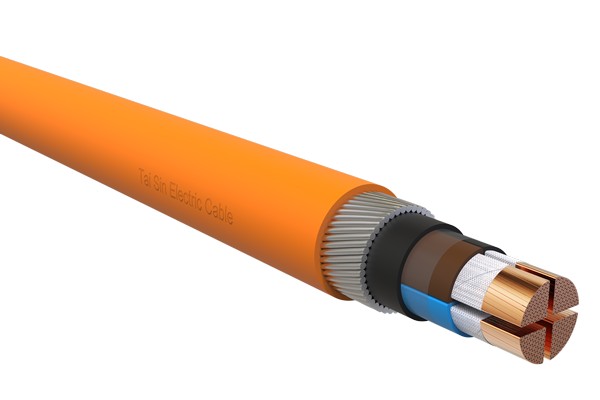

4.4.1. FR-XSH CU / MGT / XLPE / LSZH / SWA / LSZH
2-5 cores, Mica taped, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable
IEC60502

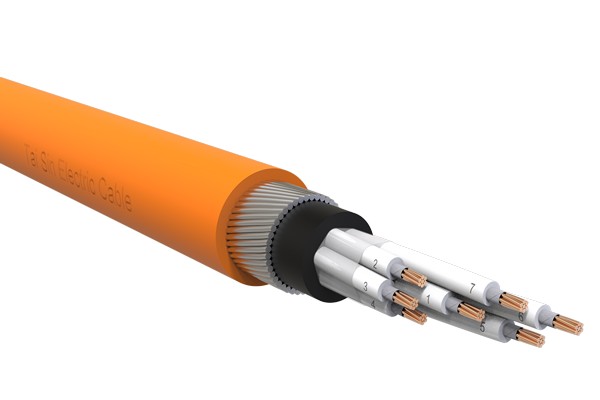

4.4.2. FR-XSH CU / MGT / XLPE / LSZH / SWA / LSZH
Multi-core, Mica taped, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable
IEC60502

4.5. FR-XL CU / MGT / XLPE / LSZH
Multi-core, Mica taped, XLPE insulated, LSZH sheathed 300/500V cable
BS EN50288-7

4.6. FR-XOL CU / MGT / XLPE / OS / LSZH
Single pair, Mica taped, XLPE insulated, Overall aluminium foil screened, LSZH sheathed 300/500V cable
BS EN50288-7

1. Bare annealed copper and PVC insulated cables

1.1. Stranded plain annealed copper conductor

(back to index)▲

General characteristics

Construction

conductor: plain annealed copper, Class 2 , stranded circular or compacted

Reference Standards

Conductor: IEC60228, BS EN60228

Installation Reference

minimum bending radius:
- 3D for D < 10mm
- 4D for 10mm ≤ D < 25mm
- 6D for D ≥ 25mm

Selection table

Cable selection
Product code	TS-1x1	TS-1x1.5	TS-1x2.5	TS-1x4	TS-1x6	TS-1x10	TS-1x16	TS-1x25	TS-1x35	TS-1x50	TS-1x70	TS-1x95	TS-1x120	TS-1x150	TS-1x185	TS-1x240	TS-1x300	TS-1x400	TS-1x500	TS-1x630	TS-1x800	TS-1x1000
Nominal conductor area	1.0mm²	1.5mm²	2.5mm²	4mm²	6mm²	10mm²	16mm²	25mm²	35mm²	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	7 / 0.43mm	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Nominal conductor diameter	1.29	1.59	2.01	2.55	3.12	4.05	5.10	6.42	7.56	8.90	10.70	12.60	14.21	15.75	17.64	20.25	22.68	25.65	28.80	32.76	37.05	41.60
Nominal conductor diameter	9.2kg/km	14.0kg/km	22.4kg/km	36.1kg/km	54.0kg/km	90.8kg/km	145.0kg/km	229.0kg/km	317.0kg/km	429.0kg/km	620.0kg/km	860.0kg/km	1086.0kg/km	1334.0kg/km	1673.0kg/km	2199.0kg/km	2759.0kg/km	3528.0kg/km	4448.0kg/km	5744.0kg/km	7346.0kg/km	9260.0kg/km

1.2. PVC CU / PVC, Single core, PVC insulated, non-sheathed, 450/750V cable - compliant with SS358 / BS EN50525-2-31 / IEC60227

(back to index)▲

General characteristics

Construction

conductor: plain annealed copper, Class 2 , stranded circular or compacted
insulation: Polyvinyl Chloride (PVC) compound type C
Insulation colour: black, green/yellow, red, yellow, blue, white, brown, grey. Other colors available upon request

Electrical characteristics

Operating voltage U₀/U: 450/750V
Operating temperature: -15°C to +70°C
Final short circuit temperature:
- 160°C (for cables ≤ 300mm²)
- 140°C (for cables > 300mm²)
Test Voltage: 2.5kV for 5 minutes

Reference Standards

Design Specification: SS358-3, BS EN50525-2-31, IEC60227-3
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN 60332-1

Installation Reference

Minimum bending radius (mm): 6 x cable overall diameter
Maximum pulling tension 50N/mm²

Selection table

Cable selection
Product code	TS-LV-PVC-1x1.5	TS-LV-PVC-1x2.5	TS-LV-PVC-1x4	TS-LV-PVC-1x6	TS-LV-PVC-1x10	TS-LV-PVC-1x16	TS-LV-PVC-1x25	TS-LV-PVC-1x35	TS-LV-PVC-1x50	TS-LV-PVC-1x70	TS-LV-PVC-1x95	TS-LV-PVC-1x120	TS-LV-PVC-1x150	TS-LV-PVC-1x185	TS-LV-PVC-1x240	TS-LV-PVC-1x300	TS-LV-PVC-1x400	TS-LV-PVC-1x500	TS-LV-PVC-1x630
Nominal conductor area	1x1.5mm²	1x2.5mm²	1x4mm²	1x6mm²	1x10mm²	1x16mm²	1x25mm²	1x35mm²	1x50mm²	1x70mm²	1x95mm²	1x120mm²	1x150mm²	1x185mm²	1x240mm²	1x300mm²	1x400mm²	1x500mm²	1x630mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm
Radial thickness of insulation	0.7mm	0.8mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm	2.8mm
Mean overall diameter (upper limit)	3.4mm	4.2mm	4.8mm	5.4mm	6.8mm	8mm	9.8mm	11mm	13mm	15mm	17mm	19mm	21mm	23.5mm	26.5mm	29.5mm	33.5mm	37mm	41mm
Approximate weight	22.7kg/km	34kg/km	50kg/km	70.9kg/km	117.5kg/km	177.4kg/km	282kg/km	380.3kg/km	515.8kg/km	726.4kg/km	1002.9kg/km	1251kg/km	1538.7kg/km	1927.9kg/km	2522.6kg/km	3155.2kg/km	4018kg/km	5044.9kg/km	6443.4kg/km

1.3. PVC CU / PVC, Switchboard wires, Single core, PVC insulated, non-sheathed, 0.6/1kV cable - compliant with BS6231

(back to index)▲

General characteristics

Construction

conductor: plain annealed copper, Class 2, stranded circular or compacted
insulation: Polyvinyl Chloride (PVC) compound type TI1
Insulation colour: black, green/yellow, red, yellow, blue, white, brown, grey. Other colors available upon request

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +70°C
Final short circuit temperature: 160°C
Test Voltage: 3.5kV for 5 minutes

Reference Standards

Design Specification: BS6231
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN 60332-1

Installation Reference

Minimum bending radius (mm): 6 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-LV-PVC-SWBD-1x0.5	TS-LV-PVC-SWBD-1x0.75	TS-LV-PVC-SWBD-1x1	TS-LV-PVC-SWBD-1x1.5	TS-LV-PVC-SWBD-1x2.5	TS-LV-PVC-SWBD-1x4	TS-LV-PVC-SWBD-1x6	TS-LV-PVC-SWBD-1x10	TS-LV-PVC-SWBD-1x16	TS-LV-PVC-SWBD-1x25	TS-LV-PVC-SWBD-1x35	TS-LV-PVC-SWBD-1x50	TS-LV-PVC-SWBD-1x70	TS-LV-PVC-SWBD-1x95	TS-LV-PVC-SWBD-1x120	TS-LV-PVC-SWBD-1x150	TS-LV-PVC-SWBD-1x185	TS-LV-PVC-SWBD-1x240
Nominal conductor area	1x0.5mm²	1x0.75mm²	1x1.0mm²	1x1.5mm²	1x2.5mm²	1x4mm²	1x6mm²	1x10mm²	1x16mm²	1x25mm²	1x35mm²	1x50mm²	1x70mm²	1x95mm²	1x120mm²	1x150mm²	1x185mm²	1x240mm²
Number and diameter of wires	16 / 0.2mm	24 / 0.2mm	32 / 0.2mm	30 / 0.25mm	50 / 0.25mm	56 / 0.3mm	84 / 0.3mm	80 / 0.4mm	128 / 0.4mm	200 / 0.4mm	280 / 0.4mm	400 / 0.4mm	356 / 0.5mm	485 / 0.5mm	614 / 0.5mm	765 / 0.5mm	994 / 0.5mm	1125 / 0.5mm
Radial thickness of insulation	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm
Mean overall diameter (upper limit)	2.6mm	2.8mm	3mm	3.3mm	3.7mm	4.3mm	4.9mm	6.3mm	7.4mm	9.1mm	10.3mm	12.2mm	13.8mm	16.1mm	17.6mm	19.7mm	22.3mm	23.9mm
Approximate weight	11.3kg/km	14.5kg/km	17.5kg/km	23kg/km	34kg/km	50.2kg/km	71kg/km	119.3kg/km	181.3kg/km	280.9kg/km	382.3kg/km	544.1kg/km	739.9kg/km	1005.2kg/km	1255.7kg/km	1565.6kg/km	2028.7kg/km	2304.1kg/km

1.4. PPS CU / PVC / PVC, Single core, PVC insulated, PVC sheathed, 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Polyvinyl Chloride (PVC) Compound Type PVC/A
Insulation colour: Black
Outer sheath: Polyvinyl Chloride (PVC) Compound Type PVC/ST1
Outer sheath colour: Grey

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C...+70°C
Final short circuit temperature:
- 160°C (for cables ≤ 300mm²)
- 140°C (for cables > 300mm²)
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 6 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection (Single core)
Product code	TS-LV-PPS-1x1.5	TS-LV-PPS-1x2.5	TS-LV-PPS-1x4	TS-LV-PPS-1x6	TS-LV-PPS-1x10	TS-LV-PPS-1x16	TS-LV-PPS-1x25	TS-LV-PPS-1x35	TS-LV-PPS-1x50	TS-LV-PPS-1x70	TS-LV-PPS-1x95	TS-LV-PPS-1x120	TS-LV-PPS-1x150	TS-LV-PPS-1x185	TS-LV-PPS-1x240	TS-LV-PPS-1x300	TS-LV-PPS-1x400	TS-LV-PPS-1x500	TS-LV-PPS-1x630	TS-LV-PPS-1x800	TS-LV-PPS-1x1000
Nominal conductor area	1.5mm²	2.5mm²	4mm²	6mm²	10mm²	16mm²	25mm²	35mm²	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	0.8mm	0.8mm	1mm	1mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm	2.8mm	2.8mm	3mm
Mean overall diameter (upper limit)	6.3mm	6.7mm	7.7mm	8.2mm	9.2mm	10.2mm	11.9mm	13.1mm	14.8mm	16.6mm	19.1mm	20.7mm	22.9mm	25.3mm	28.6mm	31.6mm	35.2mm	38.9mm	43.1mm	47.6mm	52.9mm
Approximate weight	68kg/km	80kg/km	108kg/km	133kg/km	180kg/km	245kg/km	357kg/km	460kg/km	604kg/km	818kg/km	1113kg/km	1363kg/km	1668kg/km	2077kg/km	2692kg/km	3345kg/km	4228kg/km	5275kg/km	6682kg/km	8407kg/km	10535kg/km

1.5. PPM CU / PVC / PVC, 2-5 cores PVC insulated, PVC sheathed, 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular, compacted or sectored
Insulation: Polyvinyl Chloride (PVC) Compound Type A
Insulation colour:
- 2 cores: Brown, Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering
Assembly: cores cabled together with filler and bound with binder tape
Outer sheath: Polyvinyl Chloride (PVC) compound type ST 1
Outer sheath color: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature -15°C...+70°C
Final short circuit temperature:

160°C (for cables ≤ 300mm²)
140°C (for cables > 300mm²)

Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection	(2-cores PPM cables)
Product code	TS-LV-PPM-2x1.5	TS-LV-PPM-2x2.5	TS-LV-PPM-2x4	TS-LV-PPM-2x6	TS-LV-PPM-2x10	TS-LV-PPM-2x16	TS-LV-PPM-2x25	TS-LV-PPM-2x35	TS-LV-PPM-2x50	TS-LV-PPM-2x70	TS-LV-PPM-2x95	TS-LV-PPM-2x120	TS-LV-PPM-2x150	TS-LV-PPM-2x185	TS-LV-PPM-2x240	TS-LV-PPM-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.8mm	0.8mm	1mm	1mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm
Mean overall diameter (upper limit)	10.4mm	11.2mm	13.3mm	14.4mm	16.3mm	18.4mm	21.8mm	24.1mm	24.1mm	26.8mm	30.6mm	33.1mm	36.7mm	40.6mm	45.3mm	50.1mm
Approximate weight	153kg/km	183kg/km	250kg/km	304kg/km	409kg/km	552kg/km	789kg/km	1007kg/km	1278kg/km	1731kg/km	2323kg/km	2851kg/km	3467kg/km	4302kg/km	5536kg/km	6868kg/km

Cable selection	(3-cores PPM cables)
Product code	TS-LV-PPM-3x1.5	TS-LV-PPM-3x2.5	TS-LV-PPM-3x4	TS-LV-PPM-3x6	TS-LV-PPM-3x10	TS-LV-PPM-3x16	TS-LV-PPM-3x25	TS-LV-PPM-3x35	TS-LV-PPM-3x50	TS-LV-PPM-3x70	TS-LV-PPM-3x95	TS-LV-PPM-3x120	TS-LV-PPM-3x150	TS-LV-PPM-3x185	TS-LV-PPM-3x240	TS-LV-PPM-3x300	TS-LV-PPM-3x400
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.8mm	0.8mm	1mm	1mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm
Mean overall diameter (upper limit)	10.9mm	11.8mm	14.1mm	15.3mm	17.3mm	19.6mm	23.3mm	25.7mm	28.3mm	31.7mm	36.4mm	39.5mm	43.8mm	48.5mm	54.5mm	60.1mm	68.2mm
Approximate weight	182kg/km	223kg/km	311kg/km	388kg/km	535kg/km	737kg/km	1075kg/km	1389kg/km	1825kg/km	2491kg/km	3378kg/km	4158kg/km	5064kg/km	6292kg/km	8144kg/km	10086kg/km	12800kg/km

Cable selection	(4-cores PPM cables)
Product code	TS-LV-PPM-4x1.5	TS-LV-PPM-4x2.5	TS-LV-PPM-4x4	TS-LV-PPM-4x6	TS-LV-PPM-4x10	TS-LV-PPM-4x16	TS-LV-PPM-4x25	TS-LV-PPM-4x35	TS-LV-PPM-4x50	TS-LV-PPM-4x70	TS-LV-PPM-4x95	TS-LV-PPM-4x120	TS-LV-PPM-4x150	TS-LV-PPM-4x185	TS-LV-PPM-4x240	TS-LV-PPM-4x300	TS-LV-PPM-4x400	TS-LV-PPM-4x500
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²	4x500mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm
Radial thickness of insulation	0.8	0.8	1	1	1	1	1.2	1.2	1.4	1.4	1.6	1.6	1.8	2	2.2	2.4	2.6	2.8
Mean overall diameter (upper limit)	11.8mm	12.8mm	15.3mm	16.7mm	18.9mm	21.5mm	25.6mm	28.4mm	32.7mm	36.7mm	42.2mm	45.9mm	51.1mm	56.3mm	63.3mm	70.2mm	79.7mm	88mm
Approximate weight	216kg/km	267kg/km	379kg/km	477kg/km	669kg/km	932kg/km	1372kg/km	1785kg/km	2388kg/km	3269kg/km	4437kg/km	5469kg/km	6690kg/km	8287kg/km	10766kg/km	13373kg/km	16968kg/km	21161kg/km

Cable selection	(5-cores PPM cables)
Product code	TS-LV-PPM-5x1.5	TS-LV-PPM-5x2.5	TS-LV-PPM-5x4	TS-LV-PPM-5x6	TS-LV-PPM-5x10	TS-LV-PPM-5x16	TS-LV-PPM-5x25	TS-LV-PPM-5x35	TS-LV-PPM-5x50	TS-LV-PPM-5x70	TS-LV-PPM-5x95	TS-LV-PPM-5x120	TS-LV-PPM-5x150	TS-LV-PPM-5x185	TS-LV-PPM-5x240	TS-LV-PPM-5x300
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²	5x95mm²	5x120mm²	5x150mm²	5x185mm²	5x240mm²	5x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.8mm	0.8mm	1mm	1mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm
Mean overall diameter (upper limit)	12.7mm	13.8mm	16.6mm	18.2mm	20.7mm	23.5mm	28.2mm	31.4mm	36.5mm	41.8mm	48.2mm	52.9mm	58.4mm	65mm	73.7mm	81.7mm
Approximate weight	250kg/km	313kg/km	448kg/km	569kg/km	804kg/km	1129kg/km	1672kg/km	2198kg/km	2946kg/km	4068kg/km	5506kg/km	6820kg/km	8306kg/km	10331kg/km	13425kg/km	16683kg/km

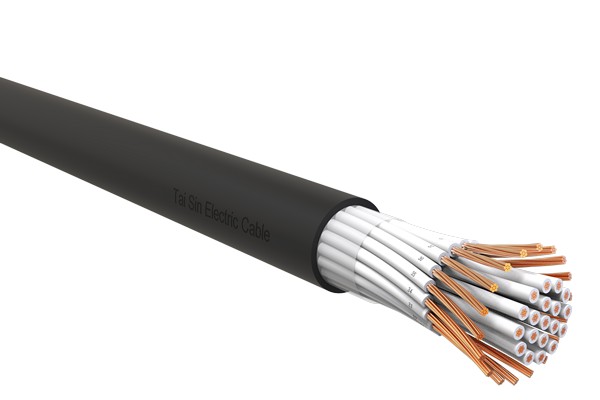

1.6. PCC CU / PVC / PVC, Multi-core, PVC insulated, PVC sheathed, 0.6/1kV cable - compliant with BS6346

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed Copper, Class 2 - Stranded circular or compacted
Insulation: Polyvinyl Chloride (PVC) compound type TI1
Insulation colour:
- 2 cores: Brown, Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering
- 6 cores and above: White with black numbering
Assembly: cores cabled together and covered with Polyester (PET) tape
Outer sheath: Polyvinyl Chloride (PVC) compound type TM 1
Outer sheath color: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature -15°C...+70°C
Final short circuit temperature: 160°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS6346, in-house
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection	multi-core cable size 1.5mm²											multi-core cable size 2.5mm²											multi-core cable size 4mm²
Product code	TS-LV-PCC-2x1.5	TS-LV-PCC-3x1.5	TS-LV-PCC-4x1.5	TS-LV-PCC-5x1.5	TS-LV-PCC-7x1.5	TS-LV-PCC-10x1.5	TS-LV-PCC-12x1.5	TS-LV-PCC-19x1.5	TS-LV-PCC-20x1.5	TS-LV-PCC-24x1.5	TS-LV-PCC-37x1.5	TS-LV-PCC-2x2.5	TS-LV-PCC-3x2.5	TS-LV-PCC-4x2.5	TS-LV-PCC-5x2.5	TS-LV-PCC-7x2.5	TS-LV-PCC-10x2.5	TS-LV-PCC-12x2.5	TS-LV-PCC-19x2.5	TS-LV-PCC-20x2.5	TS-LV-PCC-24x2.5	TS-LV-PCC-37x2.5	TS-LV-PCC-2x4	TS-LV-PCC-3x4	TS-LV-PCC-4x4	TS-LV-PCC-5x4	TS-LV-PCC-7x4	TS-LV-PCC-10x4	TS-LV-PCC-12x4	TS-LV-PCC-19x4	TS-LV-PCC-20x4	TS-LV-PCC-24x4	TS-LV-PCC-37x4
Nominal conductor area	2x1.5mm²	3x1.5mm²	4x1.5mm²	5x1.5mm²	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	2x2.5mm²	3x2.5mm²	4x2.5mm²	5x2.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	2x4mm²	3x4mm²	4x4mm²	5x4mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires per core	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm
Mean overall diameter (upper limit)	8.9mm	9.3mm	10.1mm	10.9mm	11.9mm	15mm	15.4mm	18.1mm	19.2mm	21.1mm	24.2mm	10.5mm	11.1mm	12mm	13mm	14.1mm	17.6mm	18.2mm	21.4mm	22.7mm	25.1mm	28.8mm	12mm	12.7mm	13.8mm	15mm	16.4mm	20.8mm	21.5mm	25.3mm	27.1mm	29.9mm	34.4mm
Approximate weight	129kg/km	157kg/km	189kg/km	221kg/km	280kg/km	390kg/km	441kg/km	640kg/km	684kg/km	801kg/km	1149kg/km	177kg/km	219kg/km	266kg/km	313kg/km	399kg/km	548kg/km	626kg/km	918kg/km	979kg/km	1151kg/km	1667kg/km	232kg/km	294kg/km	361kg/km	430kg/km	556kg/km	780kg/km	896kg/km	1329kg/km	1426kg/km	1681kg/km	2454kg/km

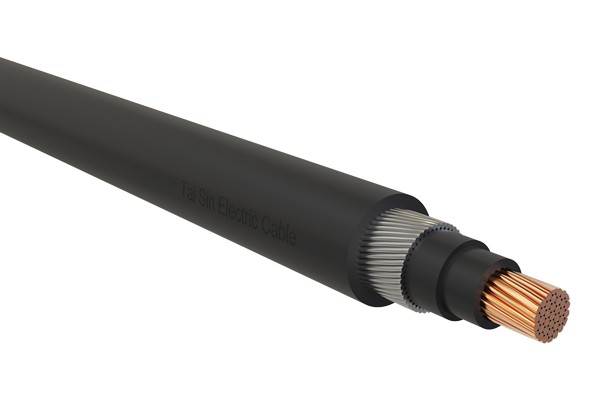

1.7. PAP CU / PVC / PVC / AWA / PVC - Single core, PVC insulated, PVC bedded, Aluminium wire armoured, PVC sheathed cable 0.6/1kV, BS6346

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed Copper, Class 2 - Stranded circular or compacted
Insulation: Polyvinyl Chloride (PVC) compound type PVC/TI1
Insulation colour: black
Bedding: Polyvinyl Chloride (PVC) compound type PVC/TM1
Bedding colour: black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type PVC/TM1
Outer sheath color: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature -15°C...+70°C
Final short circuit temperature:

160°C (for cables ≤ 300mm²)
140°C (for cables > 300mm²)

Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS6346 (specification withdrawn)
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-LV-PAP-1x50	TS-LV-PAP-1x70	TS-LV-PAP-1x95	TS-LV-PAP-1x120	TS-LV-PAP-1x150	TS-LV-PAP-1x185	TS-LV-PAP-1x240	TS-LV-PAP-1x300	TS-LV-PAP-1x400	TS-LV-PAP-1x500	TS-LV-PAP-1x630	TS-LV-PAP-1x800	TS-LV-PAP-1x1000
Nominal conductor area	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm	2.8mm	2.8mm	3mm
Armour wire diameter	1.25mm	1.25mm	1.25mm	1.6mm	1.6mm	1.6mm	1.6mm	1.6mm	2mm	2mm	2mm	2.5mm	2.5mm
Cable overall diameter	19.1mm	21.1mm	23.4mm	26.3mm	28.3mm	30.7mm	34mm	36.8mm	41.8mm	45.3mm	49.5mm	55.6mm	60.7mm
Approximate weight	169kg/km	1018kg/km	1328kg/km	1686kg/km	2006kg/km	2443kg/km	3101kg/km	3719kg/km	4861kg/km	5956kg/km	7453kg/km	9523kg/km	11749kg/km

1.8. PSP CU / PVC / PVC / SWA / PVC, 2-5 cores, PVC insulated, PVC bedded, Galvanised steel wire armoured, PVC sheathed, 0.6/1kV cable - compliant with BS6346

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed Copper, Class 2 - Stranded circular, compacted or sectored
Insulation: Polyvinyl Chloride (PVC) compound type TI1
Insulation colour:
- 2 cores: Brown, Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering
Assembly: cores cabled together with filler and bound with binder tape
Bedding: Polyvinyl Chloride (PVC) compound type TM1
Bedding colour: Black
Armour: Galvanized Steel Wire Armoured (SWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type TM 1
Outer sheath color: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature -15°C...+70°C
Final short circuit temperature:

160°C (for cables ≤ 300mm²)
140°C (for cables > 300mm²)

Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS6346 (specification withdrawn)
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 70N/mm²

Selection table

Cable selection	(2-cores PSP cables)
Product code	TS-LV-PSP-2x1.5	TS-LV-PSP-2x2.5	TS-LV-PSP-2x4	TS-LV-PSP-2x6	TS-LV-PSP-2x10	TS-LV-PSP-2x16	TS-LV-PSP-2x25	TS-LV-PSP-2x35	TS-LV-PSP-2x50	TS-LV-PSP-2x70	TS-LV-PSP-2x95	TS-LV-PSP-2x120	TS-LV-PSP-2x150	TS-LV-PSP-2x185	TS-LV-PSP-2x240	TS-LV-PSP-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.6mm	0.7mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm
Cable overall diameter	12.3mm	13.5mm	15mm	16.3mm	19.9mm	22mm	26.7mm	29.2mm	28.3mm	31.3mm	35.1mm	38.1mm	41.6mm	46.4mm	52.3mm	56.7mm
Approximate weight	265kg/km	319kg/km	392kg/km	471kg/km	745kg/km	933kg/km	1435kg/km	1730kg/km	2053kg/km	2613kg/km	3527kg/km	4180kg/km	4939kg/km	6271kg/km	8068kg/km	8635kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	(3-cores PSP cables)
Product code	TS-LV-PSP-3x1.5	TS-LV-PSP-3x2.5	TS-LV-PSP-3x4	TS-LV-PSP-3x6	TS-LV-PSP-3x10	TS-LV-PSP-3x16	TS-LV-PSP-3x25	TS-LV-PSP-3x35	TS-LV-PSP-3x50	TS-LV-PSP-3x70	TS-LV-PSP-3x95	TS-LV-PSP-3x120	TS-LV-PSP-3x150	TS-LV-PSP-3x185	TS-LV-PSP-3x240	TS-LV-PSP-3x300	TS-LV-PSP-3x400
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.6mm	0.7mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm
Cable overall diameter	12.7mm	14.1mm	15.7mm	17.8mm	20.9mm	23.2mm	28.2mm	30.8mm	31mm	35.7mm	39.4mm	42.6mm	48.2mm	54.4mm	59.7mm	64mm	72.9mm
Approximate weight	293kg/km	363kg/km	454kg/km	644kg/km	884kg/km	1141kg/km	1746kg/km	2155kg/km	2666kg/km	3709kg/km	4710kg/km	5634kg/km	7144kg/km	8894kg/km	11004kg/km	13182kg/km	16480kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	(4-cores PSP cables)
Product code	TS-LV-PSP-4x1.5	TS-LV-PSP-4x2.5	TS-LV-PSP-4x4	TS-LV-PSP-4x6	TS-LV-PSP-4x10	TS-LV-PSP-4x16	TS-LV-PSP-4x25	TS-LV-PSP-4x35	TS-LV-PSP-4x50	TS-LV-PSP-4x70	TS-LV-PSP-4x95	TS-LV-PSP-4x120	TS-LV-PSP-4x150	TS-LV-PSP-4x185	TS-LV-PSP-4x240	TS-LV-PSP-4x300	TS-LV-PSP-4x400
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.6mm	0.7mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm
Cable overall diameter	13.5mm	15mm	17.7mm	19.1mm	22.5mm	26.3mm	30.7mm	33.6mm	34mm	38.2mm	42.1mm	46.9mm	54.2mm	59mm	66.3mm	72.6mm	83.3mm
Approximate weight	344kg/km	416kg/km	629kg/km	752kg/km	1049kg/km	1554kg/km	2131kg/km	2640kg/km	3474kg/km	4533kg/km	5827kg/km	7407kg/km	9238kg/km	11108kg/km	13950kg/km	16921kg/km	21961kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	(5-cores PSP cables)
Product code	TS-LV-PSP-5x1.5	TS-LV-PSP-5x2.5	TS-LV-PSP-5x4	TS-LV-PSP-5x6	TS-LV-PSP-5x10	TS-LV-PSP-5x16	TS-LV-PSP-5x25	TS-LV-PSP-5x35	TS-LV-PSP-5x50	TS-LV-PSP-5x70
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm
Radial thickness of insulation	0.6mm	0.7mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm
Cable overall diameter	14.3mm	16.2mm	18.9mm	20.6mm	25.5mm	28.3mm	33.4mm	37.3mm	43mm	48mm
Approximate weight	376kg/km	483kg/km	716kg/km	870kg/km	1389kg/km	1810kg/km	2520kg/km	3137kg/km	4377kg/km	5669kg/km

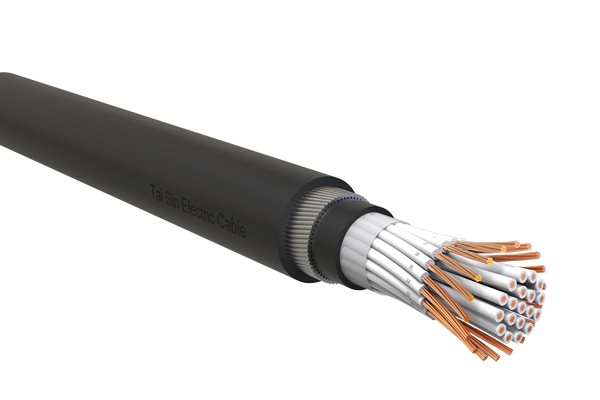

1.9. PSP CU / PVC / PVC / SWA / PVC, Multi-core, PVC insulated, PVC bedded, Galvanised steel wire armoured, PVC sheathed, 0.6/1kV cable - compliant with BS6346

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed Copper, Class 2 - Stranded circular or compacted
Insulation: Polyvinyl Chloride (PVC) compound type TI1
Insulation colour: White with black numbering
Assembly: cores cabled together and covered with Polyester (PET) tape
Bedding: Polyvinyl Chloride (PVC) compound type TM1
Bedding colour: Black
Armour: Galvanized Steel Wire Armoured (SWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type TM 1
Outer sheath color: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature -15°C...+70°C
Final short circuit temperature: 160°
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS6346 (specification withdrawn)
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 70N/mm²

Selection table

Cable selection	multi-core cable size 1.5mm²							multi-core cable size 2.5mm²							multi-core cable size 4mm²
Product code	TS-LV-PSP-7x1.5	TS-LV-PSP-10x1.5	TS-LV-PSP-12x1.5	TS-LV-PSP-19x1.5	TS-LV-PSP-20x1.5	TS-LV-PSP-24x1.5	TS-LV-PSP-37x1.5	TS-LV-PSP-7x2.5	TS-LV-PSP-10x2.5	TS-LV-PSP-12x2.5	TS-LV-PSP-19x2.5	TS-LV-PSP-20x2.5	TS-LV-PSP-24x2.5	TS-LV-PSP-37x2.5	TS-LV-PSP-7x4	TS-LV-PSP-10x4	TS-LV-PSP-12x4	TS-LV-PSP-19x4	TS-LV-PSP-20x4	TS-LV-PSP-24x4	TS-LV-PSP-37x4
Nominal conductor area	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm
Cable overall diameter	15.2mm	19mm	19.4mm	22.2mm	23.6mm	26.2mm	29.3mm	18.2mm	21.7mm	22.3mm	26.6mm	27.9mm	30.3mm	34mm	20.5mm	26.4mm	27.1mm	30.9mm	32.7mm	35.5mm	40.8mm
Approximate weight	458kg/km	706kg/km	763kg/km	1006kg/km	1220kg/km	1399kg/km	1804kg/km	694kg/km	920kg/km	1002kg/km	1519kg/km	1612kg/km	1854kg/km	2451kg/km	903kg/km	1560kg/km	1695kg/km	2261kg/km	2411kg/km	2755kg/km	3674kg/km

<<<<<<< HEAD ======= >>>>>>> fabien-taisin-range-page

2. XLPE insulated cables

2.1. XP CU / XLPE / PVC, XLPE insulated, PVC sheathed, 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation color: natural
Outer Sheath: Polyvinyl Chloride (PVC) compound Type PVC/ST2
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

2.1.1. XP CU / XLPE / PVC, Single core, XLPE insulated, PVC sheathed, 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	Single-core
Product code	TS-LV-XP-1x16	TS-LV-XP-1x25	TS-LV-XP-1x35	TS-LV-XP-1x50	TS-LV-XP-1x70	TS-LV-XP-1x95	TS-LV-XP-1x120	TS-LV-XP-1x150	TS-LV-XP-1x185	TS-LV-XP-1x240	TS-LV-XP-1x300	TS-LV-XP-1x400	TS-LV-XP-1x500	TS-LV-XP-1x630	TS-LV-XP-1x800	TS-LV-XP-1x1000
Nominal conductor area	1x16mm²	1x25mm²	1x35mm²	1x50mm²	1x70mm²	1x95mm²	1x120mm²	1x150mm²	1x185mm²	1x240mm²	1x300mm²	1x400mm²	1x500mm²	1x630mm²	1x800mm²	1x1000mm²
Number and diameter of wires	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm
Mean overall diameter (upper limit)	9.6mm	11.3mm	12.5mm	14.1mm	16.1mm	18.2mm	20mm	22.2mm	24.4mm	27.5mm	30.3mm	33.9mm	37.6mm	42.4mm	47.3mm	52.4mm
Approximate weight	225kg/km	338kg/km	443kg/km	582kg/km	814kg/km	1097kg/km	1365kg/km	1676kg/km	2081kg/km	2700kg/km	3355kg/km	4262kg/km	5338kg/km	6857kg/km	8701kg/km	10891kg/km

2.1.2. XP CU / XLPE / PVC, 2-5 cores, XLPE insulated, PVC sheathed, 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	2-cores
Product code	TS-LV-XP-2x1.5	TS-LV-XP-2x2.5	TS-LV-XP-2x4	TS-LV-XP-2x6	TS-LV-XP-2x10	TS-LV-XP-2x16	TS-LV-XP-2x25	TS-LV-XP-2x35	TS-LV-XP-2x50	TS-LV-XP-2x70	TS-LV-XP-2x95	TS-LV-XP-2x120	TS-LV-XP-2x150	TS-LV-XP-2x185	TS-LV-XP-2x240	TS-LV-XP-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Cable overall diameter	10mm	10.8mm	11.9mm	13mm	14.9mm	17mm	20.4mm	22.7mm	22.4mm	25.4mm	28.2mm	31.2mm	34.9mm	38.1mm	43.2mm	47.4mm
Approximate weight	123kg/km	153kg/km	197kg/km	252kg/km	358kg/km	505kg/km	754kg/km	984kg/km	1237kg/km	1711kg/km	2287kg/km	2856kg/km	3523kg/km	4387kg/km	5678kg/km	7028kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	3-cores
Product code	TS-LV-XP-3x1.5	TS-LV-XP-3x2.5	TS-LV-XP-3x4	TS-LV-XP-3x6	TS-LV-XP-3x10	TS-LV-XP-3x16	TS-LV-XP-3x25	TS-LV-XP-3x35	TS-LV-XP-3x50	TS-LV-XP-3x70	TS-LV-XP-3x95	TS-LV-XP-3x120	TS-LV-XP-3x150	TS-LV-XP-3x185	TS-LV-XP-3x240	TS-LV-XP-3x300	TS-LV-XP-3x400
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Cable overall diameter	10.5mm	11.4mm	12.5mm	13.8mm	15.8mm	18.1mm	21.8mm	24.2mm	25mm	28.9mm	32.6mm	35.8mm	40.4mm	45mm	50.5mm	54.6mm	63.7mm
Approximate weight	150kg/km	190kg/km	252kg/km	328kg/km	477kg/km	684kg/km	1035kg/km	1364kg/km	1766kg/km	2480kg/km	3338kg/km	4166kg/km	5147kg/km	6424kg/km	8335kg/km	10297kg/km	13234kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	4-cores
Product code	TS-LV-XP-4x1.5	TS-LV-XP-4x2.5	TS-LV-XP-4x4	TS-LV-XP-4x6	TS-LV-XP-4x10	TS-LV-XP-4x16	TS-LV-XP-4x25	TS-LV-XP-4x35	TS-LV-XP-4x50	TS-LV-XP-4x70	TS-LV-XP-4x95	TS-LV-XP-4x120	TS-LV-XP-4x150	TS-LV-XP-4x185	TS-LV-XP-4x240	TS-LV-XP-4x300	TS-LV-XP-4x400	TS-LV-XP-4x500
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²	4x500mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm
Cable overall diameter	11.3mm	12.3mm	13.6mm	15mm	17.2mm	19.8mm	23.9mm	26.7mm	27mm	31.4mm	35.3mm	39.1mm	44.8mm	49.8mm	57.1mm	63.4mm	72.8mm	80.8mm
Approximate weight	182kg/km	233kg/km	312kg/km	411kg/km	605kg/km	876kg/km	1334kg/km	1766kg/km	2284kg/km	3231kg/km	4354kg/km	5463kg/km	6755kg/km	8446kg/km	11016kg/km	13717kg/km	17558kg/km	21991kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	5-cores
Product code	TS-LV-XP-5x1.5	TS-LV-XP-5x2.5	TS-LV-XP-5x4	TS-LV-XP-5x6	TS-LV-XP-5x10	TS-LV-XP-5x16	TS-LV-XP-5x25	TS-LV-XP-5x35	TS-LV-XP-5x50	TS-LV-XP-5x70	TS-LV-XP-5x95	TS-LV-XP-5x120	TS-LV-XP-5x150	TS-LV-XP-5x185	TS-LV-XP-5x240	TS-LV-XP-5x300
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²	5x95mm²	5x120mm²	5x150mm²	5x185mm²	5x240mm²	5x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Cable overall diameter	12.1mm	13.3mm	14.7mm	16.6mm	18.8mm	21.6mm	26.3mm	29.3mm	34.2mm	40mm	45.3mm	50.6mm	56.2mm	62.8mm	70.8mm	78.3mm
Approximate weight	214kg/km	278kg/km	375kg/km	496kg/km	737kg/km	1072kg/km	1640kg/km	2176kg/km	2849kg/km	4170kg/km	5617kg/km	7056kg/km	8680kg/km	10860kg/km	14093kg/km	17520kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

2.1.3. XP CU / XLPE / PVC, Multi-cores, XLPE insulated, PVC sheathed, 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	Multi-core (1.5mm²)							Multi-core (2.5mm²)							Multi-core (4mm²)
Product code	TS-LV-XP-7x1.5	TS-LV-XP-10x1.5	TS-LV-XP-12x1.5	TS-LV-XP-19x1.5	TS-LV-XP-20x1.5	TS-LV-XP-24x1.5	TS-LV-XP-37x1.5	TS-LV-XP-7x2.5	TS-LV-XP-10x2.5	TS-LV-XP-12x2.5	TS-LV-XP-19x2.5	TS-LV-XP-20x2.5	TS-LV-XP-24x2.5	TS-LV-XP-37x2.5	TS-LV-XP-7x4	TS-LV-XP-10x4	TS-LV-XP-12x4	TS-LV-XP-19x4	TS-LV-XP-20x4	TS-LV-XP-24x4	TS-LV-XP-37x4
Nominal conductor area	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm
Cable overall diameter	13.3mm	16.4mm	16.9mm	19.5mm	20.5mm	22.5mm	25.6mm	14.5mm	18mm	18.6mm	21.6mm	22.7mm	25.1mm	28.6mm	16.2mm	20.2mm	20.8mm	24.3mm	25.6mm	28.3mm	32.6mm
Approximate weight	278kg/km	391kg/km	441kg/km	635kg/km	676kg/km	801kg/km	1142kg/km	364kg/km	574kg/km	586kg/km	856kg/km	910kg/km	1082kg/km	1560kg/km	496kg/km	705kg/km	809kg/km	1199kg/km	1273kg/km	1519kg/km	2229kg/km

2.2. XAP CU / XLPE / PVC / AWA / PVC, Single core, XLPE insulated, PVC bedded, Aluminium wire armoured, PVC sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2 stranded, circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: natural
Bedding: Polyvinyl Chloride (PVC) compound type ST2
Bedding colour: Black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type ST2
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-LV-XAP-1x50	TS-LV-XAP-1x70	TS-LV-XAP-1x95	TS-LV-XAP-1x120	TS-LV-XAP-1x150	TS-LV-XAP-1x185	TS-LV-XAP-1x240	TS-LV-XAP-1x300	TS-LV-XAP-1x400	TS-LV-XAP-1x500	TS-LV-XAP-1x630	TS-LV-XAP-1x800	TS-LV-XAP-1x1000
Nominal conductor area	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 103mm	37 / 225mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm
Overall diameter (upper limit)	19.5mm	21.5mm	23.4mm	25.9mm	27.9mm	30.1mm	33.2mm	35.8mm	40.8mm	44.5mm	49.1mm	55.6mm	60.9mm
Approximate weight	897kg/km	1150kg/km	1444kg/km	1787kg/km	2105kg/km	2535kg/km	3178kg/km	3840kg/km	4921kg/km	6029kg/km	7551kg/km	9646kg/km	11897kg/km

2.3. XSP CU / XLPE / PVC / SWA / PVC, XLPE insulated, PVC bedded, Galvanized steel wire armoured, PVC sheathed, 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2 stranded circular, compacted or sectored
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour:
- 2 cores: Brown, Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering
- 6 cores and above: White with Black numberings
Assembly: cores cabled together with filler and bound with binder tape
Polyvinyl Chloride (PVC) compound type ST2 or ST2 PVC tape
Bedding colour: Black
Armour: galvanized Steel Wire Armoured (SWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type ST2
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 70N/mm²

2.3.1. XSP CU / XLPE / PVC / SWA / PVC, 2-5 cores, XLPE insulated, PVC bedded, Galvanized steel wire armoured, PVC sheathed, 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	2-cores
Product code	TS-LV-XSP-2x1.5	TS-LV-XSP-2x2.5	TS-LV-XSP-2x4	TS-LV-XSP-2x6	TS-LV-XSP-2x10	TS-LV-XSP-2x16	TS-LV-XSP-2x25	TS-LV-XSP-2x35	TS-LV-XSP-2x50	TS-LV-XSP-2x70	TS-LV-XSP-2x95	TS-LV-XSP-2x120	TS-LV-XSP-2x150	TS-LV-XSP-2x185	TS-LV-XSP-2x240	TS-LV-XSP-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	13.9mm	14.7mm	15.8mm	16.9mm	19.5mm	21.6mm	25.7mm	28mm	28.3mm	31.7mm	35.3mm	38.3mm	41.8mm	46.8mm	52.9mm	57.1mm
Approximate weight	445kg/km	498kg/km	573kg/km	658kg/km	913kg/km	1122kg/km	1603kg/km	1921kg/km	2132kg/km	2736kg/km	3626kg/km	4295kg/km	5065kg/km	6434kg/km	8259kg/km	9793kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	3-cores
Product code	TS-LV-XSP-3x1.5	TS-LV-XSP-3x2.5	TS-LV-XSP-3x4	TS-LV-XSP-3x6	TS-LV-XSP-3x10	TS-LV-XSP-3x16	TS-LV-XSP-3x25	TS-LV-XSP-3x35	TS-LV-XSP-3x50	TS-LV-XSP-3x70	TS-LV-XSP-3x95	TS-LV-XSP-3x120	TS-LV-XSP-3x150	TS-LV-XSP-3x185	TS-LV-XSP-3x240	TS-LV-XSP-3x300	TS-LV-XSP-3x400
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Overall diameter (upper limit)	14.4mm	15.3mm	16.4mm	17.7mm	20.4mm	22.7mm	27.1mm	29.5mm	31.1mm	35.8mm	39.7mm	42.9mm	48.5mm	53.1mm	60.2mm	64.5mm	73.4mm
Approximate weight	487kg/km	551kg/km	643kg/km	755kg/km	1057kg/km	1337kg/km	1937kg/km	2353kg/km	2759kg/km	3827kg/km	4825kg/km	5771kg/km	7301kg/km	8741kg/km	11198kg/km	13357kg/km	16606kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	4-cores
Product code	TS-LV-XSP-4x1.5	TS-LV-XSP-4x2.5	TS-LV-XSP-4x4	TS-LV-XSP-4x6	TS-LV-XSP-4x10	TS-LV-XSP-4x16	TS-LV-XSP-4x25	TS-LV-XSP-4x35	TS-LV-XSP-4x50	TS-LV-XSP-4x70	TS-LV-XSP-4x95	TS-LV-XSP-4x120	TS-LV-XSP-4x150	TS-LV-XSP-4x185	TS-LV-XSP-4x240	TS-LV-XSP-4x300	TS-LV-XSP-4x400
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Overall diameter (upper limit)	15.2mm	16.2mm	17.5mm	19.6mm	21.8mm	25.1mm	29.2mm	32.2mm	33.3mm	38.5mm	42.4mm	47.2mm	54.5mm	59.5mm	66.8mm	73.1mm	83.8mm
Approximate weight	541kg/km	617kg/km	733kg/km	966kg/km	1234kg/km	1706kg/km	2306kg/km	2855kg/km	3359kg/km	4671kg/km	5935kg/km	7546kg/km	9404kg/km	11315kg/km	14144kg/km	17092kg/km	22157kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	5-cores
Product code	TS-LV-XSP-5x1.5	TS-LV-XSP-5x2.5	TS-LV-XSP-5x4	TS-LV-XSP-5x6	TS-LV-XSP-5x10	TS-LV-XSP-5x16	TS-LV-XSP-5x25	TS-LV-XSP-5x35	TS-LV-XSP-5x50	TS-LV-XSP-5x70	TS-LV-XSP-5x95	TS-LV-XSP-5x120	TS-LV-XSP-5x150	TS-LV-XSP-5x185	TS-LV-XSP-5x240
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²	5x95mm²	5x120mm²	5x150mm²	5x185mm²	5x240mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm
Overall diameter (upper limit)	16mm	17.2mm	19.3mm	20.9mm	23.4mm	26.9mm	31.6mm	34.8mm	41.3mm	47.1mm	53.4mm	58.7mm	65.9mm	72.5mm	80.5mm
Approximate weight	597kg/km	690kg/km	918kg/km	1089kg/km	1403kg/km	1973kg/km	2695kg/km	3345kg/km	4502kg/km	5901kg/km	7632kg/km	9585kg/km	11807kg/km	14193kg/km	17700kg/km

2.3.2. XSP CU / XLPE / PVC / SWA / PVC, Multi-cores, XLPE insulated, PVC bedded, Galvanized steel wire armoured, PVC sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	Multi-cores (1.5mm²)							Multi-cores (2.5mm²)							Multi-cores (4mm²)
Product code	TS-LV-XSP-7x1.5	TS-LV-XSP-10x1.5	TS-LV-XSP-12x1.5	TS-LV-XSP-19x1.5	TS-LV-XSP-20x1.5	TS-LV-XSP-24x1.5	TS-LV-XSP-37x1.5	TS-LV-XSP-7x2.5	TS-LV-XSP-10x2.5	TS-LV-XSP-12x2.5	TS-LV-XSP-19x2.5	TS-LV-XSP-20x2.5	TS-LV-XSP-24x2.5	TS-LV-XSP-37x2.5	TS-LV-XSP-7x4	TS-LV-XSP-10x4	TS-LV-XSP-12x4	TS-LV-XSP-19x4	TS-LV-XSP-20x4	TS-LV-XSP-24x4	TS-LV-XSP-37x4
Nominal conductor area	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm
Overall diameter (upper limit)	17.2mm	21mm	21.5mm	24.1mm	25.8mm	27.8mm	30.9mm	19.1mm	22.6mm	23.2mm	26.9mm	28mm	30.4mm	34.1mm	20.8mm	25.5mm	26.1mm	29.6mm	30.9mm	33.8mm	39.5mm
Approximate weight	692kg/km	986kg/km	1059kg/km	1326kg/km	1527kg/km	1724kg/km	2167kg/km	907kg/km	1169kg/km	1253kg/km	1743kg/km	1849kg/km	2090kg/km	2700kg/km	1090kg/km	1555kg/km	1678kg/km	2189kg/km	2298kg/km	2659kg/km	3807kg/km

2.4. XCP CU / XLPE / PVC / CT / PVC, XLPE insulated, PVC bedded, Copper tape screened, PVC sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2 stranded circular, compacted or sectored
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Brown, Black, Grey, Green/Yellow (x3) or Red, Yellow, Blue, Green/Yellow or others
Assembly: Cores cabled together with filler and bound with binder tape
Bedding: Polyvinyl Chloride (PVC) compound type ST2
Bedding colour: Black
Screen: Copper tape
Outer sheath: Polyvinyl Chloride (PVC) compound type ST2
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

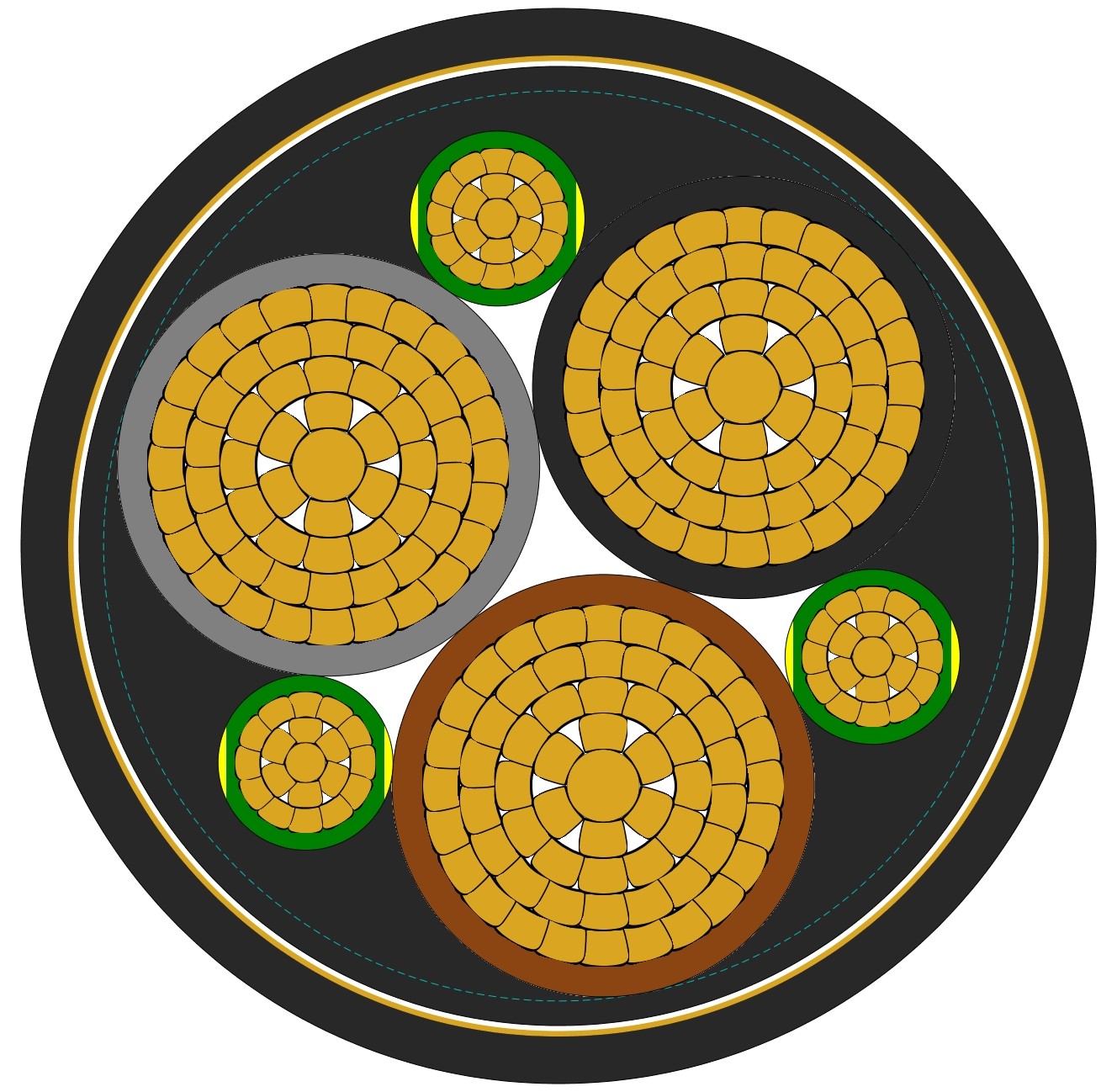

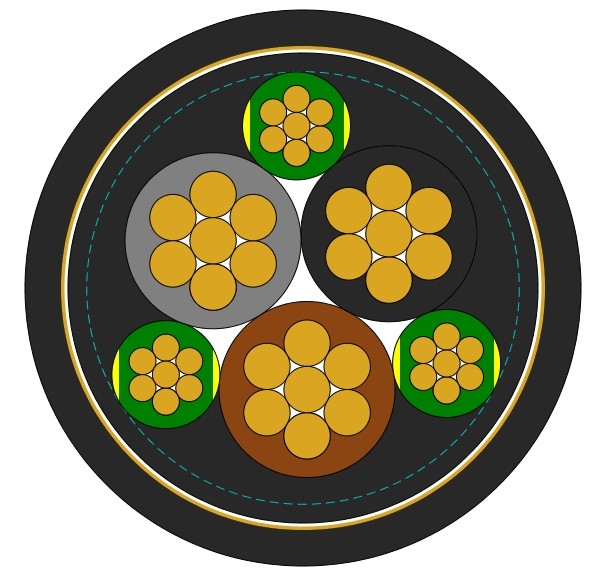

2.4.1. XCP CU / XLPE / PVC / CT / PVC, 3 cores + 3 earth, XLPE insulated, PVC bedded, Copper tape screened, PVC sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	3-cores + Earth
Product code	TS-LV-XCP-3x1.5	TS-LV-XCP-3x2.5	TS-LV-XCP-3x4	TS-LV-XCP-3x6	TS-LV-XCP-3x10	TS-LV-XCP-3x16	TS-LV-XCP-3x25	TS-LV-XCP-3x35	TS-LV-XCP-3x50	TS-LV-XCP-3x70	TS-LV-XCP-3x95	TS-LV-XCP-3x120	TS-LV-XCP-3x150	TS-LV-XCP-3x185	TS-LV-XCP-3x240	TS-LV-XCP-3x300
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²
Earth conductor area	3x1.5mm² (4.5mm²)	3x1.5mm² (4.5mm²)	3x1.5mm² (4.5mm²)	3x2.5mm² (7.5mm²)	3x4mm² (12mm²)	3x6mm² (18mm²)	3x10mm² (30mm²)	3x10mm² (30mm²)	3x10mm² (30mm²)	3x16mm² (48mm²)	3x16mm² (48mm²)	3x25mm² (75mm²)	3x25mm² (75mm²)	3x35mm² (105mm²)	3x50mm² (150mm²)	3x50mm² (150mm²)
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	16.8mm	17.4mm	18.2mm	19.7mm	21.9mm	24.3mm	28.3mm	30mm	32.5mm	37.9mm	41.3mm	46.8mm	50.3mm	55.9mm	63.3mm	67.9mm
Approximate weight	490kg/km	537kg/km	606kg/km	736kg/km	964kg/km	1263kg/km	1782kg/km	2111kg/km	2554kg/km	3544kg/km	4569kg/km	5791kg/km	6785kg/km	8415kg/km	10837kg/km	13082kg/km

2.4.2. XCP CU / XLPE / PVC / CT / PVC, 4 cores, XLPE insulated, PVC bedded, Copper tape screened, PVC sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	4-cores
Product code	TS-LV-XCP-4x1.5	TS-LV-XCP-4x2.5	TS-LV-XCP-4x4	TS-LV-XCP-4x6	TS-LV-XCP-4x10	TS-LV-XCP-4x16	TS-LV-XCP-4x25	TS-LV-XCP-4x35	TS-LV-XCP-4x50	TS-LV-XCP-4x70	TS-LV-XCP-4x95	TS-LV-XCP-4x120	TS-LV-XCP-4x150	TS-LV-XCP-4x185	TS-LV-XCP-4x240	TS-LV-XCP-4x300
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	14.1mm	15.1mm	16.4mm	17.8mm	20mm	22.6mm	26.7mm	29.5mm	30mm	34.6mm	39.1mm	43.1mm	49mm	53.8mm	61.5mm	68.2mm
Approximate weight	392kg/km	460kg/km	559kg/km	679kg/km	905kg/km	1207kg/km	1721kg/km	2178kg/km	2736kg/km	3748kg/km	5047kg/km	6256kg/km	7634kg/km	9361kg/km	12023kg/km	15025kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

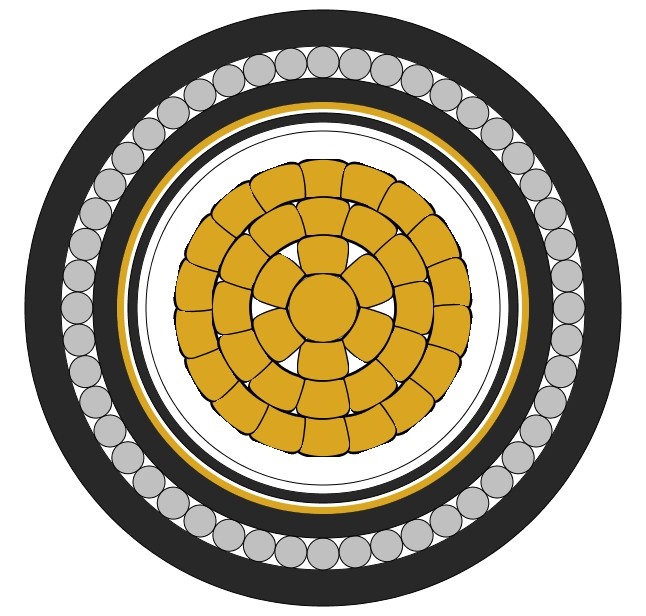

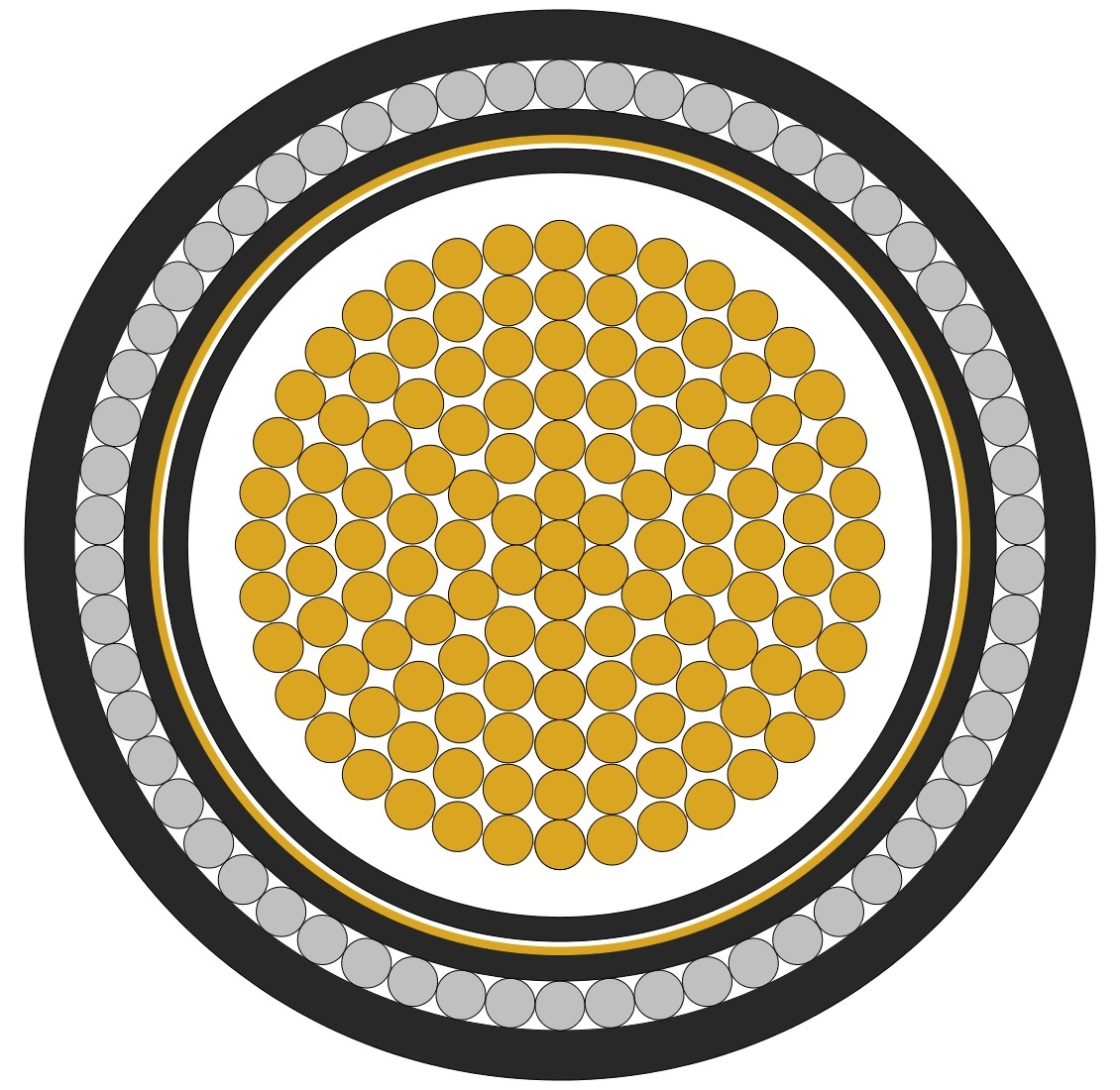

2.5. XCAP CU / XLPE / PVC / CT / AWA / PVC, Single core, XLPE insulated, PVC bedded, Copper tape screened, PVC separation sheath, Aluminium wire armoured, PVC sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2 stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Beddings: Polyvinyl Chloride (PVC) compound type ST2
Bedding colour: Black
Screen: Copper tape
Separation sheath: Polyvinyl Chloride (PVC) compound type ST2
Separation sheath colour: Black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type ST2
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-LV-XCAP-1x70	TS-LV-XCAP-1x95	TS-LV-XCAP-1x120	TS-LV-XCAP-1x150	TS-LV-XCAP-1x185	TS-LV-XCAP-1x240	TS-LV-XCAP-1x300	TS-LV-XCAP-1x400	TS-LV-XCAP-1x500	TS-LV-XCAP-1x630	TS-LV-XCAP-1x800	TS-LV-XCAP-1x1000
Nominal conductor area	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm
Overall diameter (upper limit)	25.7mm	27.6mm	29.4mm	31.6mm	34mm	37.9mm	40.7mm	44.7mm	48.4mm	54.4mm	59.9mm	65.4mm
Approximate weight	1655kg/km	2010kg/km	2352kg/km	2829kg/km	3344kg/km	4174kg/km	5141kg/km	6271kg/km	7527kg/km	9446kg/km	11625kg/km	14114kg/km

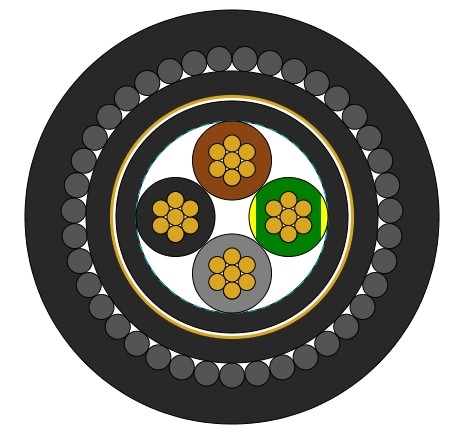

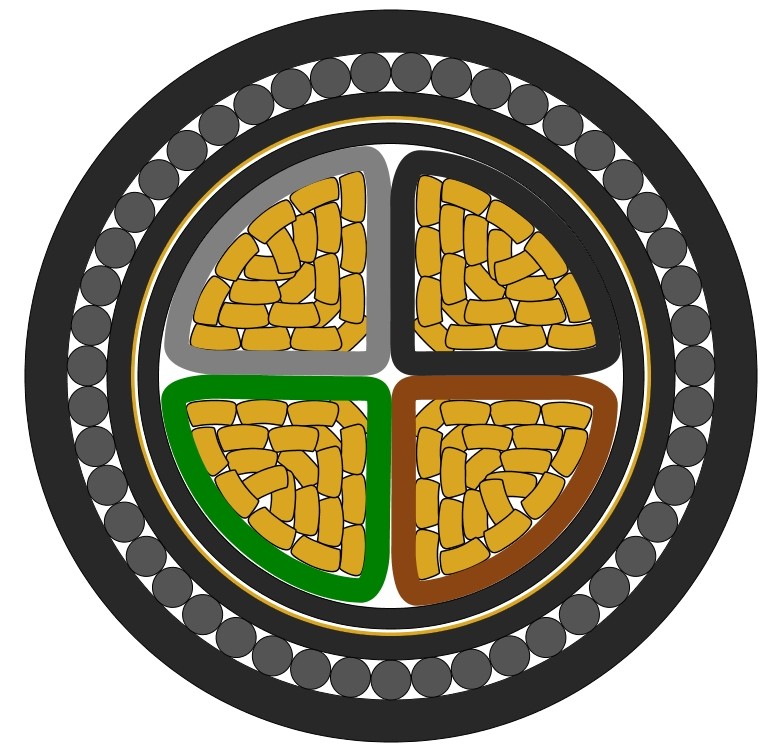

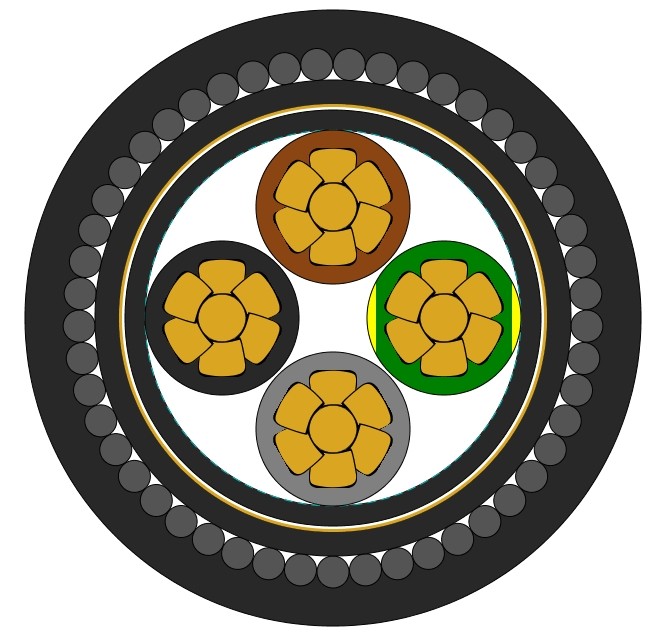

2.6. XCSP CU / XLPE / PVC / CT / SWA / PVC, 4 cores, XLPE insulated, PVC bedded, Copper tape screened, PVC separation sheath, Galvanized steel wire armoured, PVC sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2 stranded circular, compacted or sectored
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Brown, Black, Grey, Green/Yellow or Red, Yellow, Blue, Green/Yellow or others
Beddings: Polyvinyl Chloride (PVC) compound type ST2
Bedding colour: Black
Screen: Copper tape
Separation sheath: Polyvinyl Chloride (PVC) compound type ST2
Separation sheath colour: Black
Armour: Galvanized Steel Wire Armoured (SWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type ST2
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 70N/mm²

Selection table

Cable selection
Product code	TS-LV-XCSP-4x1.5	TS-LV-XCSP-4x2.5	TS-LV-XCSP-4x4	TS-LV-XCSP-4x6	TS-LV-XCSP-4x10	TS-LV-XCSP-4x16	TS-LV-XCSP-4x25	TS-LV-XCSP-4x35	TS-LV-XCSP-4x50	TS-LV-XCSP-4x70	TS-LV-XCSP-4x95	TS-LV-XCSP-4x120	TS-LV-XCSP-4x150	TS-LV-XCSP-4x185	TS-LV-XCSP-4x240	TS-LV-XCSP-4x300
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	19.5mm	20.5mm	21.8mm	23.2mm	26.1mm	28.7mm	33mm	36mm	37.3mm	42.1mm	47.6mm	52mm	58.1mm	62.9mm	71mm	79mm
Approximate weight	880kg/km	986kg/km	1126kg/km	1296kg/km	1732kg/km	2136kg/km	2818kg/km	3394kg/km	4186kg/km	5421kg/km	7336kg/km	8782kg/km	10495kg/km	12467kg/km	15599kg/km	19597kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

3. Low-Smoke Zero-Halogen (LSZH) flame retardant cables

3.1. FRT-H CU / LSZH, Single core, Cross-linked Polyolefin LSZH insulated, Non-sheathed 450/750V cable - compliant with BS EN50525-3-41

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, stranded circular or compacted
Insulation: Cross-linked Polyolefin (LSZH) Low-Smoke Zero-Halogen compound
Insulation colour: Black, Green/Yellow, Red, Yellow, Blue, White, Brown Grey or others

Electrical characteristics

Operating voltage U₀/U: 450/750V
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS EN50525-3-41, H07Z-R
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 6x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-FRT-H-1x1.5	TS-FRT-H-1x2.5	TS-FRT-H-1x4	TS-FRT-H-1x6	TS-FRT-H-1x10	TS-FRT-H-1x16	TS-FRT-H-1x25	TS-FRT-H-1x35	TS-FRT-H-1x50	TS-FRT-H-1x70	TS-FRT-H-1x95	TS-FRT-H-1x120	TS-FRT-H-1x150	TS-FRT-H-1x185	TS-FRT-H-1x240	TS-FRT-H-1x300	TS-FRT-H-1x400	TS-FRT-H-1x500	TS-FRT-H-1x630
Nominal conductor area	1.5mm²	2.5mm²	4mm²	6mm²	10mm²	16mm²	25mm²	35mm²	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm
Radial thickness of insulation	0.7mm	0.8mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm	2.8mm
Overall diameter (upper limit)	3.1mm	3.7mm	4.3mm	4.8mm	6.2mm	7.2mm	9mm	10.2mm	11.9mm	13.7mm	16mm	17.6mm	19.6mm	21.8mm	24.9mm	27.7mm	31.1mm	34.6mm	38.6mm
Approximate weight	25kg/km	37kg/km	53kg/km	73kg/km	121kg/km	180kg/km	283kg/km	379kg/km	513kg/km	716kg/km	987kg/km	1227kg/km	1509kg/km	1889kg/km	2468kg/km	3084kg/km	3923kg/km	4920kg/km	6269kg/km

3.2.1. FRT-XH CU / XLPE / LSZH, Single core, XLPE insulated, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, stranded circular or compacted
Insulation: Cross-linked Polyehtylene (XLPE) compound
Insulation colour: Natural
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Cable selection	Single-core
Product code	TS-FRT-XH-1x1.5	TS-FRT-XH-1x2.5	TS-FRT-XH-1x4	TS-FRT-XH-1x6	TS-FRT-XH-1x10	TS-FRT-XH-1x16	TS-FRT-XH-1x25	TS-FRT-XH-1x35	TS-FRT-XH-1x50	TS-FRT-XH-1x70	TS-FRT-XH-1x95	TS-FRT-XH-1x120	TS-FRT-XH-1x150	TS-FRT-XH-1x185	TS-FRT-XH-1x240	TS-FRT-XH-1x300	TS-FRT-XH-1x400	TS-FRT-XH-1x500	TS-FRT-XH-1x630	TS-FRT-XH-1x800	TS-FRT-XH-1x1000
Nominal conductor area	1.5mm²	2.5mm²	4mm²	6mm²	10mm²	16mm²	25mm²	35mm²	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm
Overall diameter (upper limit)	6.1mm	6.5mm	7.1mm	7.6mm	8.6mm	9.6mm	11.3mm	12.5mm	14.1mm	16.1mm	18.2mm	20mm	22.2mm	24.4mm	27.5mm	30.3mm	33.9mm	37.6mm	42.4mm	47.3mm	52.4mm
Approximate weight	75kg/km	89kg/km	110kg/km	136kg/km	186kg/km	254kg/km	367kg/km	472kg/km	612kg/km	837kg/km	1114kg/km	1374kg/km	1675kg/km	2066kg/km	2661kg/km	3291kg/km	4159kg/km	5188kg/km	6638kg/km	8394kg/km	10479kg/km

3.2.2. FRT-XH CU / XLPE / LSZH, 2-5 cores, XLPE insulated, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Plain annealed copper, Class 2, stranded circular, compacted or sectored
Insulation: Cross-linked Polyehtylene (XLPE) compound
Insulation colour:
- 2 Cores: Brown, Blue
- 3 Cores: Brown, Black, Grey or Brown, Blue, Green/Yellow
- 4 Cores: Brown, Black, Grey, Blue
- 5 Cores: Brown, Black, Grey, Blue, Green/Yellow or White with Black numbering
Assembly: Cores cabled together with filler and bound with binder tape
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Cable selection	2-cores
Product code	TS-FRT-XH-2x1.5	TS-FRT-XH-2x2.5	TS-FRT-XH-2x4	TS-FRT-XH-2x6	TS-FRT-XH-2x10	TS-FRT-XH-2x16	TS-FRT-XH-2x25	TS-FRT-XH-2x35	TS-FRT-XH-2x50	TS-FRT-XH-2x70	TS-FRT-XH-2x95	TS-FRT-XH-2x120	TS-FRT-XH-2x150	TS-FRT-XH-2x185	TS-FRT-XH-2x240	TS-FRT-XH-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	10mm	10.8mm	11.9mm	13mm	14.9mm	17mm	20.4mm	22.7mm	22.4mm	25.4mm	28.2mm	31.2mm	34.9mm	38.7mm	43.2mm	47.4mm
Approximate weight	137kg/km	170kg/km	220kg/km	280kg/km	399kg/km	561kg/km	841kg/km	1096kg/km	1240kg/km	1694kg/km	2248kg/km	2782kg/km	3418kg/km	4233kg/km	5458kg/km	6736kg/km

Cable selection	3-cores
Product code	TS-FRT-XH-3x1.5	TS-FRT-XH-3x2.5	TS-FRT-XH-3x4	TS-FRT-XH-3x6	TS-FRT-XH-3x10	TS-FRT-XH-3x16	TS-FRT-XH-3x25	TS-FRT-XH-3x35	TS-FRT-XH-3x50	TS-FRT-XH-3x70	TS-FRT-XH-3x95	TS-FRT-XH-3x120	TS-FRT-XH-3x150	TS-FRT-XH-3x185	TS-FRT-XH-3x240	TS-FRT-XH-3x300	TS-FRT-XH-3x400
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Overall diameter (upper limit)	10.5mm	11.4mm	12.5mm	13.8mm	15.8mm	18.1mm	21.8mm	24.2mm	25mm	28.9mm	32.6mm	35.8mm	40.4mm	45mm	50.5mm	54.6mm	63.7mm
Approximate weight	159kg/km	201kg/km	265kg/km	344kg/km	500kg/km	715kg/km	1082kg/km	1424kg/km	1751kg/km	2434kg/km	3256kg/km	4047kg/km	4967kg/km	6169kg/km	7978kg/km	9852kg/km	12567kg/km

Cable selection	4-cores
Product code	TS-FRT-XH-4x1.5	TS-FRT-XH-4x2.5	TS-FRT-XH-4x4	TS-FRT-XH-4x6	TS-FRT-XH-4x10	TS-FRT-XH-4x16	TS-FRT-XH-4x25	TS-FRT-XH-4x35	TS-FRT-XH-4x50	TS-FRT-XH-4x70	TS-FRT-XH-4x95	TS-FRT-XH-4x120	TS-FRT-XH-4x150	TS-FRT-XH-4x185	TS-FRT-XH-4x240	TS-FRT-XH-4x300	TS-FRT-XH-4x400	TS-FRT-XH-4x500
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²	4x500mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm
Overall diameter (upper limit)	11.3mm	12.3mm	13.6mm	15mm	17.2mm	19.8mm	23.9mm	26.7mm	27mm	31.4mm	35.3mm	39.1mm	44.8mm	49.8mm	57.1mm	63.4mm	72.8mm	80.8mm
Approximate weight	189kg/km	242kg/km	323kg/km	425kg/km	624kg/km	901kg/km	1373kg/km	1815kg/km	2254kg/km	3162kg/km	4241kg/km	5302kg/km	6503kg/km	8104kg/km	10515kg/km	13058kg/km	16625kg/km	20785kg/km

Cable selection	5-cores
Product code	TS-FRT-XH-5x1.5	TS-FRT-XH-5x2.5	TS-FRT-XH-5x4	TS-FRT-XH-5x6	TS-FRT-XH-5x10	TS-FRT-XH-5x16	TS-FRT-XH-5x25	TS-FRT-XH-5x35	TS-FRT-XH-5x50	TS-FRT-XH-5x70	TS-FRT-XH-5x95	TS-FRT-XH-5x120
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²	5x95mm²	5x120mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm
Overall diameter (upper limit)	12.1mm	13.3mm	14.7mm	16.3mm	18.8mm	21.6mm	26.3mm	29.3mm	34.2mm	40mm	45.3mm	50.6mm
Approximate weight	223kg/km	288kg/km	388kg/km	512kg/km	759kg/km	1102kg/km	1685kg/km	2234kg/km	2845kg/km	3989kg/km	5348kg/km	6689kg/km

3.2.3. FRT-XH CU / XLPE / LSZH, Multi-core, XLPE insulated, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, stranded circular or compacted
Insulation: Cross-linked Polyehtylene (XLPE) compound
Insulation colour: White with black numbering, or others
Assembly: Cores cabled together with filler and bound with binder tape
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Cable selection	Multi-cores (1.5mm²)							Multi-cores (2.5mm²)							Multi-cores (4mm²)
Product code	TS-FRT-XH-7x1.5	TS-FRT-XH-10x1.5	TS-FRT-XH-12x1.5	TS-FRT-XH-19x1.5	TS-FRT-XH-20x1.5	TS-FRT-XH-24x1.5	TS-FRT-XH-37x1.5	TS-FRT-XH-7x2.5	TS-FRT-XH-10x2.5	TS-FRT-XH-12x2.5	TS-FRT-XH-19x2.5	TS-FRT-XH-20x2.5	TS-FRT-XH-24x2.5	TS-FRT-XH-37x2.5	TS-FRT-XH-7x4	TS-FRT-XH-10x4	TS-FRT-XH-12x4	TS-FRT-XH-19x4	TS-FRT-XH-20x4	TS-FRT-XH-24x4	TS-FRT-XH-37x4 \
Nominal conductor area	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm
Overall diameter (upper limit)	13.1mm	16.2mm	16.7mm	19.3mm	20.3mm	22.3mm	25.4mm	14.3mm	17.8mm	18.4mm	21.4mm	22.5mm	24.9mm	28.4mm	16mm	20mm	20.6mm	24.1mm	25.4mm	28.1mm	32.4mm
Approximate weight	309kg/km	417kg/km	467kg/km	652kg/km	688kg/km	803kg/km	1122kg/km	394kg/km	536kg/km	606kg/km	863kg/km	910kg/km	1067kg/km	1515kg/km	523kg/km	719kg/km	820kg/km	1189kg/km	1254kg/km	1476kg/km	2145kg/km

3.3. FRT-XAH, XLPE insulated, LSZH bedded, Aluminium wire armoured, LSZH sheathed 0.6/1kV cable - compliant with BS6724

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS6724
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-FRT-XAH-1x50	TS-FRT-XAH-1x70	TS-FRT-XAH-1x95	TS-FRT-XAH-1x120	TS-FRT-XAH-1x150	TS-FRT-XAH-1x185	TS-FRT-XAH-1x240	TS-FRT-XAH-1x300	TS-FRT-XAH-1x400	TS-FRT-XAH-1x500	TS-FRT-XAH-1x630	TS-FRT-XAH-1x800	TS-FRT-XAH-1x1000
Nominal conductor area	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Overall diameter (upper limit)	18.6mm	20.6mm	22.7mm	25.2mm	27.8mm	30.2mm	33.1mm	35.9mm	40.7mm	44.4mm	49mm	55.5mm	60.6mm
Approximate weight	932kg/km	1149kg/km	1463kg/km	1762kg/km	2181kg/km	2633kg/km	3279kg/km	3966kg/km	5044kg/km	6168kg/km	7711kg/km	9840kg/km	12071kg/km

3.4. FRT-XSH, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable - compliant with BS6724

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular, compacted or sectored
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour:
- 2 cores: Brown, Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Red, Yellow, Blue, Black, Green/Yellow or White with black numbering
- 6 cores and above: White with Black numberings
Assembly: cores cabled together with filler and bound with binder tape
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Armour: Galvanized Steel Wire Armoured (SWA)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS6724
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 70N/mm²

3.4.1. FRT-XSH, 2-5 cores, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable - compliant with BS6724

(back to index)▲

Cable selection	2-cores
Product code	TS-FRT-XSH-2x1.5	TS-FRT-XSH-2x2.5	TS-FRT-XSH-2x4	TS-FRT-XSH-2x6	TS-FRT-XSH-2x10	TS-FRT-XSH-2x16	TS-FRT-XSH-2x25	TS-FRT-XSH-2x35	TS-FRT-XSH-2x50	TS-FRT-XSH-2x70	TS-FRT-XSH-2x95	TS-FRT-XSH-2x120	TS-FRT-XSH-2x150	TS-FRT-XSH-2x185	TS-FRT-XSH-2x240	TS-FRT-XSH-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	12.3mm	13.7mm	14.8mm	15.9mm	18.7mm	20.8mm	25.1mm	28mm	27.8mm	31mm	35mm	38mm	41.5mm	46.9mm	51.2mm	55.8mm
Approximate weight	341kg/km	418kg/km	496kg/km	585kg/km	769kg/km	1081kg/km	1496kg/km	2014kg/km	2135kg/km	2728kg/km	3642kg/km	4341kg/km	5117kg/km	6574kg/km	8025kg/km	9596kg/km

Cable selection	3-cores
Product code	TS-FRT-XSH-3x1.5	TS-FRT-XSH-3x2.5	TS-FRT-XSH-3x4	TS-FRT-XSH-3x6	TS-FRT-XSH-3x10	TS-FRT-XSH-3x16	TS-FRT-XSH-3x25	TS-FRT-XSH-3x35	TS-FRT-XSH-3x50	TS-FRT-XSH-3x70	TS-FRT-XSH-3x95	TS-FRT-XSH-3x120	TS-FRT-XSH-3x150	TS-FRT-XSH-3x185	TS-FRT-XSH-3x240	TS-FRT-XSH-3x300	TS-FRT-XSH-3x400
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Overall diameter (upper limit)	12.7mm	14.3mm	15.4mm	16.7mm	19.6mm	22.1mm	27.1mm	29.7mm	30.4mm	35.1mm	39.4mm	42.6mm	48mm	53mm	58.5mm	63mm	71.9mm
Approximate weight	375kg/km	463kg/km	556kg/km	669kg/km	981kg/km	1283kg/km	1959kg/km	2418kg/km	2751kg/km	3610kg/km	4873kg/km	5824kg/km	7300kg/km	8832kg/km	10979kg/km	13153kg/km	16378kg/km

Cable selection	4-cores
Product code	TS-FRT-XSH-4x1.5	TS-FRT-XSH-4x2.5	TS-FRT-XSH-4x4	TS-FRT-XSH-4x6	TS-FRT-XSH-4x10	TS-FRT-XSH-4x16	TS-FRT-XSH-4x25	TS-FRT-XSH-4x35	TS-FRT-XSH-4x50	TS-FRT-XSH-4x70	TS-FRT-XSH-4x95	TS-FRT-XSH-4x120	TS-FRT-XSH-4x150	TS-FRT-XSH-4x185	TS-FRT-XSH-4x240	TS-FRT-XSH-4x300	TS-FRT-XSH-4x400
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Overall diameter (upper limit)	13.5mm	15.2mm	16.5mm	18.8mm	21mm	24.5mm	29.2mm	32.2mm	32.6mm	38.2mm	42.1mm	47.1mm	52.8mm	57.8mm	65.3mm	71.6mm	82.7mm
Approximate weight	416kg/km	526kg/km	642kg/km	880kg/km	1156kg/km	1531kg/km	2335kg/km	2914kg/km	3351kg/km	4717kg/km	5988kg/km	7625kg/km	9164kg/km	11059kg/km	13939kg/km	16865kg/km	21985kg/km

Cable selection	5-cores
Product code	TS-FRT-XSH-5x1.5	TS-FRT-XSH-5x2.5	TS-FRT-XSH-5x4	TS-FRT-XSH-5x6	TS-FRT-XSH-5x10	TS-FRT-XSH-5x16	TS-FRT-XSH-5x25	TS-FRT-XSH-5x35	TS-FRT-XSH-5x50	TS-FRT-XSH-5x70
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm
Overall diameter (upper limit)	14.5mm	16.2mm	18.5mm	20.1mm	22.8mm	26.9mm	31.8mm	35mm	41mm	46.8mm
Approximate weight	478kg/km	599kg/km	752kg/km	1007kg/km	1352kg/km	1977kg/km	2764kg/km	3456kg/km	4553kg/km	5961kg/km

3.4.2 FRT-XSH, Multi-core, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable - compliant with BS6724

(back to index)▲

Cable selection	Multi-cores (1.5mm²)							Multi-cores (2.5mm²)							Multi-cores (4mm²)
Product code	TS-FRT-XSH-7x1.5	TS-FRT-XSH-10x1.5	TS-FRT-XSH-12x1.5	TS-FRT-XSH-19x1.5	TS-FRT-XSH-20x1.5	TS-FRT-XSH-24x1.5	TS-FRT-XSH-37x1.5	TS-FRT-XSH-7x2.5	TS-FRT-XSH-10x2.5	TS-FRT-XSH-12x2.5	TS-FRT-XSH-19x2.5	TS-FRT-XSH-20x2.5	TS-FRT-XSH-24x2.5	TS-FRT-XSH-37x2.5	TS-FRT-XSH-7x4	TS-FRT-XSH-10x4	TS-FRT-XSH-12x4	TS-FRT-XSH-19x4	TS-FRT-XSH-20x4	TS-FRT-XSH-24x4	TS-FRT-XSH-37x4
Nominal conductor area	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm
Overall diameter (upper limit)	15.4mm	19.2mm	19.6mm	22.3mm	23.8mm	26.4mm	29.3mm	17.9mm	21.8mm	22.4mm	26.7mm	28mm	30.4mm	33.9mm	19.8mm	25.1mm	25.7mm	29.4mm	31.1mm	33.8mm	39.3mm
Approximate weight	571kg/km	849kg/km	908kg/km	1168kg/km	1396kg/km	1594kg/km	2015kg/km	729kg/km	1079kg/km	1172kg/km	1704kg/km	1823kg/km	2066kg/km	2659kg/km	1002kg/km	1504kg/km	1626kg/km	2150kg/km	2289kg/km	2633kg/km	3759kg/km

3.5. FRT-XCH, XLPE insulated, LSZH bedded, Copper tape screened, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Brown, Black, Grey, Green/Yellow (x3) or Red, Yellow, Blue, Green/Yellow (x3)
Assembly: Cores cabled together with filler and bound with binder tape
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Screen: Copper tape
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

3.5.1. FRT-XCH, 3 cores + 3 earth, XLPE insulated, LSZH bedded, Copper tape screened, LSZH sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	3-cores + earth
Product code	TS-FRT-XCH-3x1.5	TS-FRT-XCH-3x2.5	TS-FRT-XCH-3x4	TS-FRT-XCH-3x6	TS-FRT-XCH-3x10	TS-FRT-XCH-3x16	TS-FRT-XCH-3x25	TS-FRT-XCH-3x35	TS-FRT-XCH-3x50	TS-FRT-XCH-3x70	TS-FRT-XCH-3x95	TS-FRT-XCH-3x120	TS-FRT-XCH-3x150	TS-FRT-XCH-3x185	TS-FRT-XCH-3x240	TS-FRT-XCH-3x300
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²
Earth conductor area	3x1.5mm² (4.5mm²)	3x1.5mm² (3.5mm²)	3x1.5mm² (4.5mm²)	3x2.5mm² (7.5mm²)	3x4mm² (12mm²)	3x6mm² (18mm²)	3x10mm² (30mm²)	3x10mm² (30mm²)	3x10mm² (30mm²)	3x16mm² (48mm²)	3x16mm² (48mm²)	3x25mm² (75mm²)	3x25mm² (75mm²)	3x35mm² (105mm²)	3x50mm² (150mm²)	3x50mm² (150mm²)
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	16.8mm	17.4mm	18.2mm	19.7mm	21.9mm	24.3mm	28.3mm	30mm	32.7mm	37.9mm	40.9mm	46.4mm	49.9mm	55.5mm	63.4mm	67.6mm
Approximate weight	485kg/km	532kg/km	602kg/km	734kg/km	966kg/km	1271kg/km	1796kg/km	2131kg/km	2743kg/km	3763kg/km	4658kg/km	5905kg/km	6919kg/km	8584kg/km	11343kg/km	13373kg/km

3.5.2. FRT-XCH, 4 cores, XLPE insulated, LSZH bedded, Copper tape screened, LSZH sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	4-cores
Product code	TS-FRT-XCH-4x1.5	TS-FRT-XCH-4x2.5	TS-FRT-XCH-4x4	TS-FRT-XCH-4x6	TS-FRT-XCH-4x10	TS-FRT-XCH-4x16	TS-FRT-XCH-4x25	TS-FRT-XCH-4x35	TS-FRT-XCH-4x50	TS-FRT-XCH-4x70	TS-FRT-XCH-4x95	TS-FRT-XCH-4x120	TS-FRT-XCH-4x150	TS-FRT-XCH-4x185	TS-FRT-XCH-4x240	TS-FRT-XCH-4x300
Nominal conductor area	4x1.5mm	4x2.5mm	4x4mm	4x6mm	4x10mm	4x16mm	4x25mm	4x35mm	4x50mm	4x70mm	4x95mm	4x120mm	4x150mm	4x185mm	4x240mm	4x300mm
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	14.4mm	15.4mm	16.7mm	18.1mm	20.3mm	22.9mm	27mm	29.8mm	30.3mm	34.9mm	39mm	43mm	48.9mm	53.7mm	61.8mm	67.9mm
Approximate weight	371kg/km	441kg/km	544kg/km	668kg/km	907kg/km	1229kg/km	1770kg/km	2264kg/km	2721kg/km	3734kg/km	5069kg/km	6254kg/km	7622kg/km	9333kg/km	12296kg/km	15030kg/km

3.6. FRT-XCAH, Single core, XLPE insulated, LSZH bedded, Copper tape screened, LSZH separation sheath, Aluminium wire armoured, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Screen: Copper tape
Separation sheath: Low-Smoke Zero-Halogen (LSZH) compound
Separation sheath colour: Black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-FRT-XCAH-1x70	TS-FRT-XCAH-1x95	TS-FRT-XCAH-1x120	TS-FRT-XCAH-1x150	TS-FRT-XCAH-1x185	TS-FRT-XCAH-1x240	TS-FRT-XCAH-1x300	TS-FRT-XCAH-1x400	TS-FRT-XCAH-1x500	TS-FRT-XCAH-1x630	TS-FRT-XCAH-1x800	TS-FRT-XCAH-1x1000
Nominal conductor area	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm
Overall diameter (upper limit)	25.7mm	27.6mm	29.4mm	31.4mm	34mm	37.9mm	40.7mm	44.7mm	48.4mm	54.4mm	59.9mm	65.4mm
Approximate weight	1677kg/km	2111kg/km	2463kg/km	2846kg/km	3533kg/km	4383kg/km	5181kg/km	6317kg/km	7578kg/km	9505kg/km	11694kg/km	14193kg/km

3.7. FRT-XCSH, 4 cores, XLPE insulated, LSZH bedded, Copper tape screened, LSZH separation sheath, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Cross-linked Polyethylene (XLPE) compound
Insulation colour: Brown, Black, Grey, Green/Yellow or Red, Yellow, Blue, Green/Yellow or others
Assembly: Cores cabled together with filler and bound with binder tape
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Screen: Copper tape
Separation sheath: Low-Smoke Zero-Halogen (LSZH) compound
Separation sheet colour: Black
Armour: Galvanized Steel Wire Armouored (SWA)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN50267-2-1, BS EN50267-2-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 70N/mm²

Selection table

Cable selection	4-cores
Product code	TS-FRT-XCSH-4x1.5	TS-FRT-XCSH-4x2.5	TS-FRT-XCSH-4x4	TS-FRT-XCSH-4x6	TS-FRT-XCSH-4x10	TS-FRT-XCSH-4x16	TS-FRT-XCSH-4x25	TS-FRT-XCSH-4x35	TS-FRT-XCSH-4x50	TS-FRT-XCSH-4x70	TS-FRT-XCSH-4x95	TS-FRT-XCSH-4x120	TS-FRT-XCSH-4x150	TS-FRT-XCSH-4x185	TS-FRT-XCSH-4x240	TS-FRT-XCSH-4x300
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	19.9mm	20.9mm	22.2mm	23.6mm	26.5mm	29.1mm	33.4mm	36.4mm	37.7mm	42.5mm	47.6mm	52mm	58.1mm	62.9mm	71.2mm	79.2mm
Approximate weight	871kg/km	981kg/km	1127kg/km	1304kg/km	1758kg/km	2186kg/km	2915kg/km	3535kg/km	4370kg/km	5651kg/km	7413kg/km	8888kg/km	10632kg/km	12641kg/km	16133kg/km	20227kg/km

4. Low-Smoke Zero-Halogen (LSZH) flame retardant and fire resistant cables

4.1. FR-H 110 CU / MGT / LSZH, Mica taped, Cross-linked Polyolefin LSZH insulated, Non-sheathed 450/750V cable - compliant with BS EN50525-3-41

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Fire barrier: Mica tape (MGT)
Insulation: Cross-link Polyolefin (LSZH) Low-Smoke Zero-Halogen compound
Insulation colour: orange or others

Electrical characteristics

Operating voltage U₀/U: 450V/750V (0.6/1kV under certain conditions)
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS EN50525-3-41
Conductor: IEC60228, BS EN60228
Fire resistance: BS6387 (C,W,Z), SS299 (C), IEC60331
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-FR-H110-1x1.5	TS-FR-H110-1x2.5	TS-FR-H110-1x4	TS-FR-H110-1x6	TS-FR-H110-1x10	TS-FR-H110-1x16	TS-FR-H110-1x25	TS-FR-H110-1x35	TS-FR-H110-1x50	TS-FR-H110-1x70	TS-FR-H110-1x95	TS-FR-H110-1x120	TS-FR-H110-1x150	TS-FR-H110-1x185	TS-FR-H110-1x240	TS-FR-H110-1x300	TS-FR-H110-1x400	TS-FR-H110-1x500	TS-FR-H110-1x630
Nominal conductor area	1.5mm²	2.5mm²	4mm²	6mm²	10mm²	16mm²	25mm²	35mm²	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm
Radial thickness of insulation	0.7mm	0.8mm	0.8mm	0.8mm	1mm	1mm	1.2mm	1.2mm	1.4mm	1.4mm	1.6mm	1.6mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm	2.8mm
Overall diameter (upper limit)	4.1mm	4.8mm	5.3mm	5.9mm	7.3mm	8.3mm	10.1mm	11.2mm	12.9mm	14.7mm	17mm	18.7mm	20.6mm	22.9mm	25.9mm	28.7mm	32.1mm	35.6mm	39.6mm
Approximate weight	32kg/km	46kg/km	62kg/km	84kg/km	135kg/km	195kg/km	299kg/km	397kg/km	533kg/km	740kg/km	1015kg/km	1257kg/km	1524kg/km	1926kg/km	2510kg/km	3131kg/km	3975kg/km	4978kg/km	6333kg/km

4.2. FR-XH CU / MGT / XLPE / LSZH, Mica taped, XLPE insulated, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular, compacted or sectored
Fire barrier: Mica tape (MGT)
Insulation: Cross-link Polyethylene (XLPE) compound
Insulation colour:
- 1 core: Natural
- 2 cores: Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering
- 6 cores and above: White with Black numberings
Assembly: cores cabled together with filler and bound with binder tape
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: orange

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Fire resistance: BS6387 (C,W,Z), SS299 (CWZ), IEC60331
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

4.2.1. FR-XH CU / MGT / XLPE / LSZH, Single core, Mica taped, XLPE insulated, LSZH sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	Single core
Product code	TS-FR-XH-1x1.5	TS-FR-XH-1x2.5	TS-FR-XH-1x4	TS-FR-XH-1x6	TS-FR-XH-1x10	TS-FR-XH-1x16	TS-FR-XH-1x25	TS-FR-XH-1x35	TS-FR-XH-1x50	TS-FR-XH-1x70	TS-FR-XH-1x95	TS-FR-XH-1x120	TS-FR-XH-1x150	TS-FR-XH-1x185	TS-FR-XH-1x240	TS-FR-XH-1x300	TS-FR-XH-1x400	TS-FR-XH-1x500	TS-FR-XH-1x630	TS-FR-XH-1x800	TS-FR-XH-1x1000
Nominal conductor area	1.5mm²	2.5mm²	4mm²	6mm²	10mm²	16mm²	25mm²	35mm²	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm
Overall diameter (upper limit)	6.1mm	6.5mm	7.1mm	7.6mm	8.6mm	9.6mm	11.3mm	12.5mm	14.1mm	16.1mm	18.2mm	20mm	22.2mm	24.4mm	27.5mm	30.3mm	33.9mm	37.6mm	42.4mm	47.3mm	52.4mm
Approximate weight	78kg/km	92kg/km	114kg/km	141kg/km	192kg/km	261kg/km	376kg/km	482kg/km	624kg/km	851kg/km	1131kg/km	1393kg/km	1695kg/km	2088kg/km	2687kg/km	3319kg/km	4190kg/km	5222kg/km	6675kg/km	8436kg/km	10525kg/km

4.2.2. FR-XH CU / MGT / XLPE / LSZH, 2-5 cores, Mica taped, XLPE insulated, LSZH sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	2-cores
Product code	TS-FR-XH-2x1.5	TS-FR-XH-2x2.5	TS-FR-XH-2x4	TS-FR-XH-2x6	TS-FR-XH-2x10	TS-FR-XH-2x16	TS-FR-XH-2x25	TS-FR-XH-2x35	TS-FR-XH-2x50	TS-FR-XH-2x70	TS-FR-XH-2x95	TS-FR-XH-2x120	TS-FR-XH-2x150	TS-FR-XH-2x185	TS-FR-XH-2x240	TS-FR-XH-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Overall diameter (upper limit)	12.1mm	12.9mm	14mm	15.1mm	17mm	19.1mm	22.5mm	24.8mm	23.4mm	26.4mm	29.2mm	32.2mm	36mm	39.8mm	44.2mm	48.4mm
Approximate weight	186kg/km	223kg/km	277kg/km	343kg/km	409kg/km	639kg/km	933kg/km	1196kg/km	1292kg/km	1750kg/km	2308kg/km	2852kg/km	3484kg/km	4302kg/km	5528kg/km	6806kg/km

Cable selection	3-cores
Product code	TS-FR-XH-3x1.5	TS-FR-XH-3x2.5	TS-FR-XH-3x4	TS-FR-XH-3x6	TS-FR-XH-3x10	TS-FR-XH-3x16	TS-FR-XH-3x25	TS-FR-XH-3x35	TS-FR-XH-3x50	TS-FR-XH-3x70	TS-FR-XH-3x95	TS-FR-XH-3x120	TS-FR-XH-3x150	TS-FR-XH-3x185	TS-FR-XH-3x240	TS-FR-XH-3x300	TS-FR-XH-3x400	TS-FR-XH-3x500
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²	3x500mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm
Overall diameter (upper limit)	12.7mm	13.6mm	14.8mm	16mm	18mm	20.3mm	24mm	26.5mm	26.3mm	29.9mm	33.2mm	36.4mm	41.3mm	45.6mm	51.9mm	55.8mm	65.2mm	71.4mm
Approximate weight	213kg/km	259kg/km	328kg/km	413kg/km	577kg/km	801kg/km	1183kg/km	1534kg/km	1826kg/km	2511kg/km	3331kg/km	4127kg/km	5056kg/km	6256kg/km	8082kg/km	9952kg/km	12671kg/km	15789kg/km

Cable selection	4-cores
Product code	TS-FR-XH-4x1.5	TS-FR-XH-4x2.5	TS-FR-XH-4x4	TS-FR-XH-4x6	TS-FR-XH-4x10	TS-FR-XH-4x16	TS-FR-XH-4x25	TS-FR-XH-4x35	TS-FR-XH-4x50	TS-FR-XH-4x70	TS-FR-XH-4x95	TS-FR-XH-4x120	TS-FR-XH-4x150	TS-FR-XH-4x185	TS-FR-XH-4x240	TS-FR-XH-4x300	TS-FR-XH-4x400	TS-FR-XH-4x500
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²	4x500mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm
Overall diameter (upper limit)	13.8mm	14.8mm	16.1mm	17.5mm	19.7mm	22.3mm	26.5mm	29.2mm	29.7mm	33.7mm	37.5mm	41.7mm	46.7mm	51.5mm	58.6mm	64.2mm	74.1mm	84.9mm
Approximate weight	254kg/km	312kg/km	400kg/km	508kg/km	718kg/km	1006kg/km	1496kg/km	1949kg/km	2367kg/km	3280kg/km	4364kg/km	5430kg/km	6634kg/km	8239kg/km	10648kg/km	13177kg/km	16752kg/km	20967kg/km

Cable selection	5-cores
Product code	TS-FR-XH-5x1.5	TS-FR-XH-5x2.5	TS-FR-XH-5x4	TS-FR-XH-5x6	TS-FR-XH-5x10	TS-FR-XH-5x16	TS-FR-XH-5x25	TS-FR-XH-5x35	TS-FR-XH-5x50	TS-FR-XH-5x70	TS-FR-XH-5x95	TS-FR-XH-5x120
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²	5x95mm²	5x120mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm
Overall diameter (upper limit)	15mm	16.1mm	17.5mm	19.1mm	21.6mm	24.4mm	29.1mm	32.2mm	37mm	42.8mm	48.1mm	53.4mm
Approximate weight	301kg/km	372kg/km	480kg/km	613kg/km	872kg/km	1229kg/km	1835kg/km	2397kg/km	2979kg/km	4137kg/km	5505kg/km	6855kg/km

4.2.3. FR-XH CU / MGT / XLPE / LSZH, Multi-core, Mica taped, XLPE insulated, LSZH sheathed 0.6/1kV cable - compliant with IEC60502

(back to index)▲

Cable selection	Multi-cores (1.5mm²)							Multi-cores (2.5mm²)							Multi-cores (4mm²)
Product code	TS-FR-XH-7x1.5	TS-FR-XH-10x1.5	TS-FR-XH-12x1.5	TS-FR-XH-19x1.5	TS-FR-XH-20x1.5	TS-FR-XH-24x1.5	TS-FR-XH-37x1.5	TS-FR-XH-7x2.5	TS-FR-XH-10x2.5	TS-FR-XH-12x2.5	TS-FR-XH-19x2.5	TS-FR-XH-20x2.5	TS-FR-XH-24x2.5	TS-FR-XH-37x2.5	TS-FR-XH-7x4	TS-FR-XH-10x4	TS-FR-XH-12x4	TS-FR-XH-19x4	TS-FR-XH-20x4	TS-FR-XH-24x4	TS-FR-XH-37x4
Nominal conductor area	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm
Overall diameter (upper limit)	16.4mm	20.5mm	21.2mm	24.7mm	26mm	28.8mm	32.9mm	17.7mm	22.2mm	22.9mm	26.8mm	28.3mm	31.3mm	35.9mm	19.3mm	24.4mm	25.2mm	29.5mm	31.1mm	34.5mm	39.8mm
Approximate weight	400kg/km	543kg/km	608kg/km	852kg/km	899kg/km	1050kg/km	1470kg/km	490kg/km	670kg/km	756kg/km	1077kg/km	1137kg/km	1333kg/km	1892kg/km	626kg/km	862kg/km	982kg/km	1422kg/km	1501kg/km	1766kg/km	2561kg/km

4.3. FR-XAH CU / MGT / XLPE / LSZH / AWA / LSZH, Single core, Mica taped, XLPE insulated, LSZH bedded, Aluminium wire armoured, LSZH sheathed 0.6/1kV cable - compliant with IEC60502-1

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Fire barrier: Mica tape (MGT)
Insulation: Cross-link Polyethylene (XLPE) compound
Insulation colour: Natural
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Orange

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Fire resistance: BS6387 (C,W,Z), SS299 (C,W,Z), IEC60331
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 10x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-FR-XAH-1x50	TS-FR-XAH-1x70	TS-FR-XAH-1x95	TS-FR-XAH-1x120	TS-FR-XAH-1x150	TS-FR-XAH-1x185	TS-FR-XAH-1x240	TS-FR-XAH-1x300	TS-FR-XAH-1x400	TS-FR-XAH-1x500	TS-FR-XAH-1x630	TS-FR-XAH-1x800	TS-FR-XAH-1x1000
Nominal conductor area	50mm²	70mm²	95mm²	120mm²	150mm²	185mm²	240mm²	300mm²	400mm²	500mm²	630mm²	800mm²	1000mm²
Number and diameter of wires	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm	61 / 3.20mm	127 / 2.52mm	127 / 2.85mm	127 / 3.20mm
Radial thickness of insulation	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm	2.2mm	2.4mm	2.6mm	2.8mm
Overall diameter (upper limit)	20.5mm	22.5mm	24.4mm	27mm	28.9mm	31.2mm	34.2mm	36.8mm	41.8mm	45.5mm	50.1mm	56.6mm	61.9mm
Approximate weight	996kg/km	1265kg/km	1573kg/km	1931kg/km	2269kg/km	2711kg/km	3379kg/km	4056kg/km	5168kg/km	6302kg/km	7856kg/km	9996kg/km	12269kg/km

4.4. FR-XSH CU / MGT / XLPE / LSZH / SWA / LSZH, Mica taped, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable - compliant with BS7846

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular, compacted or sectored
Fire barrier: Mica tape (MGT)
Insulation: Cross-Linked Polyethylene (XLPE) compound
Insulation colour:
- 2 cores: Brown, Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering
- 6 cores and above: White with Black numberings
Assembly: Cores cabled together with filler and bound with binder tape
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Armour: Galvanized Steel Wire Armoured (SWA)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath color: Orange or others

Electrical characteristics

Operating voltage U₀/U: 0.6/1kV
Operating temperature -15°C...+90°C
Final short circuit temperature: 250°C
Test voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS7846
Conductor: IEC60228, BS EN60228
Fire resistance: BS6387 (C,W,Z), SS299 (C,W,Z), IEC60331
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 10x cable overall diameter
Maximum pulling tension: 70N/mm²

4.4.1. FR-XSH CU / MGT / XLPE / LSZH / SWA / LSZH, 2-5 cores, Mica taped, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable - compliant with BS7846

(back to index)▲

Cable selection	2-cores
Product code	TS-FR-XSH-2x1.5	TS-FR-XSH-2x2.5	TS-FR-XSH-2x4	TS-FR-XSH-2x6	TS-FR-XSH-2x10	TS-FR-XSH-2x16	TS-FR-XSH-2x25	TS-FR-XSH-2x35	TS-FR-XSH-2x50	TS-FR-XSH-2x70	TS-FR-XSH-2x95	TS-FR-XSH-2x120	TS-FR-XSH-2x150	TS-FR-XSH-2x185	TS-FR-XSH-2x240	TS-FR-XSH-2x300
Nominal conductor area	2x1.5mm²	2x2.5mm²	2x4mm²	2x6mm²	2x10mm²	2x16mm²	2x25mm²	2x35mm²	2x50mm²	2x70mm²	2x95mm²	2x120mm²	2x150mm²	2x185mm²	2x240mm²	2x300mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm
Mean overall diameter (upper limit)	11.4mm	16mm	17mm	18.2mm	20.2mm	22.9mm	26.7mm	30.2mm	29mm	32.2mm	36.2mm	39.2mm	42.8mm	48.2mm	52.4mm	57mm
Approximate weight	438kg/km	531kg/km	607kg/km	709kg/km	888kg/km	1228kg/km	1657kg/km	2210kg/km	2256kg/km	2859kg/km	3804kg/km	4512kg/km	5298kg/km	6756kg/km	8222kg/km	9847kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	3-cores
Product code	TS-FR-XSH-3x1.5	TS-FR-XSH-3x2.5	TS-FR-XSH-3x4	TS-FR-XSH-3x6	TS-FR-XSH-3x10	TS-FR-XSH-3x16	TS-FR-XSH-3x25	TS-FR-XSH-3x35	TS-FR-XSH-3x50	TS-FR-XSH-3x70	TS-FR-XSH-3x95	TS-FR-XSH-3x120	TS-FR-XSH-3x150	TS-FR-XSH-3x185	TS-FR-XSH-3x240	TS-FR-XSH-3x300	TS-FR-XSH-3x400
Nominal conductor area	3x1.5mm²	3x2.5mm²	3x4mm²	3x6mm²	3x10mm²	3x16mm²	3x25mm²	3x35mm²	3x50mm²	3x70mm²	3x95mm²	3x120mm²	3x150mm²	3x185mm²	3x240mm²	3x300mm²	3x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Mean overall diameter (upper limit)	15mm	16.7mm	17.8mm	19.1mm	22mm	24.3mm	29.5mm	32.1mm	31.9mm	35.5mm	40.2mm	43.4mm	49.1mm	53.8mm	60.1mm	64.4mm	73.6mm
Approximate weight	477kg/km	581kg/km	677kg/km	799kg/km	1139kg/km	1440kg/km	2174kg/km	2627kg/km	2916kg/km	3756kg/km	5029kg/km	5993kg/km	7514kg/km	9046kg/km	11276kg/km	13464kg/km	16724kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	4-cores
Product code	TS-FR-XSH-4x1.5	TS-FR-XSH-4x2.5	TS-FR-XSH-4x4	TS-FR-XSH-4x6	TS-FR-XSH-4x10	TS-FR-XSH-4x16	TS-FR-XSH-4x25	TS-FR-XSH-4x35	TS-FR-XSH-4x50	TS-FR-XSH-4x70	TS-FR-XSH-4x95	TS-FR-XSH-4x120	TS-FR-XSH-4x150	TS-FR-XSH-4x185	TS-FR-XSH-4x240	TS-FR-XSH-4x300	TS-FR-XSH-4x400
Nominal conductor area	4x1.5mm²	4x2.5mm²	4x4mm²	4x6mm²	4x10mm²	4x16mm²	4x25mm²	4x35mm²	4x50mm²	4x70mm²	4x95mm²	4x120mm²	4x150mm²	4x185mm²	4x240mm²	4x300mm²	4x400mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm	37 / 2.25mm	37 / 2.52mm	61 / 2.25mm	61 / 2.52mm	61 / 2.85mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm	1.4mm	1.6mm	1.7mm	1.8mm	2mm
Mean overall diameter (upper limit)	16mm	17.9mm	19.1mm	21.5mm	23.7mm	26.3mm	31.9mm	34.8mm	35.5mm	40.7mm	44.5mm	49.3mm	54.9mm	59.7mm	67mm	72.6mm	84.2mm
Approximate weight	541kg/km	667kg/km	782kg/km	1055kg/km	1331kg/km	1709kg/km	2574kg/km	3167kg/km	3622kg/km	5005kg/km	6293kg/km	7961kg/km	9516kg/km	11386kg/km	14284kg/km	17179kg/km	22343kg/km
Conductors type	-	-	-	-	-	-	-	-	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors	Sectoral stranded conductors

Cable selection	5-cores
Product code	TS-FR-XSH-5x1.5	TS-FR-XSH-5x2.5	TS-FR-XSH-5x4	TS-FR-XSH-5x6	TS-FR-XSH-5x10	TS-FR-XSH-5x16	TS-FR-XSH-5x25	TS-FR-XSH-5x35	TS-FR-XSH-5x50	TS-FR-XSH-5x70	TS-FR-XSH-5x95	TS-FR-XSH-5x120
Nominal conductor area	5x1.5mm²	5x2.5mm²	5x4mm²	5x6mm²	5x10mm²	5x16mm²	5x25mm²	5x35mm²	5x50mm²	5x70mm²	5x95mm²	5x120mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.67mm	7 / 0.85mm	7 / 1.04mm	7 / 1.35mm	7 / 1.70mm	7 / 2.14mm	7 / 2.52mm	19 / 1.78mm	19 / 2.14mm	19 / 2.52mm	37 / 2.03mm
Radial thickness of insulation	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.9mm	0.9mm	1mm	1.1mm	1.1mm	1.2mm
Mean overall diameter (upper limit)	17.3mm	19.2mm	20.8mm	23.1mm	25.7mm	29.7mm	34.8mm	38mm	43.9mm	49.7mm	56.4mm	61.9mm
Approximate weight	619kg/km	755kg/km	906kg/km	1210kg/km	1560kg/km	2215kg/km	3051kg/km	3743kg/km	4858kg/km	6317kg/km	8521kg/km	10194kg/km

4.4.2. FR-XSH CU / MGT / XLPE / LSZH / SWA / LSZH, Multi-core, Mica taped, XLPE insulated, LSZH bedded, Galvanized steel wire armoured, LSZH sheathed 0.6/1kV cable - compliant with BS7846

(back to index)▲

Cable selection	Multi-cores(1.5mm²)							Multi-cores(2.5mm²)							Multi-cores(4mm²)
Product code	TS-FR-XSH-7x1.5	TS-FR-XSH-10x1.5	TS-FR-XSH-12x1.5	TS-FR-XSH-19x1.5	TS-FR-XSH-20x1.5	TS-FR-XSH-24x1.5	TS-FR-XSH-37x1.5	TS-FR-XSH-7x2.5	TS-FR-XSH-10x2.5	TS-FR-XSH-12x2.5	TS-FR-XSH-19x2.5	TS-FR-XSH-20x2.5	TS-FR-XSH-24x2.5	TS-FR-XSH-37x2.5	TS-FR-XSH-7x4	TS-FR-XSH-10x4	TS-FR-XSH-12x4	TS-FR-XSH-19x4	TS-FR-XSH-20x4	TS-FR-XSH-24x4	TS-FR-XSH-37x4
Nominal conductor area	7x1.5mm²	10x1.5mm²	12x1.5mm²	19x1.5mm²	20x1.5mm²	24x1.5mm²	37x1.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	19x2.5mm²	20x2.5mm²	24x2.5mm²	37x2.5mm²	7x4mm²	10x4mm²	12x4mm²	19x4mm²	20x4mm²	24x4mm²	37x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 053mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.67mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm	7 / 0.85mm
Radial thickness of insulation	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.6mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm
Mean overall diameter (upper limit)	18.3mm	23.1mm	23.7mm	27.2mm	29.9mm	32.5mm	36.4mm	21.1mm	26.1mm	26.8mm	32.1mm	33.8mm	36.9mm	41.5mm	22.8mm	29.3mm	30.1mm	34.6mm	36.7mm	40.1mm	46.6mm
Approximate weight	737kg/km	1102kg/km	1186kg/km	1526kg/km	1842kg/km	2084kg/km	2617kg/km	1167kg/km	1364kg/km	1475kg/km	2159kg/km	2299kg/km	2617kg/km	3356kg/km	1206kg/km	1827kg/km	1968kg/km	2603kg/km	2783kg/km	3192kg/km	4564kg/km

4.5. FR-XL CU / MGT / XLPE / LSZH, Multi-core, Mica taped, XLPE insulated, LSZH sheathed 300/500V cable - compliant with BS EN50288-7

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Fire barrier: Mica tape (MGT)
Insulation: Cross-Linked Polyethylene (XLPE) compound
Insulation colour:
- 2 cores: Brown, Blue or Red, Black
- 3 cores: Brown, Black, Grey or Red, Yellow, Blue
- 4 cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
- 5 cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow or White with Black numbering
- 6 cores and above: White with Black numberings
Assembly: Cores cabled together and bound with binder tape
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath color: Orange or others

Electrical characteristics

Operating voltage U₀/U: 300/500V
Operating temperature -15°C...+90°C
Final short circuit temperature: 250°C
Test voltage: 2kV for 1 minutes

Reference Standards

Design specification: BS EN50288-7
Conductor: IEC60228, BS EN60228
Fire resistance: BS6387 (C,W,Z), SS299 (C,W,Z), IEC60331
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection	Multi-cores (1mm²)							Multi-cores (1.5mm²)							Multi-cores (2.5mm²)							Multi-cores (4mm²)
Product code	TS-FR-XL-2x1	TS-FR-XL-3x1	TS-FR-XL-4x1	TS-FR-XL-5x1	TS-FR-XL-7x1	TS-FR-XL-10x1	TS-FR-XL-12x1	TS-FR-XL-2x1.5	TS-FR-XL-3x1.5	TS-FR-XL-4x1.5	TS-FR-XL-5x1.5	TS-FR-XL-7x1.5	TS-FR-XL-10x1.5	TS-FR-XL-12x1.5	TS-FR-XL-2x2.5	TS-FR-XL-3x2.5	TS-FR-XL-4x2.5	TS-FR-XL-5x2.5	TS-FR-XL-7x2.5	TS-FR-XL-10x2.5	TS-FR-XL-12x2.5	TS-FR-XL-2x4	TS-FR-XL-3x4	TS-FR-XL-4x4	TS-FR-XL-5x4
Nominal conductor area	2x1mm²	3x1mm²	4x1mm²	5x1mm²	7x1mm²	10x1mm²	12x1mm²	2x1.5mm²	3x1.5mm²	4x1.5mm²	5x1.5mm²	7x1.5mm²	10x1.5mm²	12x1.5mm²	2x2.5mm²	3x2.5mm²	4x2.5mm²	5x2.5mm²	7x2.5mm²	10x2.5mm²	12x2.5mm²	2x4mm²	3x4mm²	4x4mm²	5x4mm²
Number and diameter of wires	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm	7 / 0.53mm
Radial thickness of insulation	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm	0.7mm
Mean overall diameter (upper limit)	9.3mm	9.8mm	10.8mm	12mm	13.2mm	17mm	17.6mm	9.9mm	10.5mm	11.7mm	12.8mm	14.1mm	18.2mm	18.8mm	11.3mm	12mm	13.2mm	14.5mm	16.2mm	20.9mm	21.6mm	12.4mm	13.2mm	14.5mm	15.9mm
Approximate weight	90kg/km	116kg/km	143kg/km	177kg/km	232kg/km	330kg/km	380kg/km	105kg/km	138kg/km	179kg/km	214kg/km	282kg/km	402kg/km	464kg/km	142kg/km	188kg/km	236kg/km	285kg/km	388kg/km	551kg/km	640kg/km	182kg/km	245kg/km	310kg/km	376kg/km

4.6. FR-XOL CU / MGT / XLPE / OS / LSZH, Single pair, Mica taped, XLPE insulated, Overall aluminium foil screened, LSZH sheathed 300/500V cable - compliant with BS EN50288-7

(back to index)▲

General characteristics

Construction

Conductor: Plain annealed Copper, Class 2 stranded circular
Fire barrier: Mica tape (MGT)
Insulation: Cross-Linked Polyethylene (XLPE) compound
Insulation colour: Black, White or others
Lay up: Pair - Cores twisted to pair
Wrap film: Polyester (PET) binder tape
Overall screen: Aluminium/Polyester tape, with a tinned copper drain wire 0.5mm² (7/0.3mm²) (OS)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Orange or others

Electrical characteristics

Operating voltage U₀/U: 300/500V
Operating temperature -15°C...+90°C
Final short circuit temperature: 250°C
Test voltage: 2kV for 1 minute

Reference Standards

Design specification: BS EN50288-7
Conductor: IEC60228, BS EN60228
Fire resistance: BS6387 (C,W,Z), SS299 (C,W,Z), IEC60331
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²

Selection table

Cable selection
Product code	TS-FR-XOL-1x2x1	TS-FR-XOL-1x2x1.5	TS-FR-XOL-1x2x2.5
Nominal conductor area	2x1mm²	2x1.5mm²	2x2.5mm²
Number and diameter of wires	7 / 0.43mm	7 / 0.53mm	7 / 0.67mm
Radial thickness of insulation	0.6mm	0.6mm	0.7mm
Mean overall diameter (upper limit)	10mm	10.6mm	12.0mm
Approximate weight	98kg/km	113kg/km	150kg/km
