AC Inverters - ACS480

ABB General Purpose Drives

ABB ACS480 General Purpose Inverters



Pure easiness for a broad range of basic applications Some applications need only the essentials from their drives: efficiency and simplicity in a sm package, delivered as effortless as possible. The ACS480 genera purpose drive is exactly that: it brings all the essentials effortlessly together for you to run basic speed-controlled applications.
The ACS480 low voltage AC drive is part of ABB’s all-compatible drives portfolio and features a wide range of useful built-in features in a compact design. This gives users high dependability and simplified operation for numerous applications in various industries, including food & beverage, logistics & warehousing, and water & wastewater.

Highlights
  • 0.75 to 22 kW, 380 to 480 V
  • Cabinet-optimized, IP20 as standard
  • Simple to select, install, and use
  • Compact design with all essential features built-in
  • Built-in functionality for controlling many basic applications
  • Energy efficiency features for optimal energy use
  • Connectivity to most common automation networks
  • Member of ABB’s all-compatible drives portfolio
  • Wide availability and support

    • Index

    1. ACS480
    Wall-mounted inverters
    2. Fieldbus Adapters

    3. Accessories

    4. Documents



    1. ACS480 Inverters


    (back to index)▲


    R1 R2 R3 R4
    Inverters
    		ACS480-04-02A7-4
    		 ACS480-04-03A4-4
    		 ACS480-04-04A1-4
    		 ACS480-04-05A7-4
    		 ACS480-04-07A3-4
    		 ACS480-04-09A5-4
    		 ACS480-04-12A7-4
    		 ACS480-04-018A-4
    		 ACS480-04-026A-4
    		 ACS480-04-033A-4
    		 ACS480-04-039A-4
    		 ACS480-04-046A-4
    		 ACS480-04-050A-4
    Nominal Ratings 2.6 A
    0.75 kW    		 3.3 A
    1.1 kW    		 4 A
    1.5 kW    		 5.6 A
    2.2 kW    		 7.2 A
    3 kW    		 9.4 A
    4 kW    		 12.6 A
    5.5 kW    		 17 A
    7.5 kW    		 25 A
    11 kW    		 32 A
    15 kW    		 38 A
    18.5 kW    		 45 A
    22 kW    		 50 A
    22 kW
    380 - 415
    Vac    		 Light-overload use 2.5 A
    0.75 kW    		 3.1 A
    1.1 kW    		 3.8 A
    1.5 kW    		 5.3 A
    2.2 kW    		 6.8 A
    3 kW    		 8.9 A
    4 kW    		 12 A
    5.5 kW    		 16.2 A
    7.5 kW    		 23.8 A
    11 kW    		 30.5 A
    15 kW    		 36 A
    18.5 kW    		 42.8 A
    22 kW    		 48 A
    22 kW
    Heavy duty use 1.8 A
    0.55 kW    		 2.6 A
    0.75 kW    		 3.3 A
    1.1 kW    		 4 A
    1.5 kW    		 5.6 A
    2.2 kW    		 7.2 A
    3 kW    		 9.4 A
    4 kW    		 12.6 A
    5.5 kW    		 17 A
    7.5 kW    		 25 A
    11 kW    		 32 A
    15 kW    		 38 A
    18.5 kW    		 45 A
    22 kW
    440 - 480
    Vac    		 Light-overload use 2.1 A
    1 HP    		 3 A
    1.5 HP    		 3.4 A
    2 HP    		 4.8 A
    2 HP    		 6 A
    3 HP    		 7.6 A
    5 HP    		 11 A
    7.5 HP    		 14 A
    10 HP    		 21 A
    15 HP    		 27 A
    20 HP    		 34 A
    25 HP    		 40 A
    30 HP    		 42 A
    30 HP
    Heavy duty use 1.6 A
    0.75 HP    		 2.1 A
    1 HP    		 3 A
    1.5 HP    		 3.4 A
    2 HP    		 4 A
    2 HP    		 4.8 A
    3 HP    		 7.6 A
    5 HP    		 11 A
    7.5 HP    		 14 A
    10 HP    		 21 A
    15 HP    		 27 A
    20 HP    		 34 A
    25 HP    		 40 A
    30 HP

    2. Fieldbus Adapters

    (back to index)▲

    Option +K454
    (68469325)    		 +K475
    (3AUA0000089109)    		 +K451
    (68469341)    		 +K491
    (3AXD50000049964)    		 +K490
    (3AXD50000192786)    		 +K492
    (3AXD50000192779)    		 +K457
    (68469376)    		 +K462
    (3AUA0000094512)    		 +K469
    (3AUA0000072069)    		 +K470
    (3AUA0000072120)
    Function PROFIBUS DP
    DPV0/DPV1    		 Two por
    EtherNet/IP™
    Modbus TCP
    PROFINET IO    		 DeviceNet Two-Port
    Modbus/TCP    		 Two-Port
    Ethernet/IP    		 Two-Port
    PROFINET IO    		 CANopen ControlNet EtherCAT POWERLINK
    Adapter FPBA-01
    		 FENA-21
    		 FDNA-01
    		 FMBT-21
    		 FEIP-21
    		 FPNO-21
    		 FCAN-01
    		 FCNA-01
    		 FECA-01
    		 FEPL-02


    3. Accessories

    (back to index)▲

    Option 3AUA0000064884 3AUA0000088311
    +J425    		 3AXD50000025965
    +J429    		 3AXD50000028828
    +J404    		 3AXD50000040850
    +J424    		 3AUA0000108878 3AXD50000009374 3AXD50000048730 3AXD50000019865 3AXD50000019865
    Function Assistant
    control panel
    as standard    		 Industrial Assistant
    control panel    		 Control panel
    with Bluetooth interface    		 Basic
    control panel    		 Blank
    control panel cover
    with RJ-45 connector    		 Control panel
    mounting platform
    (flush mounted)    		 Control panel
    mounting platform
    (surface mounted)    		 Door mounting kit
    for the panel
    (for one drive,
    contains
    DPMP-02 and RDUM-01)    		 Cold configurator
    adapter (packed kit)    		 Drive composer pro
    PC tool
    (single user licence)
    Adapter ACS-AP-S
    		 ACS-AP-I
    		 ACS-AP-W
    		 ACS-BP-S
    		 RDUM-01
    		 DPMP-01
    		 DPMP-02
    		 DPMP-EXT2
    		 CCA-01
    		 DCPT-01

    4. Documentation

    (back to index)▲

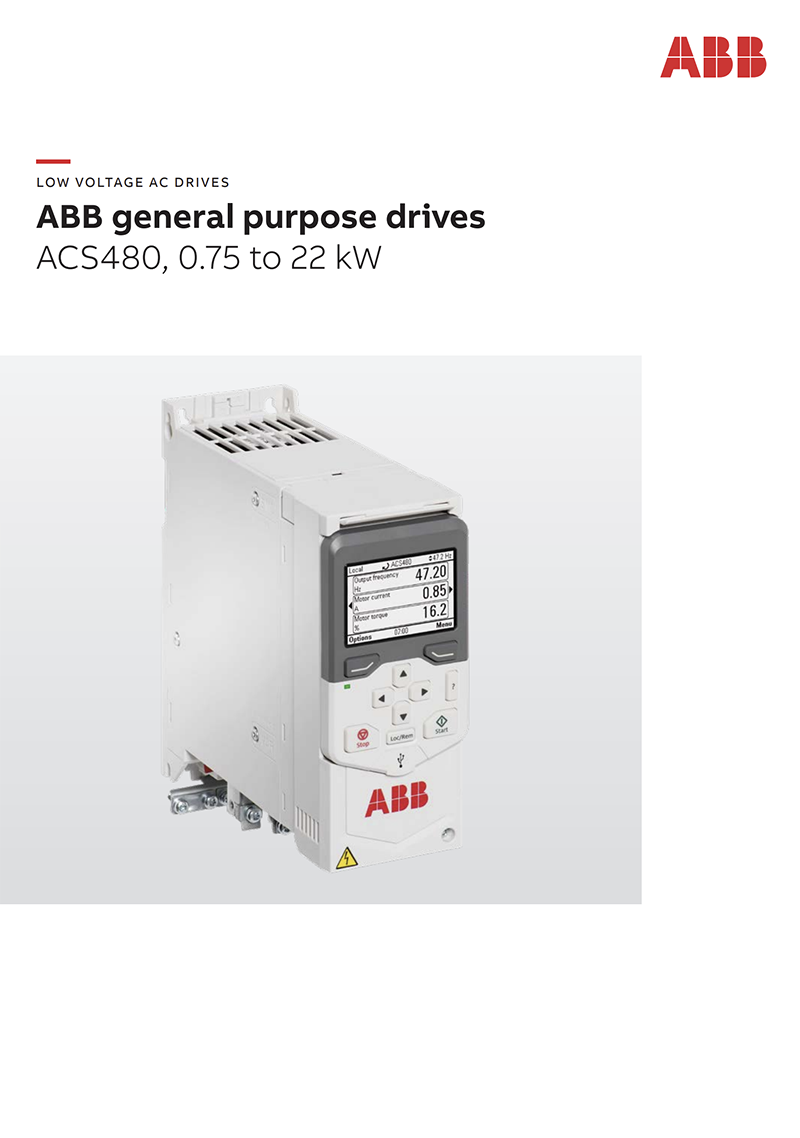

    ABB ACS480 Drives Catalogue
