AC Inverters - ACSM1

ABB Motion Control Drives

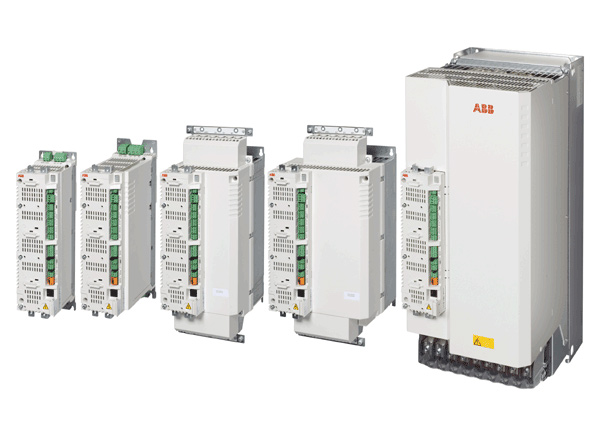

ABB ACSM1 motion control drives


Our motion control solutions include human-machine interfaces (HMI), programmable logic controllers (PLC), safety technology and extend to multi-axis motion controllers, high performance servo drives, rotary servo motors and linear motors. All of which seamlessly interface to provide a complete machine control solution.

ACSM1 motion control drives provide general speed and torque as well as versatile motion control features for use in demanding applications. They can control induction, synchronous and asynchronous servo and high torque motors with various feedback devices. The compact hardware, different variants and programming flexibility ensure the optimum system solution. The innovative memory unit concept enables flexible drive configuration.

Highlights
  • Designed for demanding machinery applications with synchronous and induction motors
  • Compact design for single and multidrive systems
  • Regenerative supply for applications with high braking power duty cycles
  • Extension of functionality using a block programming tool
  • Functional safety as standard

    • Index

    1 ACSM1 Inverters

    2 Accessories

    3 Documentation


    1. ABB inverters


    (back to index)▲



    B Frame Size C Frame Size D Frame Size
    Nominal
    Ratings    		 14 A
    5.5 kW
    7.5 HP    		 18 A
    7.5 kW
    10 HP    		 27 A
    11 kW
    15 HP    		 35 A
    15 kW
    20 HP    		 44 A
    18.5 kW
    25 HP    		 50 A
    22 kW
    30 HP    		 65 A
    30 kW
    40 HP    		 80 A
    37 kW
    50 HP    		 93 A
    45 kW
    60 HP
    Product ID
    		 ACSM1-04AS-012A-4
    		 ACSM1-04AS-016A-4
    		 ACSM1-04AS-024A-4
    		 ACSM1-04AS-031A-4
    		 ACSM1-04AS-040A-4
    		 ACSM1-04AS-046A-4
    		 ACSM1-04AS-060A-4
    		 ACSM1-04AS-073A-4
    		 ACSM1-04AS-090A-4

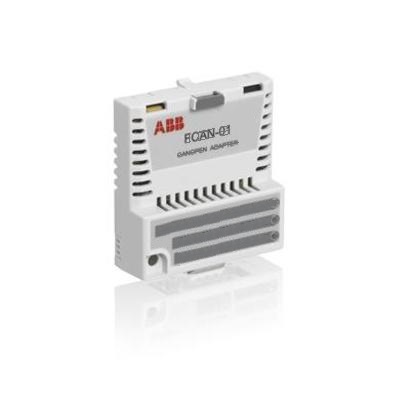

    2. Accessories



    (back to index)▲


    I/O units Feedback interfaces Communication Units
    Option +L501 +L500 +L517 +L518 +L516 +L502 +K454 +K457 +K451 +K473 +K458 +K469 - +K470
    Function 4 x DI/O
    2 x RO    		 3 x AI
    1 x AO
    2 x DI/O    		 2 inputs
    (TTL incremental encoder)
    1 output    		 2 inputs
    (SinCos absolute
    TTL incremental encoder)
    1 output    		 2 inputs
    (Resolver
    TTL incremental encoder)
    1 output    		 1 input
    (HTL incremental encoder)
    1 output    		 PROFIBUS DP
    DPV0/DPV1    		 CANopen® DeviceNetTM EtherNet/IPTM
    Modbus TCP
    PROFINET IO    		 Modbus RTU EtherCAT® SERCOS II Ethernet PowerLink
    Adapter ID FIO-01
    		 FIO-11
    		 FEN-01
    		 FEN-11
    		 FEN-21
    		 FEN-31
    		 FPBA-01
    		 FCAN-01
    		 FDNA-01
    		 FENA-11
    		 FSCA-01
    		 FECA-01
    		 FSEA-21
    		 FEPL-02

    3. Documentation


    (back to index)▲

    ABB ACSM1 Drives Catalogue
