Phoenix Contact offers a comprehensive portfolio of Industrial Ethernet Switches, from Unmanaged Switches to Managed Switches and layer 3 switches.
The robust industrial-grade switches for DIN rail mounting offer functions such as PoE, Gigabit, network redundancy, security, PROFINET, and EtherNet/IP™.

Ethernet switches are the communication hubs of your industrial network. They provide reliable, efficient data exchange and can ensure the robustness of your network. Find the right switches for your application here.

Your advantages with Phoenix Contact Ethernet switches:

The right switch for every application: Unmanaged Switches, intelligent switches, Managed Switches, and layer 3 switches
Support for various IT standards and automation protocols such as PROFINET and EtherNet/IP™
Gigabit switches for large networks with high data throughput
Power over Ethernet switches for the use of cameras and other PoE end devices

Unmanaged Switches
Unmanaged Switches from Phoenix Contact impress with their standard functions, variable number of ports, and various designs. In addition to switches for DIN rails, we also offer switches with a 19" design and switches for field installation (IP67). The Fast Ethernet and Gigabit switches with a high level of immunity, robust housing, and wide temperature range are entirely suitable for continuous operation in industrial applications. Special versions for Power over Ethernet make it extremely easy to install your end devices.

Managed Switches
Phoenix Contact offers a large range of various Managed Switches. They offer optimum real-time properties, prioritization of your data traffic, various options for network diagnostics, and redundancy mechanisms. The robust DIN rail switches are tailored to special requirements in industrial environments and the automation protocols used there, such as PROFINET and EtherNet/IP™. Gigabit switches support large data volumes. They are also available as PoE switches. Choose from 5 to 24 ports, copper or FO connections (SC, ST/BFOC, SFP), and various approvals.

Layer 3 switches
Industrial layer 3 switches from Phoenix Contact enable you to easily segment your network into several subnets. Use our switches to easily integrate your machines, systems, and subnets into the higher-level network, thereby increasing your network stability and security. Thanks to switches with NAT functionality, you can also easily integrate systems with identical IP address ranges into higher-level networks.

There are 3 ways to configure your Phoenix Contact Ethernet switch:

1. Configure it by main feature

This configuration mode allows you to choose a switch, regardless of its series, just by starting with a key characteristic of your application.
(clicking on a button will open a detailed configurator below where you can then do your selection)

See all
Phoenix Contact Ethernet switches

Un-managed
Ethernet switches

Managed
Ethernet switches

Layer 3
Ethernet switches

PoE-enabled
Ethernet switches

UL listed
Ethernet switches

Ethernet/IP™
Ethernet switches

PROFINET
Ethernet switches

CC-Link
Ethernet switches

IEC 61850-3 compliant
Ethernet switches

Conformal-coated
Ethernet switches, for aggressive
industrial environments

ATEX / IECEx approved
Ethernet switches, for hazardous
industrial areas

Extended temperature
Ethernet switches, for
industrial environments with up to 75°C / 167°F

IP67 switches
for direct use in the field

2. Configure it by series name

This configuration mode is for users familiar with Phoenix Contact switches
(clicking on a button will open a detailed configurator below where you can then do your selection)

	Unmanaged switches		Managed switches

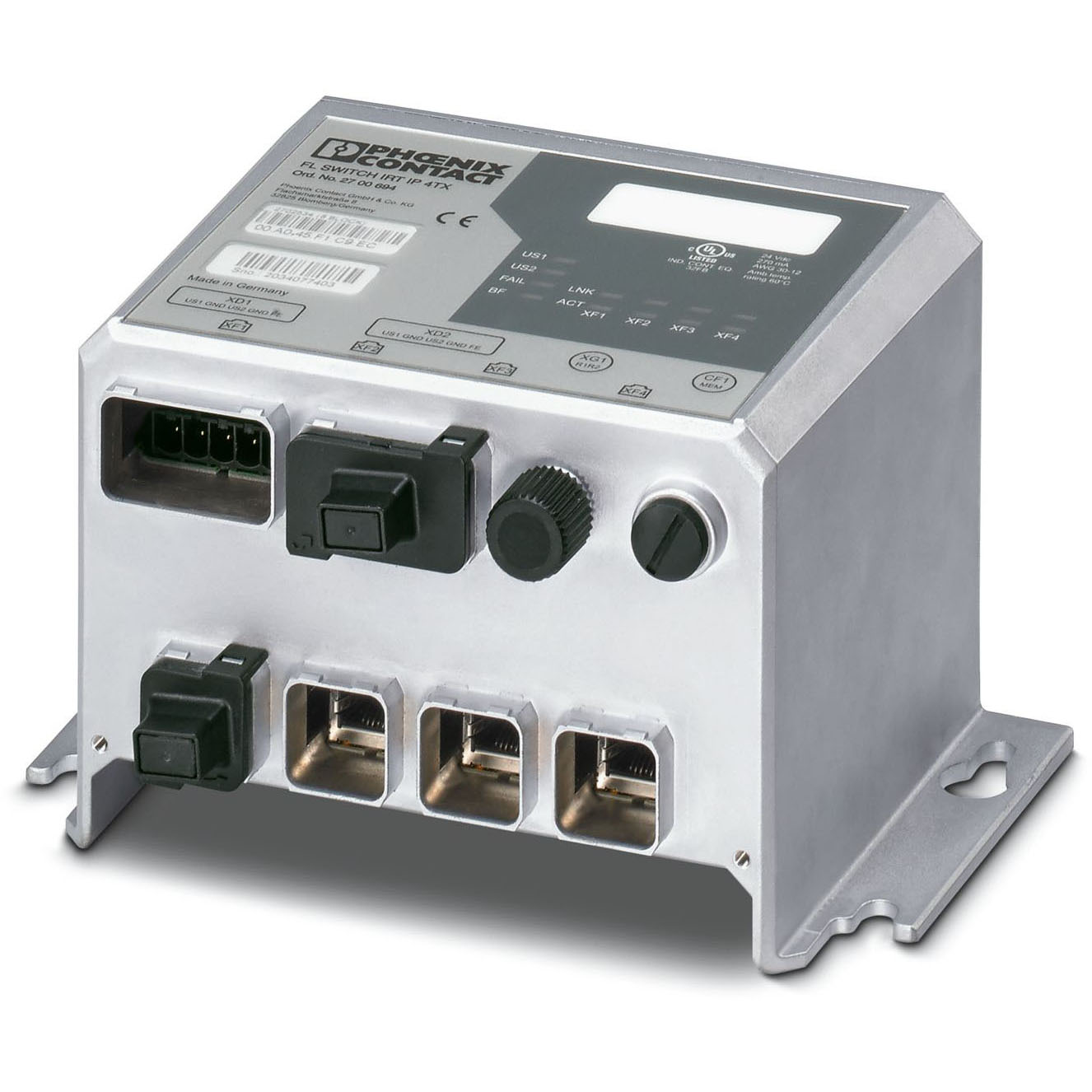

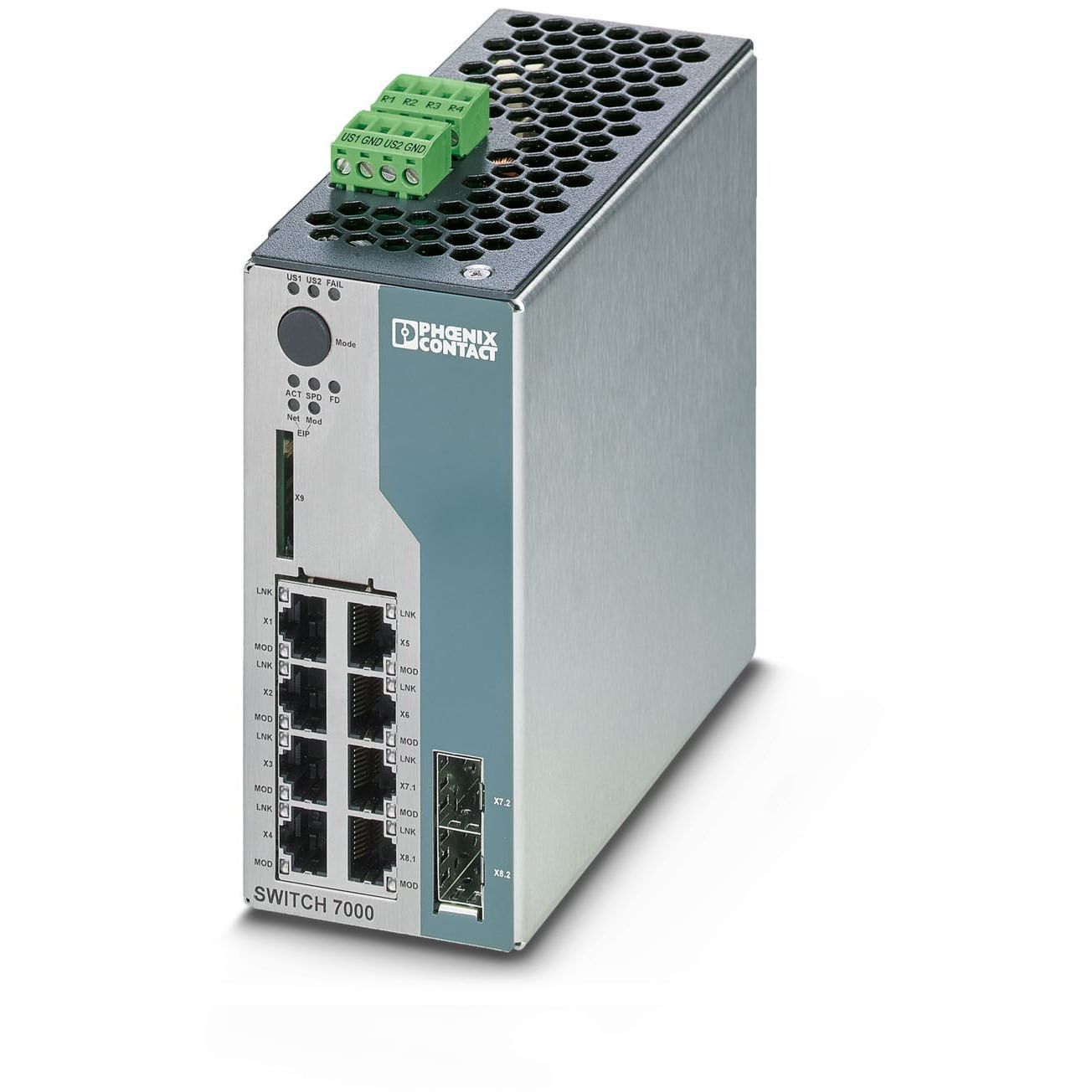

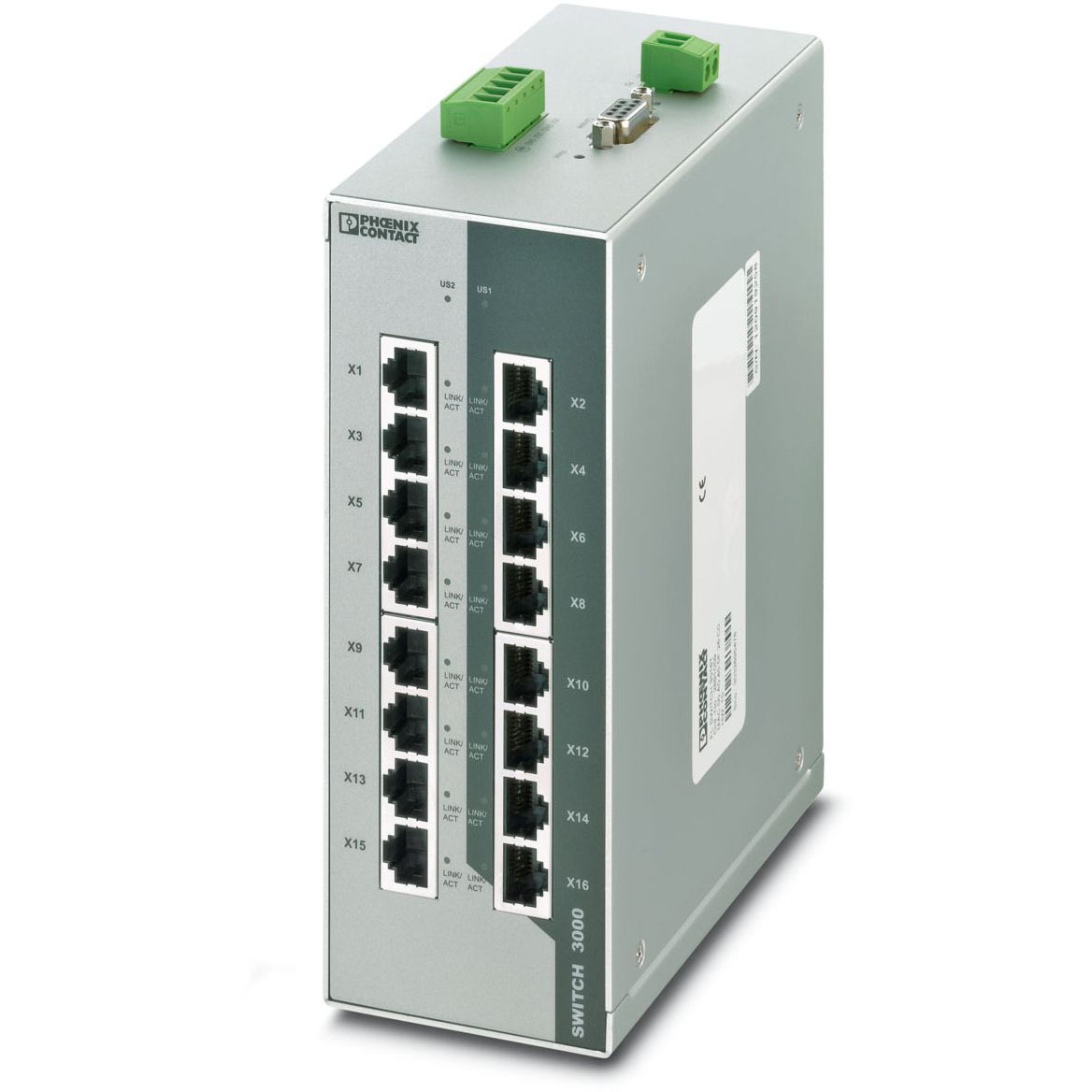

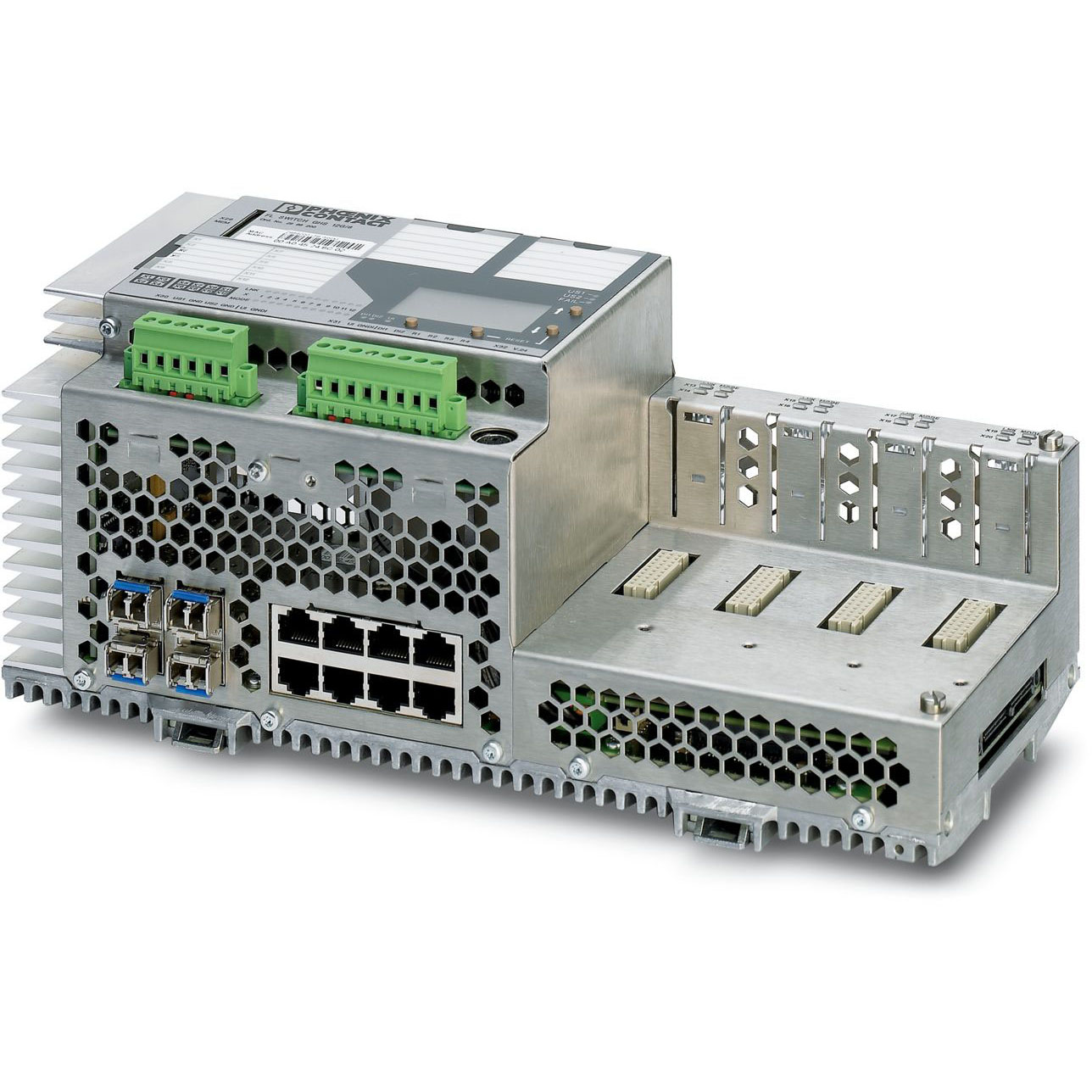

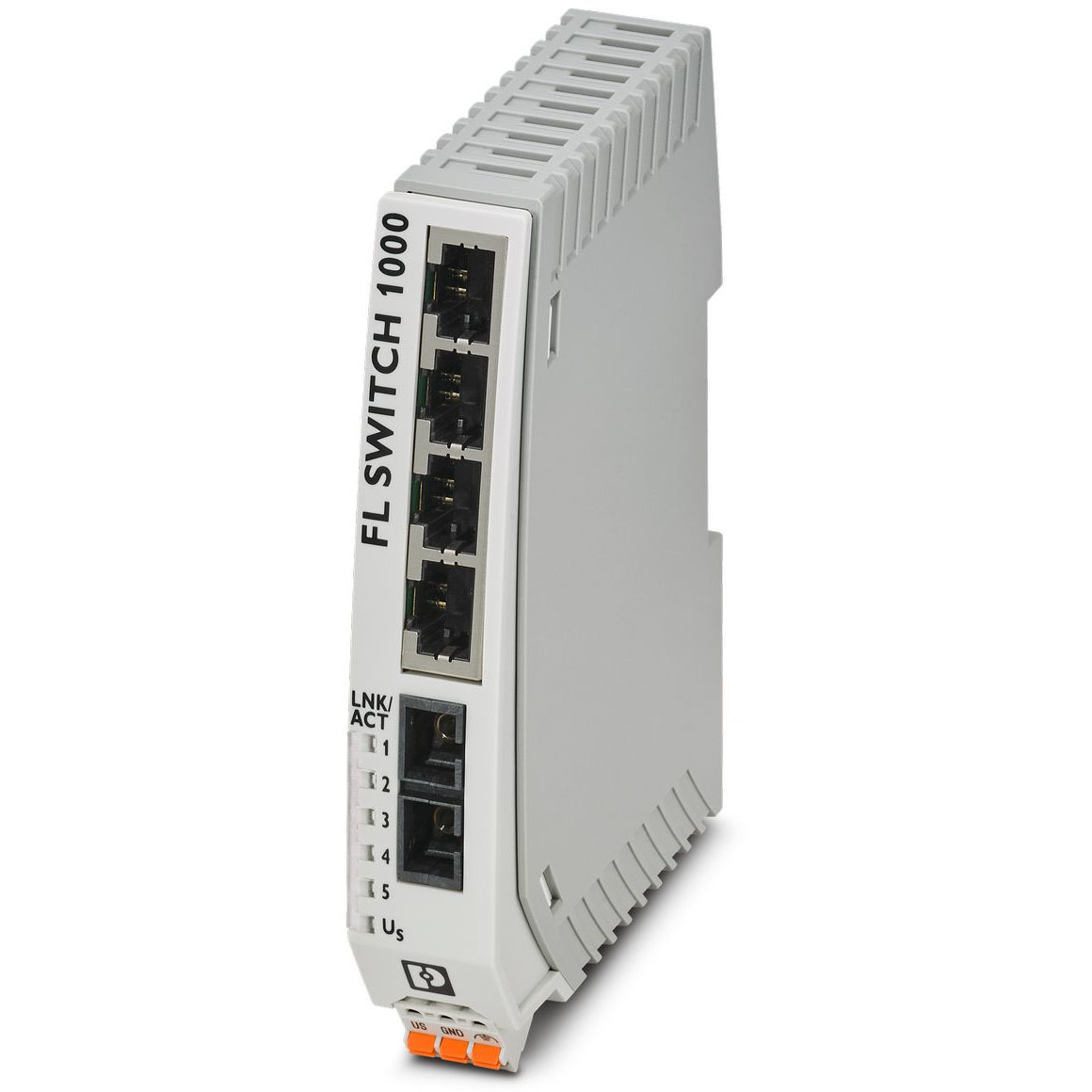

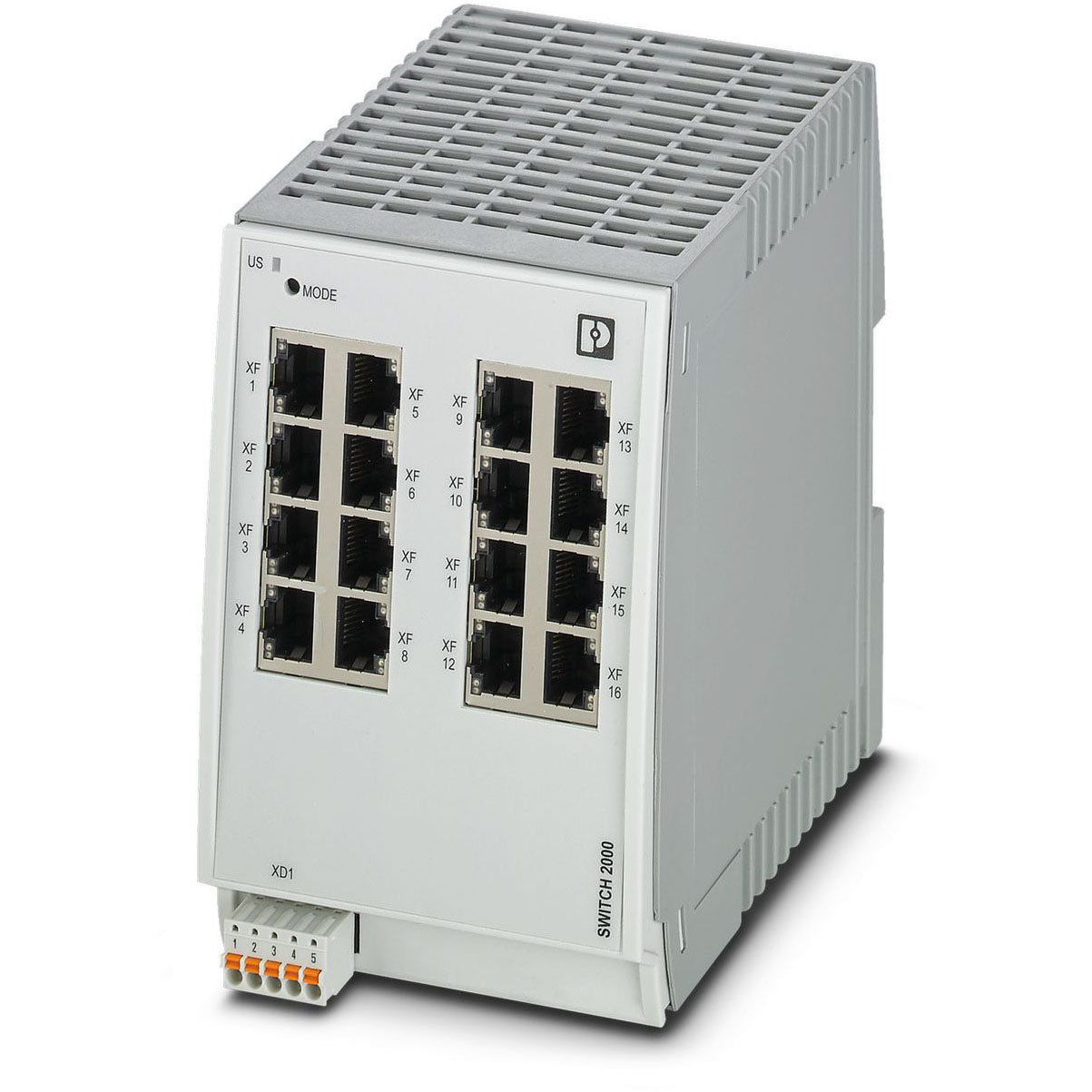

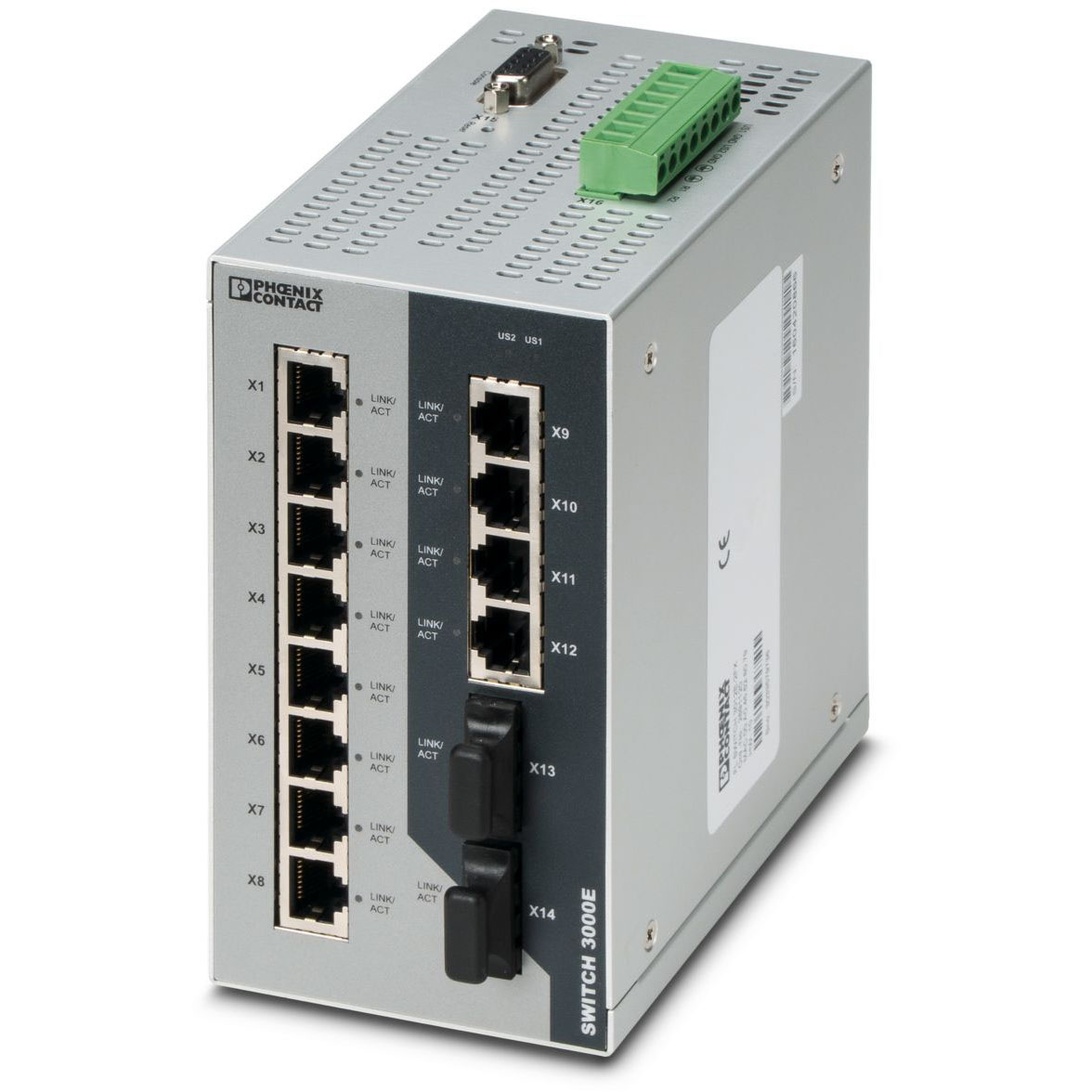

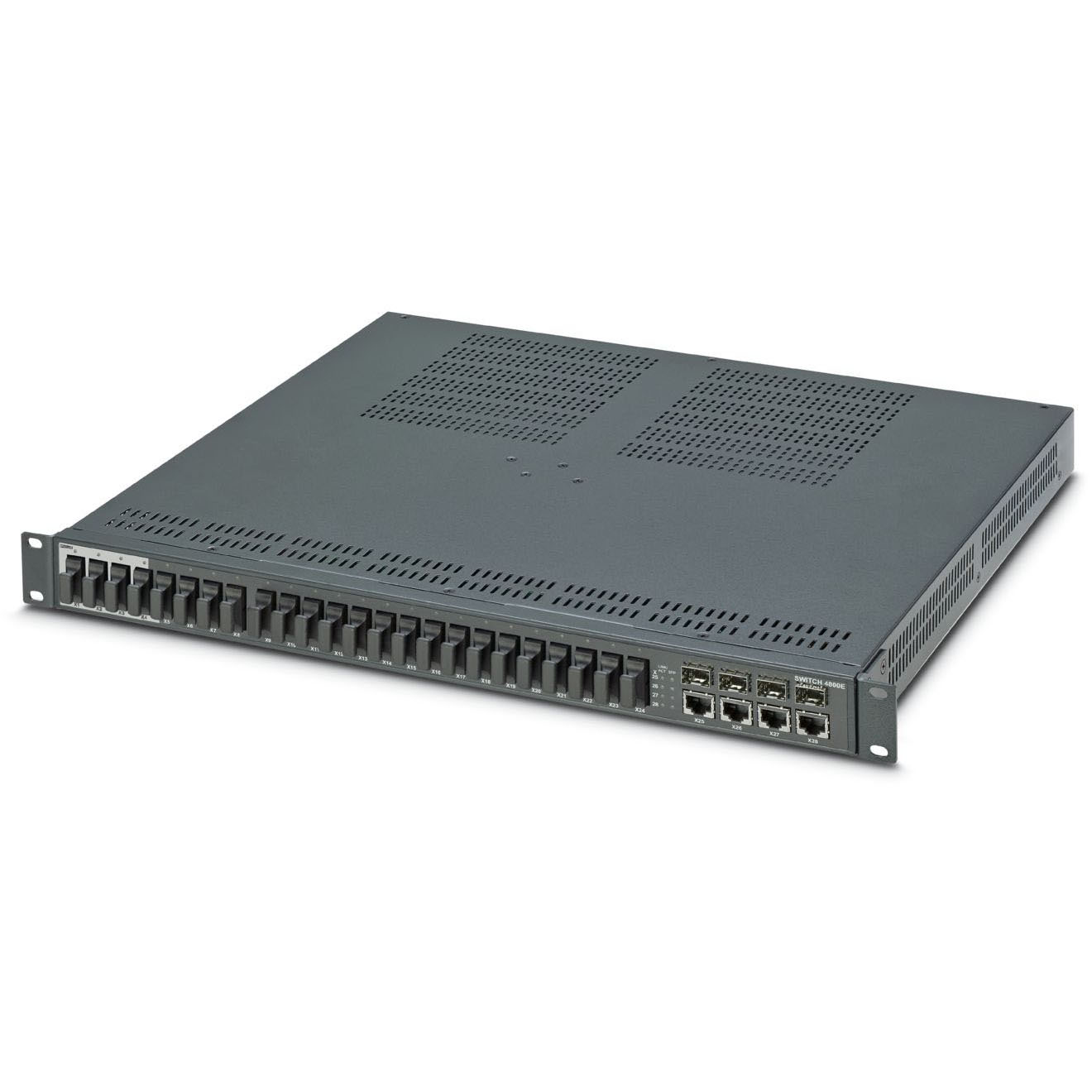

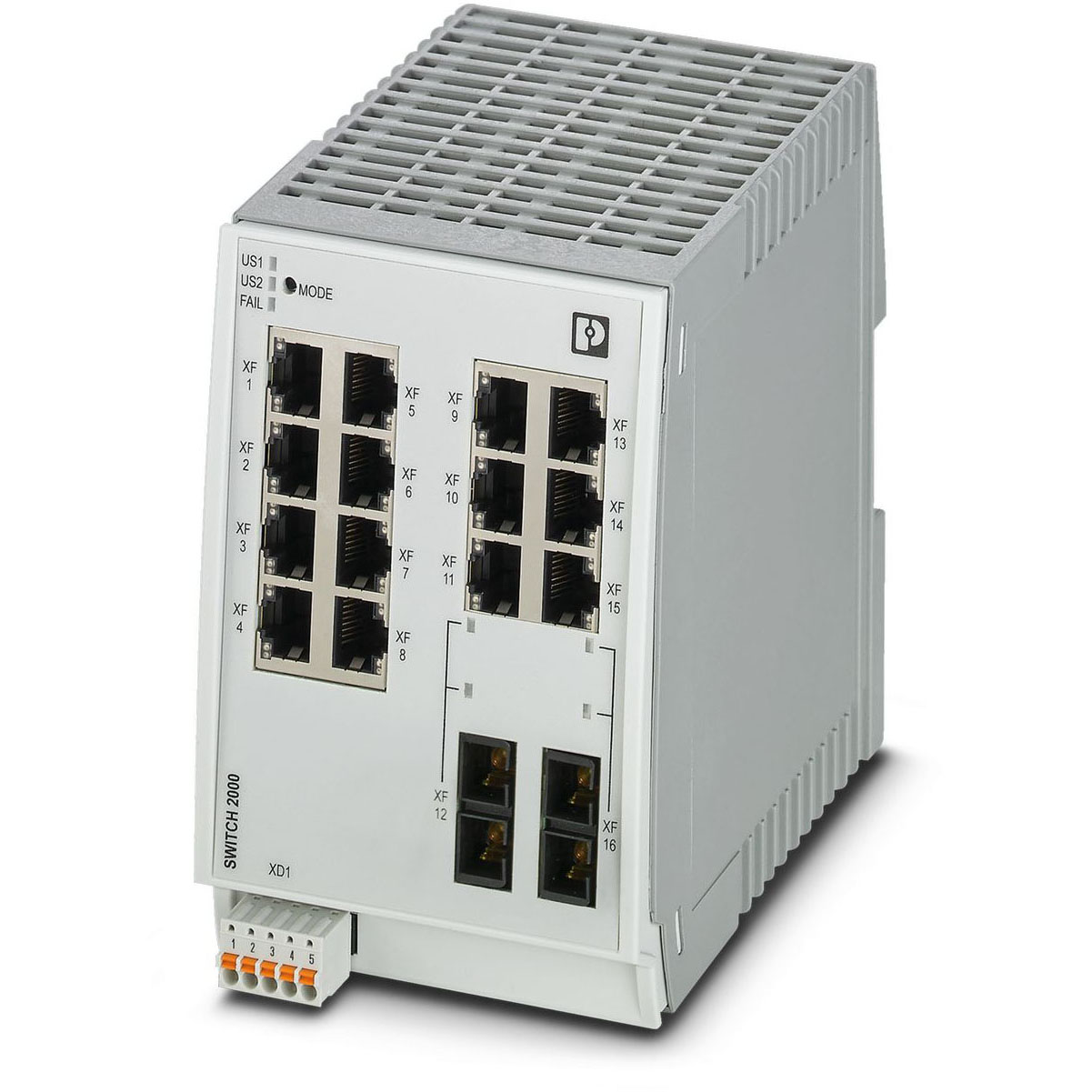

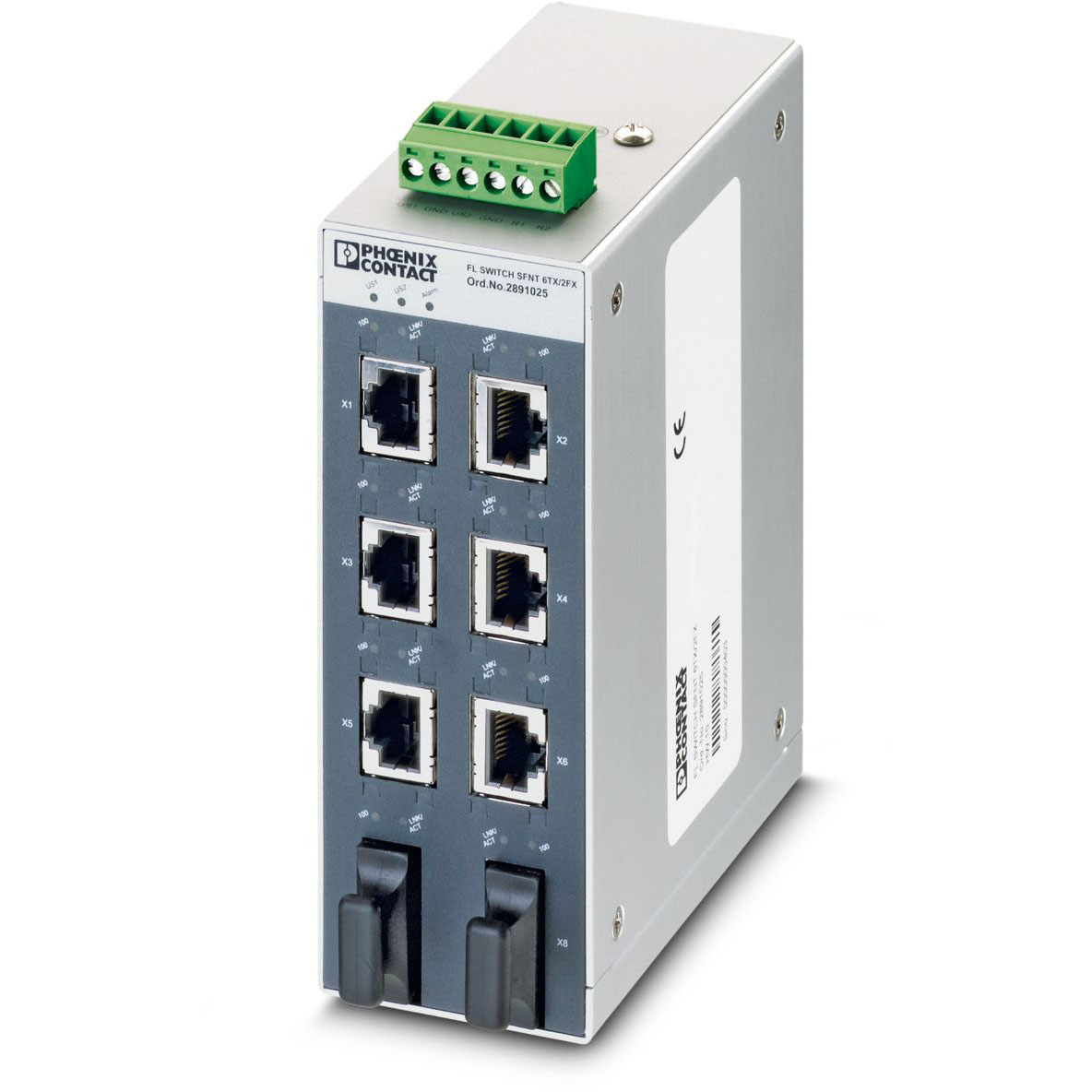

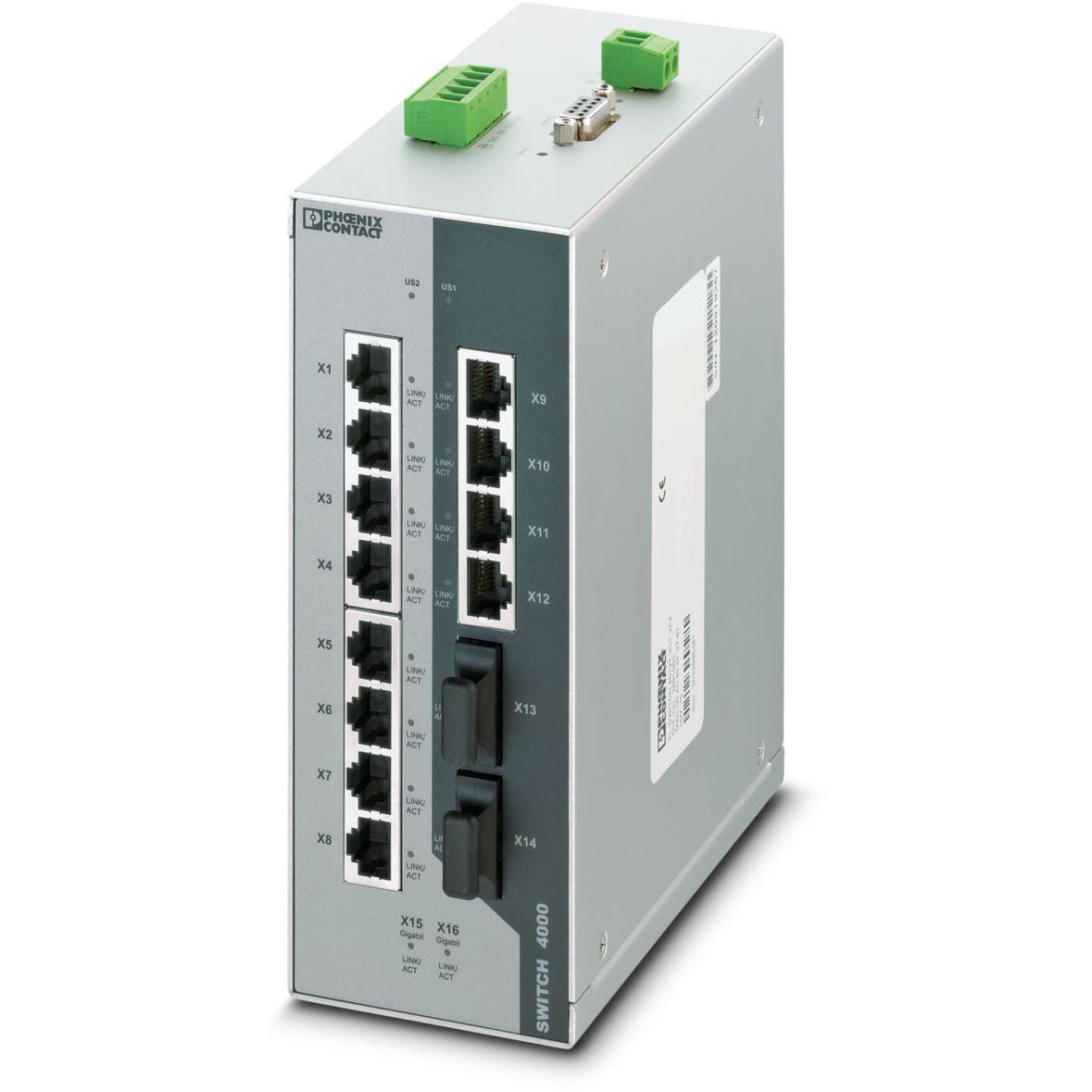

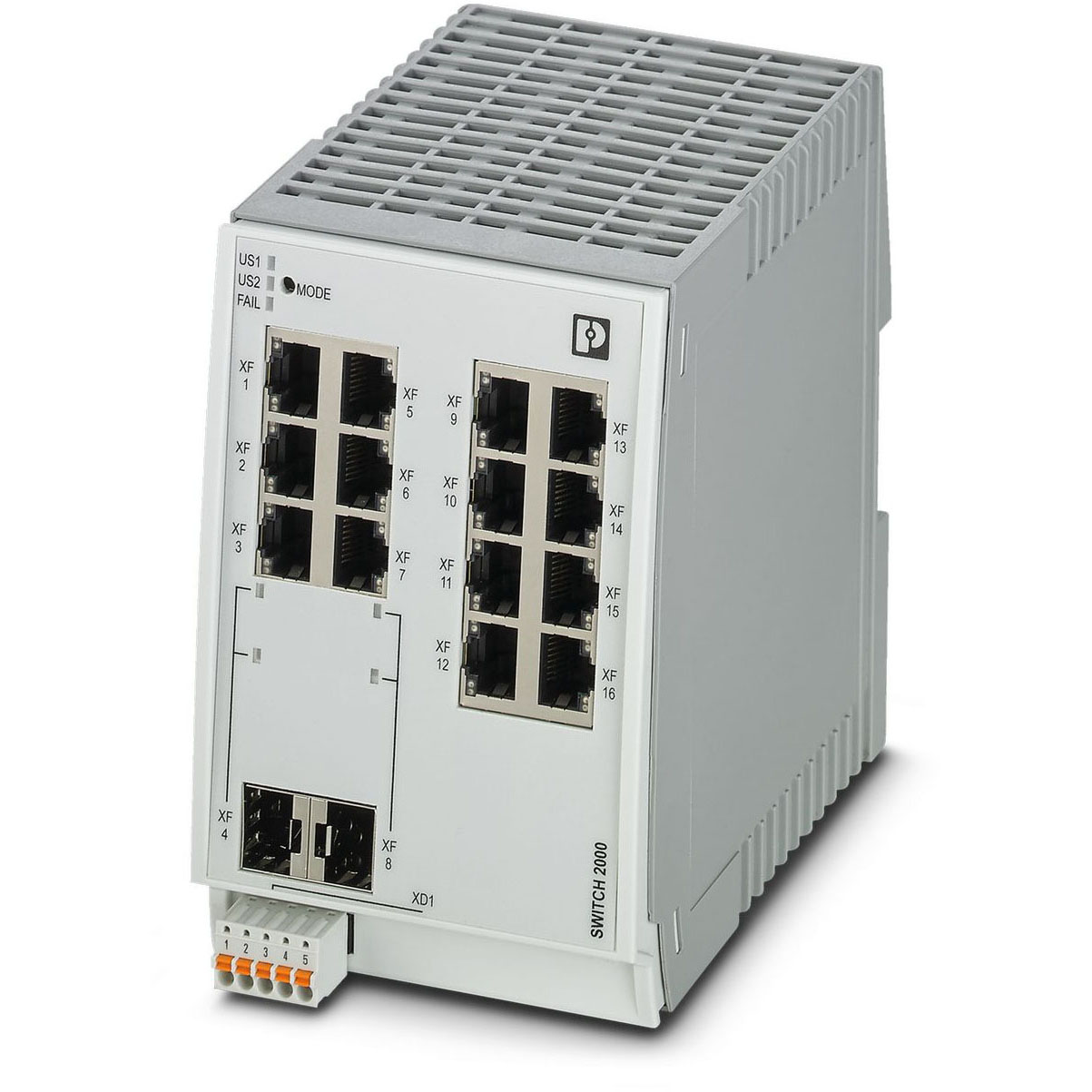

Series	FL SWITCH 1000N Unmanaged industrial Ethernet switches for universal applications	FL SWITCH SFNT Robust unmanaged industrial Ethernet switches for harsh ambient conditions	FL SWITCH 2000 10/100M industrial Ethernet switches for machines	FL SWITCH 2100 10/100/1000M industrial Ethernet switches for machines	FL SWITCH 2200 10/100M managed Ethernet switches	FL SWITCH 2300 10/100/1000M managed Ethernet switches	FL SWITCH 2400 10/100M managed Ethernet switches	FL SWITCH 2500 10/100/1000M managed Ethernet switches	FL SWITCH 3000 10/100M managed Ethernet switches for infrastructure applications	FL SWITCH 4000 10/100/1000M managed Ethernet switches for infrastructure applications	FL SWITCH 4800E 10/100/1000M managed modular Ethernet switches for infrastructure applications	FL SWITCH 7000 10/100/1000M managed Ethernet switches for EtherNet/IP™	FL SWITCH IRT Managed Ethernet switches for PROFINET IRT	FL NAT 2000/2200/2300 10/100/1000M Managed Ethernet switches with routing function	FL SWITCH GHS 10/100/1000M Modular managed Layer 3 Ethernet switches
Key features	DIN rail or 19" rack mount 5 to 16 ports, RJ45 or fiber optic (SC, ST, SFP)	DIN rail mount 5 to 16 ports, RJ45 or fiber optic (SC, ST) Extended ambient temperature (-40°C...+75°C / -40°F...+167°F)	DIN rail mount, 5 to 16 RJ45 ports		DIN rail mount (front ports) 5 to 16 ports, RJ45 or fiber optic (SC, ST, SFP, SFX) Extended ambient temperature (-40°C...+70°C / -40°F...+158°F)		DIN rail mount (downwards ports, for installation in shallow cabinets) 5 to 16 ports, RJ45 or fiber optic (SC, ST, SFP, SFX) Extended ambient temperature (-40°C...+70°C / -40°F...+158°F)		DIN rail mount 5 to 16 ports, RJ45 or fiber optic (SC, ST, SFP, SFX)	DIN rail mount 8 to 14 ports, RJ45 or fiber optic (SC, ST, SFP)	19" rack mount 24 ports, RJ45 or fiber optic (SC, ST, Combo RJ45/SFP) Extended ambient temperature (-40°C...+70°C / -40°F...+158°F)	DIN rail mount 8 ports, RJ45 or fiber optic (SC, SFP. Combo RJ45/SFP)	DIN rail mount (downwards ports, for installation in shallow cabinets) 4 RJ45 ports	DIN rail mount (downwards ports, for installation in shallow cabinets) 8 ports, RJ45 or Fiber optic (SFP or Combo RJ45/SFP)	DIN rail mount Completely modular architecture using media modules and extension modules
Filter functions	QoS: Class of Service / DSCP (*1)	QoS: Class of Service (*1)	QoS: Class of Service / DSCP Static VLANs Multicast filters: IGMP snooping/querier Traffic delimiter		QoS: Class of Service / DSCP Static VLANs Multicast filters: IGMP snooping/querier Traffic delimiter				QoS: Class of Service / DSCP Static VLANs Multicast filters: IGMP snooping/querier Traffic delimiter			QoS: Class of Service Static VLANs Multicast filters: IGMP snooping/querier Traffic delimiter	QoS: Class of Service	QoS: Class of Service / DSCP Static VLANs Multicast filters: IGMP snooping/querier Traffic delimiter	QoS: Class of Service / DSCP Static VLANs Multicast filters: IGMP snooping/querier Traffic delimiter
Automation protocols	PROFINET: conformance class A (1) IEC61850-3 (1)	PROFINET: conformance class A (*1)	PROFINET: conformance class A EtherNet/IP™: extended multicast filter		PROFINET: conformance class B / PN device EtherNet/IP™: extended multicast filter				PROFINET: conformance class A IEC61850-3 (*1) Diagnostics via Modbus/TCP			PROFINET: conformance class A EtherNet/IP™: extended multicast filter/CIP	PROFINET: conformance class C / PN device	PROFINET: conformance class B (*1) / PN device EtherNet/IP™: extended multicast filter	PROFINET: conformance class B / PN device EtherNet/IP™: extended multicast filter
Management functions	-	-	Role-based user management Port configuration IP configuration: BootP/DHCP Command Line Interface (CLI) Time synchronization: SNTP client		Role-based user management Port configuration IP configuration: BootP/DHCP/DCP Command Line Interface (CLI) Time synchronization: SNTP client				Role-based user management Port configuration IP configuration: BootP/DHCP Time synchronization: SNTP client/server			Port configuration IP configuration: BootP/DHCP	Port configuration IP configuration: DCP	Role-based user management Port Configuration IP configuration: BootP/DHCP, optional DCP Command Line Interface (CLI) Time synchronization: SNTP client	Port Configuration IP configuration: BootP/DHCP/DCP Command Line Interface (CLI) Time synchronization: SNTP client
Diagnostic functions	-	-	Port statistics and utilization SNMP (v1/v2/v3) Event messages: Syslog/SNMP traps N:1 port mirroring Link Layer Discovery Protocol (LLDP) Address Conflict Detection (ACL)		Port statistics and utilization SNMP (v1/v2/v3) Event messages: Syslog/SNMP traps N:1 port mirroring Link Layer Discovery Protocol (LLDP) Address Conflict Detection (ACL)				Port statistics and utilization SNMP (v1/v2/v3) Event messages: SNMP traps N:1 port mirroring Link Layer Discovery Protocol (LLDP)			Port statistics and utilization SNMP (v1/v2/v3) Event messages: SNMP traps N:1 port mirroring Link Layer Discovery Protocol (LLDP) Address Conflict Detection (ACL)	Port statistics and utilization SNMP (v1/v2) N:1 port mirroring Link Layer Discovery Protocol (LLDP)	Port statistics and utilization SNMP (v1/v2/v3) Event messages: Syslog/SNMP traps N:1 port mirroring Link Layer Discovery Protocol (LLDP) Address Conflict Detection (ACL)	Port statistics and utilization SNMP (v1/v2/v3) Event messages: SNMP traps N:1 port mirroring Link Layer Discovery Protocol (LLDP)
Redundancy functions	-	-	Rapid Spanning Tree Protocol (RSTP) MRP client		Rapid Spanning Tree Protocol (RSTP) Fast Ring Detection / Large Tree Support MRP manager/client Link aggregation: static trunking/LACP				Rapid Spanning Tree Protocol (RSTP) Extended ring redundancy Link aggregation: static trunking/LACP			Rapid Spanning Tree Protocol (RSTP) Fast Ring Detection / Large Tree Support Device Level Ring (DLR) Link aggregation: static trunking	MRP manager/client	Rapid Spanning Tree Protocol (RSTP) Fast Ring Detection / Large Tree Support (1) MRP manager (1)/client Link aggregation: static trunking/LACP (*1)	Rapid Spanning Tree Protocol (RSTP) Fast Ring Detection / Large Tree Support MRP manager/client Link aggregation: static trunking/LACP
Security functions	-	-	-		Port security: MAC-based RADIUS authentication (IEEE 802.1x)				Port security: MAC-based RADIUS authentication (IEEE 802.1x)			Port security: MAC-based	-	Port security: MAC-based (*1) RADIUS authentication (IEEE 802.1x)	Port security: MAC-based RADIUS authentication (IEEE 802.1x)
Layer 3 functions	-	-	-		-				-			-	-	Routing/NAT	Routing/NAT Router redundancy/VRRP

(*1) feature available in some models only

3. Configure it by the total ports quantity

This configuration mode allows you to choose a switch, regardless of its series, just by starting with total quantity of ports required for your application.
(clicking on a button will open a detailed configurator below where you can then do your selection)

Total
(copper+fiber)
ports quantity
