Omron pushes the limits of presence detection, expanding existing product lines in proximity, photoelectric, and fiber-optic sensing to include longer-distance part presence, a wide variety of part detection options and robustness in the harshest conditions to keep your plant is running smoothly and consistently. Omron's vast product family is growing to include smarter sensors with IO-Link that help users incorporate I/O throughout the plant for real-time condition monitoring and better predictive maintenance.

Select categories to navigate OMRON products and use dynamic selectors:

1. Photo-electric sensors

2. Displacement sensors

3. Distance sensors

4. Fiber sensors and amplifier

5. Registration sensors

1. Photo-electric sensors

(back to index)▲

Photoelectric sensors, also known as photo eyes, emit a beam of light that is used to detect the presence and the state of the object by the change in light. Amount of light (luminance) is converted to an electrical signal, certain standard is set to a level of the electrical signal, the output is ON or OFF whether a level of an electrical signal (amount of light entered) is high or not than the standard. Photoelectric sensors are very common in industrial manufacturing fields such as material handling, packaging, food and beverage, medical, and many others.

There are three ways to select a photo-electric sensor from OMRON:

by shape or series, for users who are already familiar with OMRON sensors
by shape and sensing mode, for users who have a clear application in mind and need to choose the best possible sensor
by sensing distance and sensing mode, for users who have a pre-defined sensing range constraint

Select a photo-electric sensor by shape or series

(back to photo-electric sensors index)▲

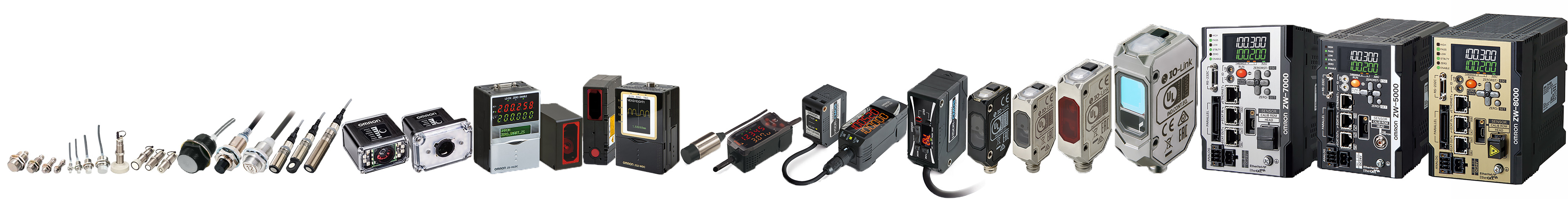

As a class-leading manufacturer, OMRON has a very wide selection of sensor shapes, mounting modes and series, each with their own benefits, to fit all applications:

a. Slot sensors, also known as "Fork" sensors, detect objects that pass between the two arms - one with the emitter and the other with the receiver. The fixed slot width provides reliable opposed-mode sensing of objects as small as 0.5mm. Ideal for counting, sensing parts on conveyor rails and belts, detecting edges and other applications.
b. Rectangular-shaped sensors - all the benefits and technology of rectangular sensors (display, buttons for control and setup, etc.) with the simplicity of surface mounting
d. Cylindrical threaded/barrel-shaped sensors - compact sensors with vibration-proof threaded mounting, in all sizes (M5, M6, M8, M12, M18 and more)

You can navigate the below table to discover those 3 types of sensors, then click on your selection to open a more detailed configurator:

a. See all Fork-shaped (slot) sensors				b. See all Rectangular-shaped sensors										c. See all Cylindrical threaded/barrel -shaped sensors
E3S-G Groove-type	EE-SPX30-N 13mm-wide sensing slot with digital output (NPN) (Dark-ON)	EE-SX30 Dark ON model	EE-SX87 Light ON model	E3AS-HL built in amplifier	E3JK long sensing distance	E3S convergent-reflective (narrow vision field)	E3S-LS3 reliable detection unaffected by PCBreliable detection unaffected by PCB	E3Z-G 25mm groove-type wide	E3Z-LS distance-settable triangulation	E3ZR-C oil-resistant	EE-SPW41 Thermoplastic housing	EE-SPY40 5mm-wide sensing slot	ZG2 Class 2 laser profile-measurement sensor head	E3FA high-power red LED	E3H2 Miniature photoelectric sensors
EE-SPX-30 with digital output (NPN) (Dark-ON)	EE-SPX40-N 13mm-wide sensing slot with digital output (NPN) (Light-ON)	EE-SX40 3.4mm groove-type wide Light-ON photo IC output	EE-SX95 Ultracompact that mount with M3 screws	E3AS-L red light	E3JM built-in power supply	E3S-A built-in amplifier	E3S-R transparent Object detection	E3Z-IL with IO-Link	E3Z-LT Through-beam (Emitter + Receiver)	EE-SA70 pushbutton-type	EE-SPW42 built-in amplifier and cable	EE-SPY41 convergent reflective type	ZX1 CMOS laser sensor	E3FA-F2 background suppression system (BGS)	E3RA plastic housing
EE-SPX-40 with digital output (NPN) (Light-ON)	EE-SPX74 built-in connectors with digital output (NPN) (Dark-ON)	EE-SX47 5mm groove-type wide with NPN output	EE-SX97 built-in connector enables downsizing	E3C saves space and mounts closely	E3NC-L compact laser	E3S-C 3m-wide sensing with red light	E3T Ultracompact, Ultrathin	E3Z-K Oil-resistive	E3ZM Stainless Steel housing	EE-SA80 pushbutton-type	EE-SPY30 with NPN output	EE-SPY80 for detecting wafer-carrier mounting	-	E3FB Nickel-plated brass	E3RB radial type
EE-SPX-W built-in amplifier and attached cable	EE-SPX84 built-in connectors with digital output (NPN) (Light-ON)	EE-SX67 5mm groove-type wide with PNP output	EE-SX107 8mm groove-type wide	E3C-LDA variable laser beam	E3NC-S Ultra-compact CMOS laser	E3S-CL detection regardless of color or material	E3Z standard verion	E3Z-LL distance-settable (BGS Models)	E3ZM-B transparent object (PET bottle) detection	EE-SPW31 long-distance	EE-SPY31 accurately detects objects placed in front of shiny background	EE-SPZ-A retroreflective photomicrosensor with lens	-	E3FB-F2 with inverted output logic	E3T ultracompact; ultrathin sensor
-	-	EE-SX77 5mm-wide sensing slot with slim cable	-	E3G long-distance Sensor	-	E3S-DB transparent object detection	E3Z-F small sensor with built-in amplifier	E3Z-LR retro-reflective with MSR function	E3ZM-C Stainless Steel housing	EE-SPW32 with amplifier and cable	-	EE-SY67 with sensitivity adjuster	-	E3FC Stainless Steel housing	-

Select a photo-electric sensor by shape and sensing mode

(back to photo-electric sensors index)▲

OMRON also offers a wide variety of sensing modes: retro-reflective, through-beam, diffuse reflective , fixed field, adjustable field, convergent reflective, limited-reflective.
You can navigate the below table to discover the sensors available for each sensing mode, then click on your selection to open a more detailed configurator:

		Fork-shaped (slot)		Rectangular		Cylindrical threaded/barrel with M5 thread		Cylindrical threaded/barrel with M6 thread		Cylindrical threaded/barrel with M8 thread		Cylindrical threaded/barrel with M12 thread		Cylindrical threaded/barrel with M18 thread
		Metallic housing	Plastic housing	Metallic housing	Plastic housing	Metallic housing	Plastic housing	Metallic housing	Plastic housing	Metallic housing	Plastic housing	Metallic housing	Plastic housing	Metallic housing	Plastic housing

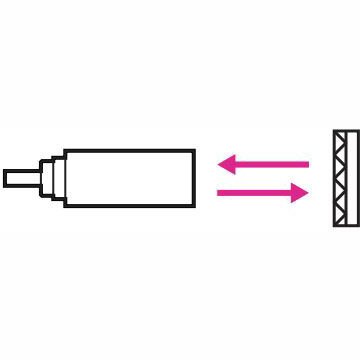

Retro-reflective	See all	-	-			-	-	-	-	-	-	-	-

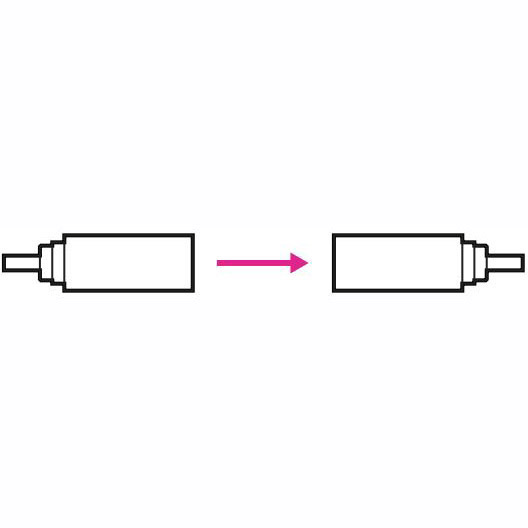

Through-beam	See all						-	-	-		-		-
Diffuse reflective	See all	-	-			-	-		-	-	-		-
Adjustable field	See all	-	-			-	-	-	-	-	-	-	-	-	-
Convergent-reflective	See all	-	-			-	-	-	-	-	-	-	-	-	-

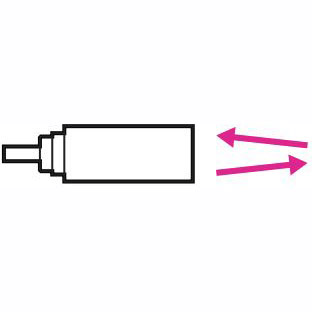

Limited-reflective	See all	-	-	-		-	-	-	-	-	-	-	-

Select a photo-electric sensor by sensing distance and sensing mode

(back to photo-electric sensors index)▲

OMRON offers a wide selection of photo-electric sensors with sensing ranges from a few millimeters to hundred meters. Navigate the table below to select a sensing mode based on your application requirements:

		Sensing range
Retro-reflective	See all	0...1mm	1...2mm	2...3mm	3...4mm	4...5mm	5...6mm	6...7mm	7...8mm	8...9mm	9...10mm	10...15mm	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1...2m	2...3m	3...4m	4...5m	5...6m	6...7m	7...8m	10...20m	-	-	-	-
Through-beam	See all	-	-	-	3...4mm	-	5...6mm	-	-	-	-	10...15mm	15...20mm	25...30mm	-	30...35mm	-	-	-	-	-	-	-	-	-	-	-	-	-	100...200mm	200...300mm	300...400mm	-	500...600mm	-	-	800...900mm	-	1...2m	2...3m	4...5m	5...6m	7...8m	-	-	10...20m	20...30m	30...40m	40...50m	60...70m
Diffuse reflective	See all	-	1...2mm	2...3mm	3...4mm	4...5mm	5...6mm	6...7mm	7...8mm	8...9mm	9...10mm	10...15mm	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1...2m	2...3m	-	-	-	-	-	-	-	-	-	-
Adjustable field	See all	-	-	2...3mm	3...4mm	4...5mm	5...6mm	6...7mm	7...8mm	8...9mm	9...10mm	10...15mm	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1...2m	-	-	-	-	-	-	-	-	-	-	-
Convergent-reflective	See all	-	-	2...3mm	3...4mm	4...5mm	-	-	-	-	-	10...15mm	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Limited-reflective	See all	-	-	-	-	-	5...6mm	6...7mm	7...8mm	8...9mm	9...10mm	10...15mm	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	-	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

2. Displacement sensors

(back to index)▲

OMRON displacement sensors that measure distances and heights between an object current position and a pre-set reference. A wide variety of models is available, including Laser Sensors, LED Sensors, Ultrasonic Sensors, Contact Sensors, Eddy Current Sensors, and more. Designed to allow anyone to easily use advanced sensing performance. Even with laser, proximity, contact, and other sensing methods, operations are essentially the same.

There are two ways to select a displacement sensor from OMRON:

by beam type and outputs, for users who have a clear application in mind and need to choose the best possible sensor
by match the sensing range required by your application, for users who have a pre-defined sensing range constraint

Select a displacement sensor by beam type and outputs

(back to displacement sensors index)

You can navigate the below table to discover the sensors available for each beam type, then click on your selection to open a more detailed configurator

		1 discrete output	1 discrete output + 1 analog current output	1 analog voltage output	connection to dedicated controller/amplifier (sensing head only)
Laser class 2 beam	See all	-	ZX1	-	ZS-HL	ZS-L	ZX2	ZX-L	-	-	-	-
LED beam	See all	Z4D-F	-	Z4D-F	ZW-5000	ZW-7000	ZW-8000	ZW-S	ZW-S5000	ZW-S7000	ZW-S8000	ZW-SQ

Select a displacement sensor by sensing range

(back to displacement sensors index)

You can navigate the below table to discover the sensors available for sensing range, then click on your selection to open link direct to product list

High precision measurement sensor: Nano-level measurement resolution. Lineup of ultra-compact, white light confocal sensors and long-range-detection laser sensors.

		Sensing range
ZW-5000	See all	7...8mm	-	10...15mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZW-7000	See all	7...8mm	-	10...15mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZW-8000	See all	7...8mm	-	10...15mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZS-L	See all	-	9...10mm	10...15mm	15...20mm	20...25mm	-	35...40mm	40...45mm	45...50mm	50...55mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	-	100...200mm	200...300mm	300...400mm	400...500m	-	-	-	-	-	-
ZS-HL	See all	-	-	-	15...20mm	20...25mm	25...30mm	-	-	45...50mm	50...55mm	-	-	-	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1m...2m

Displacement sensors for differentiation: smart sensors designed to allow anyone to easily use advanced sensing performance. Even with laser, proximity, contact, and other sensing methods, operations are essentially the same.

		Sensing range
ZX1	See all	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40...45mm	45...50mm	50...55mm	55...60mm	-	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1...2m
ZX2	See all	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40...45mm	45...50mm	-	-	-	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	-	-	-	-	-	-	-	-	-	-
ZX-E	See all	0...1mm	1...2mm	2...3mm	3...4mm	4...5mm	5...6mm	6...7mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZX-L	See all	0...1mm	1...2mm	2...3mm	3...4mm	4...5mm	5...6mm	6...7mm	7...8mm	8...9mm	9...10mm	10...15mm	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1...2m
ZX-T	See all	-	1...2mm	-	-	4...5mm	-	-	-	-	-	10...15mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Other Displacement Sensors: measure distances and heights. A wide variety of models is available, including Laser Sensors, LED Sensors, Ultrasonic Sensors, Contact Sensors, Eddy Current Sensors, and more.

		Sensing range
E4PA-N	See all	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1...2m	2...3m	3...4m	4...5m	5...6m
Z4D-F	See all	2...3mm	3...4mm	4...5mm	5...6mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z4W-V	See all	-	-	-	-	-	-	-	-	-	-	20...25mm	25...30mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E9NC-T	See all	-	-	-	5...6mm	-	-	-	-	10...15mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZJ-SD	See all	-	-	-	5...6mm	6...7mm	7...8mm	8...9mm	9...10mm	10...15mm	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZW-S	See all	-	-	-	-	6...7mm	7...8mm	-	-	-	15...20mm	20...25mm	25...30mm	30...35mm	35...40mm	40...45mm	45...50mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZW-SQ	See all	-	-	-	-	-	7...8mm	-	-	-	-	20...25mm	-	30...35mm	-	40...45mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

3. Photo-electric distance measurement sensors

(back to index)▲

Distance sensors exist in various technologies:

Photo-electric, with triangulation
Photo-electric, with TOF (Time-of-Flight) methodthe distance is measured based on the elapsed time instead of the amount of incident light received. Measurements therefore are not affected by changes in the color or material of the workpiece. This means that low-reflective workpieces, such as black rubber, can be detected from the same set distances.
Photo-electric, with CMOS sensing with built-in lens alignment technology minimizes the influence of material properties
Sensing algorithm detects minimal reflected light from curved surface

There are two ways to select a distance sensor from OMRON:

by shape and sensing mode, for users who have a clear application in mind and need to choose the best possible sensor
by match the sensing range required by your application, for users who have a pre-defined sensing range constraint

Select a distance sensor by shape and sensing mode

(back to displacement sensors index)

You can navigate the below table to discover the sensors available for each shape and sensing mode, then click on your selection to open a more detailed configurator

Class 1 laser photo-electric distance sensor rectangular-shaped	Class 1 laser time-of-flight distance measurement sensor rectangular-shaped
See all	See all
ZX0 40m-200mm range 1 digital output	E3AS-F 50m-1m range 2 digital output

Select a distance sensor by sensing range

(back to displacement sensors index)

You can navigate the below table to discover the sensors available for sensing range, then click on your selection to open link direct to product list

		Sensing range
Triangulation	See all	40...45mm	45...50mm	50...55mm	55...60mm	-	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	-
Time-of-flight	See all	-	-	50...55mm	55...60mm	60...65mm	65...70mm	70...75mm	75...80mm	80...85mm	85...90mm	90...95mm	95...100mm	100...200mm	200...300mm	300...400mm	400...500mm	500...600mm	600...700mm	700...800mm	800...900mm	900...1000mm	1...2m

4. Fiber optic photo-electric sensors and amplifiers

(back to index)▲

Ideal for narrow spaces or for detecting minute objects. Their heads are available in various shapes (cylindrical smooth, cylindrical threaded, rectangular, and fork / Slot), compact heads allow installation in any small space, and adapt to a variety of sensing modes (diffuse reflective, limited-reflective, retro-reflective with MSR function, and through-beam). Fiber unit are available for various installation conditions and can be installed as is, even in hash environments.

A fiber optic photo-electric sensing application usually consists of two components:

A fiber sensor (head and fiber optic, pre-assembled)
A fiber optic sensor amplifier (which usually emits the lights and processes the returned light. Below, the sensor can be selected by emitted light color or by general technical characteristics

Select a fiber optic photo-electric sensors by shape and sensing mode

(back to Fiber optic photo-electric sensors index)

You can navigate the below table to discover the sensors available for each shape and sensing mode, then click on your selection to open a more detailed configurator

		See all Cylindrical smooth head				See all Cylindrical threaded head					See all Rectangular head						See all Fork / Slot head
Diffuse reflective	See all	E32-C	E32-D	E32-D82F	E32-E	E32-C	E32-D	E32-LD	-	-	E32-A	E32-D	E32-E	E32-L	-	-	-
Limited-reflective	See all	-	-	-	-	-	-	-	-	-	E32-A	E32-L	-	-	-	-	-
Retro-reflective with MSR function	See all	-	-	-	-	E32-LR	E32-R	-	-	-	E32-R	-	-	-	-	-	-
Through-beam	See all	E32-A	E32-E	E32-T	-	E32-D	E32-LT	E32-M21	E32-T	E32-T11N	E32	E32-A	E32-D	E32-E	E32-LT35	E32-T	E32-G

Select a amplifier by by light color or series

(back to Fiber optic photo-electric sensors index)

You can navigate the below table to discover the sensors available, then click on your selection to open link direct to product configurator

Infrared (IR) light color	Red light color		White light color	Blue light color	Green light color
See all	See all		See all	See all	See all
E3NX-FA	E3NX-FA	E3X-MDA	E3NX-CA	E3X-DA	E3X-DA
E3X-DA	E3NX-MA	E3X-NA	-	E3X-DA-S	E3X-DA-S
E3X-DA-S	E3X-DA	E3X-SD	-	-	E3X-DA-S
-	E3X-DA-S	E3X-ZD	-	-	-
-	E3X-DAT-S	ZX2	-	-	-
-	E3X-HD	-	-	-	-

Select a amplifier by by technical characteristics

(back to Fiber optic photo-electric sensors index)

You can navigate the below table to discover the sensors available, then click on your selection to open link direct to product configurator

	E2C-EDA	E2C-H	E2CY-SD	E2J	E32-L11	E3C	E3C-LDA	E3NC-L	E3NC-S	E3NX-CA	E3NX-FA	E3NX-MA	E3X-DA	E3X-DA-S	E3X-DAT-S	E3X-HD	E3X-MDA	E3X-NA	E3X-SD	E3X-ZD	E4C-UDA	E9NC-T	ZFV	ZFV-C	ZX2	ZX-E	ZX-L	ZX-T
	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all	See all
Output	1 discrete output/ 1 analog voltage output	1 discrete output/ 1 electromechanical relay	1 discrete output	1 discrete output	1 discrete output	1 discrete output/ 2 discrete outputs	1 discrete output/ 1 discrete output + 1 analog current output/ 2 discrete outputs	1 discrete output/ 2 discrete outputs	1 discrete output/ 2 discrete outputs	1 discrete output/ 2 discrete outputs	1 discrete output/ 2 discrete outputs/ 1 discrete output + 1 analog current output	2 discrete outputs	1 discrete output	1 discrete output/ 1 discrete output + 1 analog current output/ 2 discrete outputs	1 discrete output	1 discrete output	2 discrete outputs	1 discrete output/ 2 discrete outputs	1 discrete output	1 discrete output	1 analog voltage output/ 2 discrete outputs	2 discrete outputs	1 discrete output	1 discrete output	1 discrete output + 1 analog current output	1 discrete output	1 discrete output	1 discrete output
Light color	-	-	-	-	-	-	-	-	-	White	Red / Infrared (IR)	Red	Red / Infrared (IR) / Green / Blue	Infrared (IR) / Green / Blue	Red	Red	Red	Red / Green	Red	Red	-	-	-	-	Red	-	-	-
Connection type	Pre-equipped with wire-saving plug-in connector/ Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-equipped with wire-saving plug-in connector/ Pre-wired with 2m cable terminated with bare end flying leads	M8 connector	M8 connector	Pre-wired with 2m cable terminated with bare end flying leads/ Pre-equipped with wire-saving plug-in connector/	M8 connector	Pre-equipped with wwire-saving plug-in connector/ Pre-wired with 2m cable terminated with bare end flying leads	M8 connector	Pre-equipped with wire-saving plug-in connector/ Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	M8 connector	Pre-equipped with wire-saving plug-in connector/ Pre-wired with 2m cable terminated with bare end flying leads	M8 connector	Pre-equipped with wire-saving plug-in connector/ Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads	Pre-wired with 2m cable terminated with bare end flying leads

5. Registration sensors

(back to index)▲

Ideal for detection of small objects, accuracy in spite of sensing object movement and slight color differences, automatic selection of ideal colors for RGB light-receiving element and white color, compact heads allow installation in any small space, and adapt to a variety of sensing modes (diffuse reflective, fixed field reflective).

Select a registration sensors by technical characteristics

You can navigate the below table to discover the sensors available, then click on your selection to open link direct to product configurator

	E3C-VM	E3C-VS	E3S-DC	E3ZM-V
	See all	See all	See all	See all
Sensing mode	Fixed field reflective	Fixed field reflective	Diffuse-reflective	Diffuse-reflective
Beam	Small spot beam	Small spot beam	Color mark detection	Color mark detection
Output	Connection to dedicated controller/amplifier (sensing head only)	Connection to dedicated controller/amplifier (sensing head only)	1 discrete output	1 discrete output
Light color	Red	Green	RGB (Red/Green/Blue)	White
Connection type	Bare end flying leads	Bare end flying leads	M12 pigtail	M12 pigtail/ Bare end flying leads
Material	Thermoplastic	Thermoplastic	Nickel-plated brass	Stainless steel
Sensing distance	30...40mm	7…35mm	7...13mm	10...14mm
