OMRON - Product selector page

OMRON's control components provide a wide variety of industrial panel components to build high-quality products.
It provides ideal control at production site through counters, cam positioners, timers, timer switches, digital temperature controllers, and other input, control, and output components.

Select categories to navigate OMRON products:

1. Temperature controllers
To control heating (furnaces, baking, etc.) and cooling (tempering, cold storage(, in all industrial processes and machines

2. Analog timers
Simple, accurate and ergonomic timers for all industrial processes and machines

3. Digital timers
Advanced multifunction timers for high precision, programmable applications

4. Digital counters
Digital counters, for discrete production processes (part manufacturing, packaging, etc.)

5. Process meters
Panel flush mounted high readability meters, with current and/or voltage analog inputs

1. Temperature controllers

(back to index)▲

Temperature controllers keep your operations at the precise temperature necessary to ensure quality and maximize production. These controllers receive sensor signals and control heaters or other devices to maintain a preset temperature. They can also be used for humidity, pressure, and flowrate control. OMRON also provides temperature and humidity sensors.

Where will the temperature controller be mounted?

In-panel (DIN-rail mount)
On-panel unit will be mounted in panel cut-out

How to choose temperature controllers?
For mounting inside the panel:

Select how many control loops are required? Multiple / Single
Select what is the application PLC based?

For flush mounting on panel door:

Select digital or analog type
Select whether it is economical or general purpose
Select the panel cut-out size
1/32 DIN (48x24mm)
1/16 DIN (48x48mm)
1/8 DIN vertical (48x96mm) or 1/8 DIN horizontal (96x48mm)
1/4 DIN (96x96mm)

		Analog temperature controllers
Series	Not sure which series to choose? use our universal configurator	E5C2 1/16 DIN (48x48mm) Plug-in mounting on 8-pin octal round socket	E5CB 1/16 DIN (48x48mm) flush mounted on panel Standard (non-programmable)	E5GC 1/32 DIN (48x24mm) flush mounted on panel Standard (non-programmable)	E5CC 1/16 DIN (48x48mm) flush mounted on panel Standard (non-programmable)	E5CC-T 1/16 DIN (48x48mm) flush mounted on panel Standard (programmable)	E5EC 1/8 DIN vertical (48x96mm) flush mounted on panel Standard (non-programmable)	E5EC-T 1/8 DIN vertical (48x96mm) flush mounted on panel Standard (programmable)	E5AC 1/4 DIN (96x96mm) flush mounted on panel Standard (non-programmable)	E5AC-T 1/4 DIN (96x96mm) flush mounted on panel Standard (programmable)	E5DC 22.5x96mm DIN rail mounted Standard (non-programmable)	E5CD 1/16 DIN (48x48mm) Flush mounting on panel Standard (programmable)	E5ED 1/8 DIN vertical (48x96mm) Flush mounting on panel Standard (programmable)	E5CN 1/16 DIN (48x48mm) Flush mounting on panel Standard (programmable)	E5CSV 1/16 DIN (48x48mm) Flush mounting on panel Standard (non-programmable)	E5CS 1/16 DIN (48x48mm Plug-in mounting on 11-pin round socket Standard (non-programmable)	E5AN 1/4 DIN (96x96mm) Flush mounting on panel Standard (programmable)	E5EN 1/8 DIN vertical (48x96mm) Flush mounting on panel Standard (programmable)	E5AR 1/4 DIN (96x96mm) Flush mounting on panel Standard (programmable)	E5ER 1/8 DIN vertical (48x96mm) Flush mounting on panel Standard (programmable)	EJ1 15.7x95.4mm / 29x90mm / 31x95.4mm DIN rail mounted Standard (non-programmable)	E5ZN 22.5x130mm Plug-in mounting on dedicated DIN rail socket Standard (non-programmable)	E5L 45x35mm Plug-in mounting on 14-pin DIN rail socket Standard (non-programmable)
Features		For heating OR cooling control (not simultaneously) Thermocouple types K; J or Thermistor RTD Pt100 input only - 1 electromechanical relay output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; R; S input RTD Pt100 input only - 1 electromechanical relay or 1 SSR driver output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 1 SSR driver output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 2 SSR driver outputs or 1 analog retransmission output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 2 SSR driver outputs or 1 analog retransmission output	For heating OR cooling PID control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 2 electromechanical relays or 2 SSR driver outputs or 1 analog retransmission output	For heating OR cooling PID control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 2 electromechanical relays or 2 SSR driver outputs or 1 analog retransmission output	For heating OR cooling PID control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 2 electromechanical relays or 2 SSR driver outputs or 1 analog retransmission output	For heating OR cooling PID control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 2 electromechanical relays or 2 SSR driver outputs or 1 analog retransmission output	For heating OR cooling PID control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 1 SSR driver output	For heating OR cooling PID control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; C/W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 1 SSR driver output or 1 analog retransmission output	For heating OR cooling PID control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; C/W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 2 electromechanical relays or 1 SSR driver output or 1 analog retransmission output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 1 SSR driver output	For heating (reverse operation) OR cooling control (direct operation) Thermocouple types K; J; T; L; U; N; R; or PL II input RTD Pt100; JPt100 input - 1 electromechanical relay or 1 SSR driver output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; L; U; N; R; or PL II input or Thermistor RTD Pt100; JPt100 input - 1 electromechanical relay or 1 SSR driver output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 1 SSR driver output	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 1 SSR driver output	For heating OR cooling control (simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input include remote SP input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor up to 4 pulse voltage outputs or 4PST-NO rely contacts or AUX outputs	For heating OR cooling control (simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input include remote SP input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 1 electromechanical relay or 2 pulse voltage	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II input include remote SP input RTD Pt100; JPt100 input 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc analog input from field sensor 2 electromechanical relays or 2 SSR driver outputs	For heating OR cooling control (not simultaneously) Thermocouple types K; J; T; E; L; U; N; R; S; B input RTD Pt100; JPt100 input - 2 electromechanical relays or 2 SSR driver outputs or 1 analog retransmission output	For heating (reverse operation) OR cooling control (direct operation) Element-interchangeable thermistor - - 1 electromechanical relay
Benefits		Low-cost compact temperature controller with analog setting. Incorporates proportional control and reset adjustment function. Consecutive mounting possible using mounting adapter. Incorporates a plug-in socket; thus allows to DIN-track and flush mounting.	Ideal for heater control these temperature controllers offer the highest control performance at surprisingly low cost! easy to read with one of the largest character displays anywhere.	Ideal for small equipment; laboratory instruments; and others. White PV display with a height of 10.5 mm for high visibility even with the compact body. Removable terminal block to simplify maintenance. Select from screw terminal blocks or screwless clamp terminal blocks for the wiring method.\|High-speed sampling at 50 ms. Easy connections to a PLC with programless communications.	The white PV display with a height of 15.2 mm improves visibility. High-speed sampling at 50 ms. Select from models with screw terminal blocks; models with Push-In Plus terminal blocks for reduced wiring work; and plug-in models that can be removed from the terminal block. Short body with depth of only 60mm. (screw terminal blocks)	Programmable controllers join the E5[]C series. Program up to 256 segments can handle a wide variety of applications. Set up to 8 programs (patterns) with 32 segments (steps) each. The white PV display with a height of 15.2 mm improves visibility.	A white LCD PV display with a height of approx. 18 mm for the E5EC/E5EC-B and 25 mm for the E5AC improves visibility. High-speed sampling at 50 ms. Select between screw terminal blocks or Push-In Plus terminal blocks to save wiring work.	Programmable controllers join the E5[]C series program up to 256 segments can handle a wide variety of applications. Set up to 8 programs (patterns) with 32 Segments (steps) each. A white LCD PV display with a height of approx. 18 mm.	Large white PV display that's easier to read. Easy to use, from model selection to setup and operation. A Complete range of I/O capacities, functions, and performance. handles more applications.	Programmable controllers join the E5[]C series program up to 256 segments can handle a wide variety of applications. Set up to 8 programs (patterns) with 32 Segments (steps) each. A white LCD PV display with a height of approx. 18 mm.	The E5DC mounts to DIN track and is ideal for connections to HMIs and PLCs. It provides the same easy operation and advanced performance as the rest of the series.	Optimize control by detecting status changes. Easily satisfy both productivity and quality. Models with push-in plus technology added to lineup. Automatic optimization of control for changes in systems. Functions specialized for packaging machines. Specialized for water-cooled extruders.	Optimize control by detecting status changes. Easily satisfy both productivity and quality. Models with Push-In Plus technology added to lineup. Automatic optimization of control for changes in systems. Functions specialized for packaging machines. Specialized for water-cooled extruders (Watercooling Output Adjustment)	Basic temperature controller with enhanced functions and performance. A PV/SV-status display function can be set to automatically alternate between displaying the status of the temperature controller (auto/ manual, RUN/STOP, and alarms) and the PV or SV. Preventive maintenance for relays in the temperature controller using a control output ON/OFF counter.	Easy setting using internal DIP and rotary switches. Clearly visible digital display with character height of 13.5 mm. Deviation indicator makes monitoring more effective. Models with two alarms are ideal for temperature alarm applications. ° C or ° F field selectable. Black or white cases available to match panel aesthetics. RoHS compliant. Water-resistant front panel rated NEMA 4X/IP66.	Easy setting using DIP switch. Models with two alarms added to Series; ideal for applications requiring alarms. Clearly visible digital display with character height of 13.5 mm. RoHS compliant.	Basic temperature controllers with enhanced functions and performance. Improved indication accuracy and preventive maintenance function. A PV/SV-status display function can be set to automatically alternate between displaying the status of the temperature controller (auto/manual; RUN/STOP; and alarms) and the PV or SV. preventive maintenance for relays in the temperature controller using a control output ON/OFF counter. One-touch operation with PF Key that can be assigned to auto/manual; RUN/STOP; or other functions.	Basic temperature controllers with enhanced functions and performance. Improved indication accuracy and preventive maintenance function. A PV/SV-status display function can be set to automatically alternate between displaying the status of the temperature controller (auto/manual; RUN/STOP; and alarms) and the PV or SV. preventive maintenance for relays in the temperature controller using a control output ON/OFF counter. One-touch operation with PF Key that can be assigned to auto/manual; RUN/STOP; or other functions.	Offer high speed; high precision; and multiple I/O and use a 5digit; 3-row LCD display for high visual clarity. Multiloop control; cascade control; and proportional control are possible with a single Controller. Equipped with calculation functions as a standard (e.g.; square root calculation and broken-line approximation). DeviceNet communications data setting and monitoring can be performed without special programming.	Offer high speed; high precision; and multiple I/O and use a 5-digit; 3-row LCD display for high visual clarity. Multipoint control; cascade control; and proportional control are possible with a single controller. When using models with CompoWay/F communications; initial settings can be downloaded. Equipped with calculation functions as a standard (e.g.; square root calculation and broken-line approximation).	In-panel temperature controller with flexible modular design and wide integration with host devices. The compact modular structure enables construction of temperature systems optimally suited to the application. Connection can be made to a Programmable Controller without any programming required; reducing the number of steps required in ladder programming design.	Two channels of temperature control available despite width of only 22.5 mm. The temperature controller itself can be replaced without changing terminal wiring. Use in combination with a compact setting display unit to reduce communications programming requirements. Front-panel LED indicators for easy operation monitoring. Power supply and communications wiring not required between Units when mounted side-by-side.	Ideal for simple built-in control. A high switching capacity of 10A at 250VAC enables direct load switching. A sensor is provided to enable immediate application. Simple operation and settings. Even simpler with digital models.

2. Analog timers

(back to index)▲

Analog timers are control devices that output a signal at a preset time after an input signal is received. All analog timers are available with DIN rail mounting (17.5mm, 22.2mm width) or as plug-in and panel flush mounting (28 x 21.5mm or 1/16 DIN 48x48mm). Analog timers are ideal for delay applications e.g. pushbutton signals OFF- or ON-delay, where a digital timer's functionality is not required.

Your advantages with OMRON analog timers:

Affordable and compact multi-function timer
Ultra-slim (17.5-mm width) with two sets of contacts
Available with push-in plus connections for reliable and fast in-panel applications
UL, CSA, CE, CCC, EN 61812-1 certifications

There are 4 types of analog timers:

Single-function plug-in/flush timers
Single-function DIN rail timers
Multi-function plug-in/flush timers
Multi-function DIN rail timers

2.1. Single function timers

(back to timers index)▲

	Timing range	Type of output	Timer functions click here to see more				Mounting mode (see the selection of compatible base on the right)	Screw terminals							Solder terminals		Wrapping terminals		PCB terminals
			ON-delay (i)	Flicker-OFF start (i)	Flicker-ON start (i)	Power-OFF delay (i)		8-pin				11-pin			8-pin	11-pin	8-pin	11-pin	8-pin	11-pin
			(A)	(B)	(B2)	Power-OFF delay (i)		P2CF-08	P2CF-08-E	P3G-08	PF085A	P2CF-11	P2CF-11-E	P3GA-11	PL08	PL11	PL08-Q	PL11-Q	PLE08-0	PLE11-0
H3BG-N	0.5s...120s	1 CO contact / SPDT	⚫	-	-	-	Plug-in mounting on 8-pin octal round socket		-		-	-	-	-	-	-	-	-	-	-
H3CR-G	6s...120s	1NO contact / SPST-NO	⚫	-	-	-	Plug-in mounting on 8-pin DIN rail socket					-	-	-		-		-		-
H3BH-N	0.05s...3min	2 CO contact / DPDT	-	-	-	⚫	Plug-in mounting on 8-pin octal round socket		-		-	-	-	-	-	-	-	-	-	-
H3CR-H	0.05s...12min	1 CO contact / SPDT or 2 CO contact / DPDT	-	-	-	⚫	Plug-in mounting on 8-pin DIN rail or 11-pin round socket
H3M	0.05s...30h	1 CO contact / SPDT or 2 CO contact / DPDT	⚫	-	-	-	Plug-in mounting on 8-pin octal round socket	-	-			-	-	-		-	-	-	-	-
H3AM	0.2s...60h	2 CO contact / DPDT	⚫	-	-	-	Flush mounting	-	-	-	-	-	-	-	-	-	-	-	-	-
H3CR-F	0.05s...300h	2 CO contact / DPDT	-	⚫	⚫	-	Plug-in mounting on 8-pin DIN rail or 11-pin round socket

2.2. Single function DIN rail timers

(back to timers index)▲

	Timing range	Type of output	Timer functions click here to see more				Mounting mode (see the selection of compatible base on the right)	Screw terminals						Solder terminals
			ON-delay (i)	Flicker-OFF start (i)	Power-OFF delay (i)	Star-delta (i)		8-pin				14-pin		8-pin	11-pin
			(A)	(B)	Power-OFF delay (i)	Star-delta (i)		PYF08A	PYF08A-E	P2CF-08	P3G-08	PYF14A	PYF14A-E	PY08	PY14
H3DS-G	1s...12s	1NO contact / SPST-NO	⚫	-	-	-	DIN rail	-	-	-	-	-	-
H3DT-G	1s...12s	1 CO contact / SPDT	-	-	-	⚫	DIN rail	-	-	-	-	-	-	-	-
H3DK-H	0.1s…120s	1 CO contact / SPDT	-	-	⚫	-	DIN rail	-	-	-	-	-	-	-	-
H3Y	0.04s...3h	2 CO contact / DPDT 4 CO contact / 4PDT	⚫	-	-	-	DIN rail or Surface or plug-in 14-pin DIN rail socket			-	-
H3DS-A	0.1s…10h	1 CO contact / SPDT	⚫	-	-	-	DIN rail	-	-	-	-	-	-	-	-
H3DS-X	0.1s…10h	2-wire SCR output	⚫	-	-	-	DIN rail	-	-	-	-	-	-	-	-
H3DT-A	0.1s…100h	1 CO contact / SPDT or 2 CO contact / DPDT	⚫	-	-	-	DIN rail	-	-	-	-	-	-	-	-
H3BF-N	0.05s...300h	1 CO contact / SPDT or 2 CO contact / DPDT	-	⚫	-	-	DIN rail or Surface or Flush	-	-			-	-	-	-

2.3. Multi function plug-in timers

(back to timers index)▲

	Timing range	Type of output	Timer functions click here to see more									Mounting mode (see the selection of compatible base on the right)	Screw terminals												Solder terminals				Wrapping terminals		PCB terminals
			ON-delay (i)	Flicker-OFF start (i)	Flicker-ON start (i)	Signal ON/OFF delay (i)	Signal OFF delay (i)	Interval (i)	Signal ON/OFF delay (i)	One-shot output (ON-delay) (i)	ON-delay with instantaneous output contact (i)		5-pin	8-pin							11-pin			14-pin	8-pin		11-pin	14-pin	8-pin	11-pin	5-pin	8-pin			11-pin		14-pin
			(A)	(B)	(B2)	(C)	(D)	(E)	(G)	(J)	(H)		P2RF-05-E	PYF08A	PYF08A-E	PF085A	P3G-08	P2CF-08	P2RF-08-E	P2CF-08-E	P3GA-11	P2CF-11	P2CF-11-E	PYF14A	PY08	PL08	PL11	PY14	PL08-Q	PL11-Q	P2R-057P	PLE08-0	PY08-02	P2R-087P	P3GA-11	P2CF-11	PY14-02
H3RN	0.1s…10h	1 CO contact /SPDT or 2 NO contact/ DPST	⚫	⚫	⚫	-	-	⚫	-	-	-	Plug-in mounting on DIN rail socket		-	-	-	-	-		-	-	-	-	-	-	-	-	-	-	-		-	-		-	-	-
H3YN	0.1s…10h	2 CO contact /DPDT or 4 CO contact / 4PDT	⚫	⚫	⚫	-	-	⚫	-	-	-	Plug-in 8-pin / 14-pin	-			-	-	-	-	-	-	-	-			-	-		-	-	-	-		-	-	-	-
H3BA-N	0.05s...300h	1 CO contact /SPDT or 2 CO contact /DPDT	⚫	⚫	⚫	⚫	⚫	⚫	⚫	⚫	⚫	Plug-in 8-pin / 11-pin	-	-	-	-			-	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-
H3CR-A	0.05s…600h	1 CO contact /SPDT or 2 CO contact /DPDT	⚫	⚫	⚫	⚫	⚫	⚫	⚫	⚫	-	Plug-in 8-pin / 11-pin	-	-	-				-					-	-			-			-		-	-		-	-

2.4. Multi function DIN rail timers

(back to timers index)▲

	Timing range	Type of output	Timer functions click here to see more
			ON-delay (i)	Flicker-OFF start (i)	Flicker-ON start (i)	Signal ON/OFF delay (i)	Signal-OFF delay (i)	Interval (i)	Signal ON/OFF delay (i)	One-shot (i)	One-shot output (Power-ON Start) (i)	ON Delay (Power ON Delay) (i)	Flicker-OFF Start (Power-ON Start) (i)	Flicker-ON Start (Power-ON Start) (i)	Interval (Power-ON Start) (i)	Signal-OFF interval (i)	Cumulative (ON-delay) (i)	Cumulative (Interval) (i)
			(A)	(B)	(B2)	(C)	(D)	(E)	(G)	(J)	(J2)	(A2)	(B3)	(B4)	(E2)	(E3)	(F2)	(F3)
H3DS-F	0.1s...1h	1 CO contact /SPDT	-	⚫	⚫	-	-	-	-	-	-	-	-	-	-	-	-	-
H3DS-M	0.1s...10h	1 CO contact /SPDT	⚫	⚫	⚫	⚫	⚫	⚫	⚫	⚫	-	-	-	-	-	-	-	-
H3DS-S	0.1s...10h	1 CO contact /SPDT	⚫	-	⚫	-	-	⚫	-	⚫	-	-	-	-	-	-	-	-
H3DK-F	0.1s...100h	1 CO contact /SPDT	-	⚫	⚫	-	-	-	-	-	-	-	-	-	-	-	-	-
H3DK-M	0.1s...100h	1 CO contact /SPDT or 2 CO contact /DPDT	⚫	⚫	⚫	⚫	⚫	⚫	⚫	⚫	-	-	-	-	-	-	-	-
H3DK-S	0.1s...100h	1 CO contact /SPDT or 2 CO contact /DPDT	⚫	-	⚫	-	-	⚫	-	⚫	-	-	-	-	-	-	-	-
H3DT-F	0.1s...100h	1 CO contact /SPDT	-	⚫	⚫	-	-	-	-	-	-	-	-	-	-	-	-	-
H3DT-L	0.1s...100h	1 CO contact /SPDT or 2 CO contact /DPDT	⚫	⚫	⚫	⚫	-	⚫	⚫	⚫	-	-	-	-	-	⚫	-	-
H3DT-N	0.1s...100h	1 CO contact /SPDT or 2 CO contact /DPDT	-	-	-	-	⚫	-	-	-	⚫	⚫	⚫	⚫	⚫	-	⚫	⚫

3. Digital timers

(back to index)▲

Digital timers is controllers that turn on an output based on timing or counting. Digital timers can be categorized into 2 main types. A timer that has short term count with 1/16 DIN (48x48mm) mounting, another type has long term which available in DIN rail or panel mounting (1/16 DIN (48x48mm), 1/4 DIN (96x96mm), 72x72mm).

Your advantages with OMRON digital timers:

Feature rich digital timer for harsh environments
Digital daily, weekly and yearly timer with LCD screen
Time range from 0.01s to 9990hr
UL, CSA, SEV certifications

There are 2 types of digital timers:

Single-function timers
Multi-function timers

To better understand timers, you can also browse the Timer function table (section 3.3.)

3.1. Single function timers

(back to digital timers index)▲

	Timing range	Type of output	Timer functions click here to see more	Mounting mode (see the selection of compatible base on the right)	Screw terminals						Solder terminals
			ON-delay (i)		8-pin			11-pin			8-pin	11-pin
			(A)		P2CF-08	P2CF-08-E	P3G-08	P2CF-11	P2CF-11-E	P3GA-11	PL08	PL11
H5CN	0.001s...99h 59min	1 CO contact time-limit SPDT	⚫	Plug-in on 8-pin DIN rail or 11-pin round socket		-			-		-	-
H3CA	0.1s...999h	1 CO contact /SPDT or 1 CO contact /DPDT or 1 CO Instantaneous SPDT	⚫	Plug-in mounting on 8-pin octal round socket

3.2. Multi function timers

(back to digital timers index)▲

	Timing range	Type of output	Timer functions click here to see more																				Mounting mode (see the selection of compatible base on the right)	Screw terminals						Solder terminals
			ON-delay I (i)	Signal ON Delay II (i)	Power ON Delay I (i)	Power ON Delay II (i)	Flicker (i)	Repeat cycle 1 (i)	Repeat cycle 2 (i)	Signal ON/OFF-delay (i)	Signal OFF-delay (i)	Interval (i)	One-shot and flicker (i)	Stopwatch (i)	Signal ON/OFF-delay (i)	Signal OFF-delay (i)	One-shot (i)	ON/OFF-duty-adjustable flicker (i)	ton (Flicker-ON start) (i)	toff (Flicker-OFF start) (i)	Power-OFF delay (i)	N, F, C, R, K, P, and Q (i)		8-pin			11-pin			8-pin	11-pin
			(A)	(A-1)	(A-2)	(A-3)	(B)	(B)	(B-1)	(C)	(D)	(E)	(F)	(S)	(G)	(H)	(J)	(Z)	ton (Flicker-ON start) (i)	toff (Flicker-OFF start) (i)	Power-OFF delay (i)	N, F, C, R, K, P, and Q (i)		P2CF-08	P2CF-08-E	P3G-08	P2CF-11	P2CF-11-E	P3GA-11	PL08	PL11
H3FA	1s...60min	1NO contact / SPST-NO or 1NC contact / SPST-NC or 1 CO contact S.S.R. driver	⚫	-	-	-	-	-	-	-	⚫	-	-	-	-	-	⚫	-	-	-	⚫	-	Plug-in mounting on 24-pin IC socket	-	-	-	-	-	-	-	-
H3CA	0.1s...999h	1 CO contact time-limit SPDT	⚫	-	-	-	⚫	-	-	⚫	⚫	⚫	⚫	-	⚫	⚫	-	-	-	-	-	-	DIN rail or surface mounting or Plug-in mounting on 11-pin round socket
H5AN	0.01s...9999h	1 CO contact time-limit SPDT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	⚫	Flush mounting	-	-		-	-	-	-	-
H5CZ	0.001s...9999h	1 CO Instantaneous SPDT or 1 CO contact time-limit SPDT	⚫	⚫	⚫	⚫	-	⚫	⚫	-	⚫	⚫	⚫	⚫	-	-	-	⚫	⚫	⚫	-	-	Plug-in mounting on 8-pin DIN rail socket				-	-	-	-	-
H5CX-N	0.01s...99999.9h	1 CO contact /SPDT or 1 CO contact /DPDT or 1 CO Instantaneous SPDT or 1 CO contact time-limit SPDT	⚫	⚫	⚫	⚫	-	⚫	⚫	-	⚫	⚫	⚫	⚫	-	-	-	⚫	⚫	⚫	-	-	Flush mounting or Plug-in mounting on 11-pin round socket or Plug-in mounting on 8-pin DIN rail socket			-				-	-

3.3. Timer function table

(back to index)▲

A - ON-delay

B - Flicker-OFF start

B2 - Flicker-ON start

C - Signal ON/OFF delay

D - Signal OFF delay

E - Interval

G - Signal ON/OFF delay

J - One-shot output (ON-delay)

A-1 - Signal ON delay II

A-2 - Power ON delay

A-2 - Power ON delay1

A-3 - Power ON delay2

B - Repeat cycle1

B-1 - Repeat cycle2

B3 - Flicker OFF start (Power ON start)

B4 - Flicker ON start (Power ON start)

D - Signal OFF delay

E2 - Interval (Power ON start)

E3 - Signal OFF interval

F2 Cumulative ON delay

F3 Cumulative interval

H ON delay instantaneous

J2 One shot output (Power ON start)

S Stopwatch

Star Delta timer

toff flicker off start1

ton-1 flicker ON start2

ton flicker ON start1

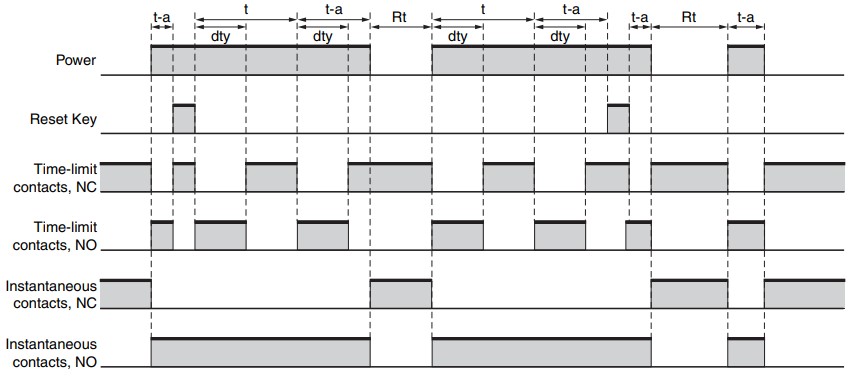

Z ON off duty adjustable flicker

4. Digital counters

(back to index)▲

OMRON provides preset counters, totalizing counters, time counters and electromagnetic counters.

A counter is a device that counts the number of objects or the number of operations. It is called a counter because it counts the number of ON/OFF signals input from an input device, such as a switch or sensor. It is fairly simple for people to count ten or twenty objects, but larger numbers make counting increasingly difficult. Counters outperform people when it comes to counting accurately. Counters are classified into two groups according to whether they produce an output or not.

What is a preset counter?
A preset counter counts until the present value reaches a preset value, and then it activates a control output to operate an output device. The term preset in preset counter means that you can set a value in advance.
The operation of preset counters used in automated machinery with a pudding production line. Counters are often mounted on control panels so that the workers can check the display. It also described from signal input to control and signal output in the boxing process of the pudding production line.

What is a total counter?
A total counter does not output a control signal. It only displays the present value. A total counter is often used when you only have to display a production count, for example number of puddings counted.

		Digital counter
Series	Not sure which series to choose? use our universal configurator	H7AN 3/16 DIN (72x72mm) Flush mounting	H7BX 3/16 DIN (72x72mm) Flush mounting	H7CN 1/16 DIN (48x48mm) Plug-in mounting on 8-pin octal round socket / 11-pin round socket	H7CX-A 1/16 DIN (48x48mm) Plug-in mounting on 11-pin socket / Flush mounting	H7CZ 1/16 DIN (48x48mm) Plug-in mounting on 8-pin socket	H7E[]-N[]P 44.8x22.4mm Direct mounting on PC Board or 28-pin IC socket	H7EC 1/32 DIN horizontal (48x24mm) Flush mounting	H7GP 1/32 DIN horizontal (48x24mm) Flush mounting	H7HP 9/128 DIN horizontal (72x36mm) Flush mounting	H8BM-R 3/16 DIN (72x72mm) Flush mounting	H8GN 1/32 DIN horizontal (48x24mm) Flush mounting
Features		Digital preset counter / Digital totalizing counter incrementing (count-UP) / decrementing (count-DOWN)/ reversible (count-UP/DOWN) 1 digital input (NPN open collector) 1 electromechanical relay or 1 discrete output	Multifunction digital counter / tachometer increment / decrement (UP/DOWN) 1 digital input (No-voltage contact; NPN open collector) 1 discrete output	Digital solid-state preset counter / totalizing counter incrementing (count-UP) / decrementing (count-DOWN) / reversible (count-UP/DOWN) 1 digital input (NPN open collector) 1 electromechanical relay or 1 discrete output	Multifunction preset counter / tachometer increment / decrement (UP/DOWN) 1 digital input (No-voltage contact; NPN/PNP open collector (switchable)) 1 electromechanical relay or 1 discrete output or 2 electromechanical relays	Digital counter increment / decremental (count-UP) 1 digital input (No-voltage contact; NPN open collector) 1 electromechanical relay	PCB-mounting total counter incrementing (count-UP) 1 digital input (No-voltage)	Self-power total counter incrementing (count-UP) 1 digital input (No-voltage) or (AC/DC multi-voltage; 24-240Vac/Vdc) or (PNP/NPN uiversal DC voltage; 4.5-30Vdc)	Digital total counter incrementing (count-UP) / accumulative counting 1 digital input (No-voltage; NPN or voltage input PNP)	Digital total counter count-UP/DOWN / accumulative counting 1 digital input (No-voltage; NPN or voltage input PNP)	Digital multi-maintenance built-in 9 counter incrementing (count-UP) 13 digital inputs (Voltage 16-26.4Vdc) 11 digital outputs (No-contact)	Multifunction preset counter incrementing (count-UP) / decrementing (count-DOWN) 1 digital input (No-voltage contact; counter) 1 electromechanical relay
Benefits		A DIN 72x72 mm best-selling counter easy setting with thumbwheel switches. A draw-out construction enables maintenance without rewiring. Models with 2-; 4-; 6-; or 8-digit displays are also available.	Multifunction counter with a bright; easy-to-view; negative transmissive LCD. Enables checking output status at a distance. Easy operation with a key for each digit. Perform all basic settings with a DIP switch. Complies with UL; CSA; and CE marking. Degree of protection IP54.	All required counter functions incorporated in a compact DIN-sized (48x48mm) housing. In addition to up and down models, a reversible (up-down) counter is also available. Maximum counting speed of 5,000 cps, never before attained by a small-size preset counter. Models with memory backup function against power failure available.	Ultra-compact counter provides more complete functionality. Short body with depth of only 59 mm. Better readability with character height of 12 mm on 4-digit models and 10 mm on 6-digit models. The present value display characters can be switched between red; green; and orange.	Character height of 10 mm for better readability. Safety and reliability power supply circuit and input circuits are isolated inside the counter. Set value limit function prevents unexpected operation of output devices caused by setting mistakes. Waterproof; dust-proof structure (UL508 Type 4X and IP66).	Compact economical totalizer with high visibility available with backlit LCD display. Key-protect switch to prevent faulty reset key operation. All models have a depth of 48.5 mm. Finger protection terminal block. Allowing use in residential; commercial and light- and heavy-industry environments.	Compact economical totalizer with high visibility available with backlit LCD display. Key-protect switch to prevent faulty reset key operation. Dual operation mode. Use in residential; commercial and light- and heavy-industry environments. PCB-mounting models available.	Total counter/time counter with easy-to-read displays and water and oil resistance equivalent to IP66 high-visibility; negative transmissive LCD display built-in red LED backlight at low power consumption. Supports both external resetting and manual resetting.	Total counter/time counter with water and oil resistance equivalent to IP66 large; easy-to-read high-visibility; negative transmissive LCD display with built-in red LED backlight at low power consumption. Supports both external resetting and manual resetting.	Measure equipment operating cycles and times and forecast maintenance timing. provides up to 9 counters or accumulative timers. Pre-forecast display and machine stoppage output provided. IP54 oil-proof type at setting area for resistance to oil and water.	Compact yet equipped with communication. Built-in prescaling for counter operation. ON/OFF-duty adjustable flicker mode that can be used to perform cyclic control is available for timer operation. Water-proof structure to NEMA type 4X/IP66.

5. Process meters

(back to index)▲

Digital panel meters perform digital processing on or conversion and display of voltages, currents, other analog signals, and pulse signals. They can also compare input values to set values, transfer data, and perform other functions.

What is a digital panel indicator?
A digital panel indicator digitally processes measurement data, such as an analog signal from a linear sensor (including a voltage and current), or a pulse signal. It then converts and displays the data.
They can also act as interfaces by performing operations such as comparisons with user-set values, and transmitting data to computers and PLCs.

OMRON digital panel indicators have good visibility in the field, are easy to use, are waterproof, and conform to international standards. Communications with host computers or programmable controllers have been improved to provide functionality for advanced information systems, such as data collection to increase operating rates and data recording capabilities to provide for implementing measures for PL laws and ISO.

		Process meter
Series	Not sure which series to choose? use our universal configurator	K3HB-C 1/8 DIN horizontal (96x48mm) Flush mounting	K3HB-P 1/8 DIN horizontal (96x48mm) Flush mounting	K3HB-H 1/8 DIN horizontal (96x48mm) Flush mounting	K3HB-R 1/8 DIN horizontal (96x48mm) Flush mounting	K3HB-X 1/8 DIN horizontal (96x48mm) Flush mounting	K3HB-S 1/8 DIN horizontal (96x48mm) Flush mounting	K3MA-J 1/8 DIN horizontal (96x48mm) Flush mounting	K3MA-F 1/8 DIN horizontal (96x48mm) Flush mounting	K3MA-L 1/8 DIN horizontal (96x48mm) Flush mounting	K3GN 1/32 DIN horizontal (48x24mm) Flush mounting	H7CX-R 1/16 DIN (48x48mm) Plug-in mounting on 11-pin socket	H7ER 1/32 DIN horizontal (48x24mm) Flush mounting
Features		5 electromechanical relays or 5 discrete outputs or 1 BCD output 1 discrete input + 1 analog output (0-20mA / 4-20mA / 0-5Vdc / 0-10Vdc / 1-5Vdc)	5 electromechanical relays or 5 discrete outputs or 1 BCD output 1 discrete input + 1 analog output (0-20mA / 4-20mA / 0-5Vdc / 0-10Vdc / 1-5Vdc)	5 electromechanical relays or 5 discrete outputs or 1 BCD output 1 analog output (0-20mA / 4-20mA / 0-5Vdc / 0-10Vdc / 1-5Vdc)	5 electromechanical relays or 5 discrete outputs or 1 BCD output 1 discrete input + 1 analog output (0-20mA / 4-20mA / 0-5Vdc / 0-10Vdc / 1-5Vdc)	5 electromechanical relays or 5 discrete outputs or 1 BCD output 1 analog output (0-20mA / 4-20mA / 0-5Vdc / 0-10Vdc / 1-5Vdc)	5 electromechanical relays or 5 discrete outputs or 1 BCD output 1 analog output (0-20mA / 4-20mA / 0-5Vdc / 0-10Vdc / 1-5Vdc)	2 electromechanical relays 1 analog current/voltage (DC)	2 electromechanical relays 1 analog current/voltage (DC)	1 electromechanical relays 1 analog current/voltage (DC)	2 electromechanical relays or 3 discrete outputs 1 analog output (0-20mA / 4-20mA / 0-5Vdc / 0-10Vdc / 1-5Vdc)	2 electromechanical relays 1 discrete input	- 1 discrete input
Benefit		Perfect for measuring rotary encoder and ON/OFF pulse signals at high-speed. The count value can be converted to any value. The length equivalent for any pulse can be set to any desired value. This is effective for feed amount and position monitor displays. DeviceNet models added to the series.	Digital time interval meter for measuring passing speed; time; or cycle between 2 points. Wide range for pulse interval measurements; from 10 ms to 3200s max. DeviceNet models added to the series.	New high-speed; high-precision temperature indicator. High-resolution of 0.01°C with platinum-resistance thermometer Pt100 input. Temperature input shift is easily set using 2 points. Series expanded to include DeviceNet models. UL approval; NEMA 4X (equivalent to IP66)	Digital rotary pulse meter capable of 50 khz measurements. Visual confirmation of judgement results through display colors that switch between red and green. Provides high-speed pulse measurements up to 50 kHz of rotary encoder or ON/OFF pulse signals and can perform rotating measurement of high-speed rotating objects.	A process indicator ideal for discriminating and displaying measurements for voltage/current signals. Equipped with a position meter for monitoring operating status trends. Easy-to-set two-point scaling allows conversion and display of any userset values.	Linear sensor indicator for high-speed; highprecision measurement and discrimination. Easy recognition of judgement results using color display that can be switched between red and green. Equipped with a position meter that represents measured amounts and relative positions. Series expanded to include DeviceNet models.	Highly visible LCD display with 2-color (red and green) LEDs. Multi-range DC voltage/current input. Average processing function suppresses flicker. Scaling; front-panel forced-zero; zero-limit functions. NEMA type 4X (IP66 equivalent); UL. CE marking	Highly visible LCD display with 2-color (red and green) LEDs Contact; NPN; PNP; or voltage pulse input. Average processing function suppresses flicker. Includes scaling; auto-zero time; startup compensation time functions. Built-in external power supply (12 VDC (+/-10%); 0 to 40 mA).	Highly visible LCD display with 2-color (Red and Green) LEDs. Select from 2 types of platinum-resistance thermometers and 10 types of thermocouples. Protects against electric shock; water- and dust-proof NEMA type 4X (IP66 equivalent) front panel; UL. CE marking.	Ideal for downsizing equipment and control panels. Multi-input compatible DC voltage/current; rotary pulse. 2 display colors (switchable) green/red. Selectable outputs. CE marking and UL/CSA approval. Splash-proof construction (NEMA type 4X equivalent to IP66).	Ultra-compact counter provides more complete functionality. Safety and reliability new set value limit and counter functions have been added. Front panel can be changed to white or light gray. New models with two tachometer inputs and two tachometer outputs have been added to the series.	Compact economical totalizer with high visibility available with backlit LCD display. PNP/NPN universal DC voltage input types now available. Key-protect switch to prevent faulty reset key operation. Dual operation mode. Allowing use in residential; commercial and light- and heavy-industry environments. PCB-mounting models available.
