Bosch Rexroth industrial hydraulic valve products selector & configurator
Bosch Rexroth is the global leader in designing and manufacturing hydraulic control valves for industrial applications.
The company offers the most extensive range of on/off, logic, safety, and pressure other hydraulic valves – wider than any competitor’s – for all applications. You will find what you need to achieve an optimal solution.
All Bosch Rexroth valves are designed at the highest development level to ensure that you have the most responsive, reliable, and precise flow control for unparalleled repeatability.
Valves you can rely on
The world’s most comprehensive range of cost-efficient, reliable and robust valves to suit all types of applications.
Bosch Rexroth has everything you need to optimize your systems.
All Bosch Rexroth valves are designed at the highest development level to ensure that you have the most responsive, reliable, and precise flow control for unparalleled repeatability.
Valves you can rely on
The world’s most comprehensive range of cost-efficient, reliable and robust valves to suit all types of applications.
Bosch Rexroth has everything you need to optimize your systems.
Directional spool valves
Directional spool valves control the flow direction and, thus, the directional movement of hydraulic actuators. The fluid flow will be restricted and permitted by the position of the spool.
The directional spool valves consist of the housing, one or two electronic solenoids, the control spool, and the return springs.
In the de-energized condition, the control spool is held the central position or in the initial position by the return springs. If the electronic solenoid is supplied with power, the control spool moves out of its rest position into the required end position. This way, the required flow direction according to the selected symbol is released. After the electronic solenoid is switched off, the control spool is pushed back into its central position or initial position.
Symbolic representation
There are two ways to select a directional spool valve from Bosch Rexroth:
The directional spool valves consist of the housing, one or two electronic solenoids, the control spool, and the return springs.
In the de-energized condition, the control spool is held the central position or in the initial position by the return springs. If the electronic solenoid is supplied with power, the control spool moves out of its rest position into the required end position. This way, the required flow direction according to the selected symbol is released. After the electronic solenoid is switched off, the control spool is pushed back into its central position or initial position.

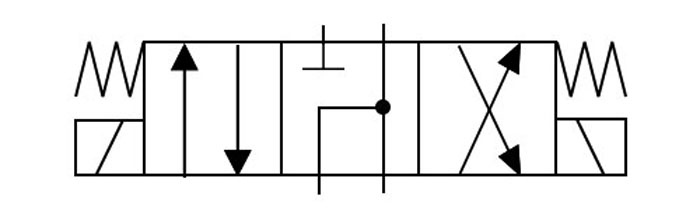

Symbolic representation

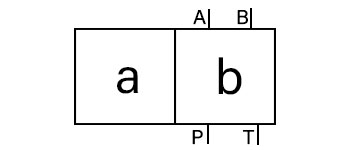

- The main ports are passages that allow fluid to pass through the valve. Typically, the ports are labeled with a single letter on the valve circuit diagrams as following:
- P is the pressure port that is connected to the pump.
- T is the tank port that is connected to the tank or reservoir.
- A and B are the working ports that are connected to the actuators.
- The number of switching positions is represented by the square boxes on the circuit diagrams.

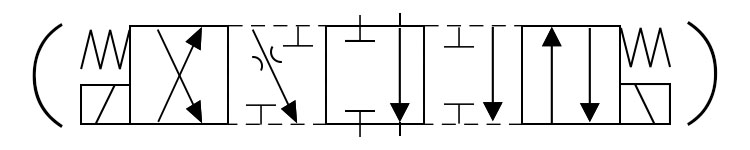

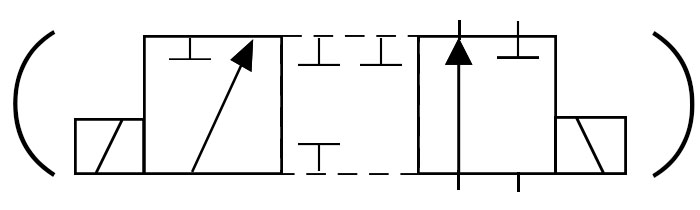

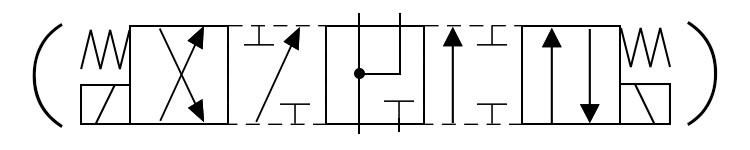

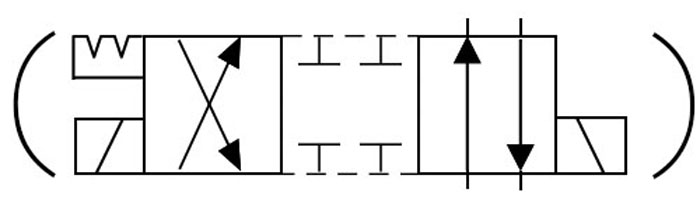

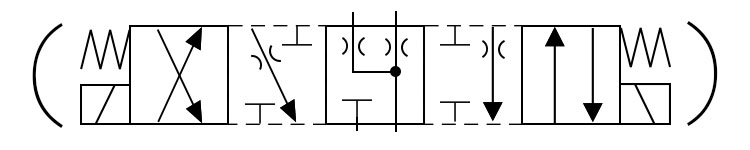

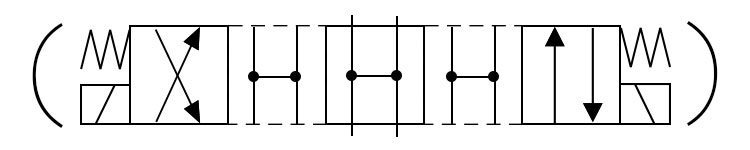

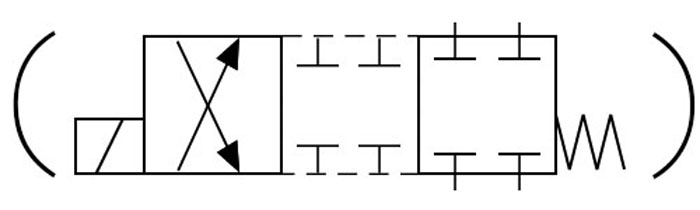

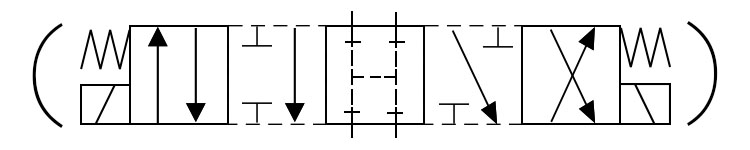

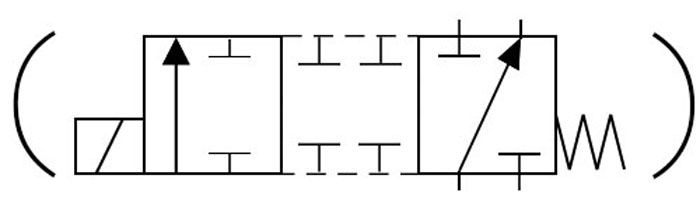

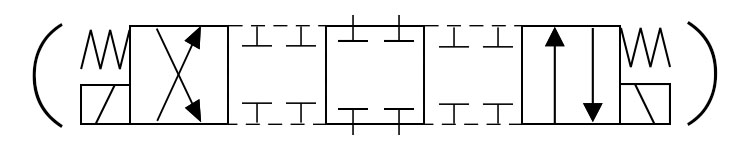

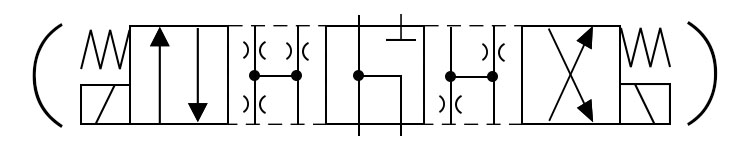

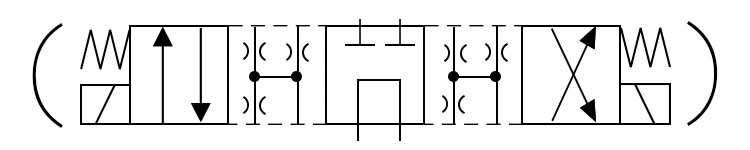

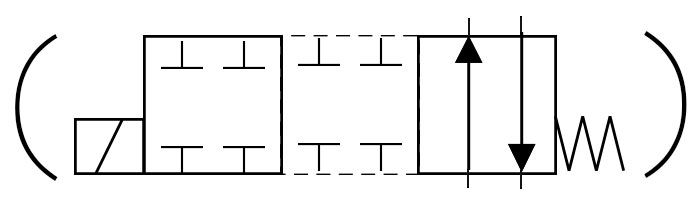

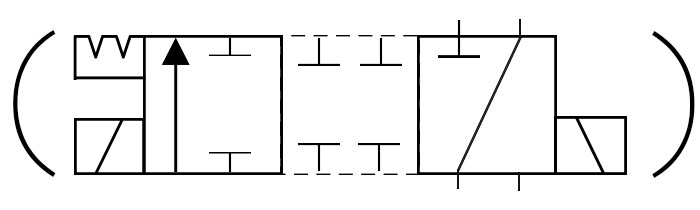

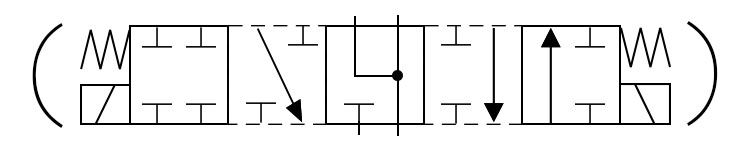

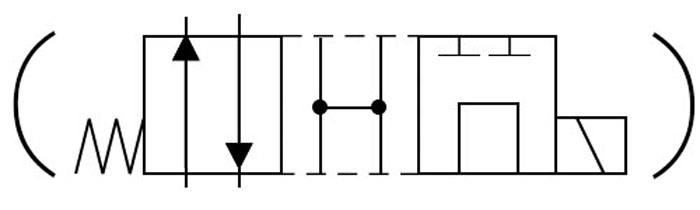

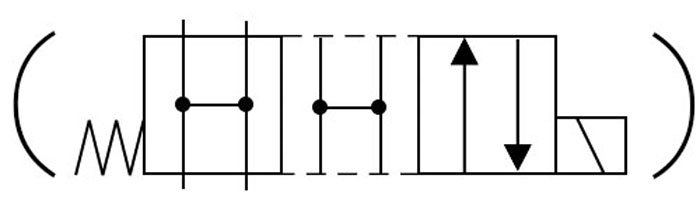

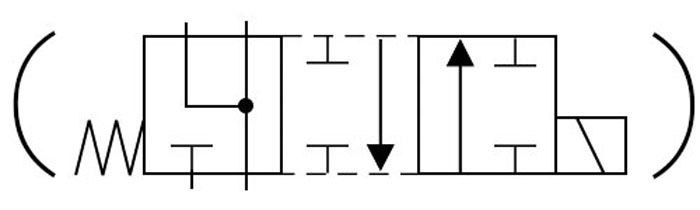

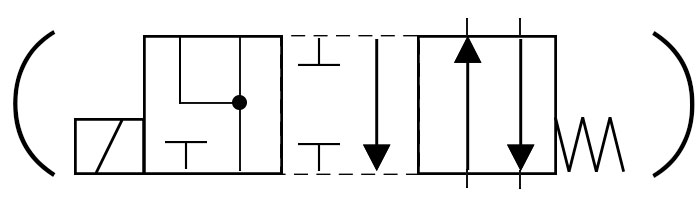

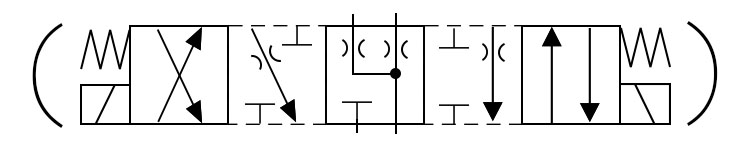

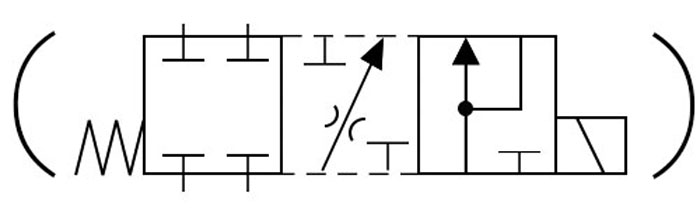

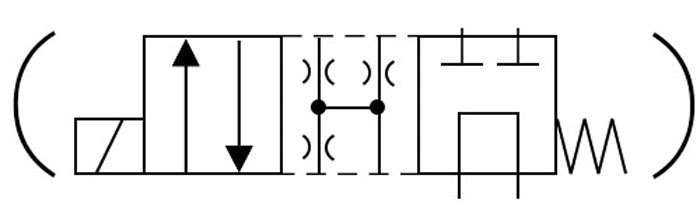

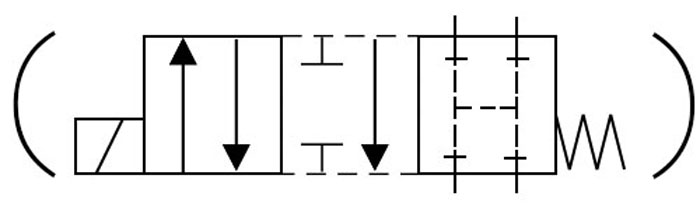

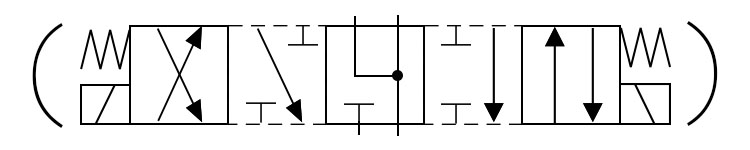

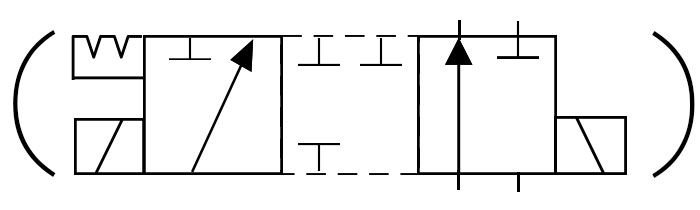

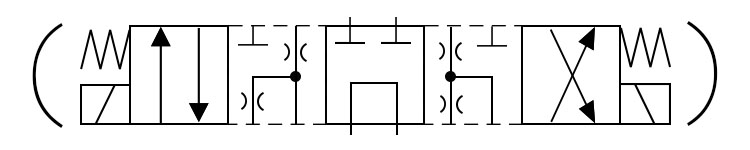

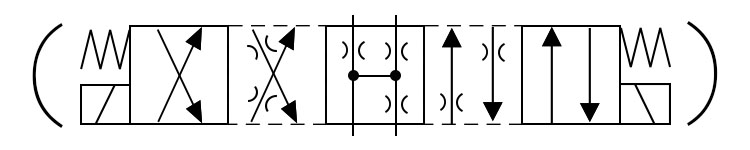

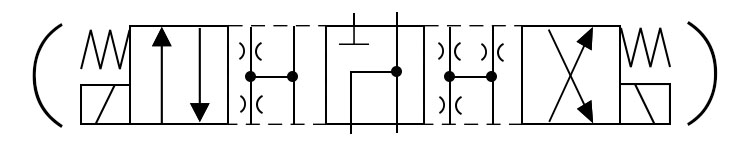

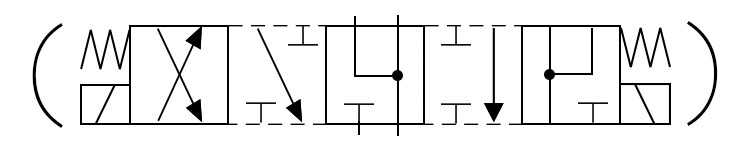

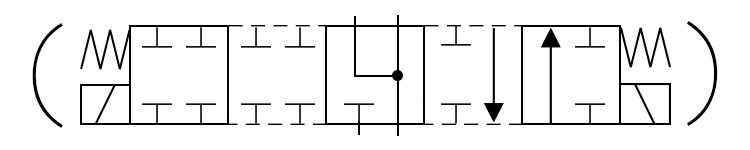

- The circuit diagrams inside parentheses depict typical spool valve transition or crossover conditions, also known as the open transition. The dash-lined boxes illustrate the functional action of the valve as the spools move within the housing to partially open and finally fully open.
There are two ways to select a directional spool valve from Bosch Rexroth:
1. Choose your Bosch Rexroth directional spool valves by function, pressure, and flow
(back to index)▲Bosch Rexroth supplies the complete range of directional spool valves to meet your valve requirements. These directional spool valves feature maximum flows up to 42 gallons per minute and operating pressures up to 420 bar.
You can navigate the below table to discover all directional spool valves, then click on your selection to open a more detailed configurator.
3-port / 2-position
4-port / 2-position
4-port / 3-position2. Choose your Bosch Rexroth directional spool valves by circuit diagrams
(back to index)▲When a spool valve shifts from one flow condition to another, it can pass through different flow conditions than those indicated by crossing arrows in the valve circuit diagram.
In some applications, what happens between the valve transition has consequences on system performance, so it is essential to know the valve port flow condition as it shifts.
Bosch Rexroth provides you with both the closed transition diagram and the open transition diagram to find suitable valves for your applications.
Directional spool valves are generally specified using the number of main ports and switching positions.
There are two types of switching positions from Bosch Rexroth:

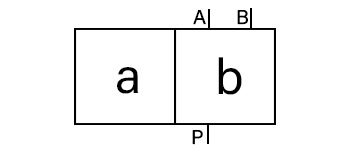

- 2-position valves with three main ports or four main ports

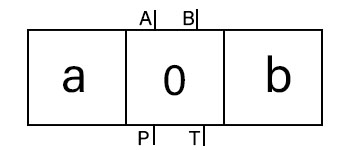

- 3-position valves with four main ports

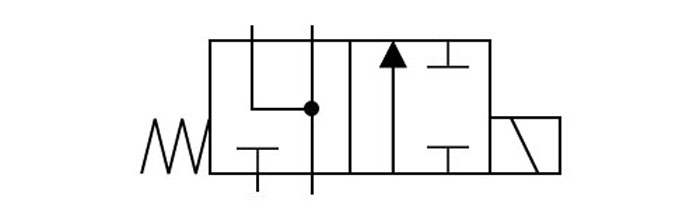

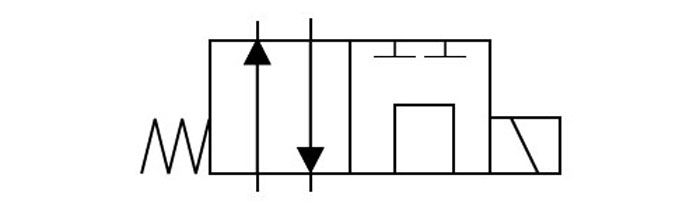

2.1 Select 2-position valves by circuit diagrams
(back to valve circuit diagrams)▲As a leading provider of industrial hydraulics products, Bosch Rexroth offers the most extensive range of high-quality directional spool valves.
You can navigate the below tables to discover 2-position valves, then click on your selection to open a more detailed configurator.
Users already familiar with Bosch Rexroth valve diagrams can directly access your valve requirements by the diagram index.

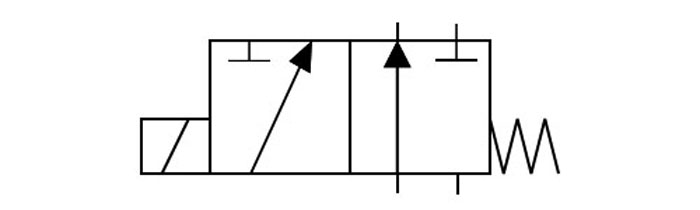

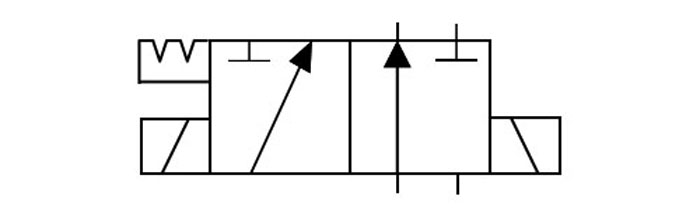

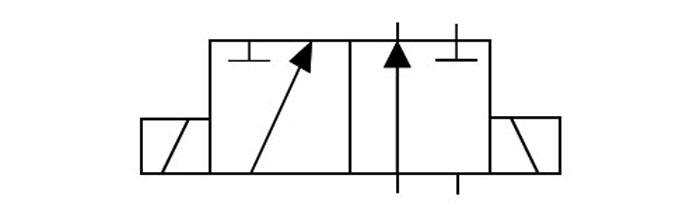

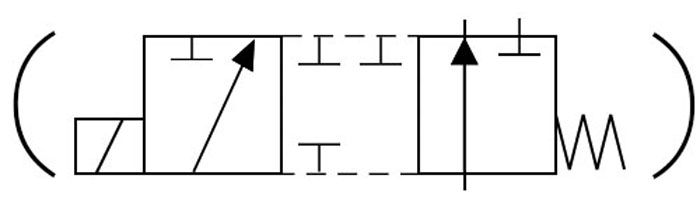

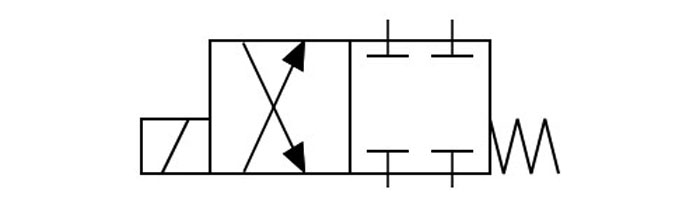

Type A valves and variants
(back to 2-position valve circuit diagrams)▲

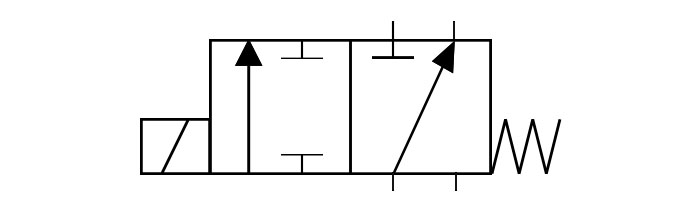

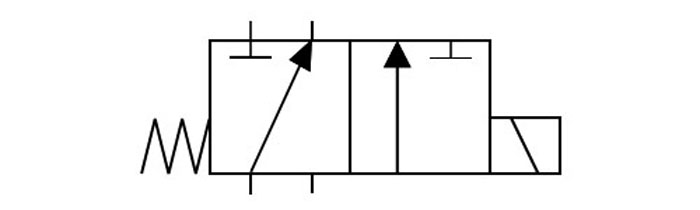

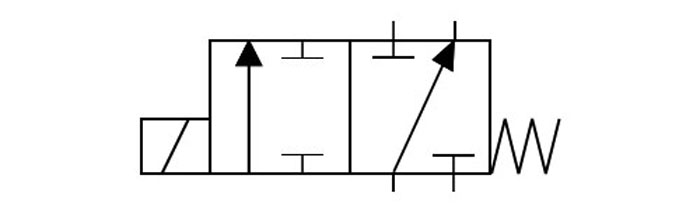

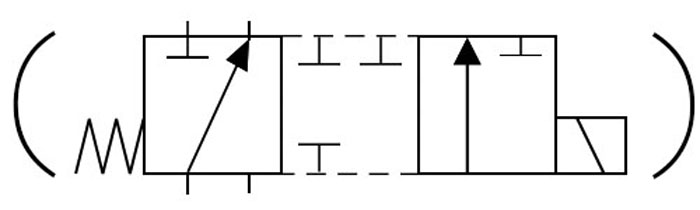

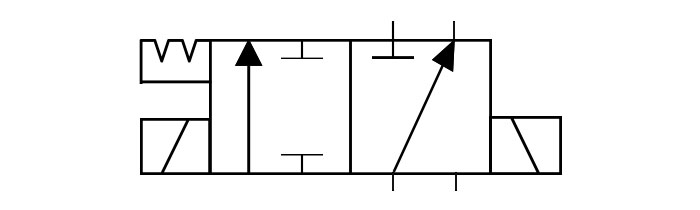

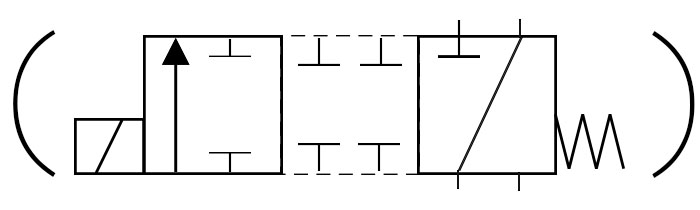

Type B valves and variants
(back to 2-position valve circuit diagrams)▲

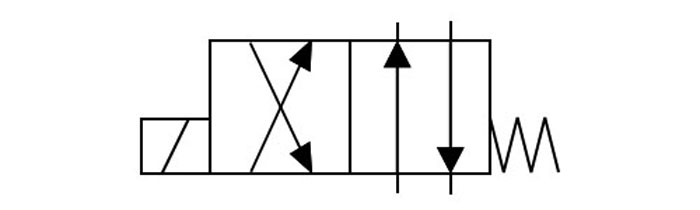

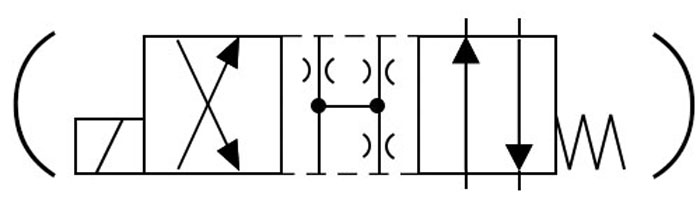

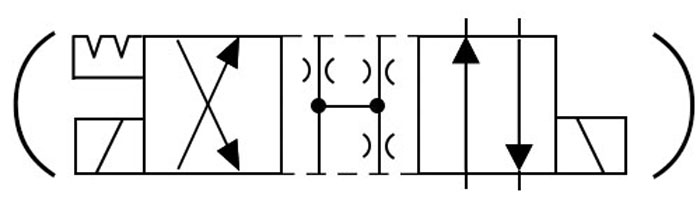

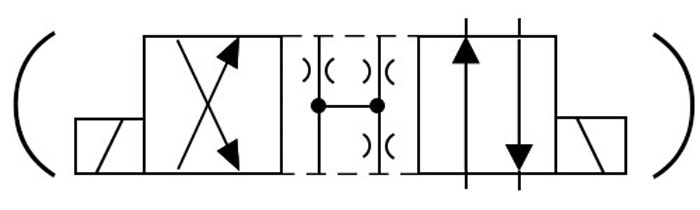

Type C valves and variants
(back to 2-position valve circuit diagrams)▲

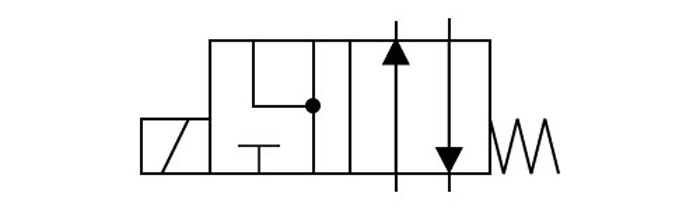

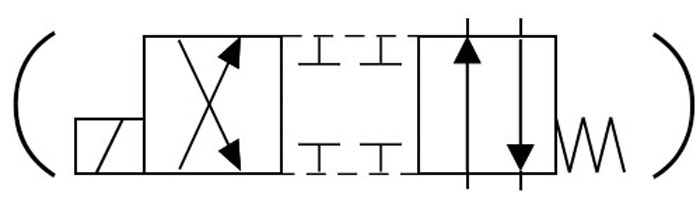

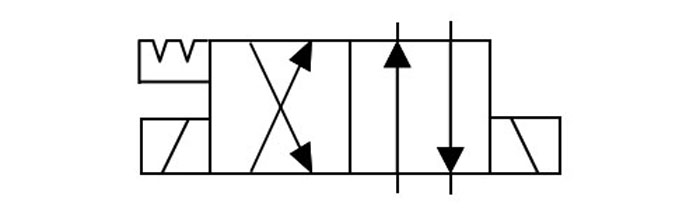

Type D valves and variants
(back to 2-position valve circuit diagrams)▲

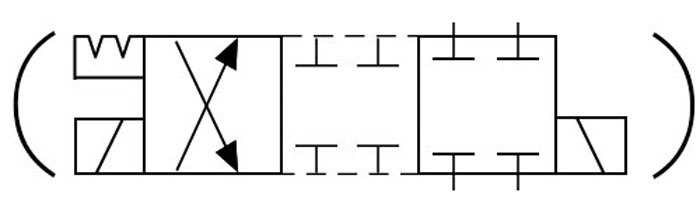

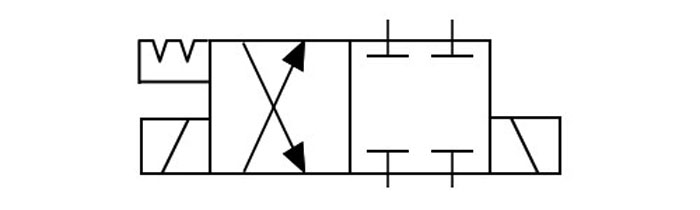

Type EA valves and variants
(back to 2-position valve circuit diagrams)▲

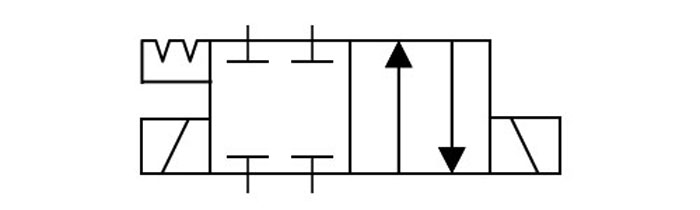

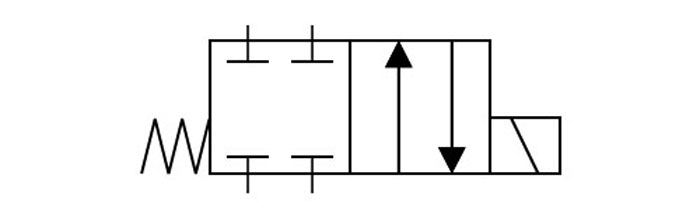

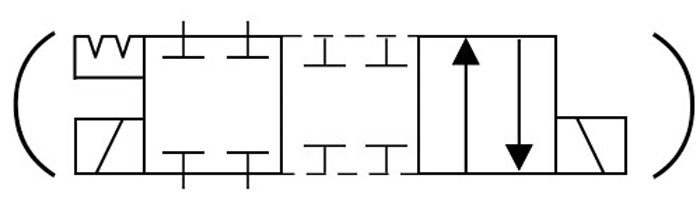

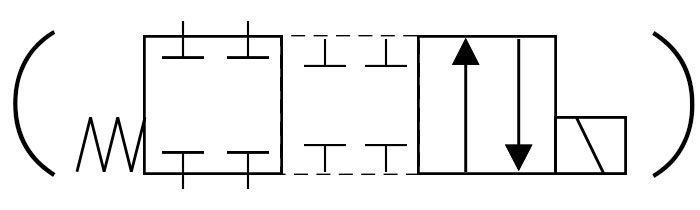

Type EB valves and variants
(back to 2-position valve circuit diagrams)▲

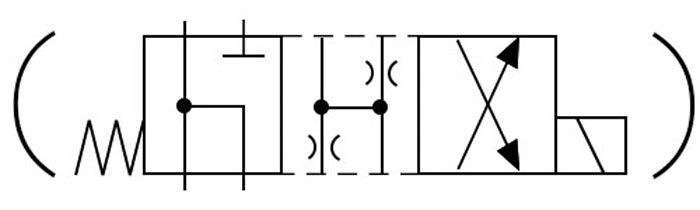

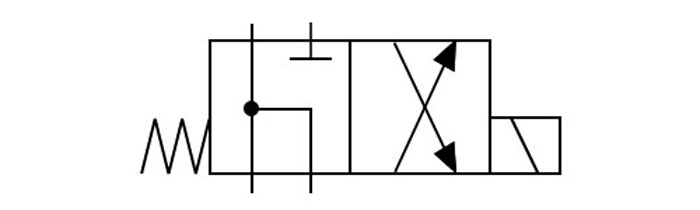

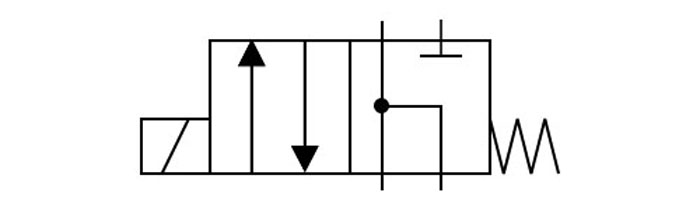

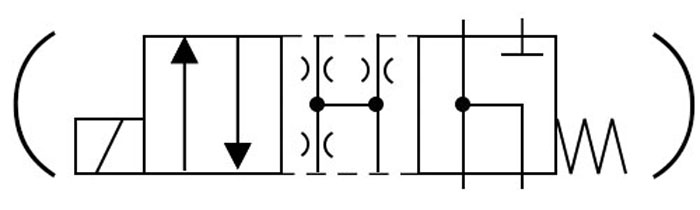

Type FA & FB valves
(back to 2-position valve circuit diagrams)▲

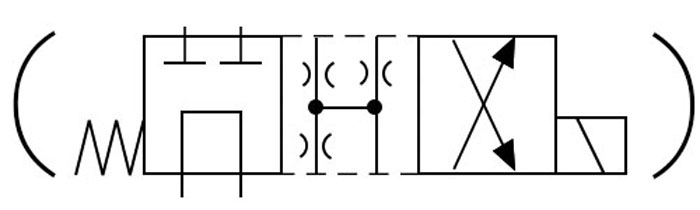

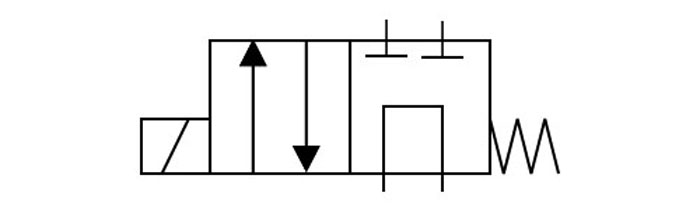

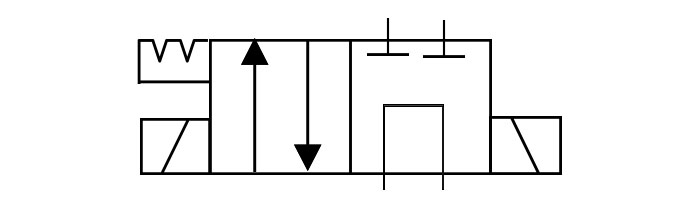

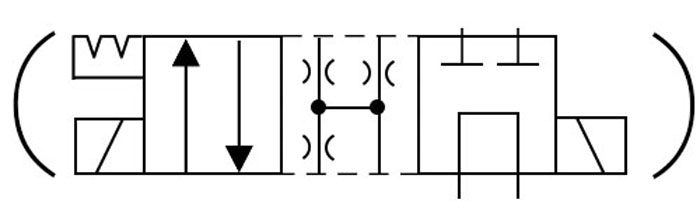

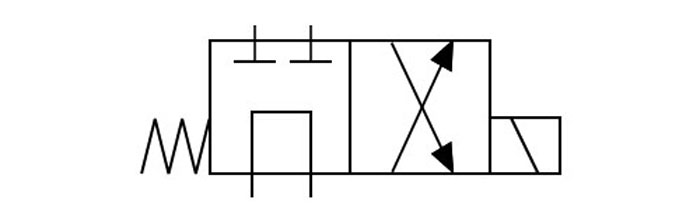

Type GA & GB valves and variants
(back to 2-position valve circuit diagrams)▲

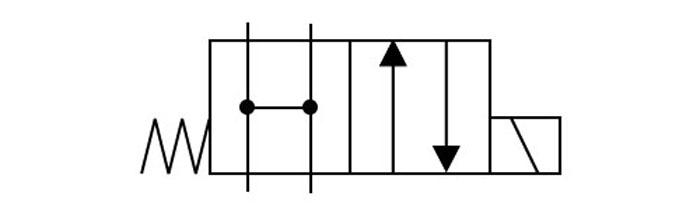

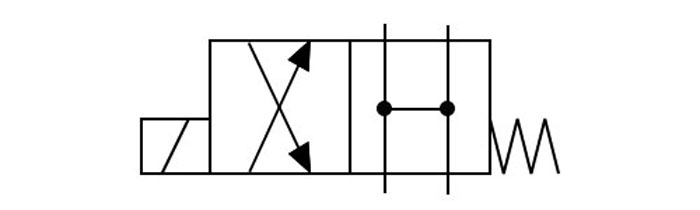

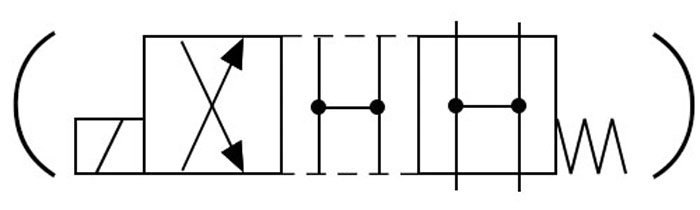

Type HA & HB valves and variants
(back to 2-position valve circuit diagrams)▲

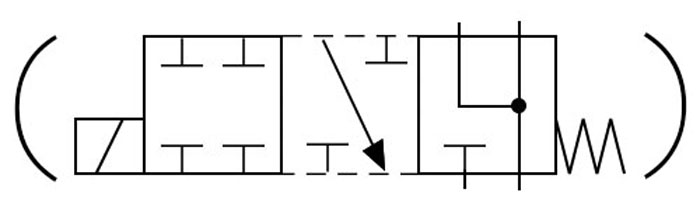

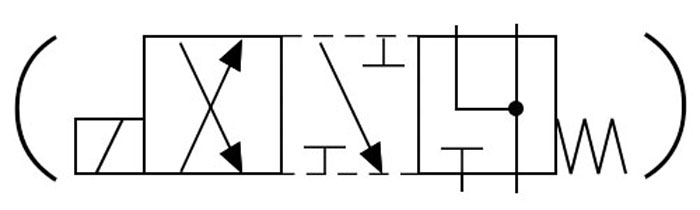

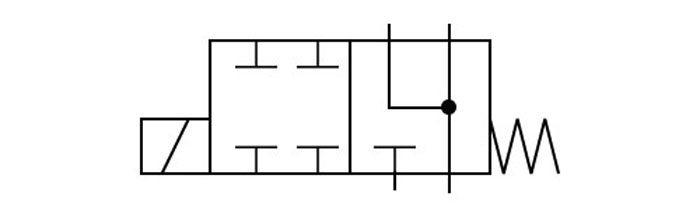

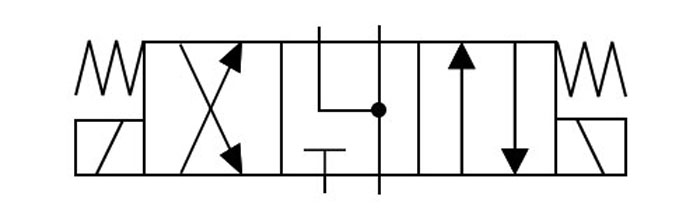

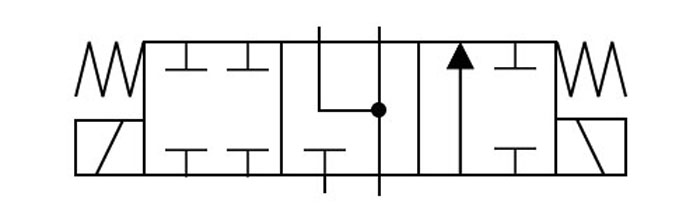

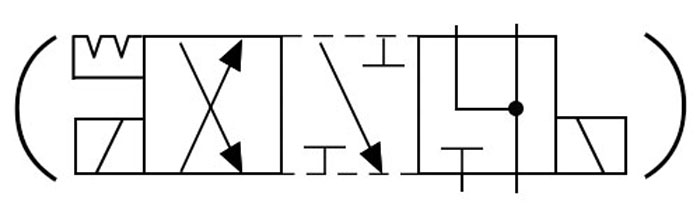

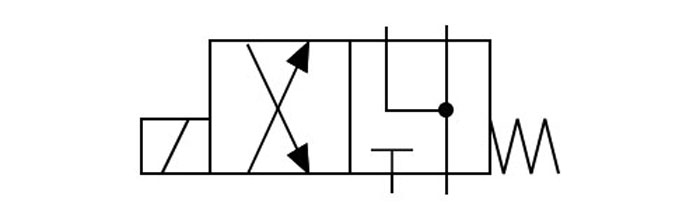

Type JA valves and variants
(back to 2-position valve circuit diagrams)▲

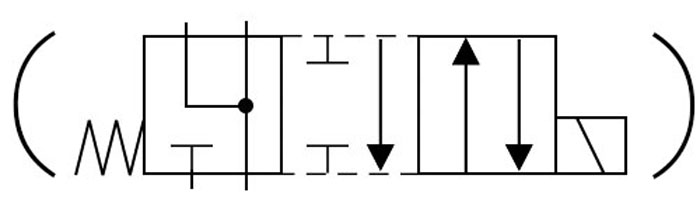

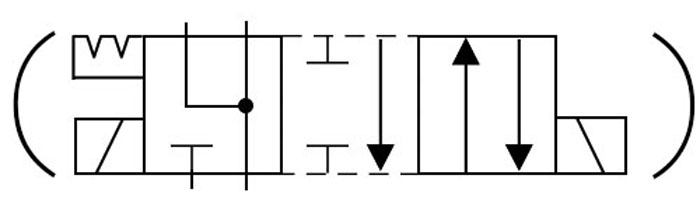

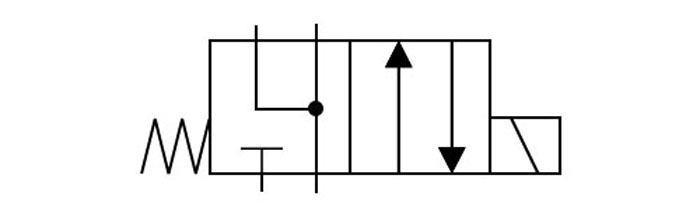

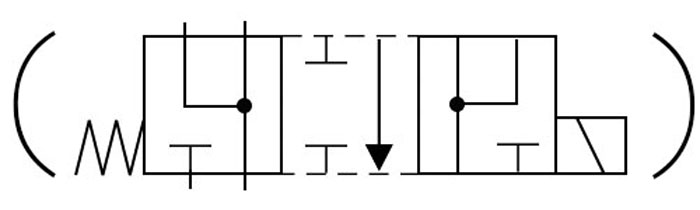

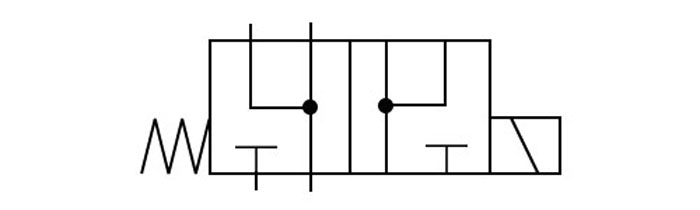

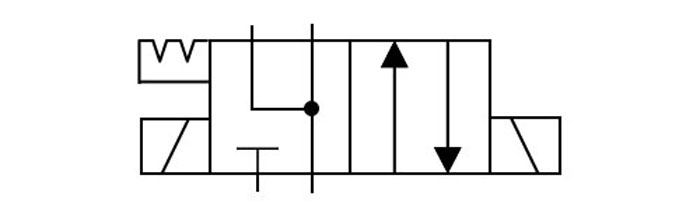

Type JB valves and variants
(back to 2-position valve circuit diagrams)▲

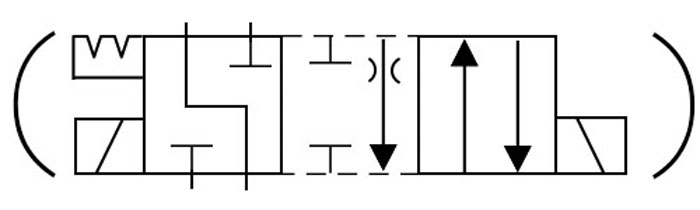

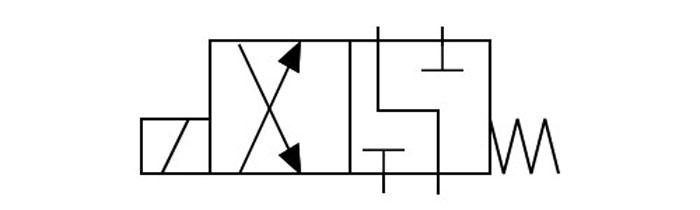

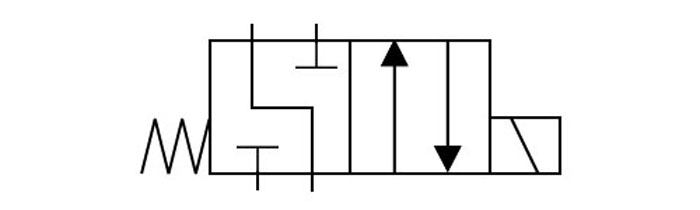

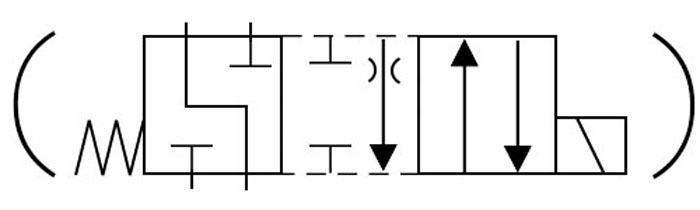

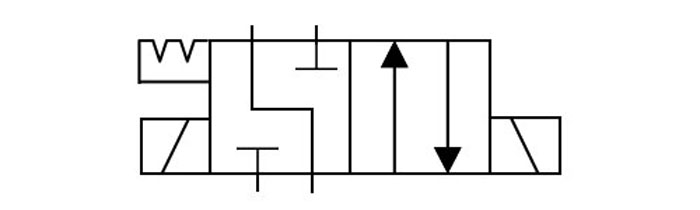

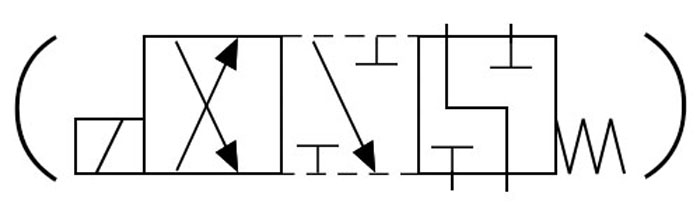

Type LA & LB valves
(back to 2-position valve circuit diagrams)▲

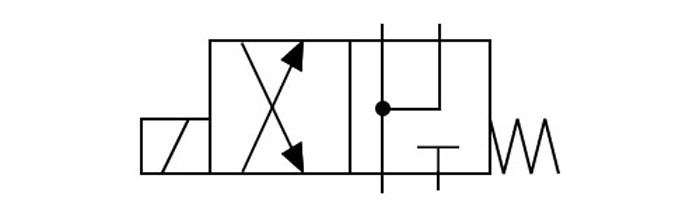

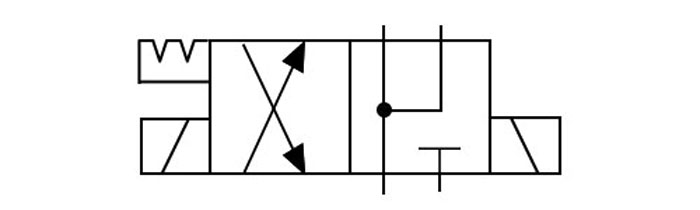

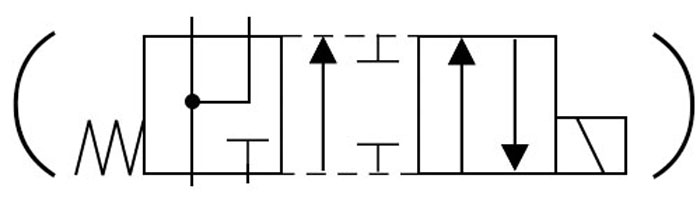

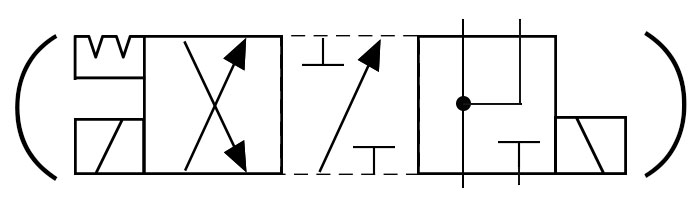

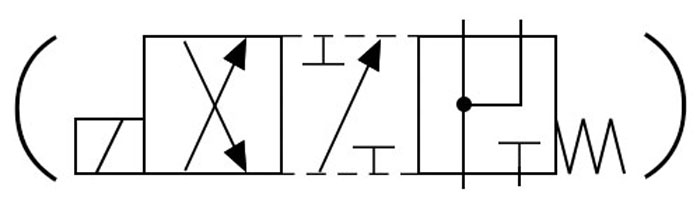

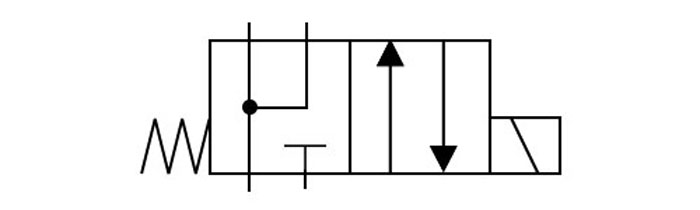

Type MA & MB valves and variants
(back to 2-position valve circuit diagrams)▲

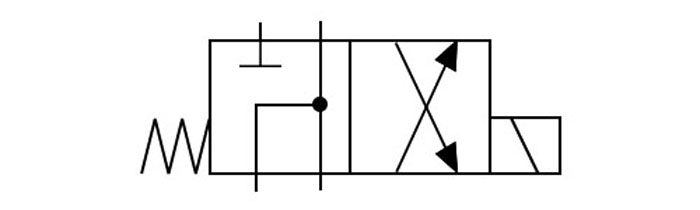

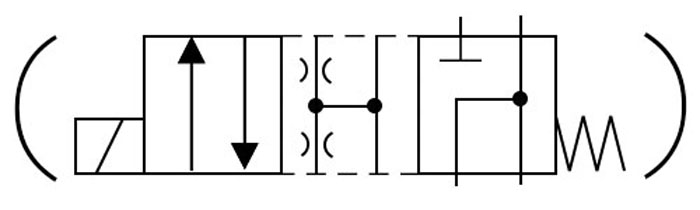

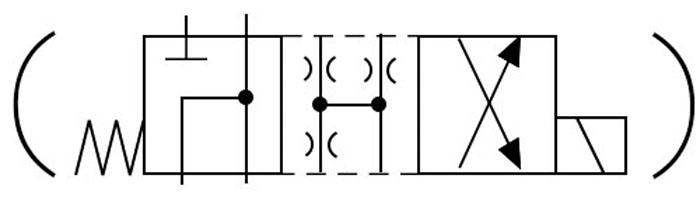

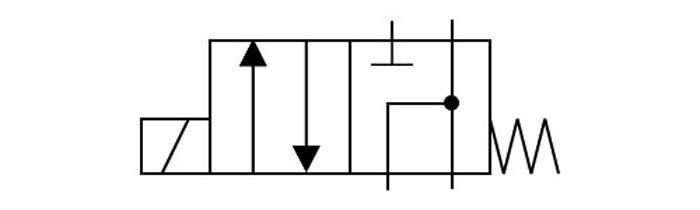

Type PA & PB valves
(back to 2-position valve circuit diagrams)▲

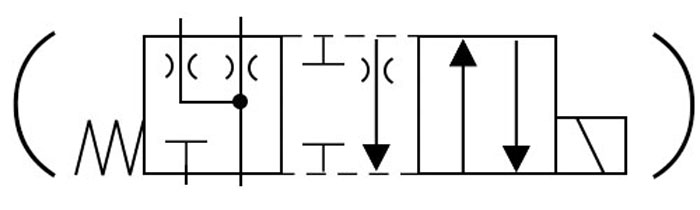

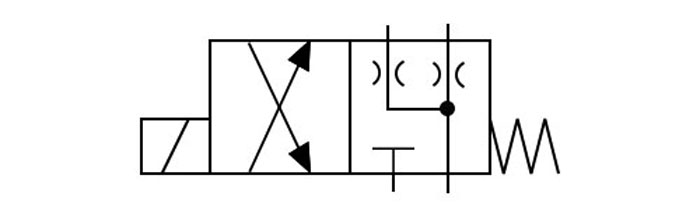

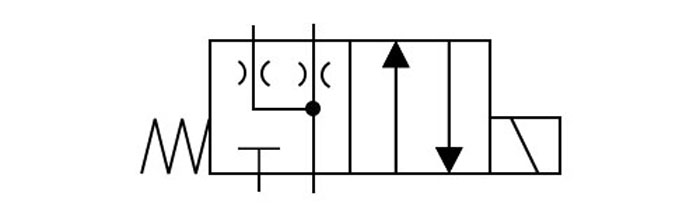

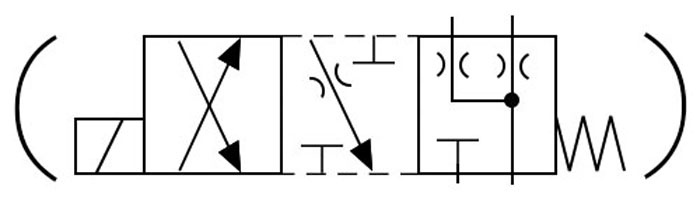

Type QA & QB valves
(back to 2-position valve circuit diagrams)▲

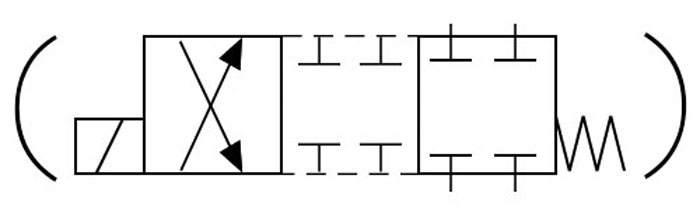

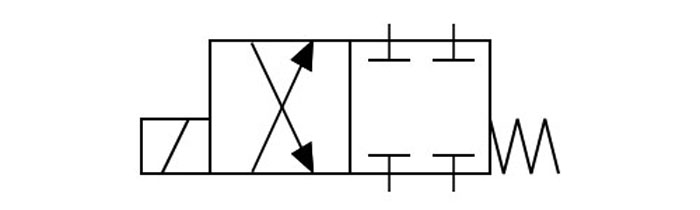

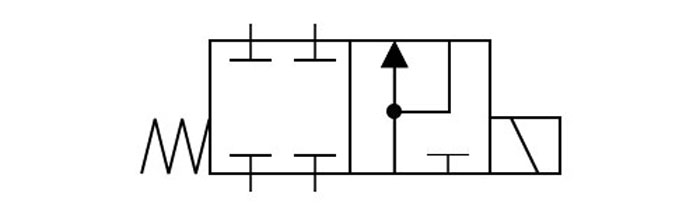

Type RA & RB valves
(back to 2-position valve circuit diagrams)▲

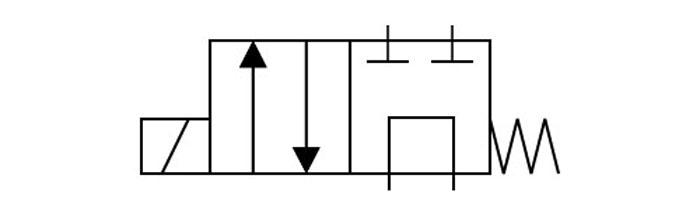

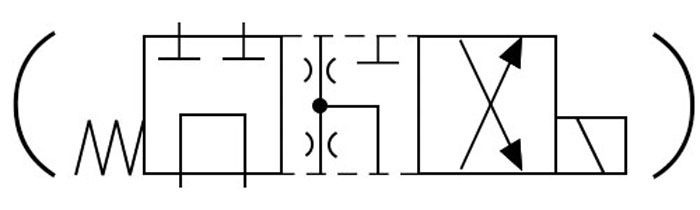

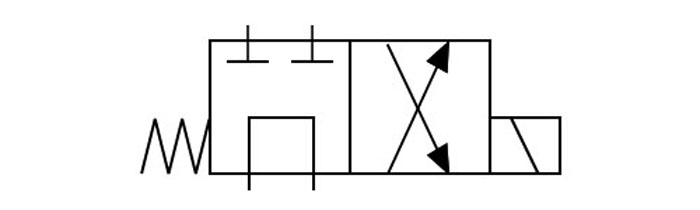

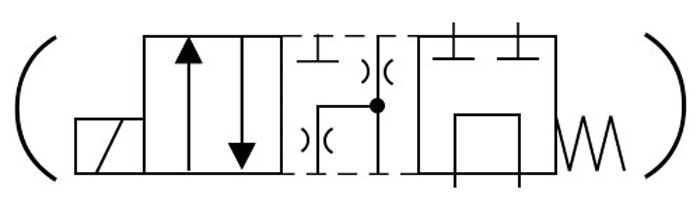

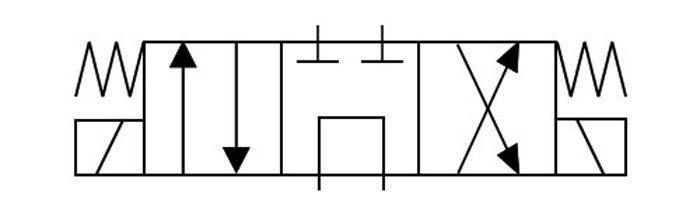

Type TA & TB valves
(back to 2-position valve circuit diagrams)▲

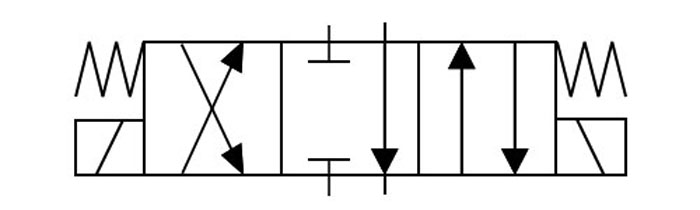

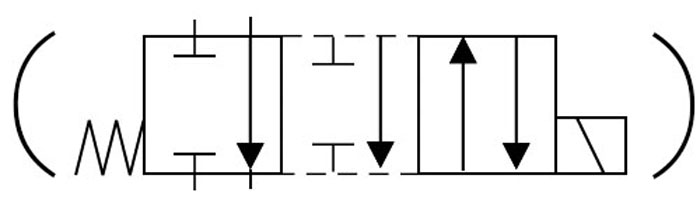

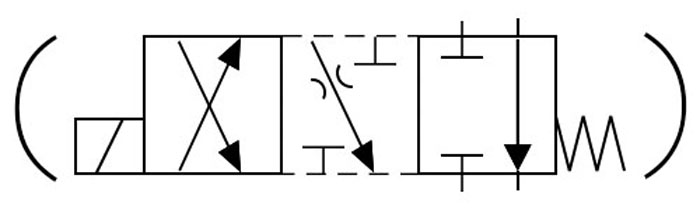

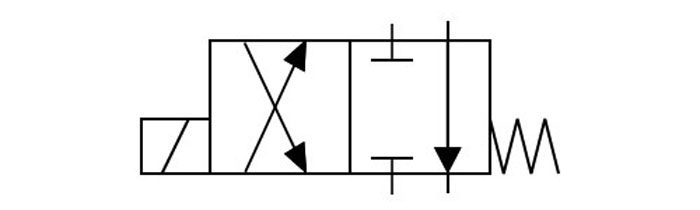

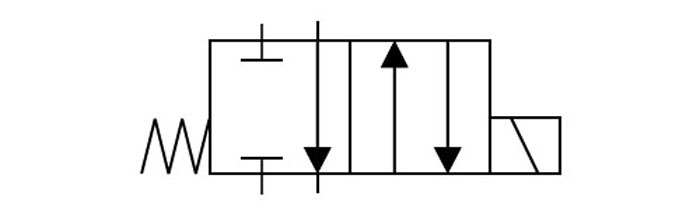

Type UA & UB valves
(back to 2-position valve circuit diagrams)▲

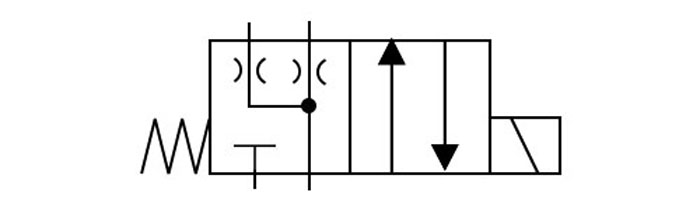

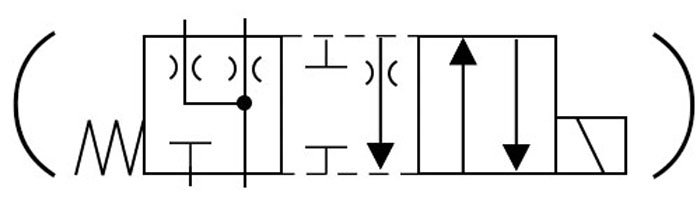

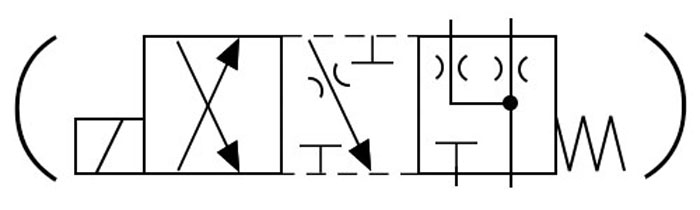

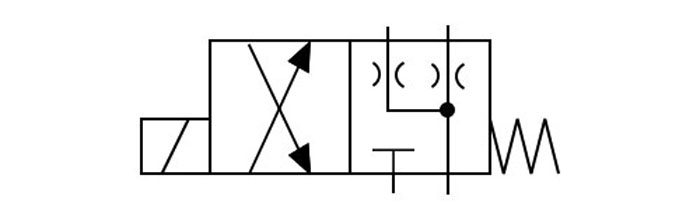

Type WA & WB valves
(back to 2-position valve circuit diagrams)▲

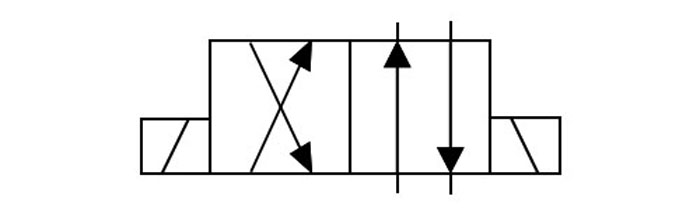

Type X valves
(back to 2-position valve circuit diagrams)▲

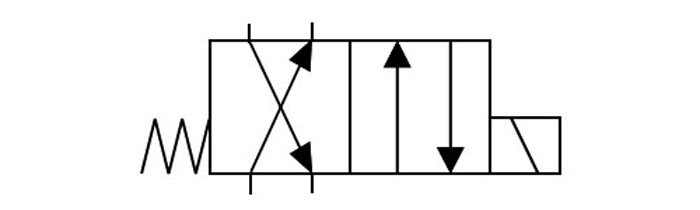

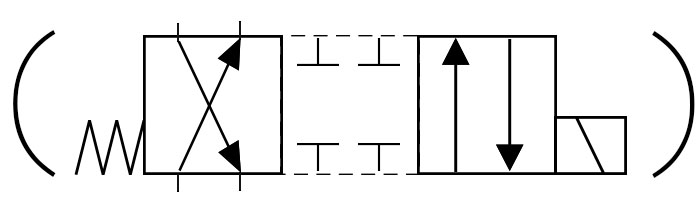

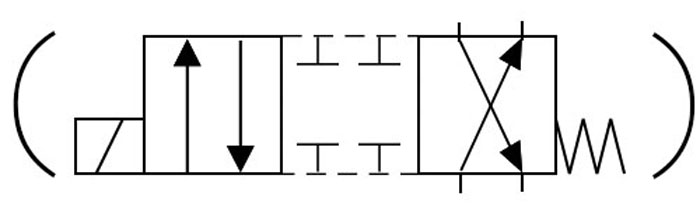

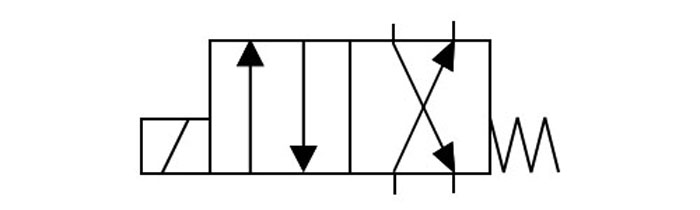

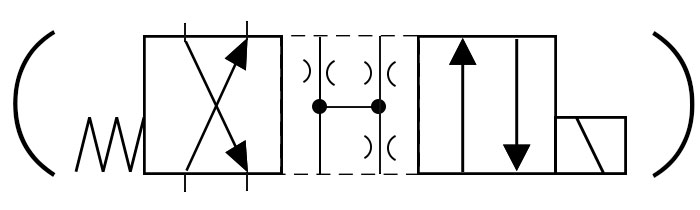

Type Y valves and variants
(back to 2-position valve circuit diagrams)▲

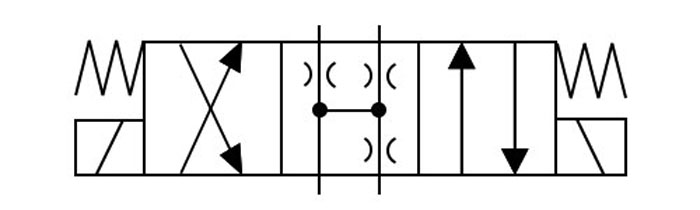

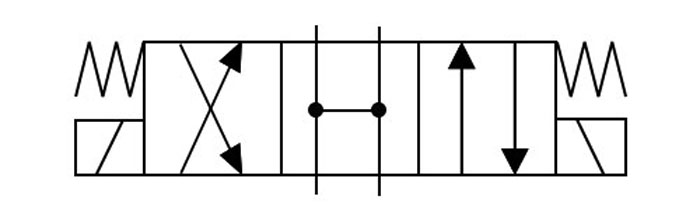

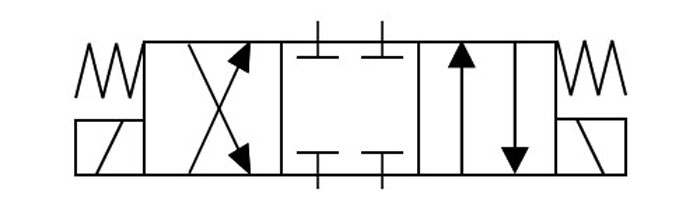

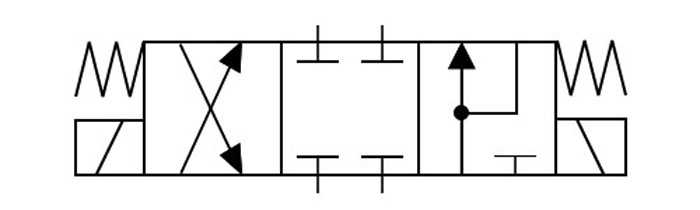

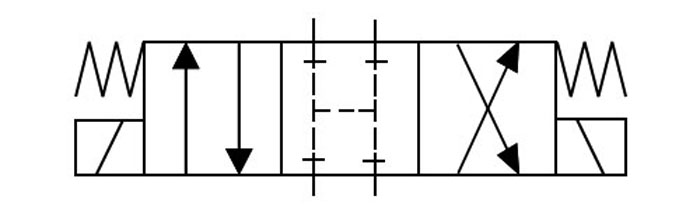

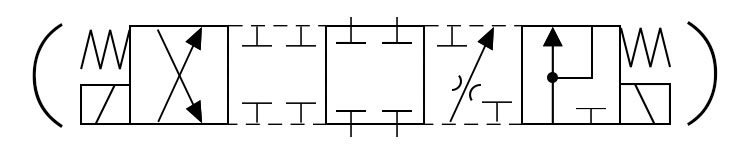

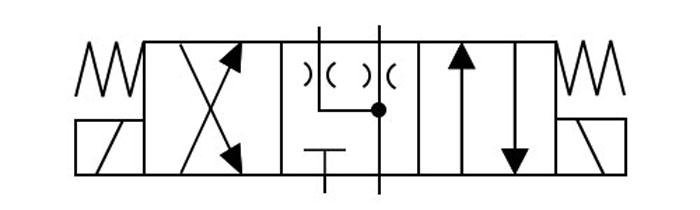

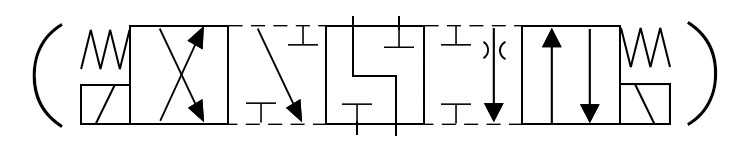

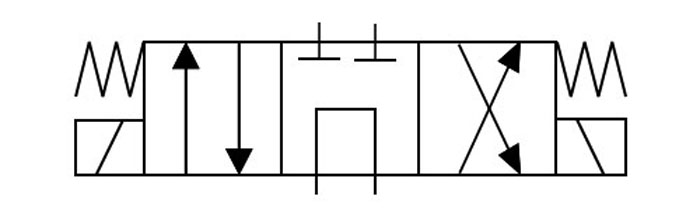

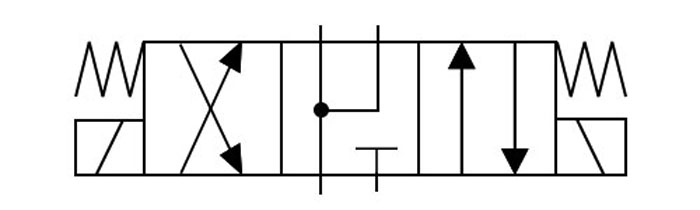

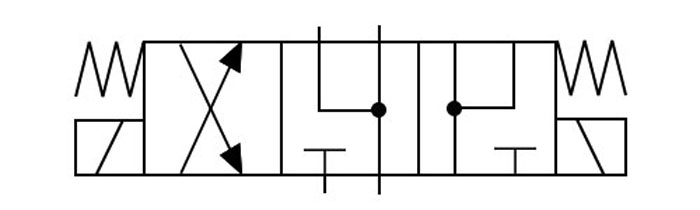

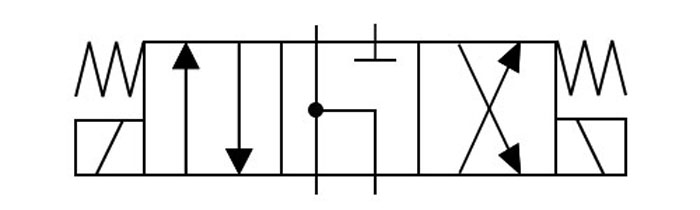

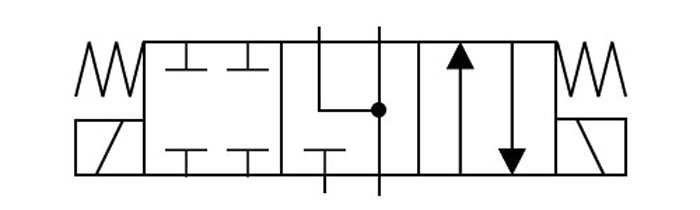

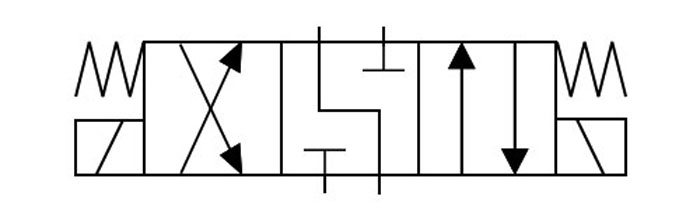

2.2 Select 3-position valves by circuit diagrams
(back to valve circuit diagrams)▲
Bosch Rexroth is the market’s leading industrial hydraulics provider, offering a wide selection of 3-position directional spool valves.
You can navigate the below tables to discover 3-position valves, then click on your selection to open a more detailed configurator.
Users already familiar with Bosch Rexroth valve diagrams can directly access your valve requirements by the diagram index.
