Select your ABB product range below

MCB

RCCB

Formula Air series
(Drawout types)

Formula Air series
(Fixed types)

EMAX 2 series
(Drawout types)

EMAX 2 series
(Fixed types)

MCB - Miniature circuit breaker


1-pole
2-pole
3-pole
4-pole

	SH200L (4.5kA) C	SH200 (6kA) C	S200 (6kA) C	S200M (10kA) C
1-pole
2-pole
3-pole
4-pole

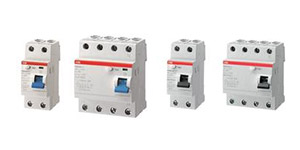

RCCB - Residual current circuit breaker


2-pole
4-pole

	F200 (10mA - 300mA)	FH200 (30mA - 300mA)
2-pole
4-pole

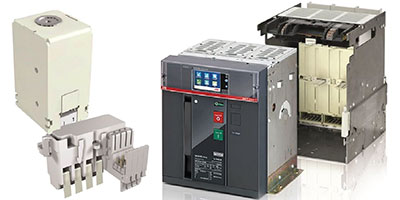

Formula Air series - switch disconnectors

Drawout types

Each combo contains : 1 drawout ACB + 1 cradle + 1 trip opening release + 1 auxiliary contact block


3-pole
4-pole

	FA2C/08 800A	FA2C/10 1000A	FA2C/12 1250A	FA2C/16 1600A
3-pole
4-pole


3-pole
4-pole

	FA2C/20 2000A	FA4C/25 2500A	FA4C/32 3200A	FA4C/40 4000A
3-pole
4-pole

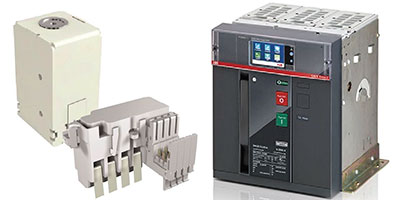

Formula Air series - switch disconnectors

Fixed Types

Each combo contains : 1 fixed type ACB + 1 trip opening release + 1 auxiliary contact block


3-pole
4-pole

	FA2C/08 800A	FA2C/10 1000A	FA2C/12 1250A	FA2C/16 1600A
3-pole
4-pole


3-pole
4-pole

	FA2C/20 2000A	FA4C/25 2500A	FA4C/32 3200A	FA4C/40 4000A
3-pole
4-pole

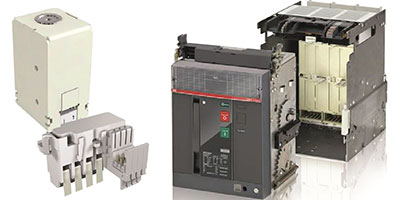

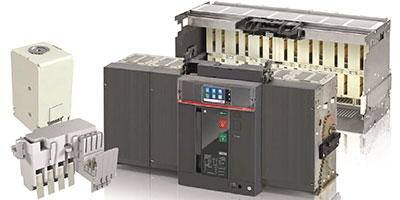

EMAX 2 series - switch disconnectors

(Without protection trip unit) - drawout type


3-pole
4-pole

	E2.2N/08 800A	E2.2N/10 1000A	E2.2N/12 1250A	E2.2N/16 1600A	E2.2N/20 2000A
3-pole
4-pole


3-pole
4-pole

	E2.2N/25 2500A	E4.2N/32 3200A	E4.2N/40 4000A	E6.2H/50 5000A	E6.2H/63 6300A
3-pole
4-pole

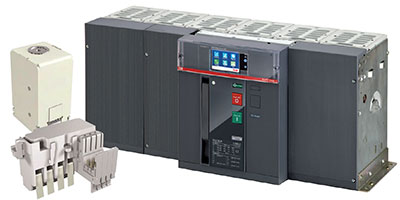

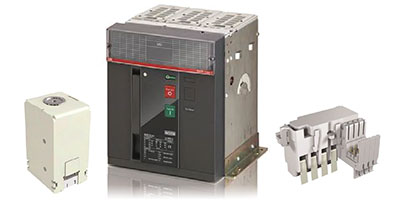

EMAX 2 series - switch disconnectors

(Without protection trip unit) - fixed type


3-pole
4-pole

	E2.2N/08 800A	E2.2N/10 1000A	E2.2N/12 1250A	E2.2N/16 1600A	E2.2N/20 2000A
3-pole
4-pole


3-pole
4-pole

	E2.2N/25 2500A	E4.2N/32 3200A	E4.2N/40 4000A	E6.2H/50 5000A	E6.2H/63 6300A
3-pole
4-pole
